Toyota Corolla (UKP)
2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe
Supported model
Data version 2022-12

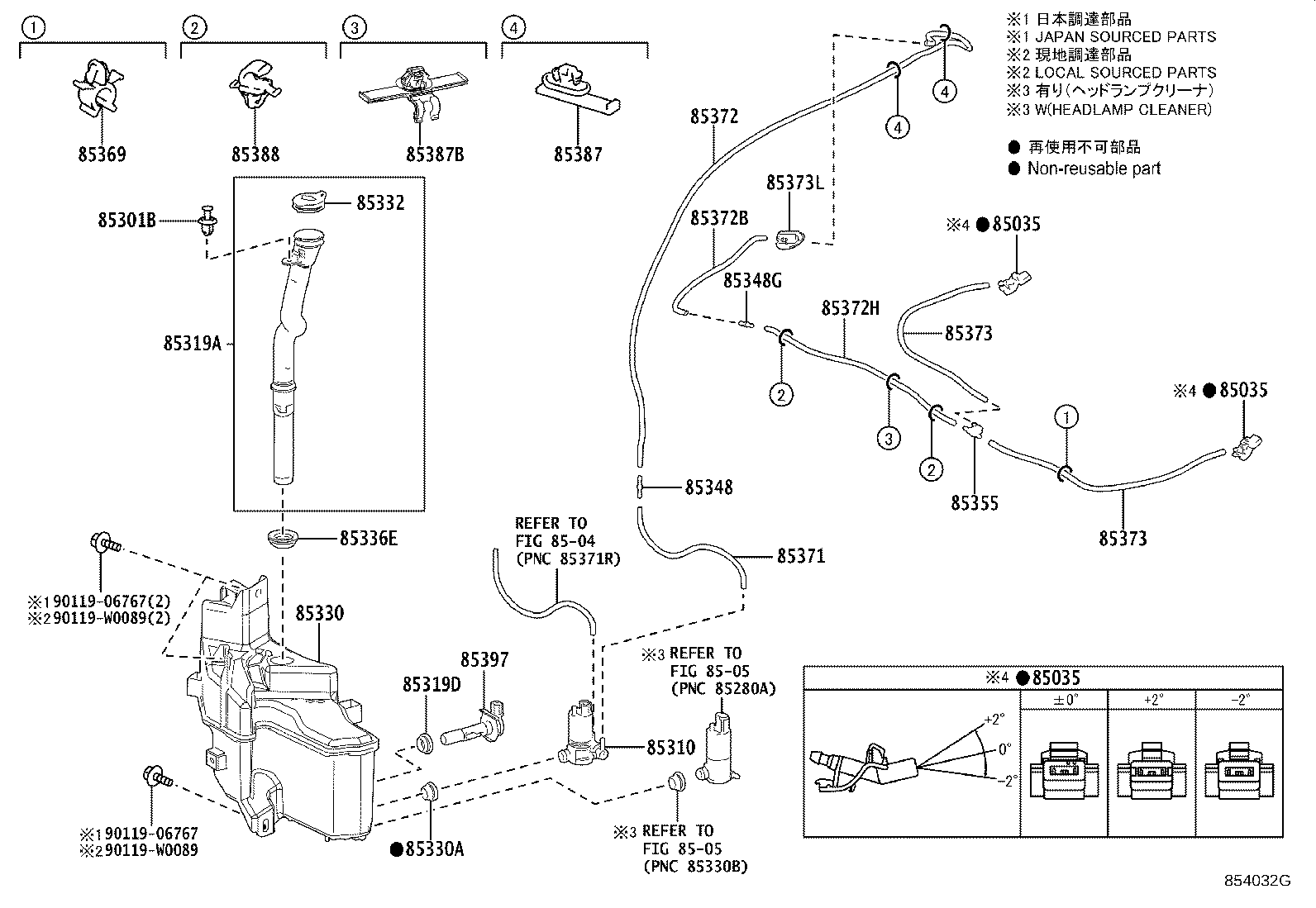

Windshield Washer
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85035 | Nozzle Sub-assy, Washer |
| 85301B | Clip, Washer |
| 85310 | Motor And Pump Assy, Windshield Washer |
| 85319A | Hose, Inlet |
| 85319D | Packing, Front Washer |
| 85330 | Jar Assy, Windshield Washer |
| 85330A | Bush, Windshield Washer Jar |
| 85332 | Cap, Windshield Washer Jar |
| 85336E | Packing, Windshield Washer Inlet Hose |
| 85348 | Joint, Windshield Washer Hose, NO.1 |
| 85348G | Joint, Windshield Washer Hose, NO.2 |
| 85355 | Valve, Windshield Washer Hose |
| 85369 | Clamp |
| 85371 | Hose, Windshield Washer (FROM MOTOR TO JOINT) |
| 85372 | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1 |
| 85372B | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.2 |
| 85372H | Hose, Windshield Washer (FROM JOINT TO JOINT), NO.3 |
| 85373 | Hose, Windshield Washer (FROM JOINT TO NOZZLE) |
| 85373L | Grommet, Washer |
| 85387 | Clamp NO.1 (FOR WINDSEIELD WASHER) |
| 85387B | Clamp, Washer, NO.3 |
| 85388 | Clamp NO.2 (FOR WINDSEIELD WASHER) |
| 85397 | Switch Assy,Level Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
