Rear Washer

15 part groups · 2 illustrations

Illustrations

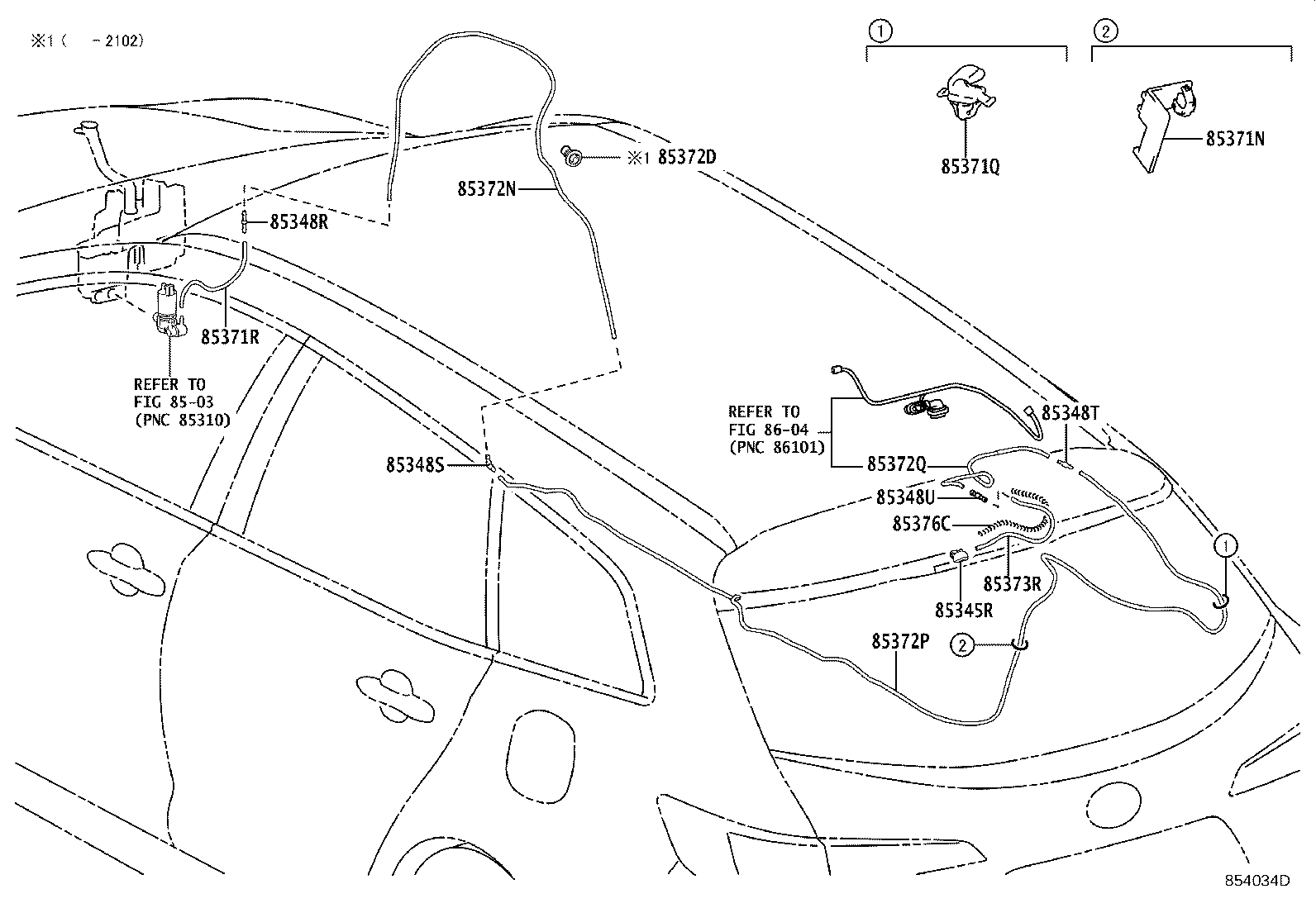

Figure 854033D 854033D 2019-01 → — Figure 854034D 854034D 2019-02 → —

Part groups

PNCDescription
85345R Nozzle, Rear Washer
85348R Joint, Rear Washer Hose, NO.1
85348S Joint, Rear Washer Elbow, NO.1
85348T Joint, Rear Washer Hose, NO.2
85348U Joint, Rear Washer Hose, NO.3
85371N Clamp, Rear Washer Hose
85371P Clamp, Rear Washer Hose, NO.2
85371Q Clamp, Rear Washer Hose, NO.3
85371R Hose, Rear Washer (FROM MOTOR TO JOINT)
85372D Grommet, Rear Washer Hose
85372N Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
85372P Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
85372Q Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
85373R Hose, Rear Washer (FROM JOINT TO NOZZLE)
85376C Spring, Washer Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
