Toyota Corolla (UKP)

2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

5 part groups · 12 illustrations

Illustrations

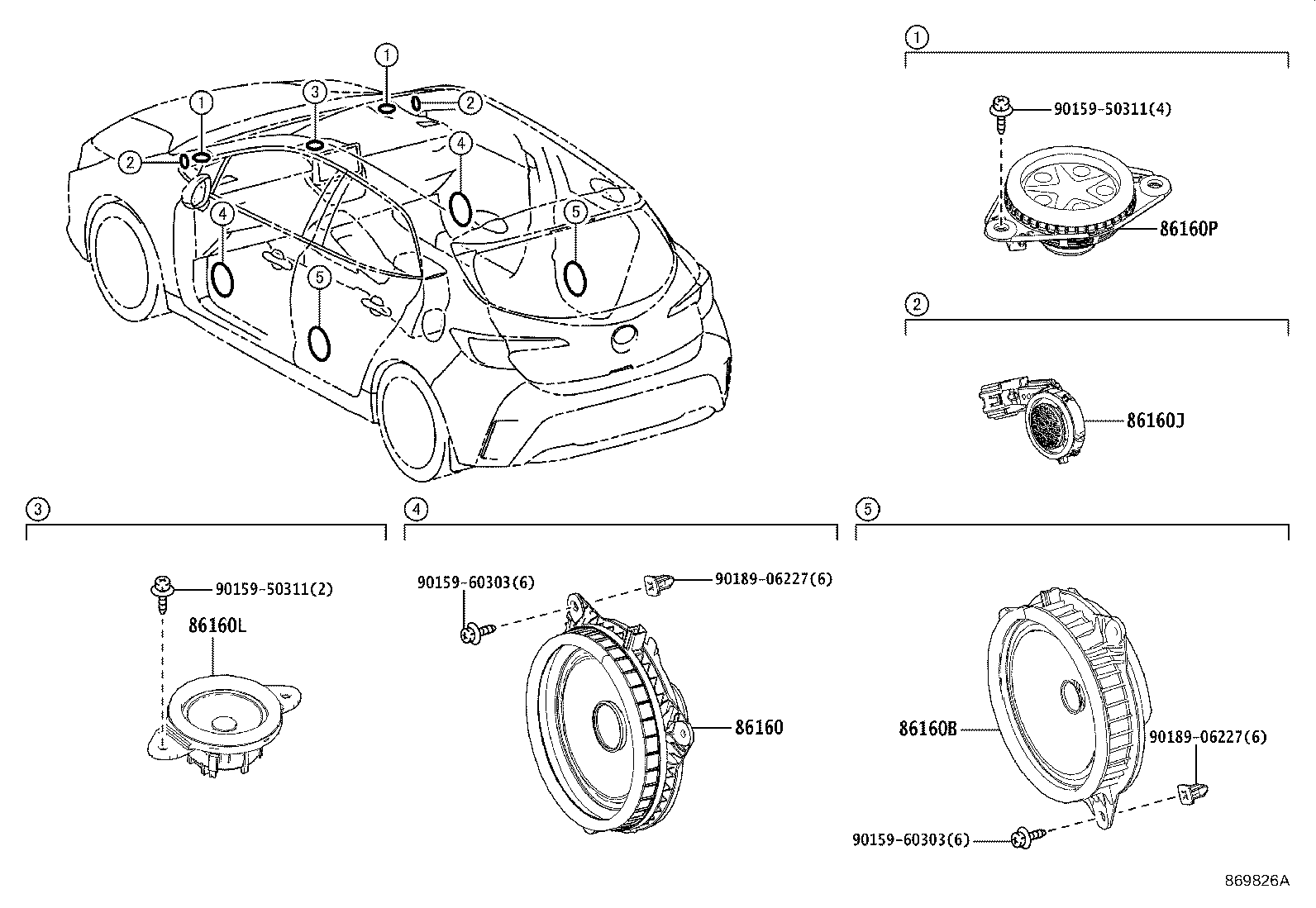

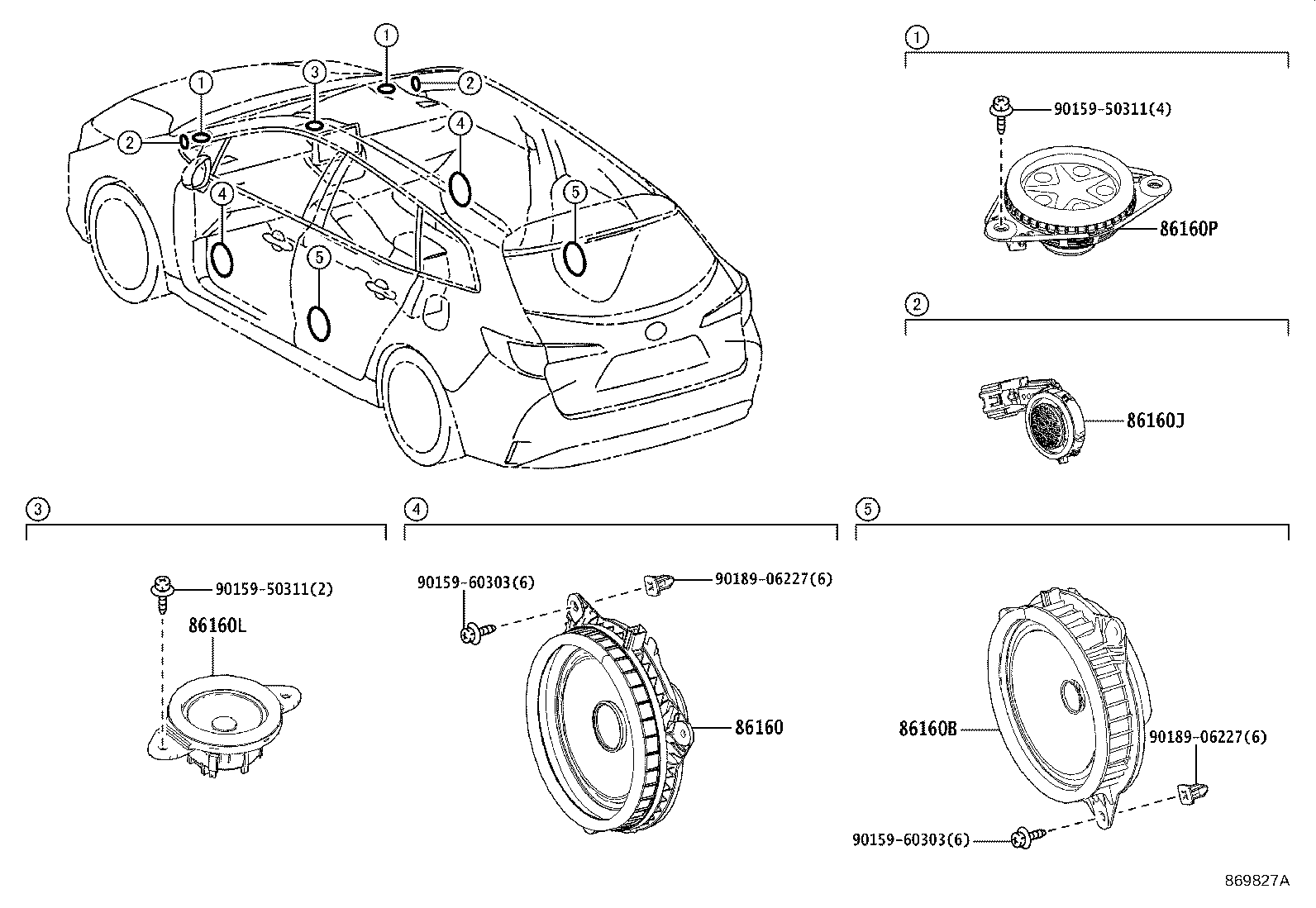

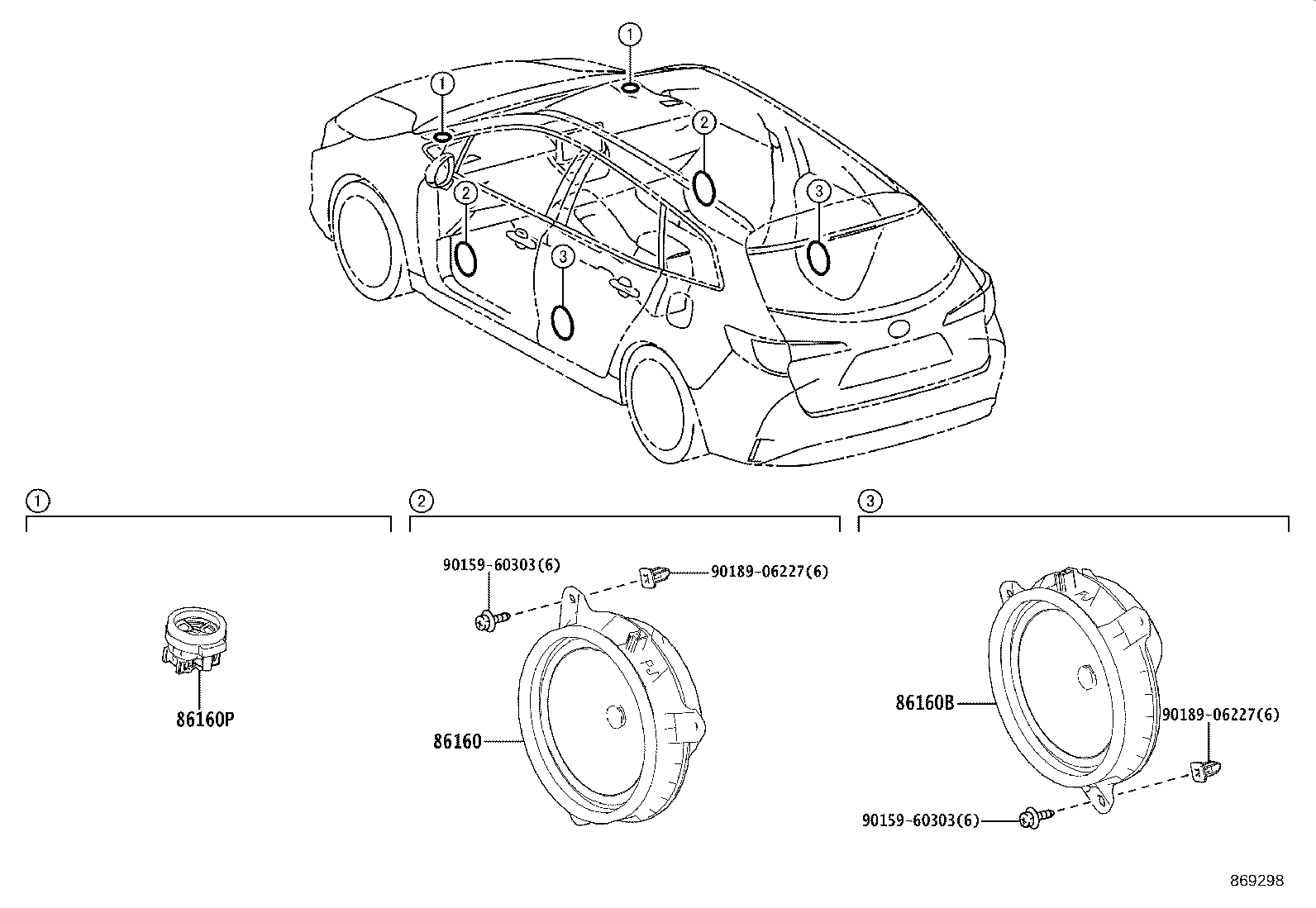

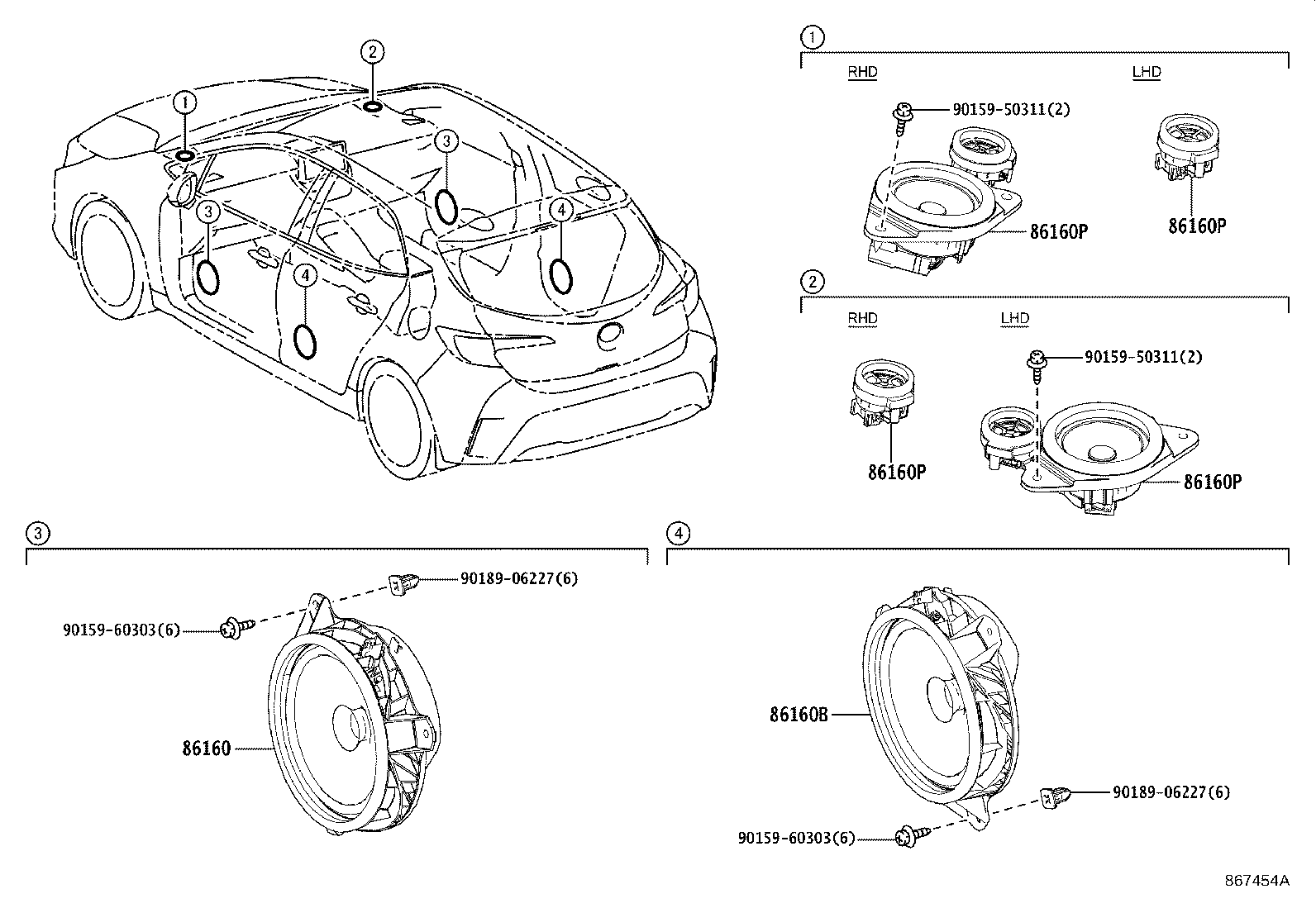

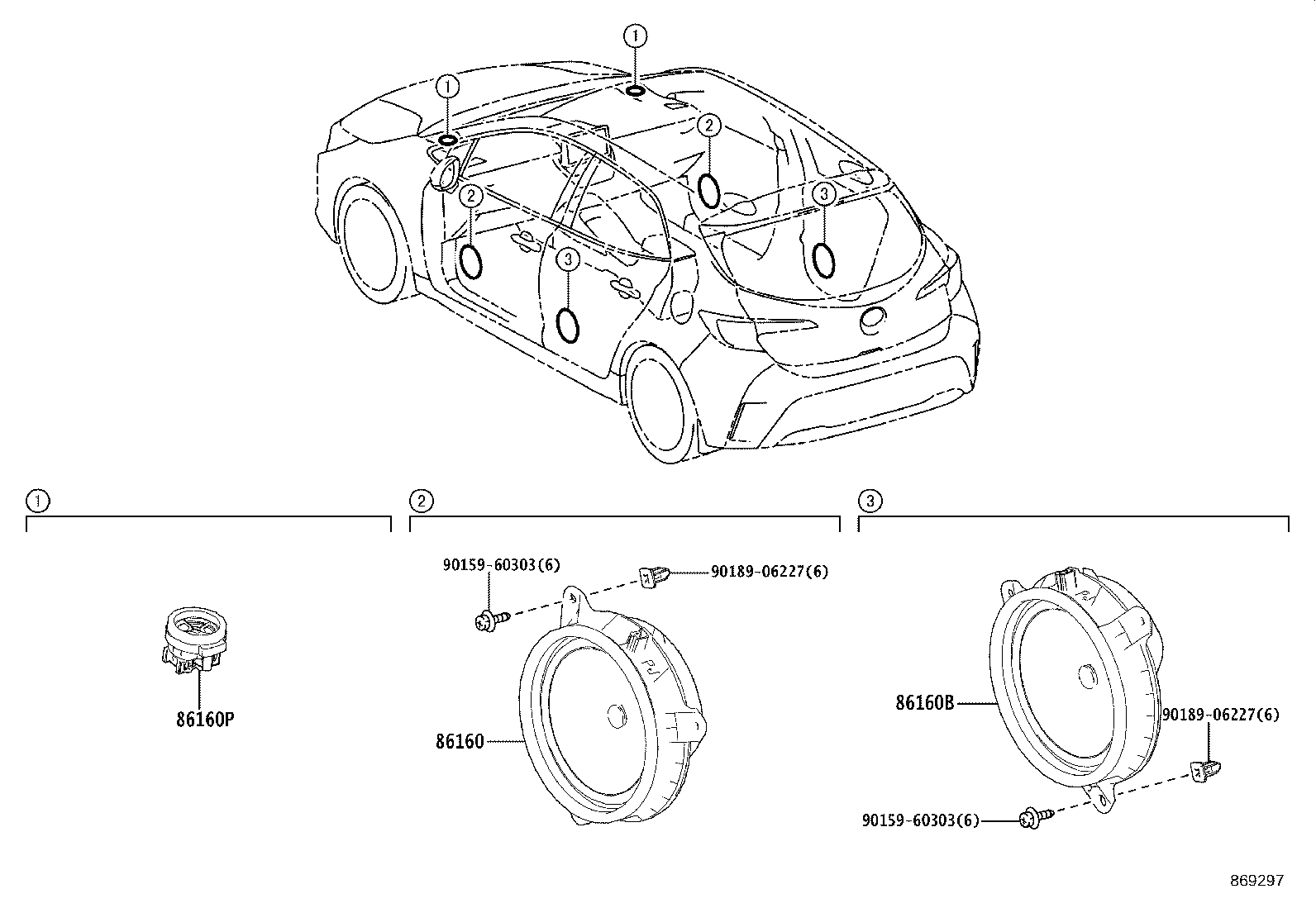

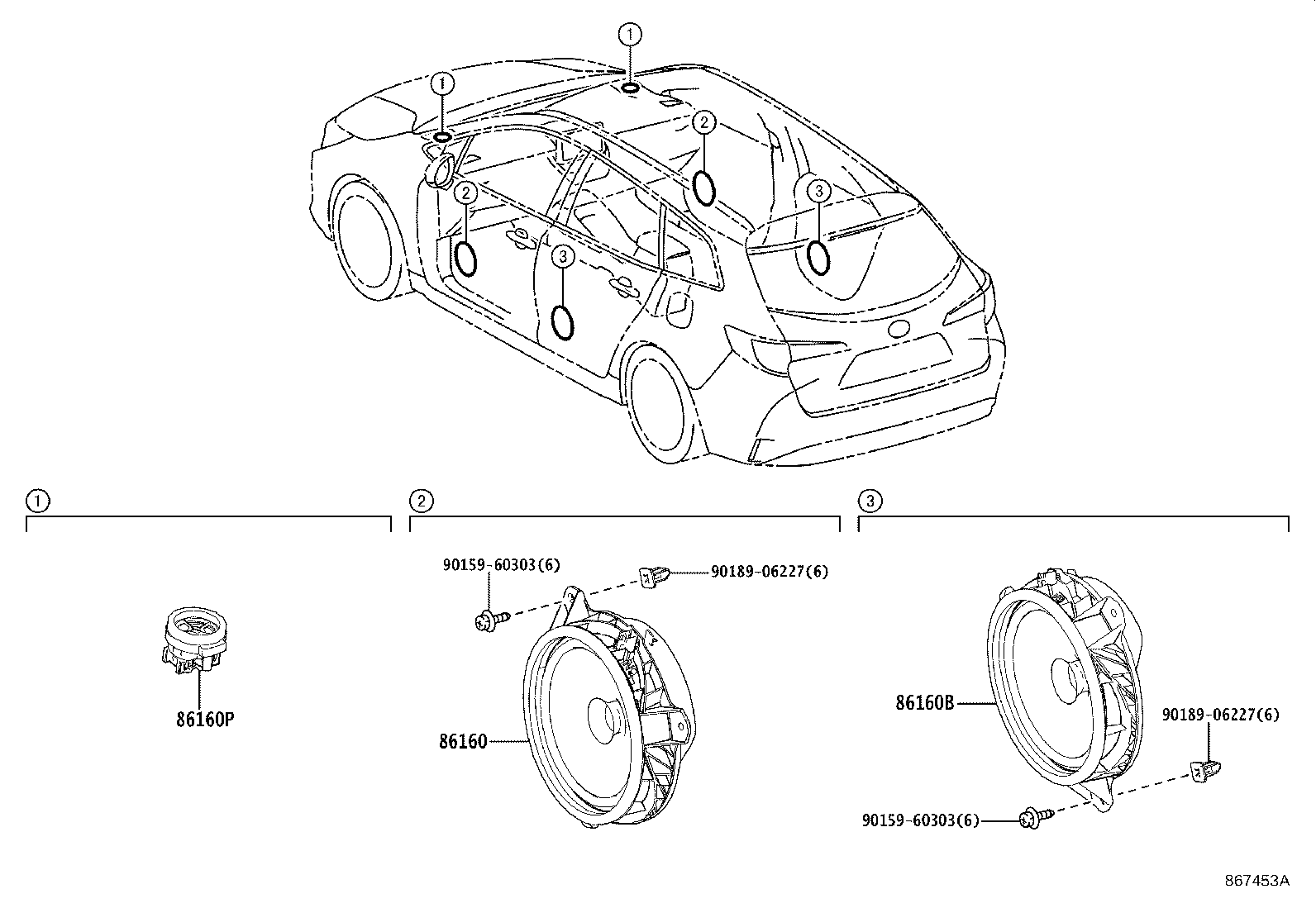

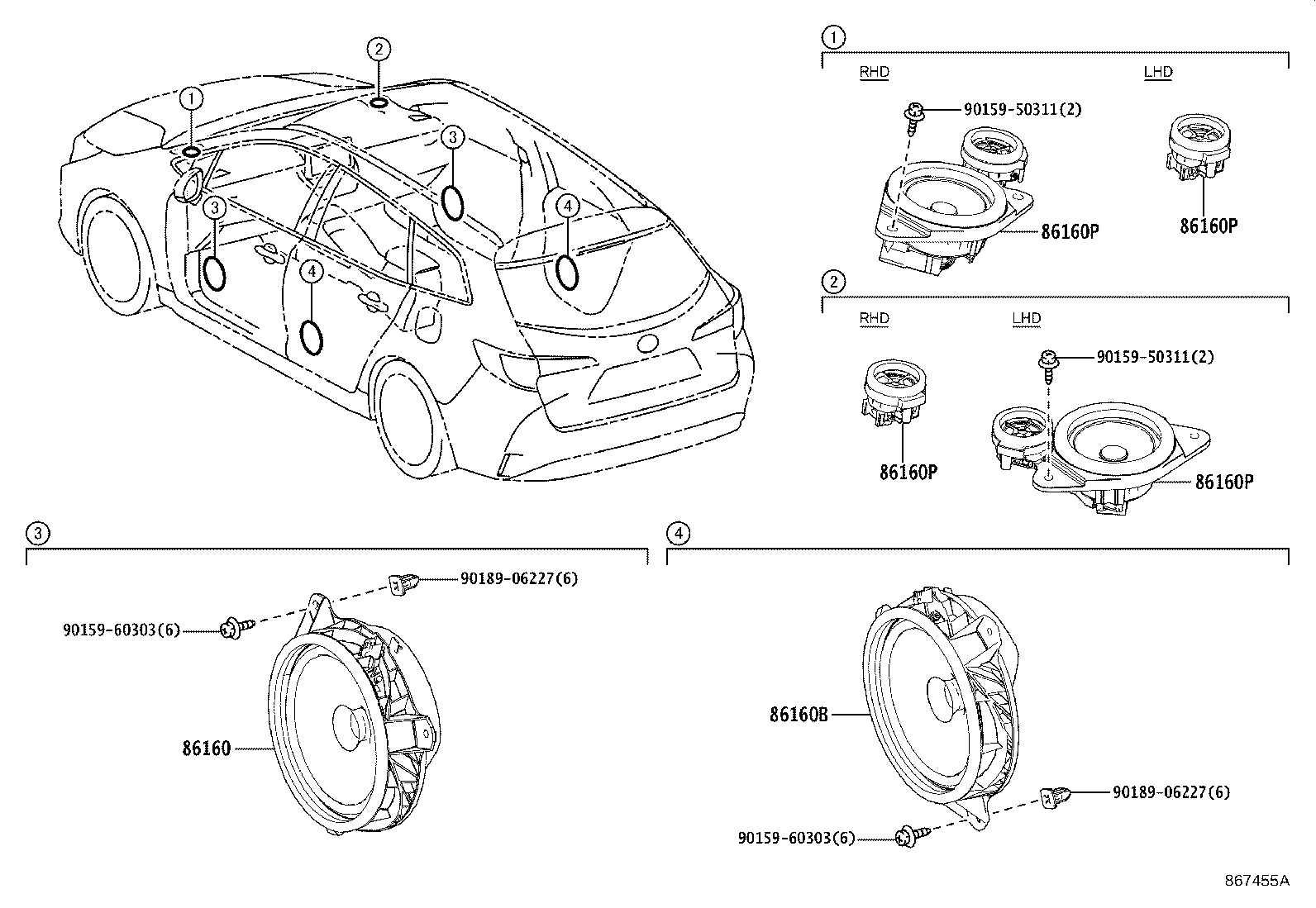

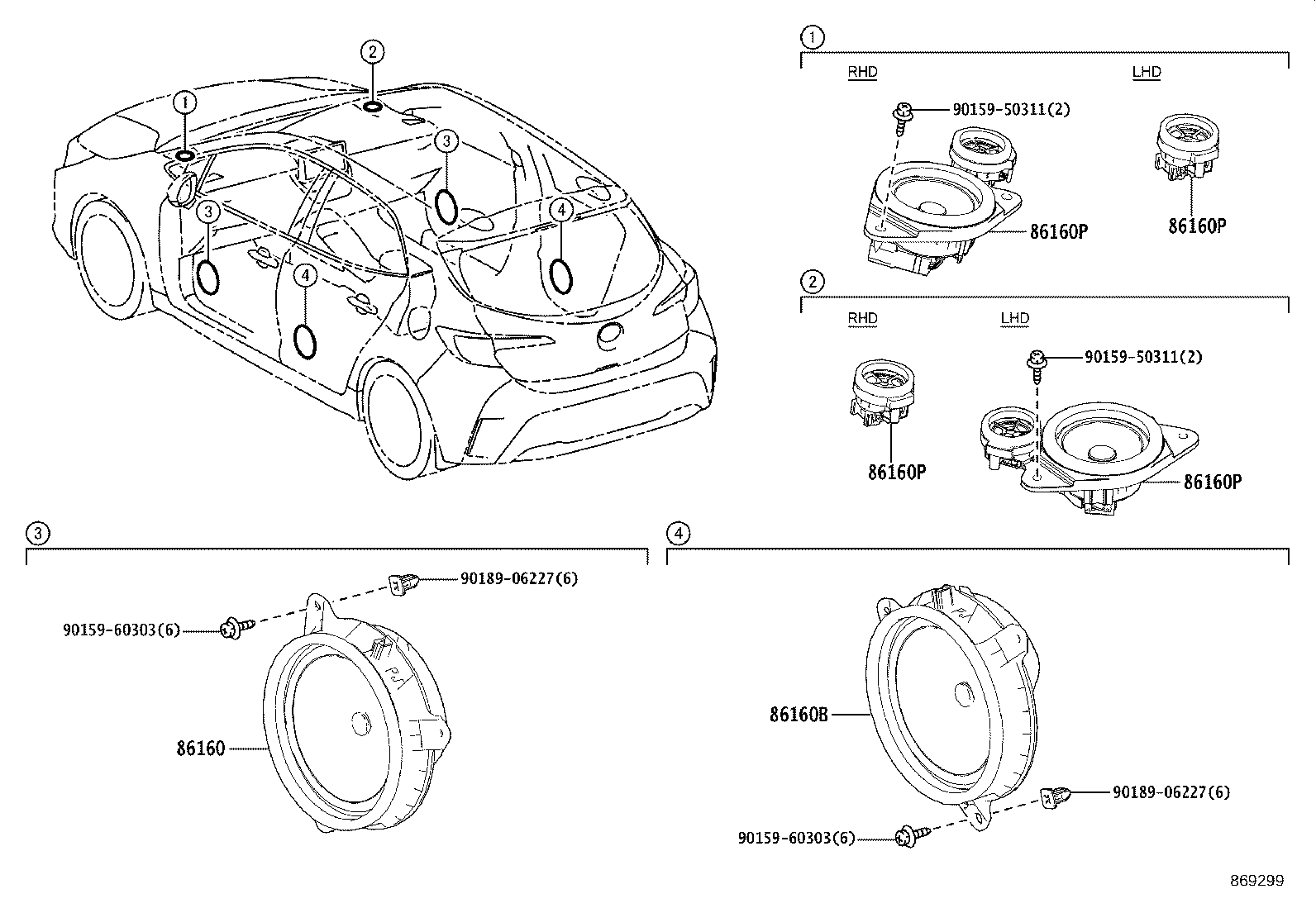

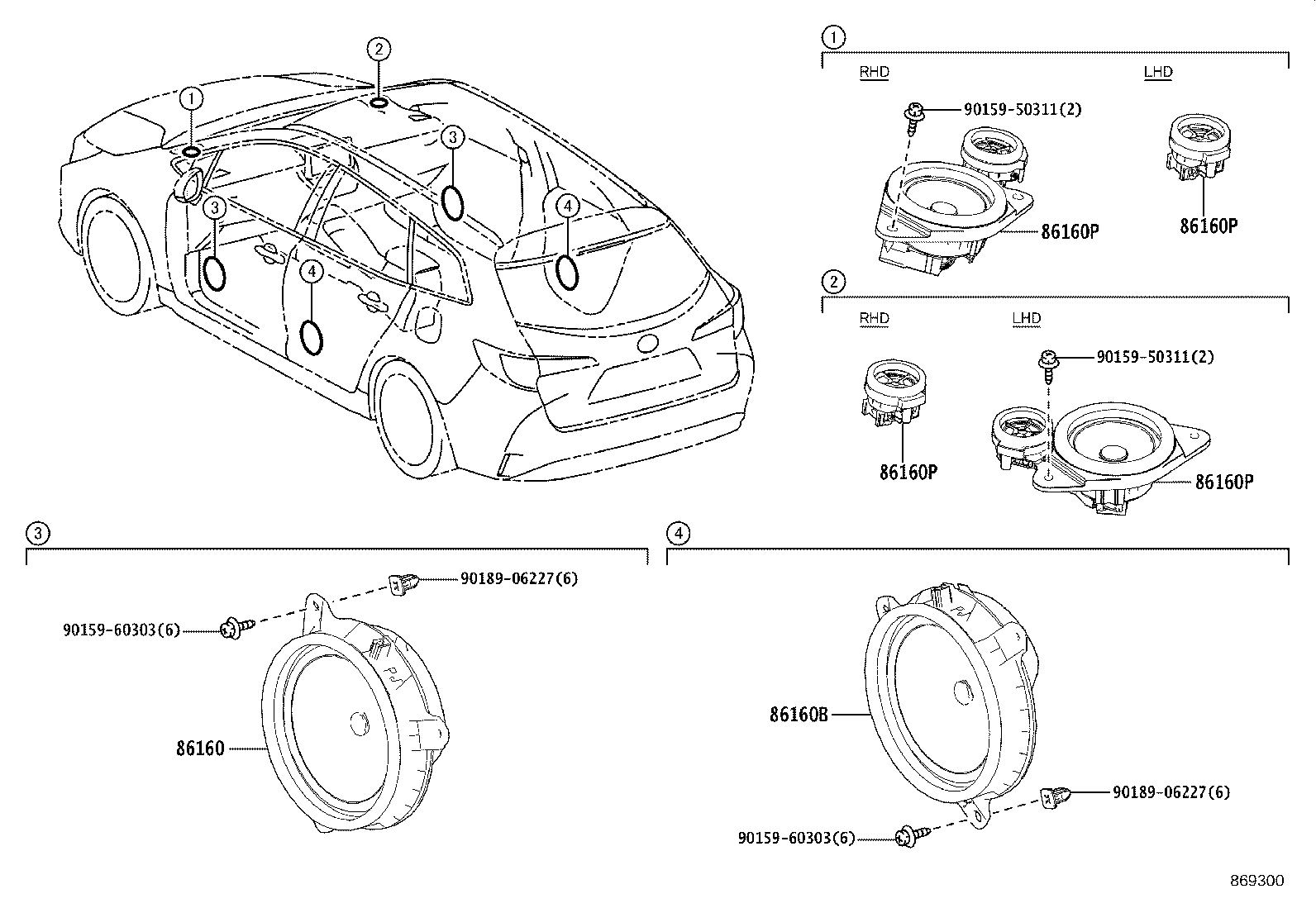

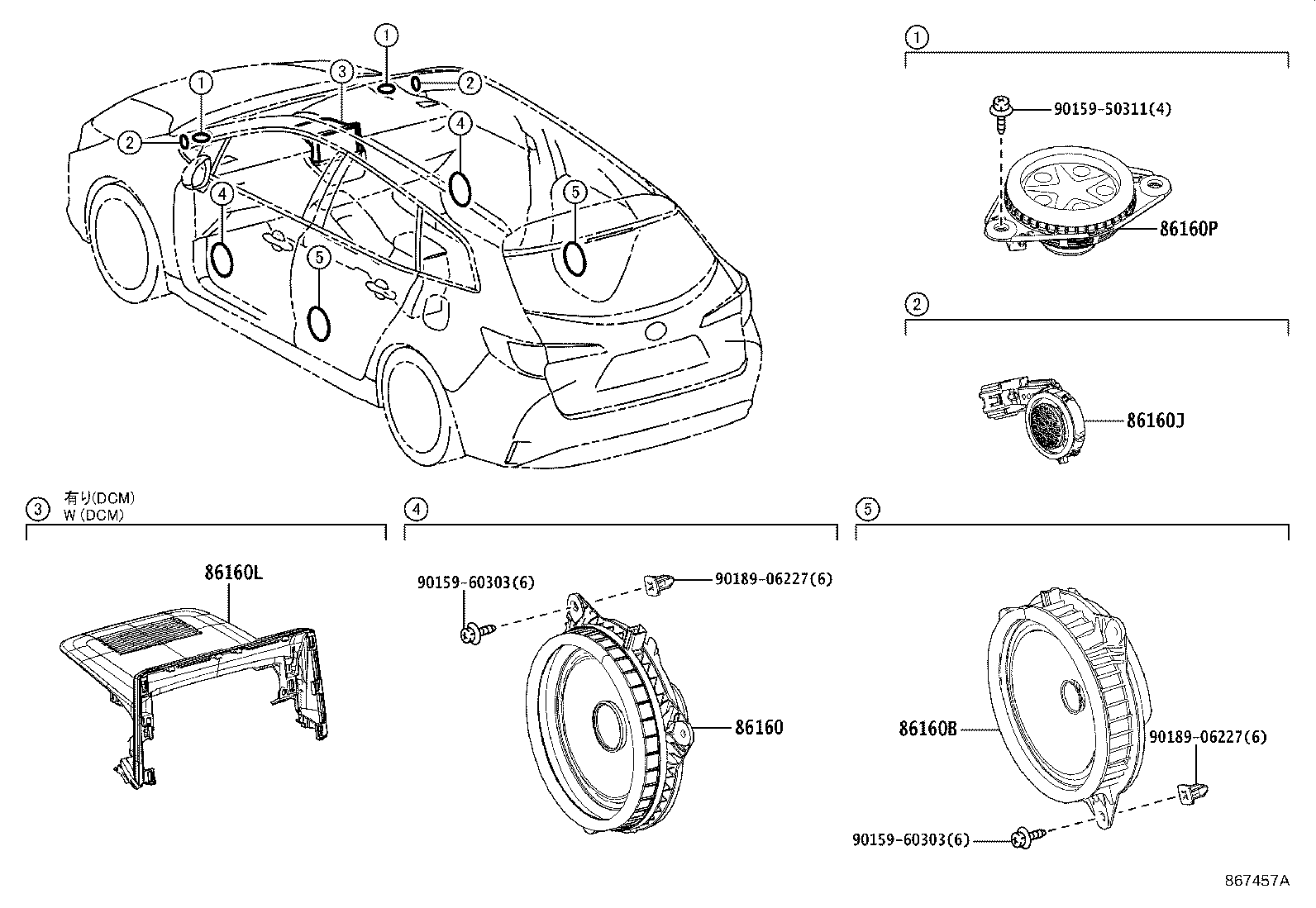

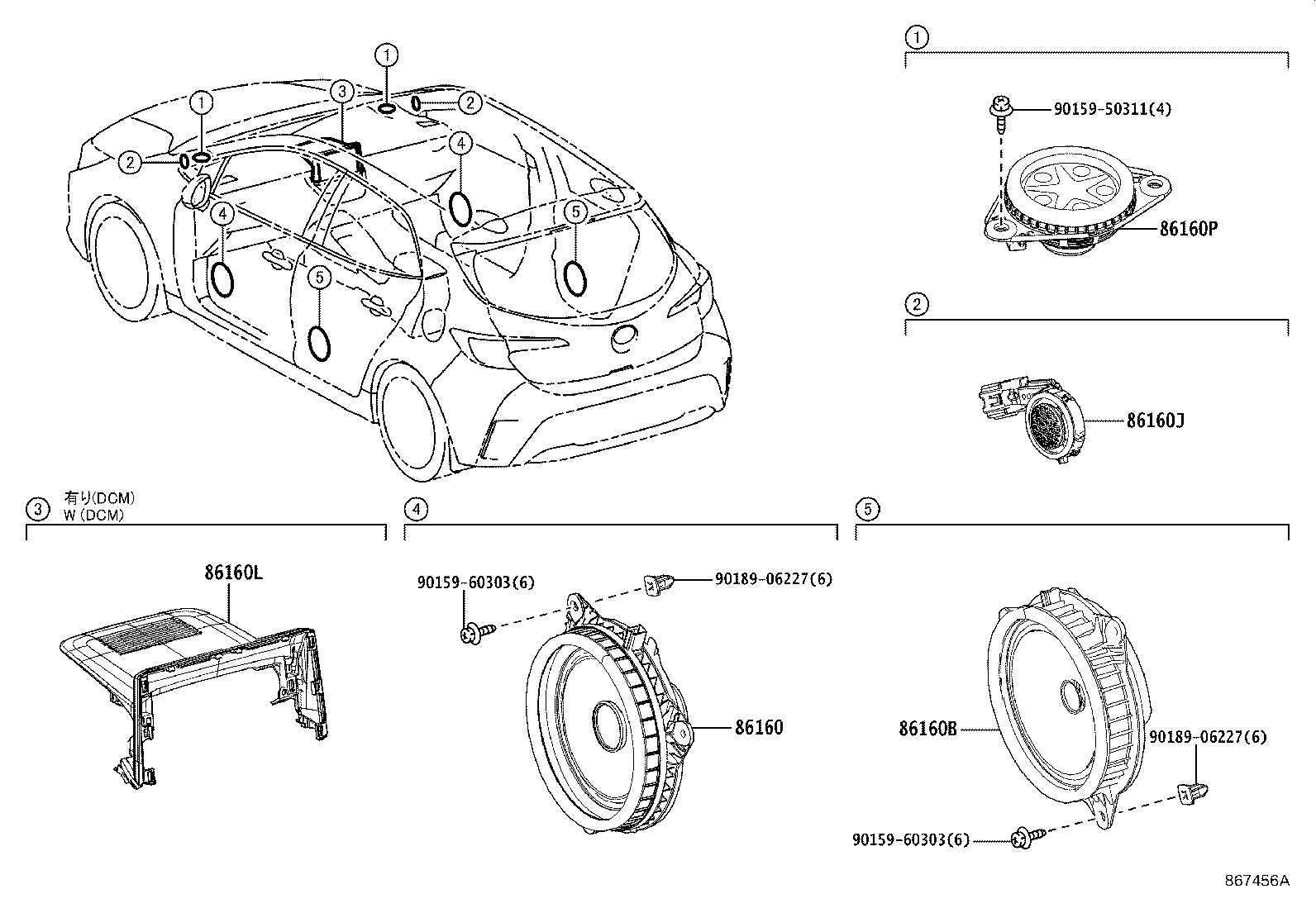

Figure 867452A 867452A 2019-01 → 2022-04 Figure 869297 869297 2022-04 → — Figure 867453A 867453A 2019-01 → 2022-04 Figure 869298 869298 2022-04 → — Figure 867454A 867454A 2019-01 → 2022-04 Figure 869299 869299 2022-04 → — Figure 867455A 867455A 2019-01 → 2022-04 Figure 869300 869300 2022-04 → — Figure 867456A 867456A 2019-01 → — Figure 867457A 867457A 2019-01 → — Figure 869826A 869826A 2023-01 → — Figure 869827A 869827A 2023-01 → —

Part groups

PNCDescription
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160J Speaker Assy, Front NO.3
86160L Speaker Assy, Front NO.4
86160P Speaker Assy, Front NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
