Toyota Corolla (UKP)

2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

10 part groups · 2 illustrations

Illustrations

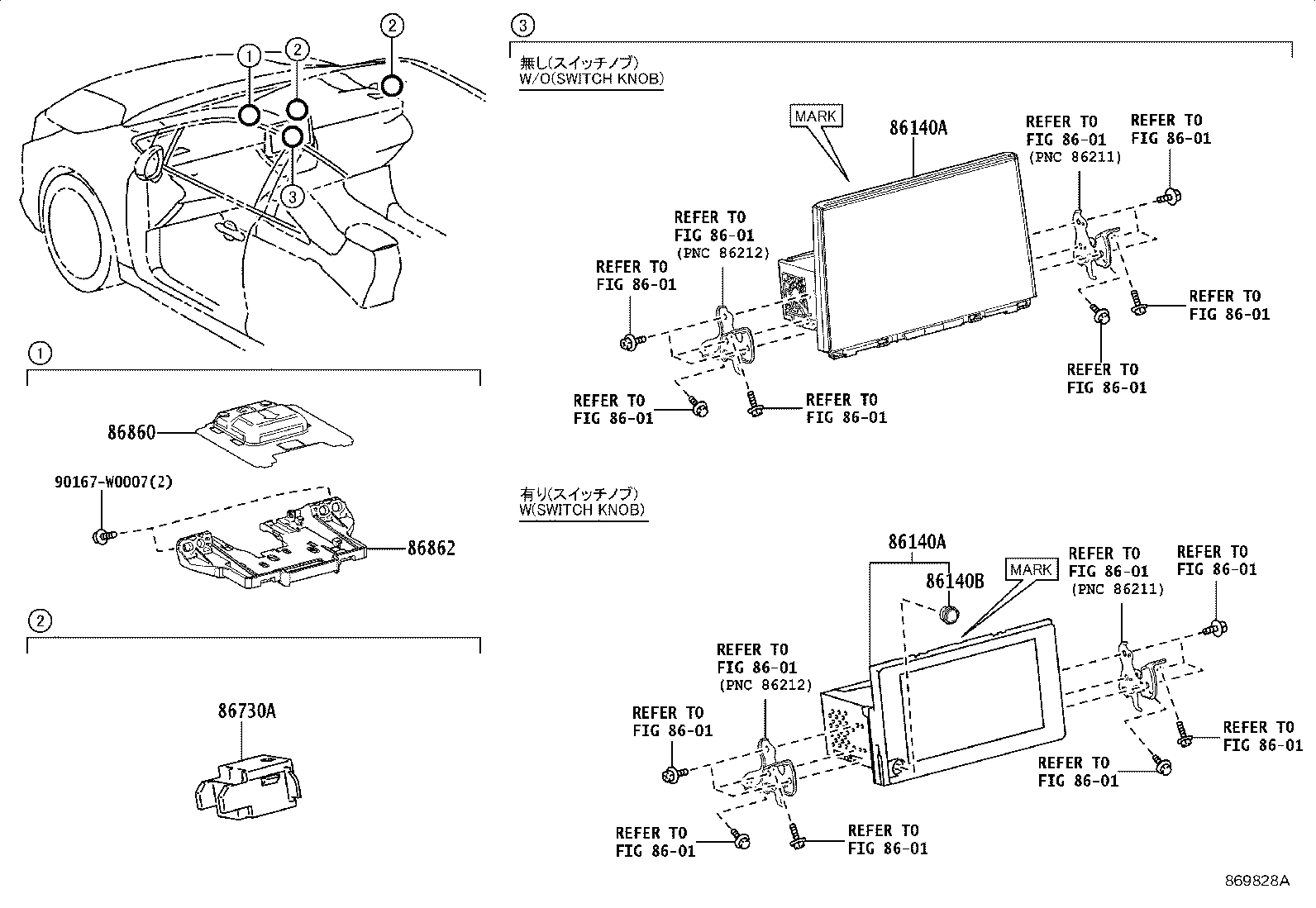

Figure 867451B 867451B 2019-01 → — Figure 869828A 869828A 2023-01 → —

Part groups

PNCDescription
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86457 Bracket, Multi-media Module NO.1
86457A Bracket, Multi-media Module NO.2
86730A Microphone Assy, Telephone
86841 Computer, Navigation
86842 Wire, Navigation, NO.1
86843A Cover, Navigation Computer
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
