Toyota Corolla (UKP)

2019-01 → present · chassis MZEH1#,NRE210,ZWE21# · catalogue 166230 · Europe

Supported model Data version 2022-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

10 part groups · 2 illustrations

Illustrations

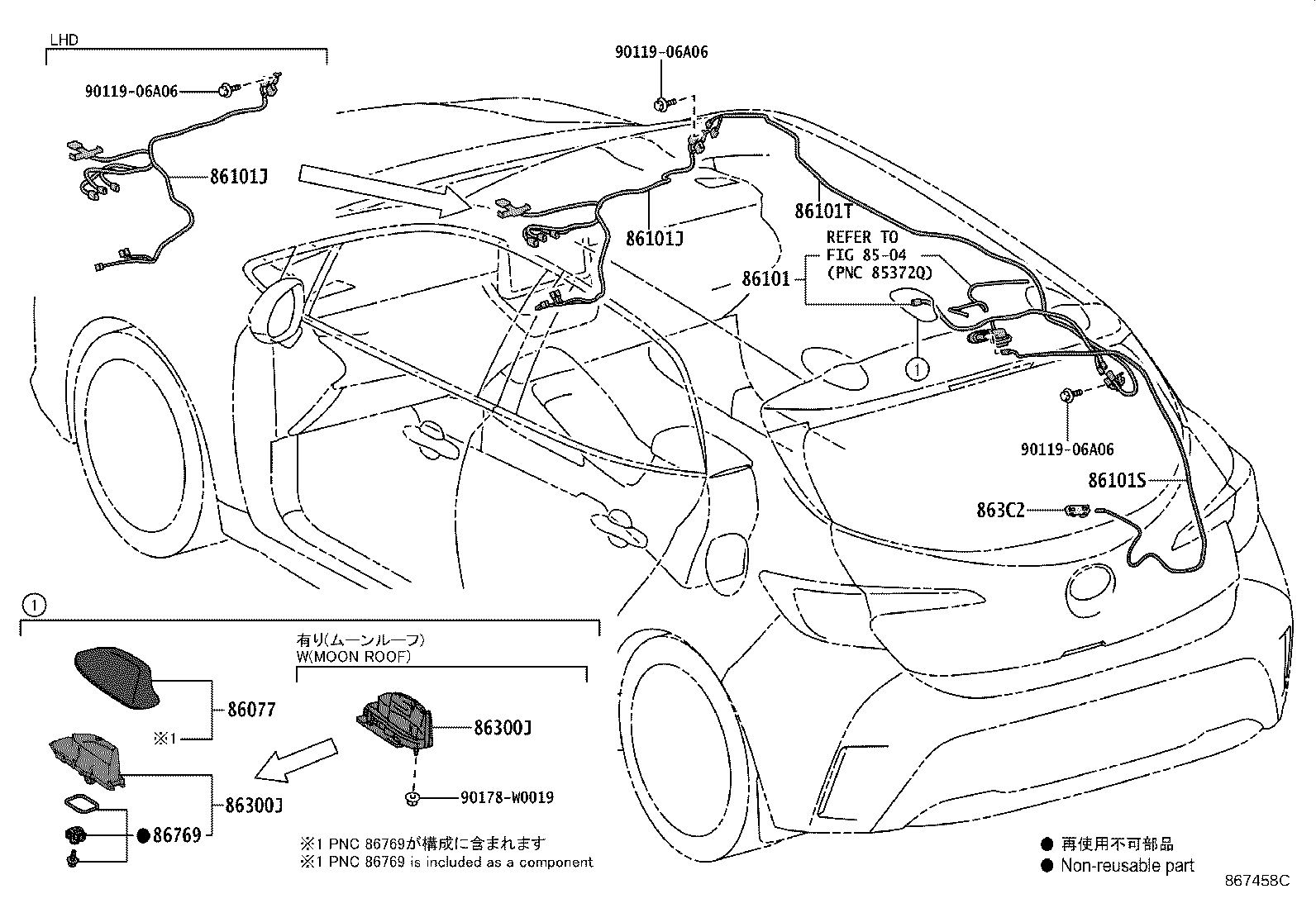

Figure 869400A 869400A 2019-01 → — Figure 867458C 867458C 2019-01 → —

Part groups

PNCDescription
86077 Cover Kit, Antenna
86101 Cord Sub-assy, Antenna
86101J Cord Sub-assy, Antenna, NO.2
86101Q Cord Sub-assy, Antenna, NO.4
86101S Cord Sub-assy, Antenna
86101T Cord Sub-assy, Antenna
86300J Antenna Assy, Roof
863C0A Antenna Assy, Digital Audio Broadcasting
863C2 Base, Digital Audio Broadcasting Antenna
86769 Housing, Roof Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
