Heating & Air Conditioning - Water Piping

13 part groups · 6 illustrations

Illustrations

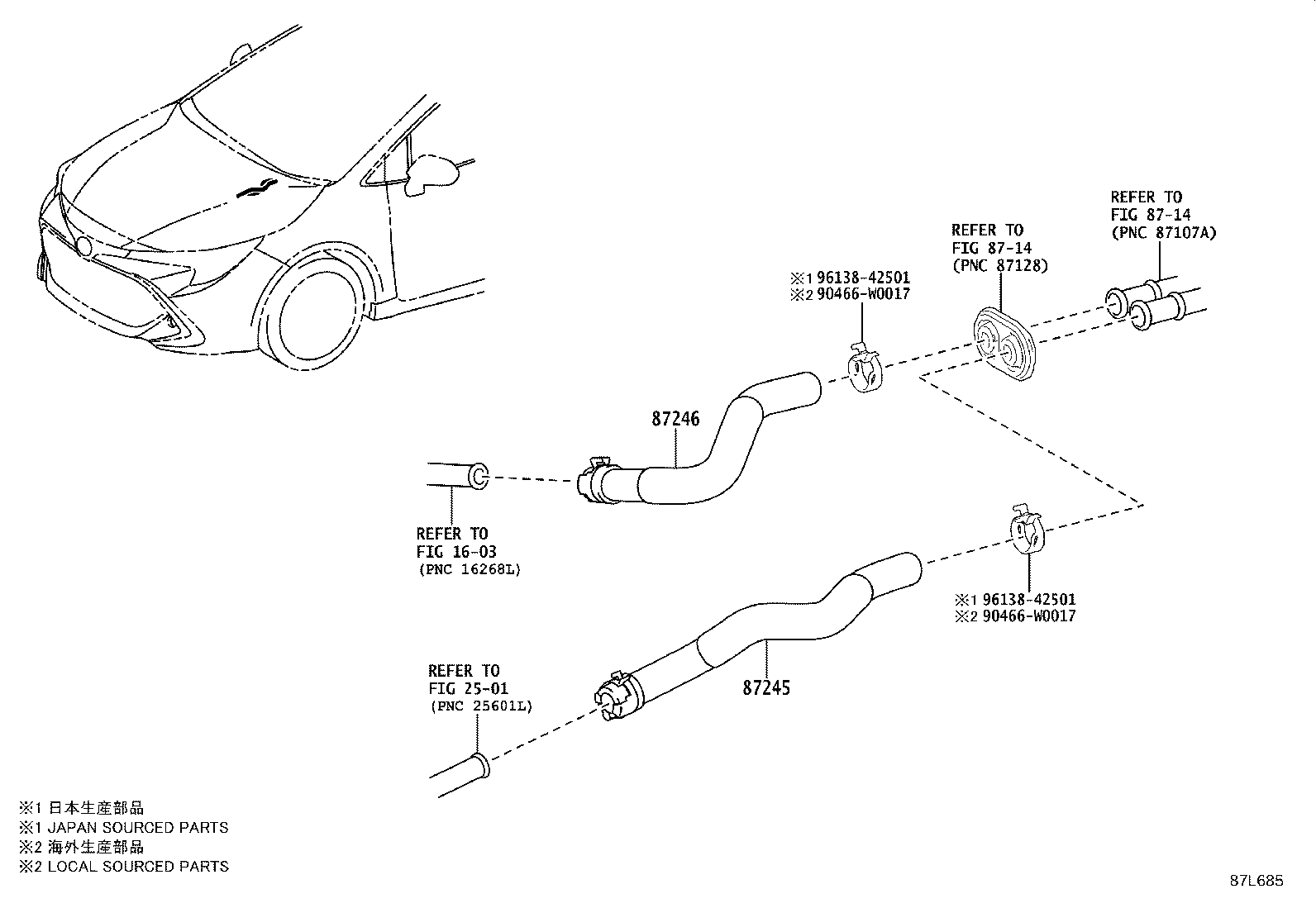

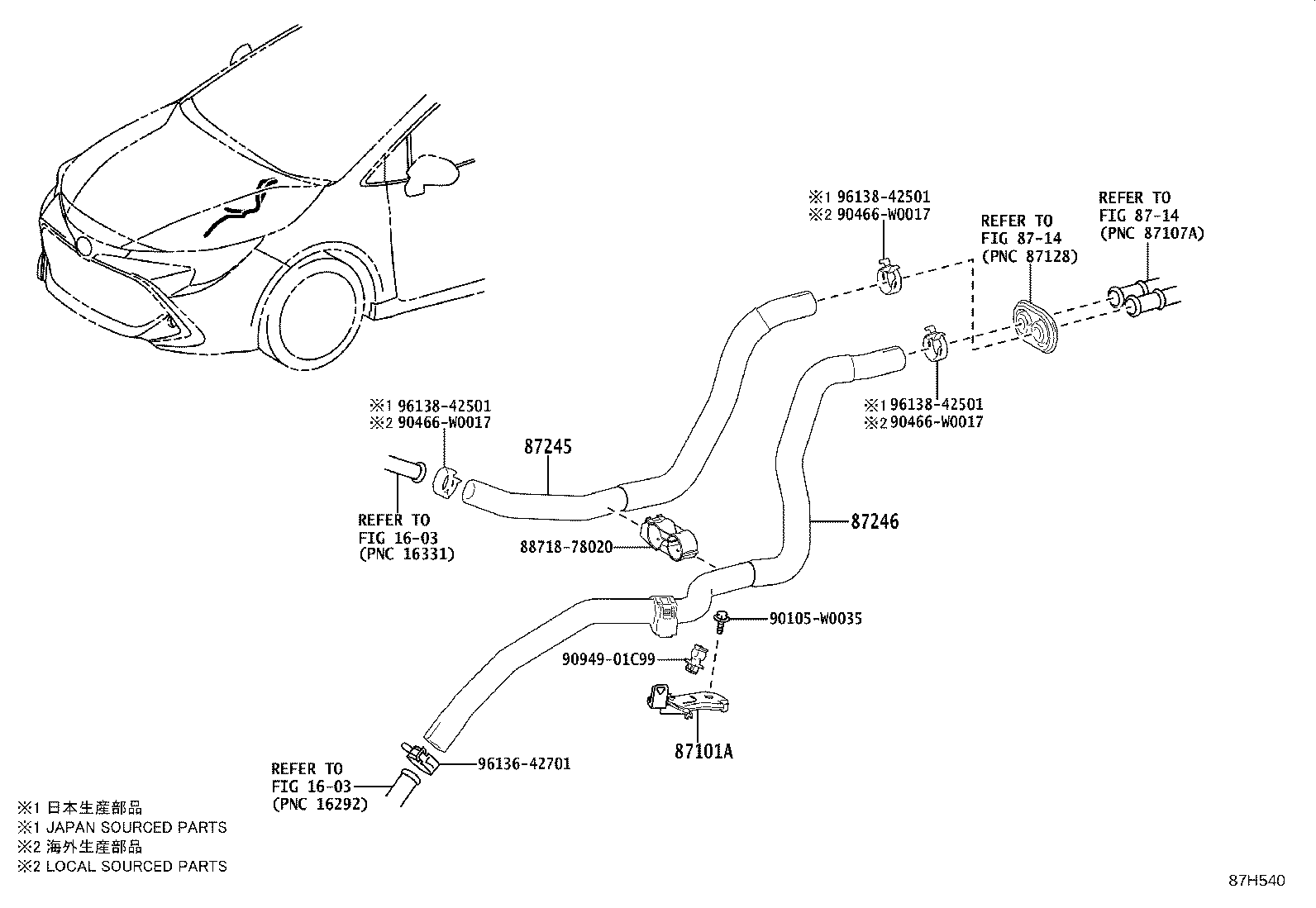

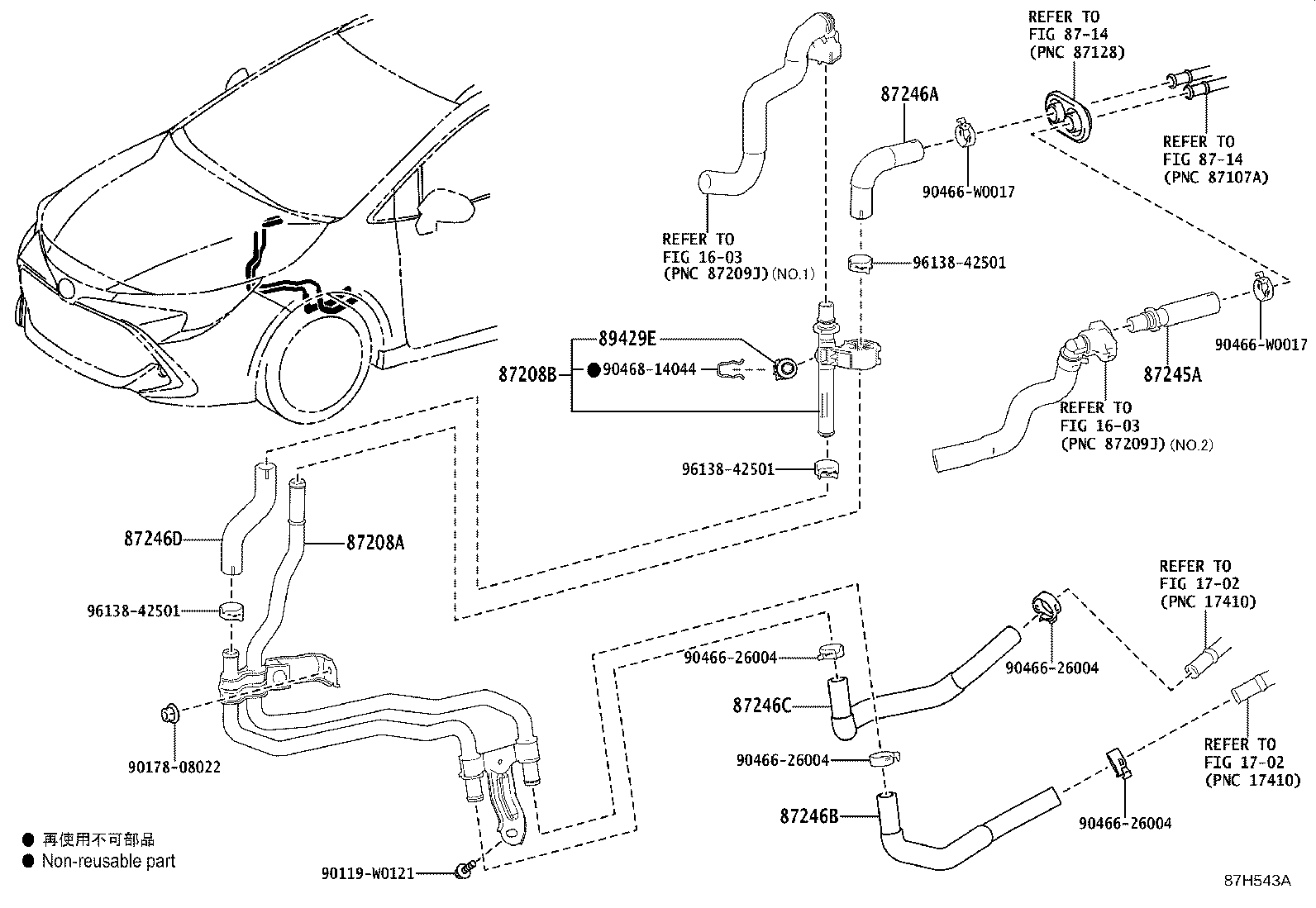

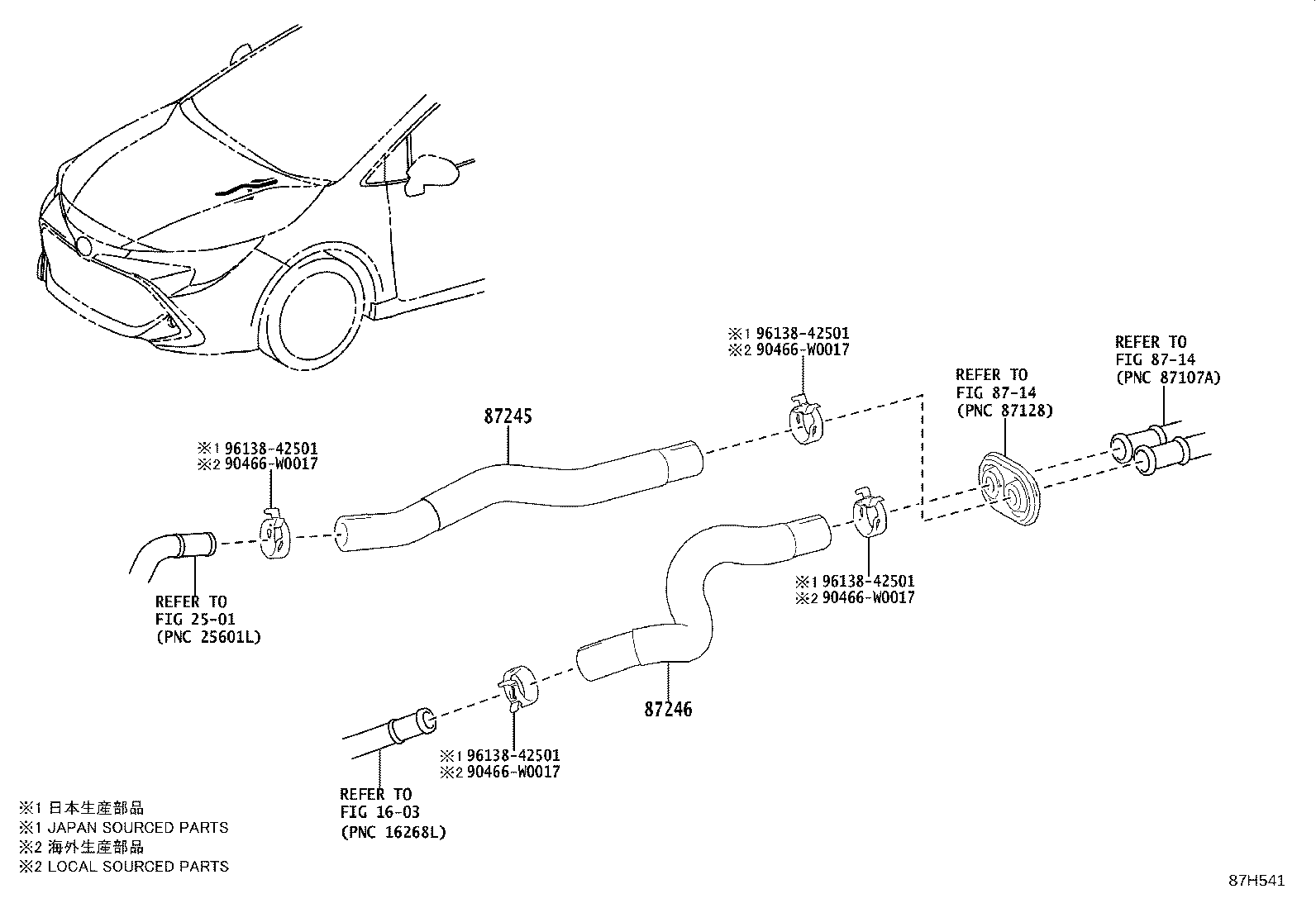

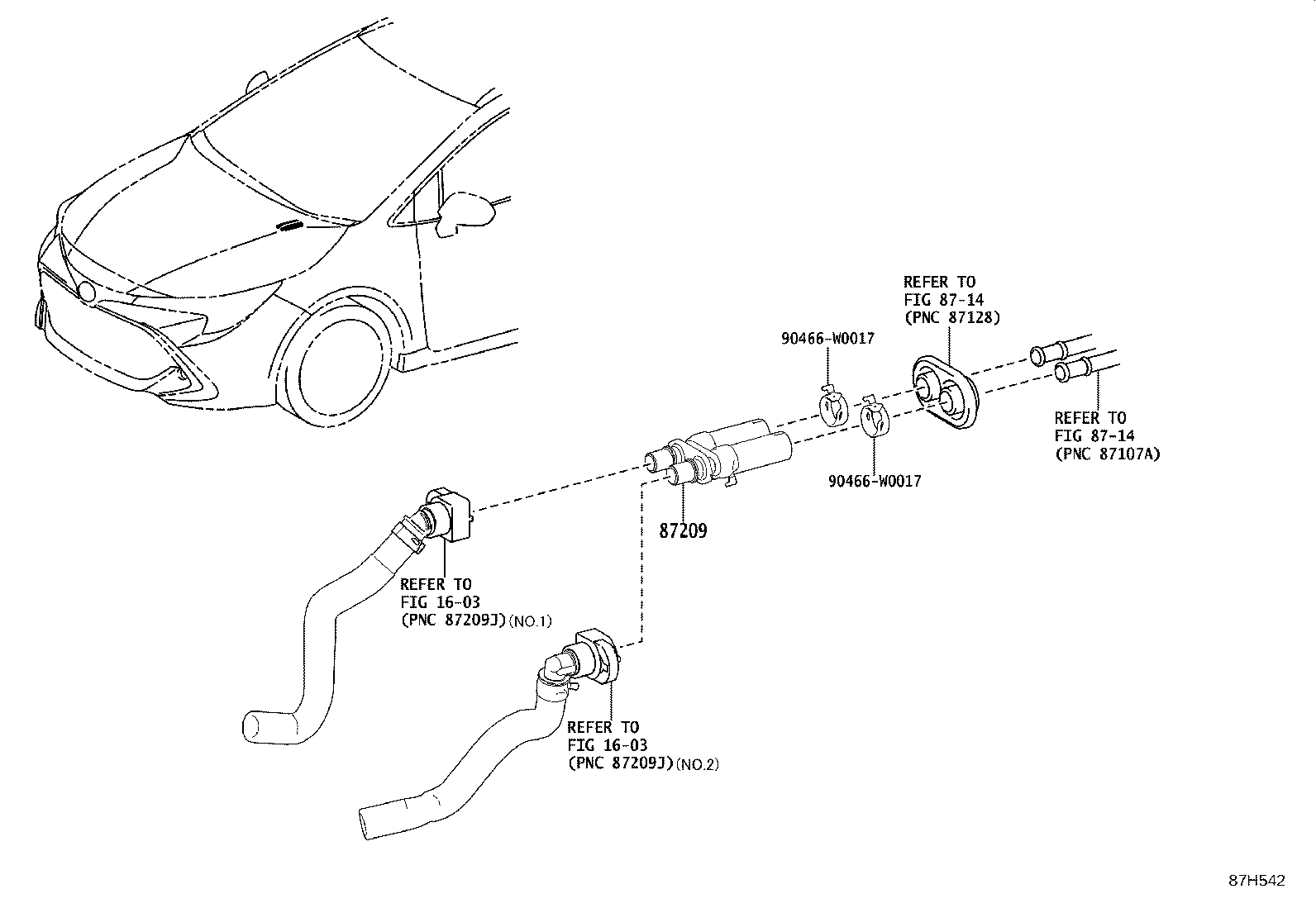

Figure 87H539 87H539 2019-01 → — Figure 87H540 87H540 2019-01 → — Figure 87H541 87H541 2019-01 → — Figure 87L685 87L685 2023-01 → — Figure 87H542 87H542 2019-01 → — Figure 87H543A 87H543A 2019-01 → —

Part groups

PNCDescription
87101A Bracket Sub-assy, Heater NO.1
87121F Bracket, Heater
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87209 Hose Sub-assy, Water
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87246 Hose, Heater Water, Outlet
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
89429E Sensor, Water Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
