Heating & Air Conditioning - Cooler Piping

22 part groups · 6 illustrations

Illustrations

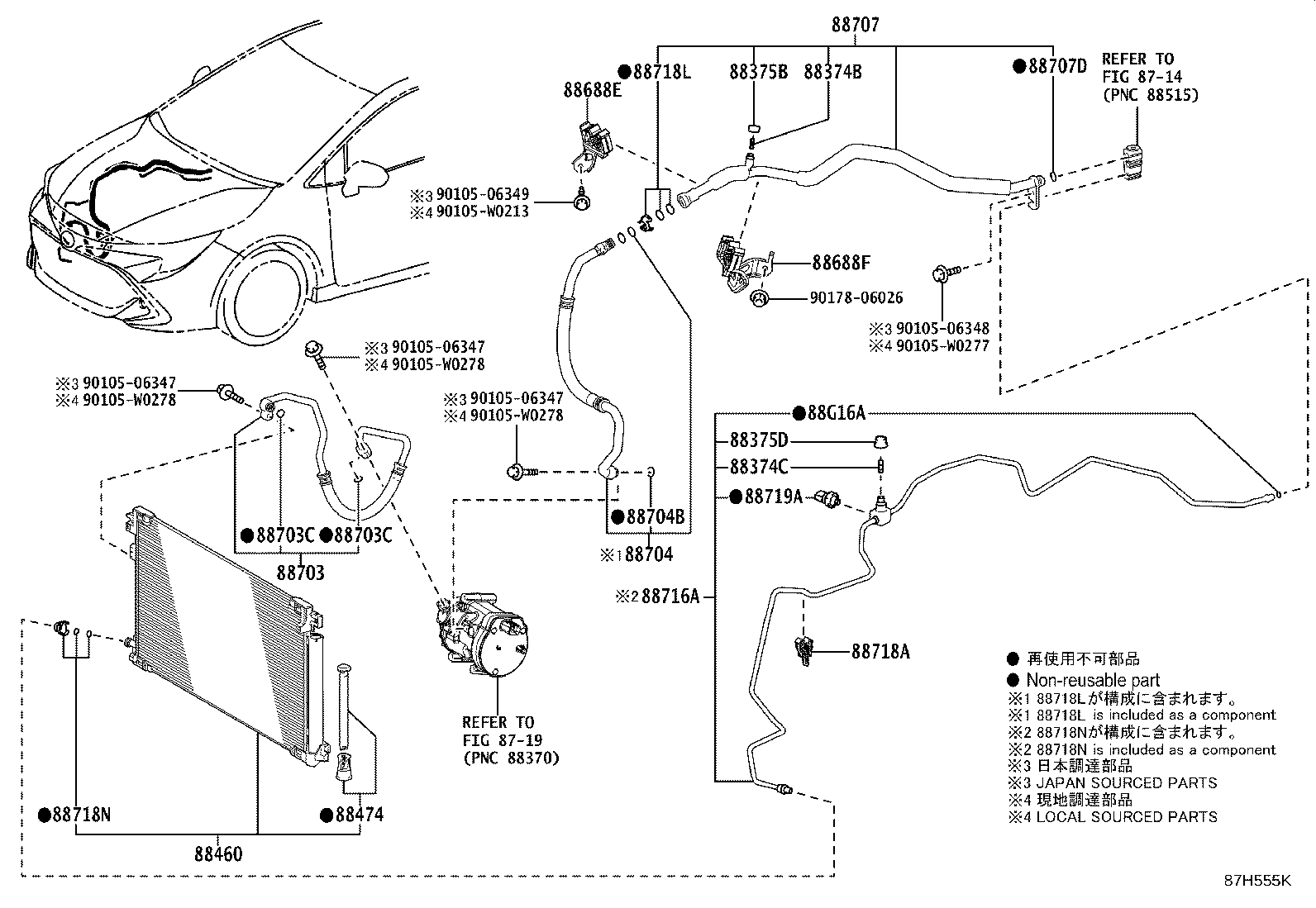

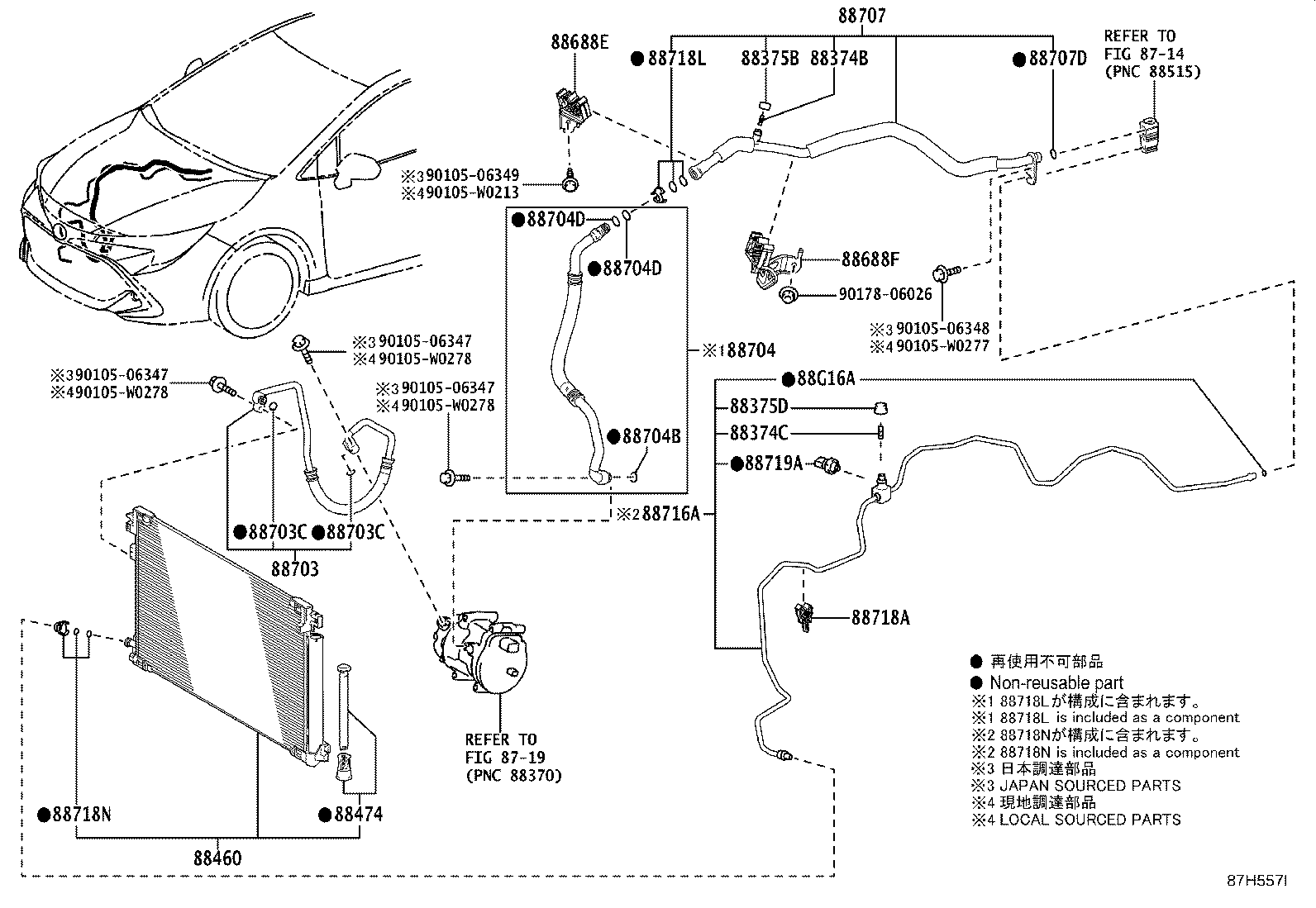

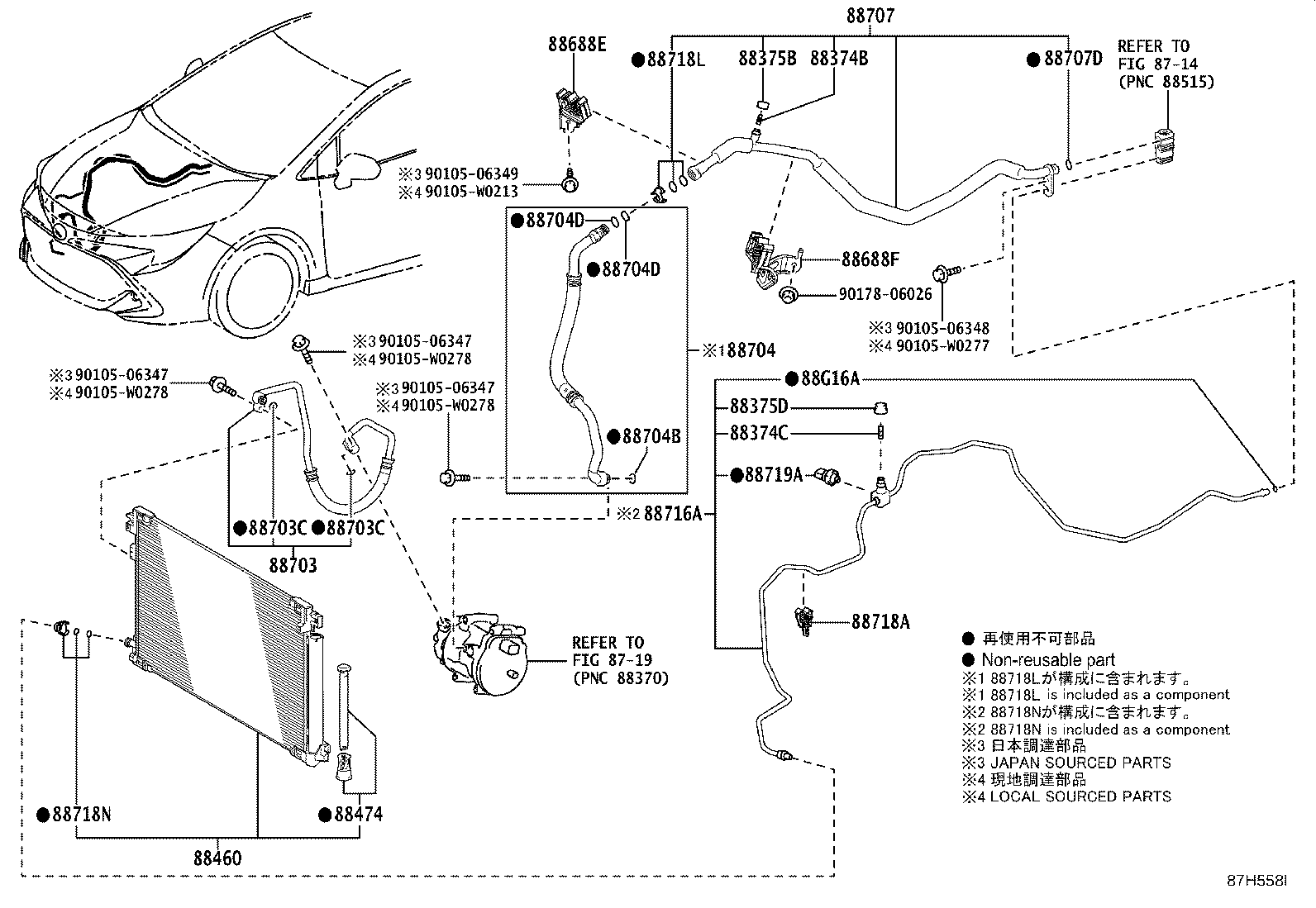

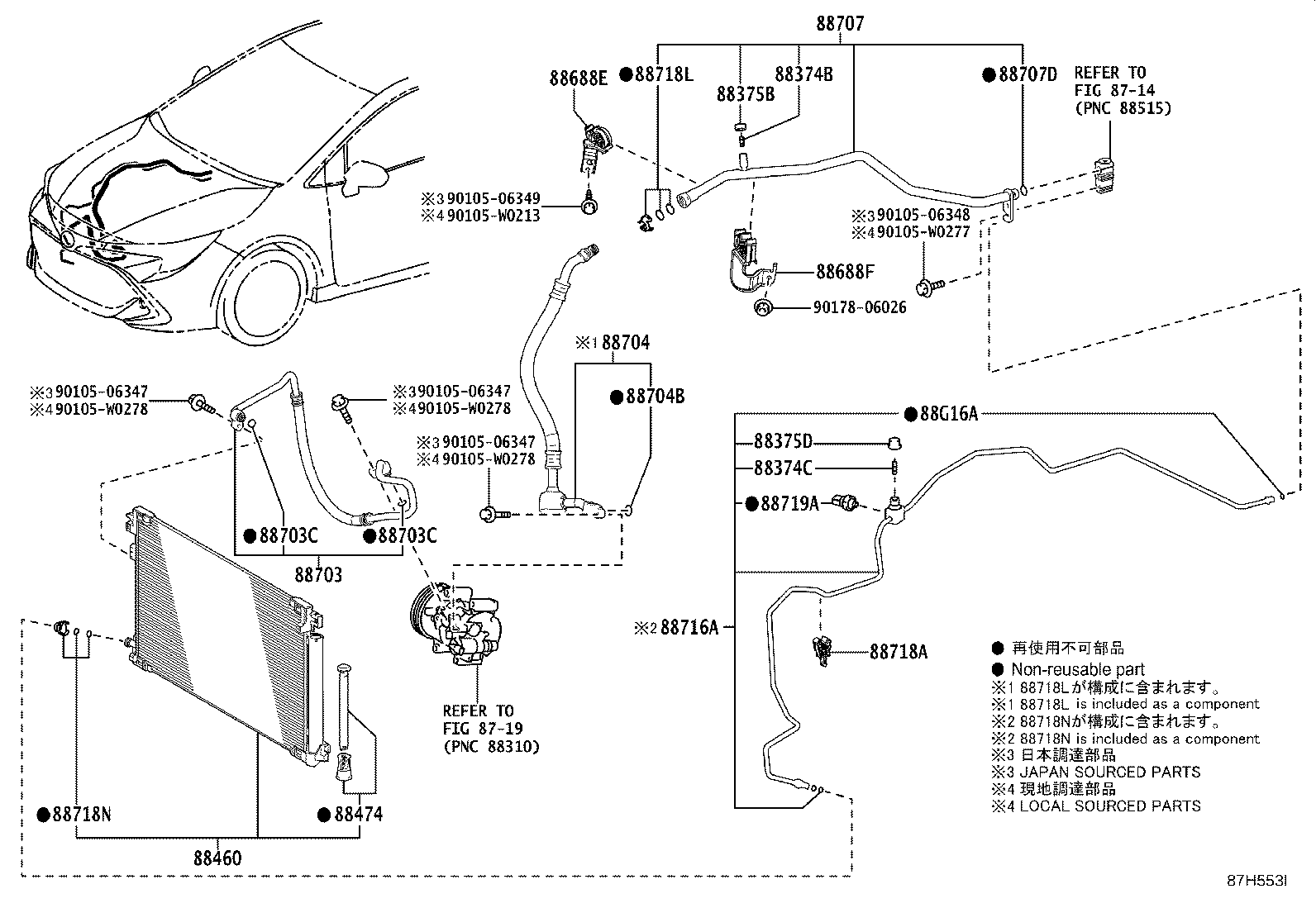

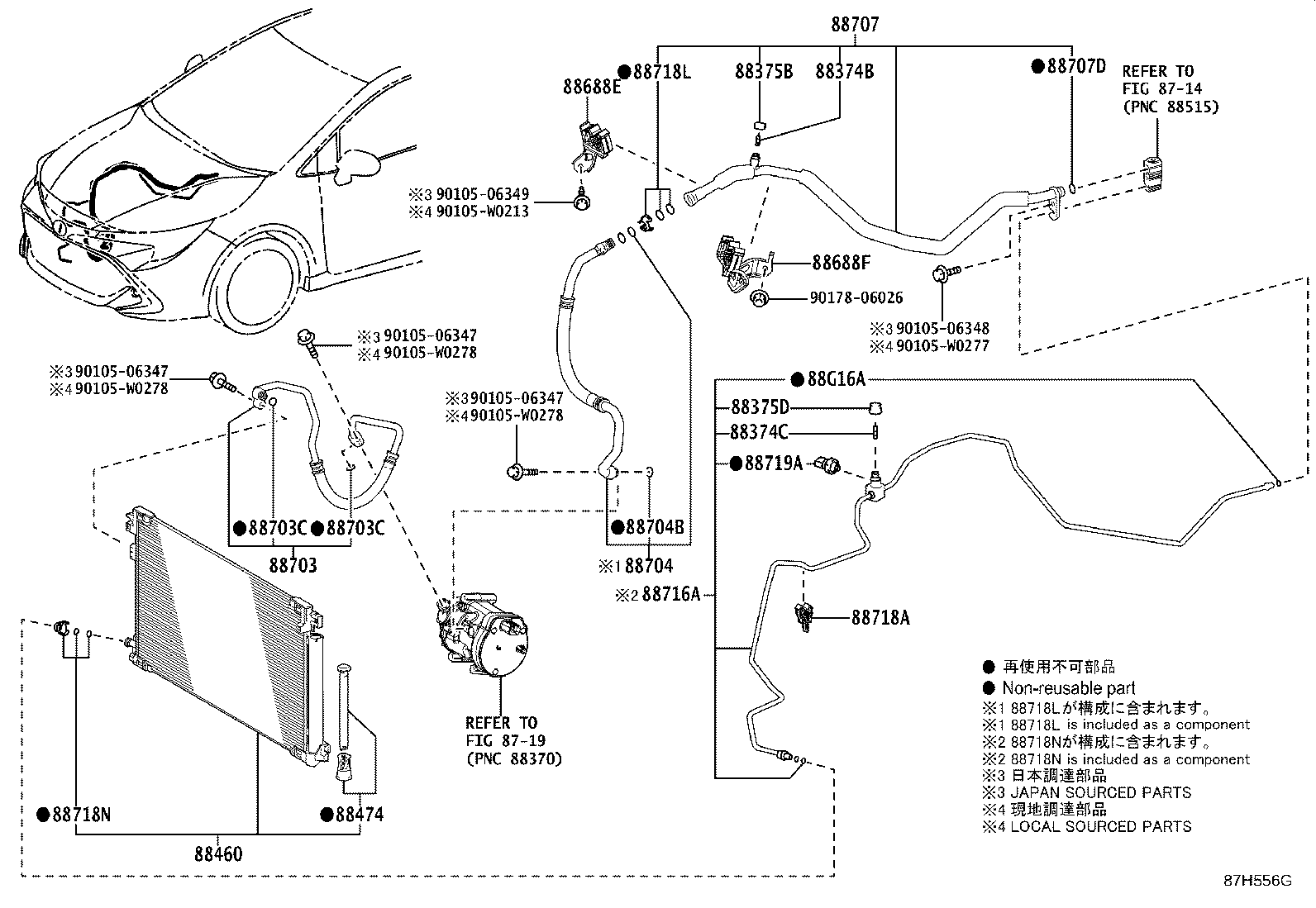

Figure 87H554I 87H554I 2019-01 → — Figure 87H553I 87H553I 2019-01 → — Figure 87H556G 87H556G 2019-01 → — Figure 87H555K 87H555K 2019-01 → — Figure 87H558I 87H558I 2019-02 → — Figure 87H557I 87H557I 2019-02 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88703 Hose Sub-assy, Discharge
88703C Ring, O(FOR DISCHARGE HOSE)
88704 Hose Sub-assy, Suction
88704B Ring, O(FOR SUCTION HOSE)
88704D Ring, O, NO.2 (FOR SUCTION HOSE)
88707 Pipe Sub-assy, Suction
88707D Ring, O(FOR SUCTION TUBE)
88716A Pipe, Cooler Refrigerant Liquid, A
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718L Clamp, Piping
88718N Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88G16A Ring, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)
88G16B Ring, O, NO.2(FOR COOLER REFRIGERANT LIQUID PIPE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
