Toyota Auris/Hybrid (UKP)
2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe
Supported model
Data version 2014-01

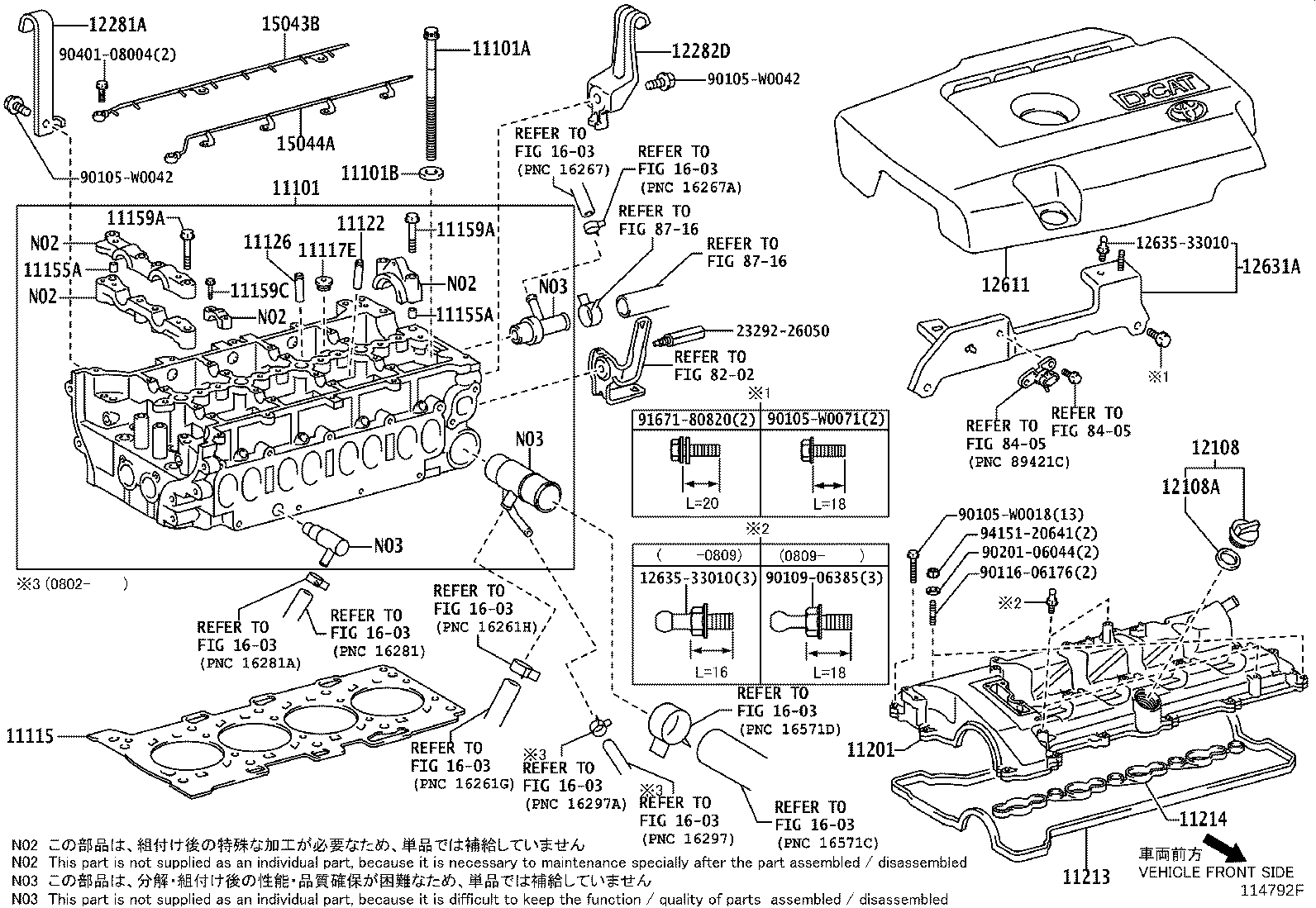

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101 — Head Sub-assy, Cylinder | ||||
| 11101-09300 note |
Head Sub-assy, Cylinder
2008-10 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 11101-09355 note |
Head Sub-assy, Cylinder
2007-02 → 2008-02
ended
|
1ADFTV ADE150 DCR | — | |
| 11101-09365 note |
Head Sub-assy, Cylinder
2007-02 → 2008-02
ended
|
1ADFTV ADE150 DCRL | — | |
| 11101-09375 note |
Head Sub-assy, Cylinder
2007-02 → 2008-02
ended
|
2ADFHV ADE157 | — | |
| 11101-09385 note |
Head Sub-assy, Cylinder
2008-02 → 2009-03
ended
|
1ADFTV ADE150 DCR | — | |
| 11101-09395 note |
Head Sub-assy, Cylinder
2008-02 → 2009-03
ended
|
1ADFTV ADE150 DCRL | — | |
| 11101-09415 note |
Head Sub-assy, Cylinder
2008-02 → 2009-03
ended
|
2ADFHV ADE157 | — | |
| 11101-0D020 note |
Head Sub-assy, Cylinder
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 11101-22061 note |
Head Sub-assy, Cylinder
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 11101-29555 note |
Head Sub-assy, Cylinder
2007-02 → 2008-02
ended
|
1ADFTV ADE150 DCR | — | |
| 11101-29565 note |
Head Sub-assy, Cylinder
2007-02 → 2008-02
ended
|
1ADFTV ADE150 DCRL | — | |
| 11101-29575 note |
Head Sub-assy, Cylinder
2007-02 → 2008-02
ended
|
2ADFHV ADE157 | — | |
| 11101-29585 note |
Head Sub-assy, Cylinder
2008-02 → 2009-03
ended
|
1ADFTV ADE150 DCR | — | |
| 11101-29596 note |
Head Sub-assy, Cylinder
2008-02 → 2009-03
ended
|
1ADFTV ADE150 DCRL | — | |
| 11101-29615 note |
Head Sub-assy, Cylinder
2008-02 → 2009-03
ended
|
2ADFHV ADE157 | — | |
| 11101-33050 |
Head Sub-assy, Cylinder
2007-02 → 2008-07
ended
|
1NDTV NDE150 | — | |
| 11101-33051 |
Head Sub-assy, Cylinder
2008-07 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 11101-39686 note |
Head Sub-assy, Cylinder
2007-02 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 11101-09300 note |
Head Sub-assy, Cylinder
2009-02 → 2010-01
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 11101-09415 note |
Head Sub-assy, Cylinder
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11101-29615 note |
Head Sub-assy, Cylinder
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11101-33060 |
Head Sub-assy, Cylinder
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 11101-39686 note |
Head Sub-assy, Cylinder
2009-02 → 2010-01
ended
|
1ZR#,2ZRFAE ZRE15# | — | |
| 11101-49465 |
Head Sub-assy, Cylinder
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 11101-09300 note |
Head Sub-assy, Cylinder
2009-12 → 2012-10
ended
|
1ZR# ZRE151;2ZRFAE ZRE152 LHD +1 | — | |
| 11101-09415 note |
Head Sub-assy, Cylinder
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 11101-09435 note |
Head Sub-assy, Cylinder
2010-06 → 2012-10
ended
|
2ZRFXE ZWE150 | — | |
| 11101-29615 note |
Head Sub-assy, Cylinder
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 11101-33060 note |
Head Sub-assy, Cylinder
2009-12 → 2010-12
ended
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 11101-33060 note |
Head Sub-assy, Cylinder
2010-08 → 2010-12
ended
|
1NDTV NDE150 DCR | — | |
| 11101-33060 note |
Head Sub-assy, Cylinder
2010-11 → 2010-12
ended
|
1NDTV NDE150 DCRL | — | |
| 11101-33061 note |
Head Sub-assy, Cylinder
2010-12 → —
|
1NDTV NDE150 | — | |
| 11101-39686 note |
Head Sub-assy, Cylinder
2009-12 → 2012-10
ended
|
1ZR# ZRE151;2ZRFAE ZRE152 LHD +1 | — | |
| 11101-39725 note |
Head Sub-assy, Cylinder
2010-06 → 2012-10
ended
|
2ZRFXE ZWE150 | — | |
| 11101-49465 |
Head Sub-assy, Cylinder
2009-12 → —
|
1NRFE NRE150 | — | |
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90910-02148 |
Bolt(FOR CYLINDER HEAD SET)
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 90910-02152 |
Bolt(FOR CYLINDER HEAD SET)
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90910-02158 |
Bolt(FOR CYLINDER HEAD SET)
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 90910-02166 |
Bolt(FOR CYLINDER HEAD SET)
2007-02 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 90910-02158 |
Bolt(FOR CYLINDER HEAD SET)
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 90910-02166 |
Bolt(FOR CYLINDER HEAD SET)
2009-02 → 2009-12
ended
|
1ZRFAE,2ZRFAE ZRE15# 5D | — | |
| 90910-02166 |
Bolt(FOR CYLINDER HEAD SET)
2009-02 → 2010-01
ended
|
1ZRFE ZRE151;1ZRFAE,2ZRFAE ZRE15# 3D | — | |
| 90910-02171 |
Bolt(FOR CYLINDER HEAD SET)
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 90910-02174 |
Bolt(FOR CYLINDER HEAD SET)
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 90910-02158 |
Bolt(FOR CYLINDER HEAD SET)
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 90910-02166 |
Bolt(FOR CYLINDER HEAD SET)
2009-12 → —
|
2ZRFAE ZRE152 LHD SOL;1ZR#,2ZRFXE +1 | — | |
| 90910-02171 note |
Bolt(FOR CYLINDER HEAD SET)
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 90910-02171 note |
Bolt(FOR CYLINDER HEAD SET)
2010-08 → —
|
1NDTV NDE150 DCR | — | |
| 90910-02171 note |
Bolt(FOR CYLINDER HEAD SET)
2010-11 → —
|
1NDTV NDE150 DCRL | — | |
| 90910-02174 |
Bolt(FOR CYLINDER HEAD SET)
2009-12 → —
|
1NRFE NRE150 | — | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2007-02 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 90201-13021 |
Washer, Plate(FOR CYLINDER HEAD SET)
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 90560-13023 |
Washer, Plate(FOR CYLINDER HEAD SET)
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2009-02 → 2009-12
ended
|
1ZRFAE,2ZRFAE ZRE15# 5D | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2009-02 → 2010-01
ended
|
1ZRFE ZRE151;1ZRFAE,2ZRFAE ZRE15# 3D | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 90201-13042 |
Washer, Plate(FOR CYLINDER HEAD SET)
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 90560-13023 |
Washer, Plate(FOR CYLINDER HEAD SET)
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2009-12 → —
|
1NRFE NRE150 | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2009-12 → —
|
2ZRFAE ZRE152 LHD SOL;1ZR#,2ZRFXE +1 | — | |
| 90201-13042 note |
Washer, Plate(FOR CYLINDER HEAD SET)
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 90201-13042 note |
Washer, Plate(FOR CYLINDER HEAD SET)
2010-08 → —
|
1NDTV NDE150 DCR | — | |
| 90201-13042 note |
Washer, Plate(FOR CYLINDER HEAD SET)
2010-11 → —
|
1NDTV NDE150 DCRL | — | |
| 90560-13023 |
Washer, Plate(FOR CYLINDER HEAD SET)
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 11115 — Gasket, Cylinder Head | ||||
| 11115-22050 |
Gasket, Cylinder Head
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 11115-26051-A0 note |
Gasket, Cylinder Head
2007-02 → 2007-09
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11115-26051-B0 note |
Gasket, Cylinder Head
2007-02 → 2007-09
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11115-26051-C0 note |
Gasket, Cylinder Head
2007-02 → 2007-09
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11115-26051-D0 note |
Gasket, Cylinder Head
2007-02 → 2007-09
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11115-26051-E0 note |
Gasket, Cylinder Head
2007-02 → 2007-09
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11115-26052-A0 note |
Gasket, Cylinder Head
2007-09 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11115-26052-B0 note |
Gasket, Cylinder Head
2007-09 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11115-26052-C0 note |
Gasket, Cylinder Head
2007-09 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11115-26052-D0 note |
Gasket, Cylinder Head
2007-09 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11115-26052-E0 note |
Gasket, Cylinder Head
2007-09 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11115-33030-A0 note |
Gasket, Cylinder Head
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 11115-33030-B0 note |
Gasket, Cylinder Head
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 11115-33030-C0 note |
Gasket, Cylinder Head
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 11115-33030-D0 note |
Gasket, Cylinder Head
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 11115-33030-E0 note |
Gasket, Cylinder Head
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 11115-37030 |
Gasket, Cylinder Head
2007-02 → 2008-06
ended
|
1ZRFE ZRE151 | — | |
| 11115-37050 |
Gasket, Cylinder Head
2008-06 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 11115-26052-A0 note |
Gasket, Cylinder Head
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11115-26052-B0 note |
Gasket, Cylinder Head
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11115-26052-C0 note |
Gasket, Cylinder Head
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11115-26052-D0 note |
Gasket, Cylinder Head
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11115-26052-E0 note |
Gasket, Cylinder Head
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11115-33040-A0 note |
Gasket, Cylinder Head
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 11115-33040-B0 note |
Gasket, Cylinder Head
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 11115-33040-C0 note |
Gasket, Cylinder Head
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 11115-33040-D0 note |
Gasket, Cylinder Head
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 11115-33040-E0 note |
Gasket, Cylinder Head
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 11115-37050 |
Gasket, Cylinder Head
2009-02 → 2009-05
ended
|
1ZRFAE,2ZRFAE ZRE15# | — | |
| 11115-37051 |
Gasket, Cylinder Head
2009-05 → 2010-01
ended
|
1ZRFE ZRE151;1ZRFAE,2ZRFAE ZRE15# 3D | — | |
| 11115-37051 |
Gasket, Cylinder Head
2009-05 → 2009-12
ended
|
1ZRFAE,2ZRFAE ZRE15# 5D | — | |
| 11115-47050 |
Gasket, Cylinder Head
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 11115-26052-A0 note |
Gasket, Cylinder Head
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 11115-26052-B0 note |
Gasket, Cylinder Head
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 11115-26052-C0 note |
Gasket, Cylinder Head
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 11115-26052-D0 note |
Gasket, Cylinder Head
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 11115-26052-E0 note |
Gasket, Cylinder Head
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 11115-33040-A0 note |
Gasket, Cylinder Head
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 11115-33040-A0 note |
Gasket, Cylinder Head
2010-11 → —
|
1NDTV NDE150 DCRL | — | |
| 11115-33040-A0 note |
Gasket, Cylinder Head
2010-08 → —
|
1NDTV NDE150 DCR | — | |
| 11115-33040-B0 note |
Gasket, Cylinder Head
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 11115-33040-B0 note |
Gasket, Cylinder Head
2010-11 → —
|
1NDTV NDE150 DCRL | — | |
| 11115-33040-B0 note |
Gasket, Cylinder Head
2010-08 → —
|
1NDTV NDE150 DCR | — | |
| 11115-33040-C0 note |
Gasket, Cylinder Head
2010-08 → —
|
1NDTV NDE150 DCR | — | |
| 11115-33040-C0 note |
Gasket, Cylinder Head
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 11115-33040-C0 note |
Gasket, Cylinder Head
2010-11 → —
|
1NDTV NDE150 DCRL | — | |
| 11115-33040-D0 note |
Gasket, Cylinder Head
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 11115-33040-D0 note |
Gasket, Cylinder Head
2010-08 → —
|
1NDTV NDE150 DCR | — | |
| 11115-33040-D0 note |
Gasket, Cylinder Head
2010-11 → —
|
1NDTV NDE150 DCRL | — | |
| 11115-33040-E0 note |
Gasket, Cylinder Head
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 11115-33040-E0 note |
Gasket, Cylinder Head
2010-11 → —
|
1NDTV NDE150 DCRL | — | |
| 11115-33040-E0 note |
Gasket, Cylinder Head
2010-08 → —
|
1NDTV NDE150 DCR | — | |
| 11115-37051 |
Gasket, Cylinder Head
2009-12 → 2011-10
ended
|
2ZRFAE ZRE152 LHD SOL;1ZR#,2ZRFXE +1 | — | |
| 11115-37060 |
Gasket, Cylinder Head
2011-10 → —
|
1ZR#,2ZR# ZRE15#,ZWE150 | — | |
| 11115-47050 |
Gasket, Cylinder Head
2009-12 → —
|
1NRFE NRE150 | — | |
| 11117E — Plug, W/Head Straight Screw, NO.1 | ||||
| 90341-14015 |
Plug, W/Head Straight Screw, NO.1
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 90341-14015 |
Plug, W/Head Straight Screw, NO.1
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 90341-14015 |
Plug, W/Head Straight Screw, NO.1
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 11122 — Bush, Intake Valve Guide | ||||
| 11122-0R010 note |
Bush, Intake Valve Guide
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11122-20020 note |
Bush, Intake Valve Guide
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2007-02 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 11122-33030 note |
Bush, Intake Valve Guide
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 11123-0R010 note |
Bush, Intake Valve Guide
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11123-20020 note |
Bush, Intake Valve Guide
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2007-02 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 11123-33030 note |
Bush, Intake Valve Guide
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 11122-0R010 note |
Bush, Intake Valve Guide
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11122-31041 note |
Bush, Intake Valve Guide
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2009-02 → 2009-12
ended
|
1ZRFAE,2ZRFAE ZRE15# 5D | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2009-02 → 2010-01
ended
|
1ZRFE ZRE151;1ZRFAE,2ZRFAE ZRE15# 3D | — | |
| 11122-33030 note |
Bush, Intake Valve Guide
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 11123-0R010 note |
Bush, Intake Valve Guide
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11123-31041 note |
Bush, Intake Valve Guide
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2009-02 → 2010-01
ended
|
1ZRFE ZRE151;1ZRFAE,2ZRFAE ZRE15# 3D | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2009-02 → 2009-12
ended
|
1ZRFAE,2ZRFAE ZRE15# 5D | — | |
| 11123-33030 note |
Bush, Intake Valve Guide
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 11122-0R010 note |
Bush, Intake Valve Guide
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 11122-31041 note |
Bush, Intake Valve Guide
2009-12 → —
|
1NRFE NRE150 | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2009-12 → —
|
2ZRFAE ZRE152 LHD SOL;1ZR#,2ZRFXE +1 | — | |
| 11122-33030 note |
Bush, Intake Valve Guide
2010-08 → —
|
1NDTV NDE150 DCR | — | |
| 11122-33030 note |
Bush, Intake Valve Guide
2010-11 → —
|
1NDTV NDE150 DCRL | — | |
| 11122-33030 note |
Bush, Intake Valve Guide
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 11123-0R010 note |
Bush, Intake Valve Guide
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 11123-31041 note |
Bush, Intake Valve Guide
2009-12 → —
|
1NRFE NRE150 | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2009-12 → —
|
2ZRFAE ZRE152 LHD SOL;1ZR#,2ZRFXE +1 | — | |
| 11123-33030 note |
Bush, Intake Valve Guide
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 11123-33030 note |
Bush, Intake Valve Guide
2010-08 → —
|
1NDTV NDE150 DCR | — | |
| 11123-33030 note |
Bush, Intake Valve Guide
2010-11 → —
|
1NDTV NDE150 DCRL | — | |
| 11126 — Bush, Exhaust Valve Guide | ||||
| 11122-0R010 note |
Bush, Exhaust Valve Guide
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11122-20020 note |
Bush, Exhaust Valve Guide
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 11122-33030 note |
Bush, Exhaust Valve Guide
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 11123-0R010 note |
Bush, Exhaust Valve Guide
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11123-20020 note |
Bush, Exhaust Valve Guide
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 11123-33030 note |
Bush, Exhaust Valve Guide
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2007-02 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2007-02 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 11122-0R010 note |
Bush, Exhaust Valve Guide
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11122-31041 note |
Bush, Exhaust Valve Guide
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 11122-33030 note |
Bush, Exhaust Valve Guide
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 11123-0R010 note |
Bush, Exhaust Valve Guide
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11123-31041 note |
Bush, Exhaust Valve Guide
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 11123-33030 note |
Bush, Exhaust Valve Guide
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2009-02 → 2010-01
ended
|
1ZRFE ZRE151;1ZRFAE,2ZRFAE ZRE15# 3D | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2009-02 → 2009-12
ended
|
1ZRFAE,2ZRFAE ZRE15# 5D | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2009-02 → 2009-12
ended
|
1ZRFAE,2ZRFAE ZRE15# 5D | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2009-02 → 2010-01
ended
|
1ZRFE ZRE151;1ZRFAE,2ZRFAE ZRE15# 3D | — | |
| 11122-0R010 note |
Bush, Exhaust Valve Guide
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 11122-31041 note |
Bush, Exhaust Valve Guide
2009-12 → —
|
1NRFE NRE150 | — | |
| 11122-33030 note |
Bush, Exhaust Valve Guide
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 11122-33030 note |
Bush, Exhaust Valve Guide
2010-11 → —
|
1NDTV NDE150 DCRL | — | |
| 11122-33030 note |
Bush, Exhaust Valve Guide
2010-08 → —
|
1NDTV NDE150 DCR | — | |
| 11123-0R010 note |
Bush, Exhaust Valve Guide
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 11123-31041 note |
Bush, Exhaust Valve Guide
2009-12 → —
|
1NRFE NRE150 | — | |
| 11123-33030 note |
Bush, Exhaust Valve Guide
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 11123-33030 note |
Bush, Exhaust Valve Guide
2010-08 → —
|
1NDTV NDE150 DCR | — | |
| 11123-33030 note |
Bush, Exhaust Valve Guide
2010-11 → —
|
1NDTV NDE150 DCRL | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2009-12 → —
|
2ZRFAE ZRE152 LHD SOL;1ZR#,2ZRFXE +1 | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2009-12 → —
|
2ZRFAE ZRE152 LHD SOL;1ZR#,2ZRFXE +1 | — | |
| 11155A — Pin, Ring W/Head | ||||
| 90250-06001 |
Pin, Ring W/Head
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90253-11021 |
Pin, Ring W/Head
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 90253-12002 |
Pin, Ring W/Head
2007-02 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 90253-11004 |
Pin, Ring W/Head
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 90253-11021 |
Pin, Ring W/Head
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 90253-12002 |
Pin, Ring W/Head
2009-02 → 2010-01
ended
|
1ZRFE ZRE151;1ZRFAE,2ZRFAE ZRE15# 3D | — | |
| 90253-12002 |
Pin, Ring W/Head
2009-02 → 2009-12
ended
|
1ZRFAE,2ZRFAE ZRE15# 5D | — | |
| 90253-11004 |
Pin, Ring W/Head
2009-12 → —
|
1NRFE NRE150 | — | |
| 90253-11021 |
Pin, Ring W/Head
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 90253-12002 |
Pin, Ring W/Head
2009-12 → —
|
2ZRFAE ZRE152 LHD SOL;1ZR#,2ZRFXE +1 | — | |
| 11159A — Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-W0138 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 90109-06080 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90119-07008 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 90119-07009 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 90119-08A29 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 91551-80860 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 90105-W0138 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 90119-07008 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 90119-07009 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 91551-80635 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 91551-80860 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 90105-W0138 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 90119-07008 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2010-08 → 2010-09
ended
|
1NDTV NDE150 DCR | — | |
| 90119-07008 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2010-11 → —
|
1NDTV NDE150 DCRL | — | |
| 90119-07008 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2010-09 → —
|
1NDTV NDE150 DCR | — | |
| 90119-07008 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 90119-07009 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 90119-07009 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2010-11 → —
|
1NDTV NDE150 DCRL | — | |
| 90119-07009 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2010-09 → —
|
1NDTV NDE150 DCR | — | |
| 90119-07009 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2010-08 → 2010-09
ended
|
1NDTV NDE150 DCR | — | |
| 91551-80635 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2009-12 → —
|
1NRFE NRE150 | — | |
| 91551-80860 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 11159C — Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-W0139 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2007-02 → 2008-01
ended
|
2ADFHV ADE157 | — | |
| 90105-W0139 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2008-01 → 2009-03
ended
|
2ADFHV ADE157 | — | |
| 90105-W0139 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2007-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 91551-80630 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2008-01 → 2009-03
ended
|
2ADFHV ADE157 | — | |
| 91551-80632 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2007-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 91551-80632 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2007-02 → 2008-01
ended
|
2ADFHV ADE157 | — | |
| 90105-W0139 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 91551-80630 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 90105-W0139 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 91551-80630 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 11201 — Cover Sub-assy, Cylinder Head | ||||
| 11201-0D020 note |
Cover Sub-assy, Cylinder Head
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 11201-0R011 note |
Cover Sub-assy, Cylinder Head
2007-02 → 2008-09
ended
|
1ADFTV ADE150 | — | |
| 11201-0R012 note |
Cover Sub-assy, Cylinder Head
2008-09 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 11201-0T040 note |
Cover Sub-assy, Cylinder Head
2008-10 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 11201-22060 note |
Cover Sub-assy, Cylinder Head
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 11201-26030 |
Cover Sub-assy, Cylinder Head
2007-02 → 2008-09
ended
|
2ADFHV ADE157 | — | |
| 11201-26031 |
Cover Sub-assy, Cylinder Head
2008-09 → 2009-03
ended
|
2ADFHV ADE157 | — | |
| 11201-26060 note |
Cover Sub-assy, Cylinder Head
2007-02 → 2008-09
ended
|
1ADFTV ADE150 | — | |
| 11201-26061 note |
Cover Sub-assy, Cylinder Head
2008-09 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 11201-33031 |
Cover Sub-assy, Cylinder Head
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 11201-37020 note |
Cover Sub-assy, Cylinder Head
2007-02 → 2007-03
ended
|
1ZRFE ZRE151 | — | |
| 11201-37021 note |
Cover Sub-assy, Cylinder Head
2007-03 → 2007-04
ended
|
1ZRFE ZRE151 | — | |
| 11201-37021 note |
Cover Sub-assy, Cylinder Head
2007-02 → 2007-04
ended
|
1ZRFE ZRE151 | — | |
| 11201-37022 note |
Cover Sub-assy, Cylinder Head
2007-04 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 11201-0R020 note |
Cover Sub-assy, Cylinder Head
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11201-0T040 note |
Cover Sub-assy, Cylinder Head
2009-09 → 2010-01
ended
|
1ZRFE ZRE151 | — | |
| 11201-0T050 note |
Cover Sub-assy, Cylinder Head
2009-02 → 2009-12
ended
|
1ZRFAE,2ZRFAE ZRE15# 5D | — | |
| 11201-0T050 note |
Cover Sub-assy, Cylinder Head
2009-02 → 2010-01
ended
|
1ZRFAE,2ZRFAE ZRE15# 3D | — | |
| 11201-26070 note |
Cover Sub-assy, Cylinder Head
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11201-33040 |
Cover Sub-assy, Cylinder Head
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 11201-37010 note |
Cover Sub-assy, Cylinder Head
2009-02 → 2009-12
ended
|
1ZRFAE,2ZRFAE ZRE15# 5D | — | |
| 11201-37010 note |
Cover Sub-assy, Cylinder Head
2009-02 → 2010-01
ended
|
1ZRFAE,2ZRFAE ZRE15# 3D | — | |
| 11201-37022 note |
Cover Sub-assy, Cylinder Head
2009-09 → 2010-01
ended
|
1ZRFE ZRE151 | — | |
| 11201-47070 |
Cover Sub-assy, Cylinder Head
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 11201-0N020 note |
Cover Sub-assy, Cylinder Head
2012-02 → —
|
1NDTV NDE150 | — | |
| 11201-0R020 note |
Cover Sub-assy, Cylinder Head
2009-12 → 2011-10
ended
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 11201-0R041 |
Cover Sub-assy, Cylinder Head
2011-10 → 2012-05
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11201-0R042 |
Cover Sub-assy, Cylinder Head
2012-05 → —
|
1ADFTV,2ADFHV ADE15# | — | |
| 11201-0T040 note |
Cover Sub-assy, Cylinder Head
2010-01 → 2012-10
ended
|
1ZRFE ZRE151 | — | |
| 11201-0T050 note |
Cover Sub-assy, Cylinder Head
2009-12 → 2012-10
ended
|
1ZRFAE ZRE151;2ZRFAE ZRE152 LHD +1 | — | |
| 11201-26070 note |
Cover Sub-assy, Cylinder Head
2009-12 → 2011-10
ended
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 11201-33040 note |
Cover Sub-assy, Cylinder Head
2010-11 → 2011-05
ended
|
1NDTV NDE150 DCRL | — | |
| 11201-33040 note |
Cover Sub-assy, Cylinder Head
2010-08 → 2011-05
ended
|
1NDTV NDE150 DCR | — | |
| 11201-33040 note |
Cover Sub-assy, Cylinder Head
2009-12 → 2011-03
ended
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 11201-33041 note |
Cover Sub-assy, Cylinder Head
2011-05 → 2012-02
ended
|
1NDTV NDE150 | — | |
| 11201-33041 note |
Cover Sub-assy, Cylinder Head
2012-02 → —
|
1NDTV NDE150 | — | |
| 11201-33041 note |
Cover Sub-assy, Cylinder Head
2011-03 → —
|
1NDTV NDE150 | — | |
| 11201-37010 note |
Cover Sub-assy, Cylinder Head
2009-12 → 2012-01
ended
|
1ZRFAE ZRE151;2ZRFAE ZRE152 LHD +1 | — | |
| 11201-37011 note |
Cover Sub-assy, Cylinder Head
2012-01 → 2012-10
ended
|
1ZRFAE,2ZRFAE ZRE15# | — | |
| 11201-37022 note |
Cover Sub-assy, Cylinder Head
2010-01 → 2012-10
ended
|
1ZRFE ZRE151 | — | |
| 11201-37040 |
Cover Sub-assy, Cylinder Head
2010-06 → 2012-11
ended
|
2ZRFXE ZWE150 | — | |
| 11201-47070 |
Cover Sub-assy, Cylinder Head
2009-12 → 2010-05
ended
|
1NRFE NRE150 | — | |
| 11201-47071 |
Cover Sub-assy, Cylinder Head
2010-05 → 2011-08
ended
|
1NRFE NRE150 | — | |
| 11201-47072 |
Cover Sub-assy, Cylinder Head
2011-08 → —
|
1NRFE NRE150 | — | |
| 11213 — Gasket, Cylinder Head Cover | ||||
| 11213-0D030 note |
Gasket, Cylinder Head Cover
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 11213-0R010 |
Gasket, Cylinder Head Cover
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11213-0T020 note |
Gasket, Cylinder Head Cover
2008-10 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 11213-22050 note |
Gasket, Cylinder Head Cover
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 11213-33021 |
Gasket, Cylinder Head Cover
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 11213-37020 note |
Gasket, Cylinder Head Cover
2007-02 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 11213-0R010 |
Gasket, Cylinder Head Cover
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11213-0T020 note |
Gasket, Cylinder Head Cover
2009-02 → 2009-12
ended
|
1ZRFAE,2ZRFAE ZRE15# 5D | — | |
| 11213-0T020 note |
Gasket, Cylinder Head Cover
2009-02 → 2010-01
ended
|
1ZRFE ZRE151;1ZRFAE,2ZRFAE ZRE15# 3D | — | |
| 11213-33030 |
Gasket, Cylinder Head Cover
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 11213-37020 note |
Gasket, Cylinder Head Cover
2009-02 → 2010-01
ended
|
1ZRFE ZRE151;1ZRFAE,2ZRFAE ZRE15# 3D | — | |
| 11213-37020 note |
Gasket, Cylinder Head Cover
2009-02 → 2009-12
ended
|
1ZRFAE,2ZRFAE ZRE15# 5D | — | |
| 11213-47020 |
Gasket, Cylinder Head Cover
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 11213-0R010 |
Gasket, Cylinder Head Cover
2009-12 → 2011-10
ended
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 11213-0R040 |
Gasket, Cylinder Head Cover
2011-10 → —
|
1ADFTV,2ADFHV ADE15# | — | |
| 11213-0T020 note |
Gasket, Cylinder Head Cover
2009-12 → 2012-10
ended
|
1ZR# ZRE151;2ZRFAE ZRE152 LHD +1 | — | |
| 11213-33030 note |
Gasket, Cylinder Head Cover
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 11213-33030 note |
Gasket, Cylinder Head Cover
2010-08 → —
|
1NDTV NDE150 DCR | — | |
| 11213-33030 note |
Gasket, Cylinder Head Cover
2010-11 → —
|
1NDTV NDE150 DCRL | — | |
| 11213-37020 note |
Gasket, Cylinder Head Cover
2009-12 → 2012-10
ended
|
1ZR# ZRE151;2ZRFAE ZRE152 LHD +1 | — | |
| 11213-37040 |
Gasket, Cylinder Head Cover
2010-06 → 2012-11
ended
|
2ZRFXE ZWE150 | — | |
| 11213-37040 note |
Gasket, Cylinder Head Cover
2010-06 → 2012-11
ended
|
2ZRFXE ZWE150 | — | |
| 11213-47020 |
Gasket, Cylinder Head Cover
2009-12 → —
|
1NRFE NRE150 | — | |
| 11214 — Gasket, Cylinder Head Cover, NO.2 | ||||
| 11214-26010 |
Gasket, Cylinder Head Cover, NO.2
2007-02 → 2009-03
ended
|
2ADFHV ADE157 | — | |
| 11214-26010 |
Gasket, Cylinder Head Cover, NO.2
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11214-26010 |
Gasket, Cylinder Head Cover, NO.2
2009-12 → 2011-10
ended
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 12108 — Cap Sub-assy, Oil Filler | ||||
| 12180-0N010 note |
Cap Sub-assy, Oil Filler
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 12180-0N010 note |
Cap Sub-assy, Oil Filler
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 12180-21010 note |
Cap Sub-assy, Oil Filler
2007-02 → 2007-02
ended
|
1ZRFE ZRE151 | — | |
| 12180-21010 note |
Cap Sub-assy, Oil Filler
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 12180-21010 note |
Cap Sub-assy, Oil Filler
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 12180-28010 |
Cap Sub-assy, Oil Filler
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 12180-38010 note |
Cap Sub-assy, Oil Filler
2007-02 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 12180-38010 note |
Cap Sub-assy, Oil Filler
2007-03 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 12180-0N010 note |
Cap Sub-assy, Oil Filler
2009-03 → 2009-08
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 12180-21010 note |
Cap Sub-assy, Oil Filler
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 12180-28010 |
Cap Sub-assy, Oil Filler
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2009-02 → 2010-01
ended
|
1ZRFE ZRE151;1ZRFAE,2ZRFAE ZRE15# 3D | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2009-02 → 2009-12
ended
|
1ZRFAE,2ZRFAE ZRE15# 5D | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 12180-21010 |
Cap Sub-assy, Oil Filler
2009-12 → 2011-10
ended
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 12180-28010 note |
Cap Sub-assy, Oil Filler
2010-08 → 2012-02
ended
|
1NDTV NDE150 DCR | — | |
| 12180-28010 note |
Cap Sub-assy, Oil Filler
2010-11 → 2012-02
ended
|
1NDTV NDE150 DCRL | — | |
| 12180-28010 note |
Cap Sub-assy, Oil Filler
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2009-12 → —
|
1NRFE NRE150 | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2009-12 → —
|
2ZRFAE ZRE152 LHD SOL;1ZR#,2ZRFXE +1 | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2011-10 → —
|
1ADFTV,2ADFHV ADE15# | — | |
| 12180-38010 note |
Cap Sub-assy, Oil Filler
2012-02 → —
|
1NDTV NDE150 | — | |
| 12108A — Gasket(FOR OIL FILLER CAP) | ||||
| 90080-43020 note |
Gasket(FOR OIL FILLER CAP)
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90080-43020 note |
Gasket(FOR OIL FILLER CAP)
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 90430-35001 note |
Gasket(FOR OIL FILLER CAP)
2007-02 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 90430-35001 note |
Gasket(FOR OIL FILLER CAP)
2007-03 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 90430-37004 |
Gasket(FOR OIL FILLER CAP)
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 90430-37140 note |
Gasket(FOR OIL FILLER CAP)
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90430-37140 note |
Gasket(FOR OIL FILLER CAP)
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 90430-37140 note |
Gasket(FOR OIL FILLER CAP)
2007-02 → 2007-03
ended
|
1ZRFE ZRE151 | — | |
| 90080-43020 note |
Gasket(FOR OIL FILLER CAP)
2009-03 → 2009-09
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2009-02 → 2009-12
ended
|
1ZRFAE,2ZRFAE ZRE15# 5D | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2009-02 → 2010-01
ended
|
1ZRFE ZRE151;1ZRFAE,2ZRFAE ZRE15# 3D | — | |
| 90430-37004 |
Gasket(FOR OIL FILLER CAP)
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 90430-37140 note |
Gasket(FOR OIL FILLER CAP)
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 90430-35001 note |
Gasket(FOR OIL FILLER CAP)
2012-02 → —
|
1NDTV NDE150 | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2011-10 → —
|
1ADFTV,2ADFHV ADE15# | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2009-12 → —
|
1NRFE NRE150 | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2009-12 → —
|
2ZRFAE ZRE152 LHD SOL;1ZR#,2ZRFXE +1 | — | |
| 90430-37004 note |
Gasket(FOR OIL FILLER CAP)
2010-08 → 2012-02
ended
|
1NDTV NDE150 DCR | — | |
| 90430-37004 note |
Gasket(FOR OIL FILLER CAP)
2010-11 → 2012-02
ended
|
1NDTV NDE150 DCRL | — | |
| 90430-37004 note |
Gasket(FOR OIL FILLER CAP)
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 90430-37140 note |
Gasket(FOR OIL FILLER CAP)
2009-12 → 2011-10
ended
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 12281A — Hanger, Engine, NO.1 | ||||
| 12281-21010 |
Hanger, Engine, NO.1
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 12281-22021 |
Hanger, Engine, NO.1
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 12281-26040 |
Hanger, Engine, NO.1
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 12281-37020 |
Hanger, Engine, NO.1
2007-02 → 2007-04
ended
|
1ZRFE ZRE151 | — | |
| 12281-37021 |
Hanger, Engine, NO.1
2007-04 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 12281-26040 |
Hanger, Engine, NO.1
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 12281-33050 |
Hanger, Engine, NO.1
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 12281-37021 |
Hanger, Engine, NO.1
2009-02 → 2010-01
ended
|
1ZRFE ZRE151;1ZRFAE,2ZRFAE ZRE15# 3D | — | |
| 12281-37021 |
Hanger, Engine, NO.1
2009-02 → 2009-12
ended
|
1ZRFAE,2ZRFAE ZRE15# 5D | — | |
| 12281-47010 |
Hanger, Engine, NO.1
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 12281-26040 |
Hanger, Engine, NO.1
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 12281-33050 note |
Hanger, Engine, NO.1
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 12281-33050 note |
Hanger, Engine, NO.1
2010-08 → —
|
1NDTV NDE150 DCR | — | |
| 12281-33050 note |
Hanger, Engine, NO.1
2010-11 → —
|
1NDTV NDE150 DCRL | — | |
| 12281-37021 note |
Hanger, Engine, NO.1
2009-12 → 2012-11
ended
|
2ZRFAE ZRE152 LHD SOL;1ZR#,2ZRFXE +1 | — | |
| 12281-37050 note |
Hanger, Engine, NO.1
2012-03 → 2012-11
ended
|
2ZRFXE ZWE150 | — | |
| 12281-47022 |
Hanger, Engine, NO.1
2009-12 → —
|
1NRFE NRE150 | — | |
| 12282D — Hanger, Engine, NO.2 | ||||
| 12282-26010 |
Hanger, Engine, NO.2
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 12282-37010 |
Hanger, Engine, NO.2
2007-02 → 2007-09
ended
|
1ZRFE ZRE151 | — | |
| 12282-37011 |
Hanger, Engine, NO.2
2007-09 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 12282-26010 |
Hanger, Engine, NO.2
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 12282-33021 |
Hanger, Engine, NO.2
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 12282-37011 |
Hanger, Engine, NO.2
2009-02 → 2010-01
ended
|
1ZRFE ZRE151;1ZRFAE,2ZRFAE ZRE15# 3D | — | |
| 12282-37011 |
Hanger, Engine, NO.2
2009-02 → 2009-12
ended
|
1ZRFAE,2ZRFAE ZRE15# 5D | — | |
| 12282-47010 |
Hanger, Engine, NO.2
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 12282-26010 |
Hanger, Engine, NO.2
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 12282-33021 note |
Hanger, Engine, NO.2
2009-12 → 2010-07
ended
|
1NDTV .TERRA NDE150 DCRL +9 | — | |
| 12282-33021 note |
Hanger, Engine, NO.2
2009-12 → 2011-02
ended
|
1NDTV NDE150 SOL DCR;1NDTV +4 | — | |
| 12282-33021 note |
Hanger, Engine, NO.2
2010-12 → 2011-02
ended
|
1NDTV NDE150 DCRL | — | |
| 12282-33021 note |
Hanger, Engine, NO.2
2010-08 → 2011-04
ended
|
1NDTV NDE150 DCR | — | |
| 12282-33021 note |
Hanger, Engine, NO.2
2011-02 → 2011-04
ended
|
1NDTV NDE150 DCRL | — | |
| 12282-33022 note |
Hanger, Engine, NO.2
2011-04 → —
|
1NDTV NDE150 | — | |
| 12282-33022 note |
Hanger, Engine, NO.2
2011-02 → —
|
1NDTV NDE150 | — | |
| 12282-33050 note |
Hanger, Engine, NO.2
2010-07 → 2010-12
ended
|
1NDTV NDE150 DCRL | — | |
| 12282-33050 note |
Hanger, Engine, NO.2
2010-11 → 2011-02
ended
|
1NDTV NDE150 DCRL | — | |
| 12282-37011 note |
Hanger, Engine, NO.2
2009-12 → 2012-11
ended
|
2ZRFAE ZRE152 LHD SOL;1ZR#,2ZRFXE +1 | — | |
| 12282-37040 note |
Hanger, Engine, NO.2
2012-03 → 2012-11
ended
|
2ZRFXE ZWE150 | — | |
| 12282-47010 |
Hanger, Engine, NO.2
2009-12 → —
|
1NRFE NRE150 | — | |
| 12611 — Cover, Engine, NO.1 | ||||
| 12611-0N020 |
Cover, Engine, NO.1
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 12611-0R050 |
Cover, Engine, NO.1
2007-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 12611-0R060 |
Cover, Engine, NO.1
2007-02 → 2009-03
ended
|
2ADFHV ADE157 | — | |
| 12611-0N050 note |
Cover, Engine, NO.1
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 12611-0R090 |
Cover, Engine, NO.1
2009-03 → 2010-01
ended
|
2ADFHV ADE157 | — | |
| 12611-0R100 |
Cover, Engine, NO.1
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 12611-0Y020 |
Cover, Engine, NO.1
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 12611-33060 note |
Cover, Engine, NO.1
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 12611-0N050 note |
Cover, Engine, NO.1
2009-12 → 2010-06
ended
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 12611-0N051 note |
Cover, Engine, NO.1
2010-07 → 2012-09
ended
|
1NDTV NDE150 | — | |
| 12611-0R090 |
Cover, Engine, NO.1
2009-12 → —
|
2ADFHV ADE157 LHD | — | |
| 12611-0R100 |
Cover, Engine, NO.1
2009-12 → 2010-05
ended
|
1ADFTV ADE150 LHD | — | |
| 12611-0R101 |
Cover, Engine, NO.1
2010-06 → —
|
1ADFTV ADE150 | — | |
| 12611-0Y020 |
Cover, Engine, NO.1
2009-12 → 2013-05
ended
|
1NRFE NRE150 | — | |
| 12611-33060 note |
Cover, Engine, NO.1
2009-12 → 2010-06
ended
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 12611-33061 note |
Cover, Engine, NO.1
2010-07 → 2012-10
ended
|
1NDTV NDE150 | — | |
| 12631A — Bracket, Engine Cover | ||||
| 12631-26020 |
Bracket, Engine Cover
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 12632-33020 |
Bracket, Engine Cover
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 12631-0R010 |
Bracket, Engine Cover
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 12631-33020 |
Bracket, Engine Cover
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 12631-0N010 note |
Bracket, Engine Cover
2012-06 → —
|
1NDTV NDE150 | — | |
| 12631-0R010 |
Bracket, Engine Cover
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 12631-33020 note |
Bracket, Engine Cover
2010-08 → 2012-06
ended
|
1NDTV NDE150 DCR | — | |
| 12631-33020 note |
Bracket, Engine Cover
2010-11 → 2012-06
ended
|
1NDTV NDE150 DCRL | — | |
| 12631-33020 note |
Bracket, Engine Cover
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 12631-33020 note |
Bracket, Engine Cover
2012-06 → —
|
1NDTV NDE150 | — | |
| 15043B — Pipe Sub-assy, Camshaft Oil Delivery, RH | ||||
| 15043-0R010 |
Pipe Sub-assy, Camshaft Oil Delivery, RH
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 15043-0R010 |
Pipe Sub-assy, Camshaft Oil Delivery, RH
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 15043-0R010 |
Pipe Sub-assy, Camshaft Oil Delivery, RH
2009-12 → 2011-10
ended
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 15044A — Pipe Sub-assy, Camshaft Oil Delivery, LH | ||||
| 15044-0R010 |
Pipe Sub-assy, Camshaft Oil Delivery, LH
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 15044-0R010 |
Pipe Sub-assy, Camshaft Oil Delivery, LH
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 15044-0R010 |
Pipe Sub-assy, Camshaft Oil Delivery, LH
2009-12 → 2011-10
ended
|
1ADFTV,2ADFHV ADE15# LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
