Toyota Auris/Hybrid (UKP)
2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe
Supported model
Data version 2014-01

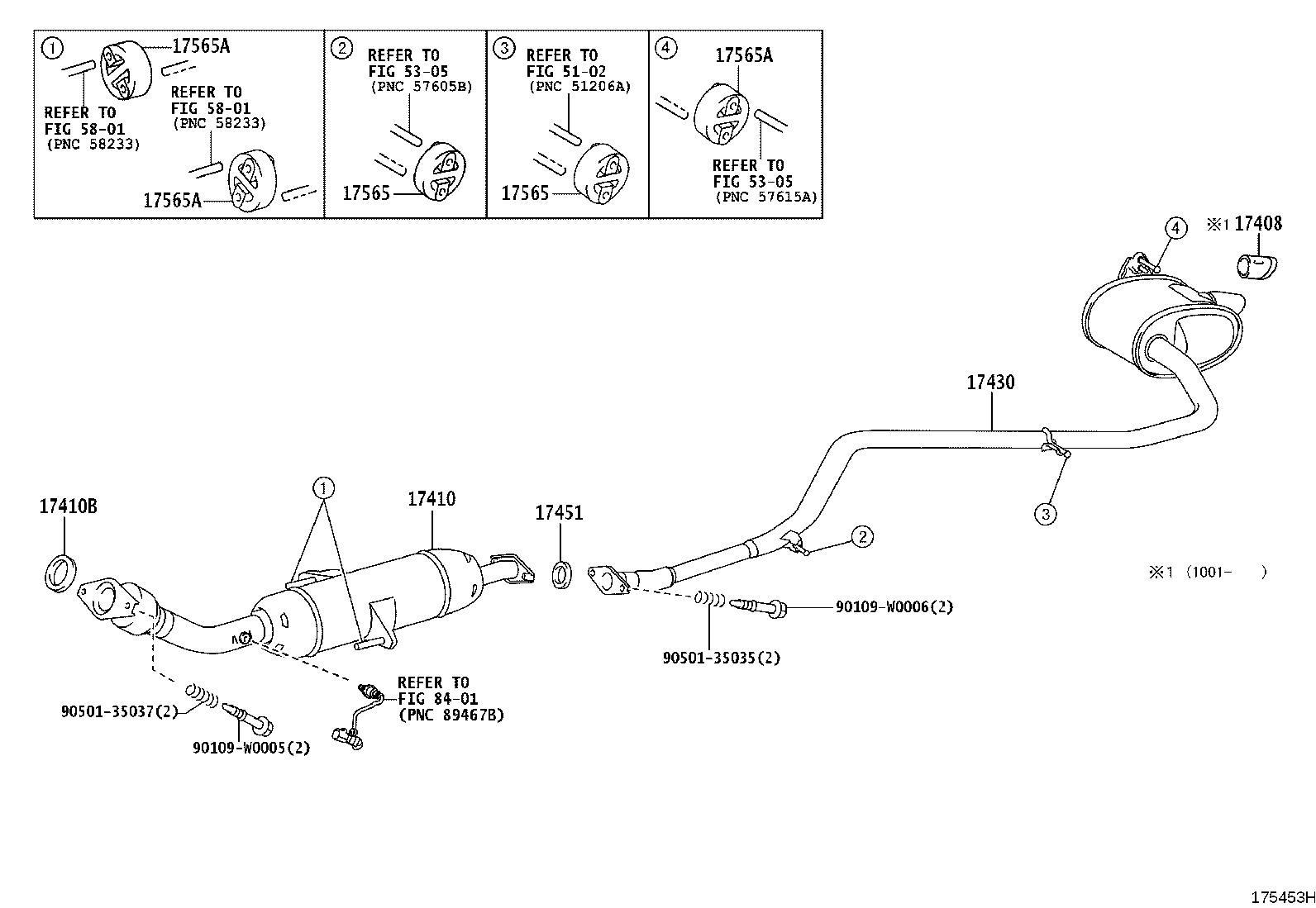

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17408 — Baffle Sub Assy, Exhaust Tailpipe | ||||
| 17408-31060 |
Baffle Sub Assy, Exhaust Tailpipe
2009-12 → —
|
2ADFHV ADE157 LHD | — | |
| 17410 — Pipe Assy, Exhaust, Front | ||||
| 17410-0D380 note |
Pipe Assy, Exhaust, Front
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 17410-0D390 note |
Pipe Assy, Exhaust, Front
2007-02 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 17410-0N050 |
Pipe Assy, Exhaust, Front
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 17410-0R050 note |
Pipe Assy, Exhaust, Front
2007-02 → 2009-03
ended
|
1ADFTV ADE150 DCR | — | |
| 17410-0R060 note |
Pipe Assy, Exhaust, Front
2007-02 → 2009-03
ended
|
1ADFTV ADE150 DCRL | — | |
| 17410-0R070 note |
Pipe Assy, Exhaust, Front
2007-02 → 2009-03
ended
|
2ADFHV ADE157 | — | |
| 17410-0D390 note |
Pipe Assy, Exhaust, Front
2009-09 → 2010-01
ended
|
1ZRFE ZRE151 | — | |
| 17410-0N080 |
Pipe Assy, Exhaust, Front
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 17410-0R120 note |
Pipe Assy, Exhaust, Front
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 17410-0R130 note |
Pipe Assy, Exhaust, Front
2009-03 → 2010-01
ended
|
2ADFHV ADE157 | — | |
| 17410-0T110 note |
Pipe Assy, Exhaust, Front
2009-02 → 2010-01
ended
|
1ZRFAE,2ZRFAE ZRE15# | — | |
| 17410-0Y030 note |
Pipe Assy, Exhaust, Front
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 17410-0D390 note |
Pipe Assy, Exhaust, Front
2010-01 → 2010-07
ended
|
1ZRFE ZRE151 | — | |
| 17410-0D390 note |
Pipe Assy, Exhaust, Front
2010-07 → 2012-10
ended
|
1ZRFE ZRE151 | — | |
| 17410-0D390 note |
Pipe Assy, Exhaust, Front
2010-07 → 2012-10
ended
|
1ZRFE ZRE151 | — | |
| 17410-0N080 |
Pipe Assy, Exhaust, Front
2009-12 → 2012-10
ended
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 17410-0R120 note |
Pipe Assy, Exhaust, Front
2009-12 → 2012-10
ended
|
1ADFTV ADE150 LHD | — | |
| 17410-0R130 note |
Pipe Assy, Exhaust, Front
2009-12 → 2012-10
ended
|
2ADFHV ADE157 LHD | — | |
| 17410-0T110 note |
Pipe Assy, Exhaust, Front
2009-12 → 2012-10
ended
|
1ZRFAE ZRE151;2ZRFAE ZRE152 LHD +1 | — | |
| 17410-0T450 note |
Pipe Assy, Exhaust, Front
2010-07 → 2012-10
ended
|
1ZRFE ZRE151 | — | |
| 17410-0Y030 note |
Pipe Assy, Exhaust, Front
2009-12 → 2013-05
ended
|
1NRFE NRE150 | — | |
| 17410-0Y030 note |
Pipe Assy, Exhaust, Front
2009-12 → 2013-05
ended
|
1NRFE NRE150 | — | |
| 17410-0Y080 note |
Pipe Assy, Exhaust, Front
2009-12 → 2013-05
ended
|
1NRFE NRE150 | — | |
| 17410-37430 note |
Pipe Assy, Exhaust, Front
2010-06 → 2012-10
ended
|
2ZRFXE ZWE150 LHD | — | |
| 17410-37440 note |
Pipe Assy, Exhaust, Front
2010-06 → 2012-10
ended
|
2ZRFXE ZWE150 | — | |
| 17410B — Gasket, Exhaust Pipe | ||||
| 17451-0D090 |
Gasket, Exhaust Pipe
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 17451-0R010 |
Gasket, Exhaust Pipe
2007-02 → 2009-02
ended
|
1NDTV,1ZRFE NDE150,ZRE151 | — | |
| 17451-0R010 |
Gasket, Exhaust Pipe
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 17451-0R010 |
Gasket, Exhaust Pipe
2009-02 → 2009-12
ended
|
1NDTV CRL;2ADFHV,1ZRFAE,2ZRFAE NDE150 ADE157,ZRE15# +11 | — | |
| 17451-0R010 |
Gasket, Exhaust Pipe
2009-02 → 2010-01
ended
|
1ZRFE 0 ZRE151;1ADFTV 5D +12 | — | |
| 17451-47020 |
Gasket, Exhaust Pipe
2008-11 → 2009-12
ended
|
1NRFE NRE150 5D | — | |
| 17451-47020 |
Gasket, Exhaust Pipe
2008-11 → 2010-01
ended
|
1NRFE NRE150 3D | — | |
| 17451-0R010 |
Gasket, Exhaust Pipe
2009-12 → —
|
1NDTV XE NDE150 ZRE151,ZWE150;1ADFTV,2ADFHV,1ZRFE +9 | — | |
| 17451-47020 |
Gasket, Exhaust Pipe
2009-12 → —
|
1NRFE NRE150 | — | |
| 17430 — Pipe Assy, Exhaust, Tail | ||||
| 17430-0D390 |
Pipe Assy, Exhaust, Tail
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 17430-0D400 |
Pipe Assy, Exhaust, Tail
2007-02 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 17430-0N040 |
Pipe Assy, Exhaust, Tail
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 17430-0R030 |
Pipe Assy, Exhaust, Tail
2007-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 17430-0R040 |
Pipe Assy, Exhaust, Tail
2007-02 → 2009-03
ended
|
2ADFHV ADE157 | — | |
| 17430-0D400 |
Pipe Assy, Exhaust, Tail
2008-11 → 2009-04
ended
|
1NRFE,1ZRFAE,2ZRFAE NRE150,ZRE15# | — | |
| 17430-0D401 |
Pipe Assy, Exhaust, Tail
2009-05 → 2009-12
ended
|
1NRFE,1ZRFAE,2ZRFAE NRE150,ZRE15# 5D | — | |
| 17430-0D401 |
Pipe Assy, Exhaust, Tail
2009-05 → 2010-01
ended
|
1ZRFE ZRE151;1NRFE,1ZRFAE,2ZRFAE NRE150,ZRE15# 3D | — | |
| 17430-0N040 |
Pipe Assy, Exhaust, Tail
2009-02 → 2010-01
ended
|
1NDTV NDE150 3D;1NDTV NDE150 +3 | — | |
| 17430-0N040 |
Pipe Assy, Exhaust, Tail
2009-02 → 2009-12
ended
|
1NDTV NDE150 5D (E,SOL);1NDTV +4 | — | |
| 17430-0R030 |
Pipe Assy, Exhaust, Tail
2009-03 → 2009-04
ended
|
1ADFTV ADE150 | — | |
| 17430-0R031 |
Pipe Assy, Exhaust, Tail
2009-05 → 2009-12
ended
|
1ADFTV ADE150 LHD 5D | — | |
| 17430-0R031 |
Pipe Assy, Exhaust, Tail
2009-05 → 2010-01
ended
|
1ADFTV ADE150 RHD;1ADFTV ADE150 +2 | — | |
| 17430-0R040 |
Pipe Assy, Exhaust, Tail
2009-03 → 2010-01
ended
|
2ADFHV ADE157 3D | — | |
| 17430-0R040 |
Pipe Assy, Exhaust, Tail
2009-03 → 2009-12
ended
|
2ADFHV ADE157 5D | — | |
| 17430-0D401 |
Pipe Assy, Exhaust, Tail
2009-12 → —
|
2ZRFAE ZRE152 LHD SOL;1NRFE,1ZR# +1 | — | |
| 17430-0N040 |
Pipe Assy, Exhaust, Tail
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 17430-0R031 |
Pipe Assy, Exhaust, Tail
2009-12 → —
|
1ADFTV ADE150 LHD | — | |
| 17430-0R110 |
Pipe Assy, Exhaust, Tail
2009-12 → —
|
2ADFHV ADE157 LHD | — | |
| 17430-37450 |
Pipe Assy, Exhaust, Tail
2010-06 → —
|
2ZRFXE ZWE150 | — | |
| 17451 — Gasket, Exhaust Pipe | ||||
| 17451-0D110 |
Gasket, Exhaust Pipe
2007-02 → 2008-07
ended
|
1ADFTV,2ADFHV,1NDTV,1ZRFE,4ZZFE ADE15#,NDE150,ZRE151,ZZE150 | — | |
| 17451-0D111 |
Gasket, Exhaust Pipe
2008-08 → 2009-02
ended
|
1NDTV,1ZRFE NDE150,ZRE151 | — | |
| 17451-0D111 |
Gasket, Exhaust Pipe
2008-08 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 17451-0D111 |
Gasket, Exhaust Pipe
2008-08 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 17451-0D111 |
Gasket, Exhaust Pipe
2009-02 → 2009-12
ended
|
1NDTV CRL;2ADFHV,1ZRFAE,2ZRFAE NDE150 ADE157,ZRE15# +11 | — | |
| 17451-0D111 |
Gasket, Exhaust Pipe
2009-02 → 2010-01
ended
|
1ZRFE 0 ZRE151;1ADFTV 5D +12 | — | |
| 90917-06089 |
Gasket, Exhaust Pipe
2008-11 → 2009-12
ended
|
1NRFE NRE150 5D | — | |
| 90917-06089 |
Gasket, Exhaust Pipe
2008-11 → 2010-01
ended
|
1NRFE NRE150 3D | — | |
| 17451-0D111 |
Gasket, Exhaust Pipe
2009-12 → 2011-02
ended
|
1ZRFAE SOL;1ADFTV,2ADFHV,1ZRFE ZRE151;1NDTV ADE15#,ZRE151 +8 | — | |
| 17451-0D112 |
Gasket, Exhaust Pipe
2011-03 → —
|
1ADFTV,2ADFHV,1NDTV,1ZR#,2ZRFAE ADE15#,NDE150,ZRE15# | — | |
| 17451-0J021 |
Gasket, Exhaust Pipe
2010-06 → 2011-02
ended
|
2ZRFXE ZWE150 | — | |
| 17451-0J022 |
Gasket, Exhaust Pipe
2011-03 → —
|
2ZRFXE ZWE150 | — | |
| 90917-06089 |
Gasket, Exhaust Pipe
2009-12 → —
|
1NRFE NRE150 | — | |
| 17565 — Support, Exhaust Pipe, NO.5 | ||||
| 17565-0D100 |
Support, Exhaust Pipe, NO.5
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 17565-0D100 |
Support, Exhaust Pipe, NO.5
2007-02 → 2009-03
ended
|
2ADFHV ADE157 | — | |
| 17565-0D100 |
Support, Exhaust Pipe, NO.5
2007-02 → 2009-02
ended
|
1NDTV,1ZRFE NDE150,ZRE151 | — | |
| 17565-0D100 |
Support, Exhaust Pipe, NO.5
2007-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 17565-0D100 |
Support, Exhaust Pipe, NO.5
2008-11 → 2009-12
ended
|
1NDTV 6FS) NDE150 (E,SOL);1NRFE,1ZRFAE,2ZRFAE +12 | — | |
| 17565-0D100 |
Support, Exhaust Pipe, NO.5
2009-03 → 2009-12
ended
|
2ADFHV ADE157 5D | — | |
| 17565-0D100 |
Support, Exhaust Pipe, NO.5
2008-11 → 2010-01
ended
|
1ZRFE NDE150 ZRE151 5D +13 | — | |
| 17565-0D100 |
Support, Exhaust Pipe, NO.5
2009-03 → 2010-01
ended
|
2ADFHV ADE157 3D | — | |
| 17565-0D100 |
Support, Exhaust Pipe, NO.5
2009-12 → —
|
1NDTV E NDE150 ADE150,ZRE151 +9 | — | |
| 17565-0D100 |
Support, Exhaust Pipe, NO.5
2009-12 → —
|
2ADFHV ADE157 LHD | — | |
| 17565A — Support, Exhaust Pipe, NO.4 | ||||
| 17565-0J030 |
Support, Exhaust Pipe, NO.4
2007-02 → 2008-07
ended
|
2ADFHV ADE157 | — | |
| 17565-0J031 note |
Support, Exhaust Pipe, NO.4
2008-10 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 17565-0J031 note |
Support, Exhaust Pipe, NO.4
2008-10 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 17565-0J031 note |
Support, Exhaust Pipe, NO.4
2008-10 → 2009-02
ended
|
1NDTV,1ZRFE NDE150,ZRE151 | — | |
| 17565-22040 note |
Support, Exhaust Pipe, NO.4
2008-10 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 17565-22040 |
Support, Exhaust Pipe, NO.4
2008-08 → 2008-10
ended
|
2ADFHV ADE157 | — | |
| 17565-22040 note |
Support, Exhaust Pipe, NO.4
2008-10 → 2009-02
ended
|
1NDTV,1ZRFE NDE150,ZRE151 | — | |
| 17565-22040 |
Support, Exhaust Pipe, NO.4
2007-02 → 2008-10
ended
|
1ADFTV,1NDTV,1ZRFE,4ZZFE ADE150,NDE150,ZRE151,ZZE150 | — | |
| 17565-22040 note |
Support, Exhaust Pipe, NO.4
2008-10 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 17565-0J031 note |
Support, Exhaust Pipe, NO.4
2008-11 → 2009-12
ended
|
1NDTV 6FS) NDE150 (E,SOL);2ADFHV,1NRFE,1ZRFAE,2ZRFAE +12 | — | |
| 17565-0J031 note |
Support, Exhaust Pipe, NO.4
2008-11 → 2010-01
ended
|
1ZRFE NDE150 (6F,6FS) ZRE151 +13 | — | |
| 17565-22040 note |
Support, Exhaust Pipe, NO.4
2008-11 → 2009-12
ended
|
1NDTV 6FS) NDE150 (E,SOL);2ADFHV,1NRFE,1ZRFAE,2ZRFAE +12 | — | |
| 17565-22040 note |
Support, Exhaust Pipe, NO.4
2008-11 → 2010-01
ended
|
1ZRFE NDE150 (6F,6FS) ZRE151 +13 | — | |
| 17565-0J031 |
Support, Exhaust Pipe, NO.4
2009-12 → —
|
1NDTV E NDE150 NRE150,ZRE151;1ADFTV,2ADFHV,1ZRFE +9 | — | |
| 17565-0J031 |
Support, Exhaust Pipe, NO.4
2010-06 → —
|
2ZRFXE ZWE150 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
