Toyota Auris/Hybrid (UKP)
2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe
Supported model
Data version 2014-01

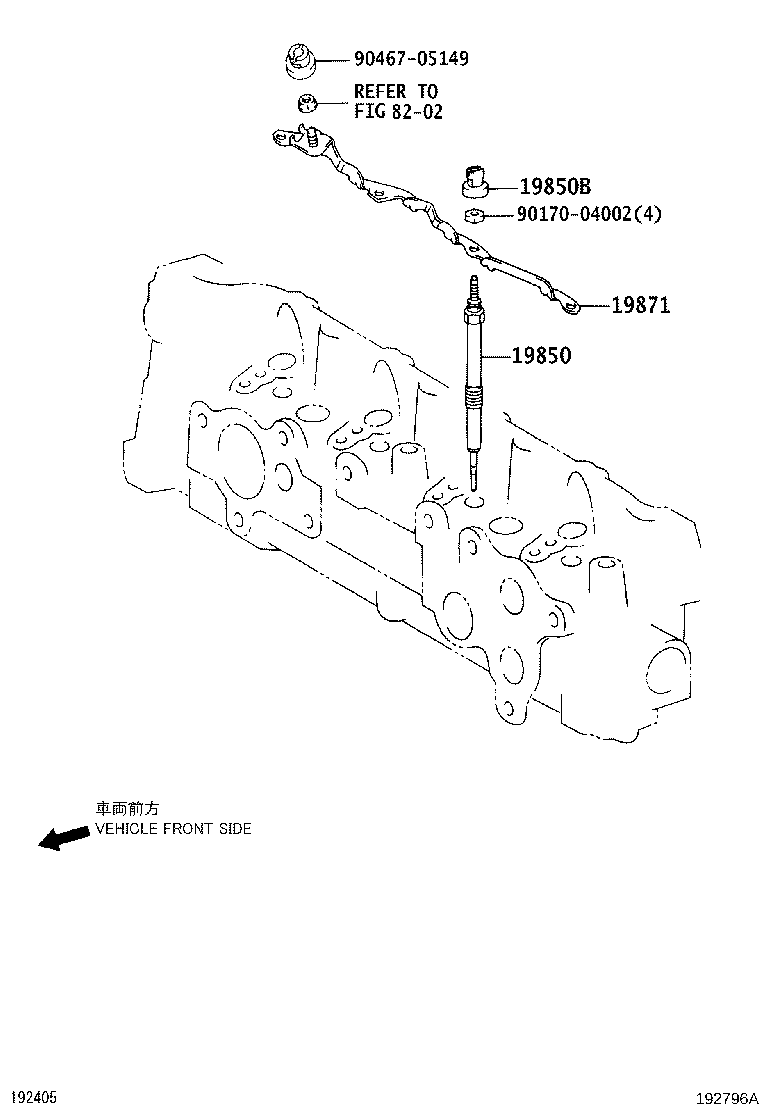

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 19850 — Plug Assy, Glow | ||||
| 19850-0R010 note |
Plug Assy, Glow
2007-02 → 2009-03
ended
|
1ADFTV ADE150 DCR | — | |
| 19850-0R020 note |
Plug Assy, Glow
2007-02 → 2008-09
ended
|
1ADFTV,2ADFHV ADE15# DCRL | — | |
| 19850-0R022 note |
Plug Assy, Glow
2008-09 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# DCRL | — | |
| 19850-0W010 note |
Plug Assy, Glow
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 19850-26022 note |
Plug Assy, Glow
2008-10 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# DCRL | — | |
| 19850-0R022 note |
Plug Assy, Glow
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 19850-26022 note |
Plug Assy, Glow
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 19850-33020 note |
Plug Assy, Glow
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 19850-0R022 note |
Plug Assy, Glow
2009-12 → 2011-07
ended
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 19850-26022 note |
Plug Assy, Glow
2011-07 → —
|
1ADFTV,2ADFHV ADE15# | — | |
| 19850-26022 note |
Plug Assy, Glow
2009-12 → 2011-07
ended
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 19850-33020 note |
Plug Assy, Glow
2009-12 → —
|
1NDTV .TERRA NDE150 DCRL +9 | — | |
| 19850-33020 note |
Plug Assy, Glow
2010-11 → —
|
1NDTV NDE150 DCRL | — | |
| 19850-33020 note |
Plug Assy, Glow
2009-12 → 2010-10
ended
|
1NDTV NDE150 SOL DCR;1NDTV +4 | — | |
| 19850-33020 note |
Plug Assy, Glow
2010-08 → 2010-12
ended
|
1NDTV NDE150 DCR | — | |
| 19850-33030 note |
Plug Assy, Glow
2010-10 → —
|
1NDTV NDE150 DCR | — | |
| 19850-33030 note |
Plug Assy, Glow
2010-12 → —
|
1NDTV NDE150 DCR | — | |
| 19850B — Grommet, Screw(FOR GLOW PLUG) | ||||
| 90189-04024 |
Grommet, Screw(FOR GLOW PLUG)
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 90189-04024 |
Grommet, Screw(FOR GLOW PLUG)
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 90189-04024 |
Grommet, Screw(FOR GLOW PLUG)
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 90189-04024 |
Grommet, Screw(FOR GLOW PLUG)
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 90189-04024 note |
Grommet, Screw(FOR GLOW PLUG)
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 90189-04024 note |
Grommet, Screw(FOR GLOW PLUG)
2010-11 → —
|
1NDTV NDE150 DCRL | — | |
| 90189-04024 note |
Grommet, Screw(FOR GLOW PLUG)
2010-08 → —
|
1NDTV NDE150 DCR | — | |
| 90189-04024 |
Grommet, Screw(FOR GLOW PLUG)
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 19871 — Connector, Glow Plug NO.1 | ||||
| 19871-26010 |
Connector, Glow Plug NO.1
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 19871-33010 |
Connector, Glow Plug NO.1
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 19871-26010 |
Connector, Glow Plug NO.1
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 19871-33020 |
Connector, Glow Plug NO.1
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 19871-26010 |
Connector, Glow Plug NO.1
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 19871-33020 note |
Connector, Glow Plug NO.1
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 19871-33020 note |
Connector, Glow Plug NO.1
2010-08 → —
|
1NDTV NDE150 DCR | — | |
| 19871-33020 note |
Connector, Glow Plug NO.1
2010-11 → —
|
1NDTV NDE150 DCRL | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
