Toyota Auris/Hybrid (UKP)
2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe
Supported model
Data version 2014-01

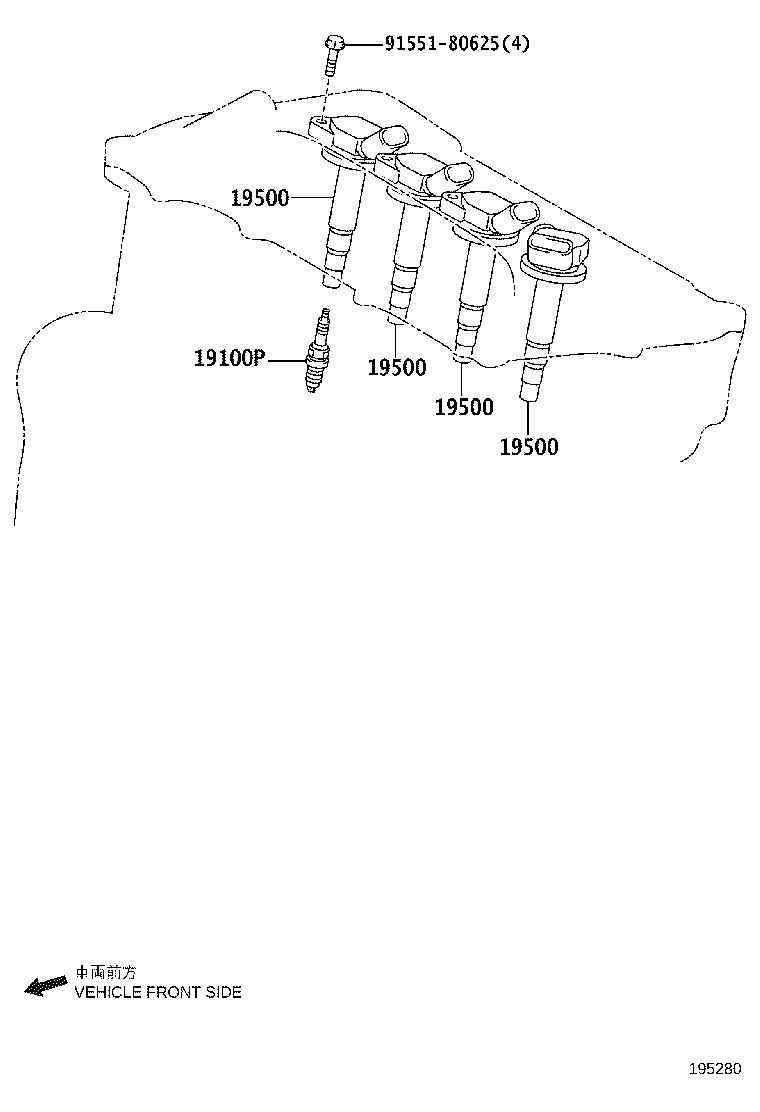

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 19100P — Plug, Spark | ||||
| 90080-91193 note |
Plug, Spark
2007-07 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90080-91194 note |
Plug, Spark
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90919-01164 note |
Plug, Spark
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90919-01253 note |
Plug, Spark
2007-02 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 90919-01253 note |
Plug, Spark
2009-02 → 2009-12
ended
|
1ZRFAE,2ZRFAE ZRE15# 5D | — | |
| 90919-01253 note |
Plug, Spark
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 90919-01253 note |
Plug, Spark
2009-02 → 2010-01
ended
|
1ZRFE ZRE151;1ZRFAE,2ZRFAE ZRE15# 3D | — | |
| 90919-01253 note |
Plug, Spark
2009-12 → —
|
1NRFE NRE150 | — | |
| 90919-01253 note |
Plug, Spark
2009-12 → —
|
2ZRFAE ZRE152 LHD SOL;1ZR#,2ZRFXE +1 | — | |
| 19500 — Coil Assy, Ignition | ||||
| 90080-19015 note |
Coil Assy, Ignition
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90080-19019 note |
Coil Assy, Ignition
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90919-02239 note |
Coil Assy, Ignition
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90919-02252 |
Coil Assy, Ignition
2007-02 → 2009-02
ended
|
1ZRFE ZRE151 | — | |
| 90919-T2002 note |
Coil Assy, Ignition
2007-02 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90919-02252 |
Coil Assy, Ignition
2009-02 → 2009-12
ended
|
1ZRFAE,2ZRFAE ZRE15# 5D | — | |
| 90919-02252 |
Coil Assy, Ignition
2009-02 → 2010-01
ended
|
1ZRFE ZRE151;1ZRFAE,2ZRFAE ZRE15# 3D | — | |
| 90919-02252 |
Coil Assy, Ignition
2009-12 → 2010-09
ended
|
1ZR# ZRE151;2ZRFAE ZRE152 LHD +1 | — | |
| 90919-02258 |
Coil Assy, Ignition
2010-06 → —
|
2ZRFXE ZWE150 | — | |
| 90919-02258 |
Coil Assy, Ignition
2010-09 → —
|
1ZR#,2ZRFAE ZRE15# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
