Toyota Auris/Hybrid (UKP)
2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe
Supported model
Data version 2014-01

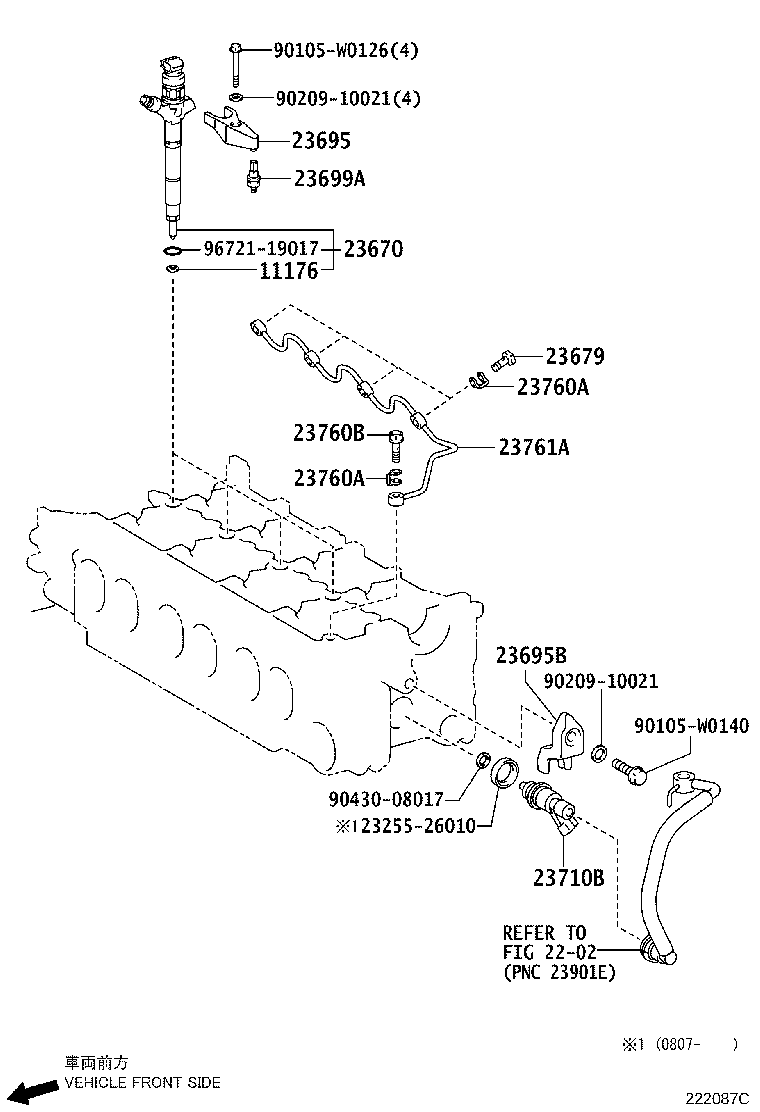

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11176 — Seat, Injection Nozzle | ||||
| 11176-26010 |
Seat, Injection Nozzle
2007-02 → 2008-11
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11176-26030 |
Seat, Injection Nozzle
2008-11 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11176-33010 |
Seat, Injection Nozzle
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 11176-26020 |
Seat, Injection Nozzle
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 11176-33010 |
Seat, Injection Nozzle
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 11176-26020 |
Seat, Injection Nozzle
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 11176-33010 |
Seat, Injection Nozzle
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 23670 — Injector Assy | ||||
| 23670-09180 |
Injector Assy
2007-02 → 2007-12
ended
|
1ADFTV ADE150 DCR | — | |
| 23670-09190 |
Injector Assy
2007-02 → 2007-12
ended
|
1ADFTV ADE150 DCRL | — | |
| 23670-09270 |
Injector Assy
2007-12 → 2009-03
ended
|
1ADFTV ADE150 DCRL | — | |
| 23670-09280 |
Injector Assy
2007-12 → 2009-03
ended
|
1ADFTV ADE150 DCR | — | |
| 23670-29055 |
Injector Assy
2007-02 → 2007-10
ended
|
2ADFHV ADE157 | — | |
| 23670-29105 |
Injector Assy
2007-10 → 2009-03
ended
|
2ADFHV ADE157 | — | |
| 23670-39105 |
Injector Assy
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 23670-29115 |
Injector Assy
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 23670-29135 |
Injector Assy
2009-03 → 2010-01
ended
|
2ADFHV ADE157 | — | |
| 23670-39325 |
Injector Assy
2009-02 → 2009-11
ended
|
1NDTV NDE150 | — | |
| 23670-39415 |
Injector Assy
2009-11 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 23670-09370 note |
Injector Assy
2011-03 → 2011-12
ended
|
1NDTV NDE150 DCR | — | |
| 23670-09370 note |
Injector Assy
2010-09 → 2012-02
ended
|
1NDTV NDE150 DCR | — | |
| 23670-09370 note |
Injector Assy
2011-12 → 2012-10
ended
|
1NDTV NDE150 DCR | — | |
| 23670-09370 note |
Injector Assy
2012-02 → 2012-10
ended
|
1NDTV NDE150 DCR | — | |
| 23670-09390 note |
Injector Assy
2011-03 → 2011-12
ended
|
1NDTV NDE150 DCRL | — | |
| 23670-09390 note |
Injector Assy
2010-11 → 2012-02
ended
|
1NDTV NDE150 DCRL | — | |
| 23670-09390 note |
Injector Assy
2011-12 → 2012-10
ended
|
1NDTV NDE150 DCRL | — | |
| 23670-09390 note |
Injector Assy
2012-02 → 2012-10
ended
|
1NDTV NDE150 DCRL | — | |
| 23670-29115 |
Injector Assy
2009-12 → —
|
1ADFTV ADE150 LHD | — | |
| 23670-29135 |
Injector Assy
2009-12 → —
|
2ADFHV ADE157 LHD | — | |
| 23670-39405 note |
Injector Assy
2010-07 → 2011-03
ended
|
1NDTV NDE150 DCRL | — | |
| 23670-39405 note |
Injector Assy
2011-03 → 2011-12
ended
|
1NDTV NDE150 DCRL | — | |
| 23670-39405 note |
Injector Assy
2010-11 → 2012-02
ended
|
1NDTV NDE150 DCRL | — | |
| 23670-39415 note |
Injector Assy
2009-12 → 2011-12
ended
|
1NDTV NDE150 SOL DCR;1NDTV +4 | — | |
| 23670-39415 note |
Injector Assy
2010-08 → 2012-02
ended
|
1NDTV NDE150 DCR | — | |
| 23670-39415 note |
Injector Assy
2009-12 → 2010-07
ended
|
1NDTV .TERRA NDE150 DCRL +9 | — | |
| 23679 — Screw, Injector Follow | ||||
| 23679-0R010 |
Screw, Injector Follow
2007-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 23679-26010 |
Screw, Injector Follow
2007-02 → 2009-03
ended
|
2ADFHV ADE157 | — | |
| 23679-26020 |
Screw, Injector Follow
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 23679-26020 |
Screw, Injector Follow
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 23695 — Clamp, Nozzle Holder, NO.1 | ||||
| 23695-0R010 |
Clamp, Nozzle Holder, NO.1
2007-02 → 2007-05
ended
|
1ADFTV ADE150 | — | |
| 23695-0R011 |
Clamp, Nozzle Holder, NO.1
2007-05 → 2007-07
ended
|
1ADFTV ADE150 | — | |
| 23695-0R012 |
Clamp, Nozzle Holder, NO.1
2007-07 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 23695-0R020 |
Clamp, Nozzle Holder, NO.1
2007-02 → 2008-08
ended
|
2ADFHV ADE157 | — | |
| 23695-0R021 |
Clamp, Nozzle Holder, NO.1
2008-08 → 2009-03
ended
|
2ADFHV ADE157 | — | |
| 23695-33010 |
Clamp, Nozzle Holder, NO.1
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 23695-0R021 |
Clamp, Nozzle Holder, NO.1
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 23695-33020 |
Clamp, Nozzle Holder, NO.1
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 23695-0R021 |
Clamp, Nozzle Holder, NO.1
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 23695-33020 |
Clamp, Nozzle Holder, NO.1
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 23695B — Clamp, Nozzle Holder, NO.2 | ||||
| 23695-26011 |
Clamp, Nozzle Holder, NO.2
2007-02 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# DCRL | — | |
| 23695-26011 |
Clamp, Nozzle Holder, NO.2
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 23695-26011 |
Clamp, Nozzle Holder, NO.2
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 23699A — Seat, Nozzle Holder Clamp | ||||
| 23699-0R010 |
Seat, Nozzle Holder Clamp
2007-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 23699-0R021 |
Seat, Nozzle Holder Clamp
2007-02 → 2009-03
ended
|
2ADFHV ADE157 | — | |
| 23699-33010 |
Seat, Nozzle Holder Clamp
2007-02 → 2009-02
ended
|
1NDTV NDE150 | — | |
| 23699-0R021 |
Seat, Nozzle Holder Clamp
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 23699-33020 |
Seat, Nozzle Holder Clamp
2009-02 → 2010-01
ended
|
1NDTV NDE150 | — | |
| 23699-0R021 |
Seat, Nozzle Holder Clamp
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 23699-33020 |
Seat, Nozzle Holder Clamp
2009-12 → —
|
1NDTV NDE150 E,SOL;1NDTV NDE150 +2 | — | |
| 23710B — Injector Assy, Exhaust Fuel Addition | ||||
| 23710-26010 |
Injector Assy, Exhaust Fuel Addition
2007-02 → 2007-04
ended
|
1ADFTV,2ADFHV ADE15# DCRL | — | |
| 23710-26011 |
Injector Assy, Exhaust Fuel Addition
2007-04 → 2009-03
ended
|
1ADFTV,2ADFHV ADE15# DCRL | — | |
| 23710-26011 |
Injector Assy, Exhaust Fuel Addition
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 23710-26011 |
Injector Assy, Exhaust Fuel Addition
2009-12 → 2010-02
ended
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 23710-26012 |
Injector Assy, Exhaust Fuel Addition
2010-02 → —
|
1ADFTV,2ADFHV ADE15# | — | |
| 23760A — Gasket | ||||
| 90904-30008 |
Gasket
2007-02 → 2009-03
ended
|
2ADFHV ADE157 | — | |
| 90904-30008 |
Gasket
2007-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 90904-30008 |
Gasket
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 90904-30008 |
Gasket
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 23760B — Bolt, Union(FOR NOZZLE LEAKAGE PIPE) | ||||
| 90401-08016 |
Bolt, Union(FOR NOZZLE LEAKAGE PIPE)
2007-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 23761A — Pipe, Nozzle Leakage, NO.1 | ||||
| 23761-0R011 |
Pipe, Nozzle Leakage, NO.1
2007-02 → 2009-01
ended
|
1ADFTV ADE150 | — | |
| 23761-0R030 |
Pipe, Nozzle Leakage, NO.1
2007-02 → 2009-03
ended
|
2ADFHV ADE157 | — | |
| 23761-26010 |
Pipe, Nozzle Leakage, NO.1
2009-01 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 23761-0R040 note |
Pipe, Nozzle Leakage, NO.1
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 23761-26030 note |
Pipe, Nozzle Leakage, NO.1
2009-03 → 2010-01
ended
|
1ADFTV,2ADFHV ADE15# | — | |
| 23761-0R040 note |
Pipe, Nozzle Leakage, NO.1
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
| 23761-26030 note |
Pipe, Nozzle Leakage, NO.1
2009-12 → —
|
1ADFTV,2ADFHV ADE15# LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
