Toyota Auris/Hybrid (UKP)
2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe
Supported model
Data version 2014-01

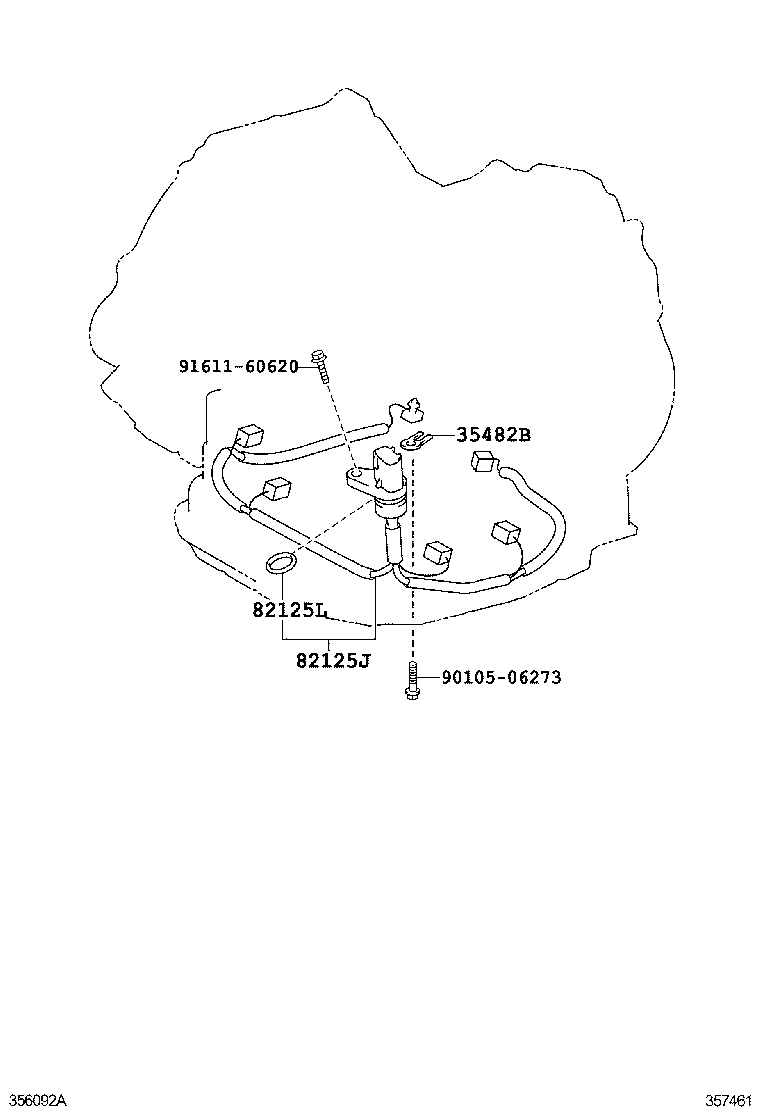

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35482B — Clamp, Temperature Sensor | ||||
| 35482-52020 |
Clamp, Temperature Sensor
2009-09 → 2010-01
ended
|
ZRE151 HTWC | — | |
| 35482-52020 |
Clamp, Temperature Sensor
2010-01 → —
|
ZRE151 HTWC | — | |
| 82125J — Wire, Transmission | ||||
| 82125-52080 |
Wire, Transmission
2009-09 → 2010-01
ended
|
ZRE151 HTWC | — | |
| 82125-52070 |
Wire, Transmission
2010-09 → 2012-10
ended
|
ZRE151 HTWC | — | |
| 82125-52080 |
Wire, Transmission
2010-01 → 2010-09
ended
|
ZRE151 HTWC | — | |
| 82125-52080 note |
Wire, Transmission
2010-09 → 2012-10
ended
|
ZRE151 HTWC | — | |
| 82125-52080 note |
Wire, Transmission
2010-09 → 2012-10
ended
|
ZRE151 HTWC | — | |
| 82125L — Ring, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
Ring, O(FOR TRANSMISSION WIRE)
2009-09 → 2010-01
ended
|
ZRE151 HTWC | — | |
| 90301-21009 |
Ring, O(FOR TRANSMISSION WIRE)
2010-01 → —
|
ZRE151 HTWC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
