Toyota Auris/Hybrid (UKP)
2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe
Supported model
Data version 2014-01

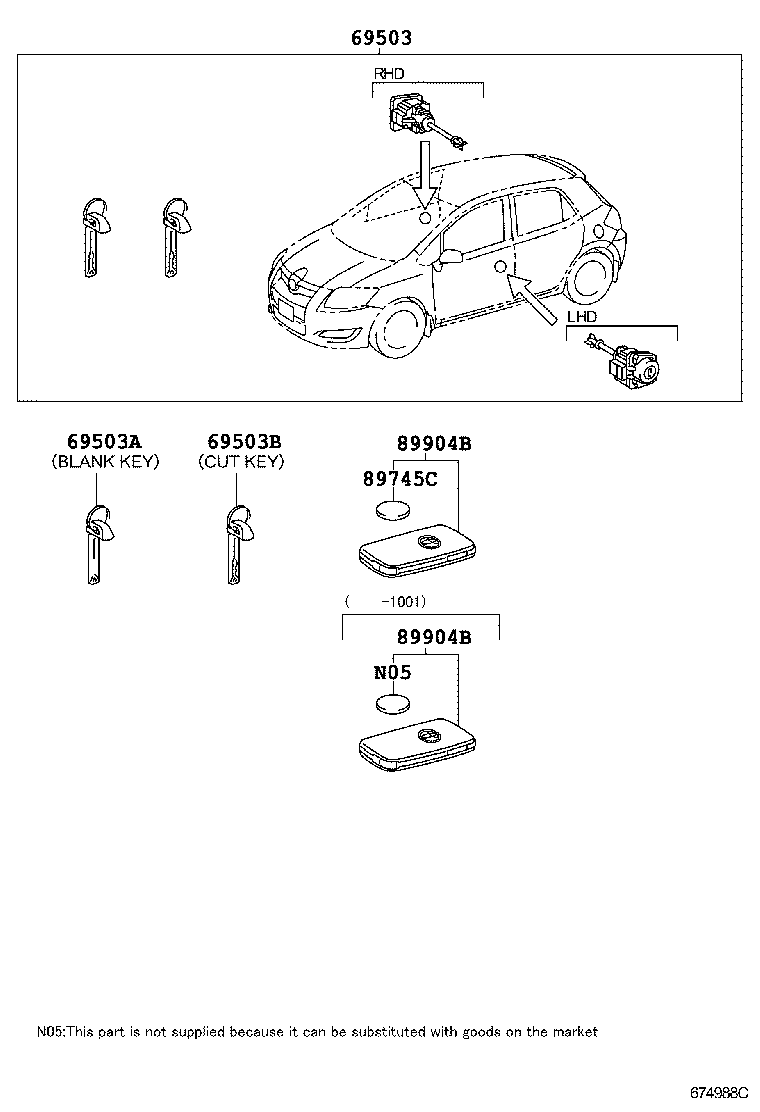

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 69503 — Cylinder Set, Lock | ||||
| 69005-02180 |
Cylinder Set, Lock
2007-02 → 2008-11
ended
|
ZZE150 LHD | — | |
| 69005-02180 |
Cylinder Set, Lock
2007-02 → 2009-02
ended
|
NDE150,ZRE151 LHD | — | |
| 69005-02180 |
Cylinder Set, Lock
2007-02 → 2009-03
ended
|
ADE15# LHD | — | |
| 69005-02190 |
Cylinder Set, Lock
2007-02 → 2008-11
ended
|
ZZE150 RHD | — | |
| 69005-02190 |
Cylinder Set, Lock
2007-02 → 2009-03
ended
|
ADE15# RHD | — | |
| 69005-02190 |
Cylinder Set, Lock
2007-02 → 2009-02
ended
|
NDE150,ZRE151 RHD | — | |
| 69005-02350 note |
Cylinder Set, Lock
2007-02 → 2009-02
ended
|
ZRE151 RHD | — | |
| 69005-02350 note |
Cylinder Set, Lock
2007-02 → 2009-02
ended
|
ZRE151 RHD | — | |
| 69005-02350 note |
Cylinder Set, Lock
2007-02 → 2009-03
ended
|
ADE15# RHD | — | |
| 69005-02350 note |
Cylinder Set, Lock
2007-02 → 2009-03
ended
|
ADE15# RHD | — | |
| 69005-02370 note |
Cylinder Set, Lock
2007-02 → 2009-02
ended
|
NDE150,ZRE151 RHD | — | |
| 69005-02370 note |
Cylinder Set, Lock
2007-02 → 2008-11
ended
|
ZZE150 RHD | — | |
| 69005-02370 note |
Cylinder Set, Lock
2007-02 → 2009-03
ended
|
ADE15# RHD | — | |
| 69005-0D090 note |
Cylinder Set, Lock
2007-02 → 2009-03
ended
|
ADE15# LHD SOL | — | |
| 69005-0D090 note |
Cylinder Set, Lock
2007-02 → 2009-02
ended
|
ZRE151 LHD SOL | — | |
| 69005-02180 |
Cylinder Set, Lock
2008-11 → 2009-12
ended
|
NDE150 LHD LHD 5D +9 | — | |
| 69005-02180 |
Cylinder Set, Lock
2008-11 → 2010-01
ended
|
ZRE151 .LHD 4FC;NDE150 3D +8 | — | |
| 69005-02190 |
Cylinder Set, Lock
2008-11 → 2009-12
ended
|
ADE157,NDE150,NRE150,ZRE15# RHD 5D (6F,6FS) | — | |
| 69005-02190 |
Cylinder Set, Lock
2008-11 → 2010-01
ended
|
ADE150 RHD DCRL;ADE157,NDE150,NRE150,ZRE15# RHD +2 | — | |
| 69005-02350 note |
Cylinder Set, Lock
2009-02 → 2009-12
ended
|
ADE157,ZRE15# RHD 5D | — | |
| 69005-02350 note |
Cylinder Set, Lock
2009-02 → 2009-12
ended
|
ADE157,ZRE15# RHD 5D | — | |
| 69005-02350 note |
Cylinder Set, Lock
2009-02 → 2010-01
ended
|
ADE150 RHD DCRL;ADE157,ZRE15# RHD +1 | — | |
| 69005-02350 note |
Cylinder Set, Lock
2009-02 → 2010-01
ended
|
ADE150 RHD DCRL;ADE157,ZRE15# RHD +1 | — | |
| 69005-02370 note |
Cylinder Set, Lock
2008-11 → 2009-12
ended
|
ADE157,NDE150,NRE150,ZRE15# RHD 5D (6F,6FS) | — | |
| 69005-02370 note |
Cylinder Set, Lock
2008-11 → 2010-01
ended
|
ADE150 RHD DCRL;ADE157,NDE150,NRE150,ZRE15# RHD +2 | — | |
| 69005-0D090 note |
Cylinder Set, Lock
2009-02 → 2009-12
ended
|
ADE15#,ZRE15# LHD 5D SOL +1 | — | |
| 69005-0D090 note |
Cylinder Set, Lock
2009-02 → 2010-01
ended
|
ZRE151 SOL HTWC;ADE15#,ZRE15# LHD +3 | — | |
| 69005-02350 note |
Cylinder Set, Lock
2009-12 → —
|
ZRE151 RHD | — | |
| 69005-02350 |
Cylinder Set, Lock
2010-06 → —
|
ZWE150 RHD | — | |
| 69005-02350 note |
Cylinder Set, Lock
2009-12 → —
|
ZRE151 RHD | — | |
| 69005-02600 |
Cylinder Set, Lock
2009-12 → —
|
NDE150 LHD 6F TERRA;ADE15#,NRE150,ZRE151 +3 | — | |
| 69005-02610 |
Cylinder Set, Lock
2009-12 → —
|
NDE150,NRE150,ZRE151 RHD | — | |
| 69005-02620 note |
Cylinder Set, Lock
2009-12 → —
|
NDE150,NRE150,ZRE151 RHD | — | |
| 69005-02720 note |
Cylinder Set, Lock
2009-12 → —
|
NDE150 LHD E | — | |
| 69005-0D090 note |
Cylinder Set, Lock
2009-12 → —
|
ADE15#,ZRE15# LHD SOL | — | |
| 69005-0D090 |
Cylinder Set, Lock
2010-06 → —
|
ZWE150 LHD | — | |
| 69503A — Key, Blank | ||||
| 69515-52120 note |
Key, Blank
2007-02 → 2009-03
ended
|
ADE15# RHD | — | |
| 69515-52120 note |
Key, Blank
2007-02 → 2009-03
ended
|
ADE15# LHD SOL | — | |
| 69515-52120 note |
Key, Blank
2007-02 → 2009-03
ended
|
ADE15# RHD | — | |
| 69515-52120 note |
Key, Blank
2007-02 → 2009-02
ended
|
ZRE151 LHD SOL | — | |
| 69515-52120 note |
Key, Blank
2007-02 → 2009-02
ended
|
ZRE151 RHD | — | |
| 69515-52120 note |
Key, Blank
2007-02 → 2009-02
ended
|
ZRE151 RHD | — | |
| 69515-52120 note |
Key, Blank
2009-02 → 2009-12
ended
|
ADE157,ZRE15# RHD 5D | — | |
| 69515-52120 note |
Key, Blank
2009-02 → 2009-12
ended
|
ADE157,ZRE15# RHD 5D | — | |
| 69515-52120 note |
Key, Blank
2009-02 → 2009-12
ended
|
ADE15#,ZRE15# LHD 5D SOL +1 | — | |
| 69515-52120 note |
Key, Blank
2009-02 → 2010-01
ended
|
ADE150 RHD DCRL;ADE157,ZRE15# RHD +1 | — | |
| 69515-52120 note |
Key, Blank
2009-02 → 2010-01
ended
|
ADE150 RHD DCRL;ADE157,ZRE15# RHD +1 | — | |
| 69515-52120 note |
Key, Blank
2009-02 → 2010-01
ended
|
ZRE151 SOL HTWC;ADE15#,ZRE15# LHD +3 | — | |
| 69515-52120 note |
Key, Blank
2010-06 → —
|
ZWE150 | — | |
| 69515-52120 note |
Key, Blank
2009-12 → —
|
ADE15#,ZRE15# LHD SOL | — | |
| 69515-52120 note |
Key, Blank
2009-12 → —
|
ZRE151 RHD | — | |
| 69515-52120 note |
Key, Blank
2009-12 → —
|
ZRE151 RHD | — | |
| 69503B — Key, Cut | ||||
| 69515-52110 note |
Key, Cut
2007-02 → 2009-02
ended
|
ZRE151 RHD | — | |
| 69515-52110 note |
Key, Cut
2007-02 → 2009-02
ended
|
ZRE151 RHD | — | |
| 69515-52110 note |
Key, Cut
2007-02 → 2009-02
ended
|
ZRE151 LHD SOL | — | |
| 69515-52110 note |
Key, Cut
2007-02 → 2009-03
ended
|
ADE15# RHD | — | |
| 69515-52110 note |
Key, Cut
2007-02 → 2009-03
ended
|
ADE15# RHD | — | |
| 69515-52110 note |
Key, Cut
2007-02 → 2009-03
ended
|
ADE15# LHD SOL | — | |
| 69515-52110 note |
Key, Cut
2009-02 → 2010-01
ended
|
ADE150 RHD DCRL;ADE157,ZRE15# RHD +1 | — | |
| 69515-52110 note |
Key, Cut
2009-02 → 2010-01
ended
|
ZRE151 SOL HTWC;ADE15#,ZRE15# LHD +3 | — | |
| 69515-52110 note |
Key, Cut
2009-02 → 2010-01
ended
|
ADE150 RHD DCRL;ADE157,ZRE15# RHD +1 | — | |
| 69515-52110 note |
Key, Cut
2009-02 → 2009-12
ended
|
ADE15#,ZRE15# LHD 5D SOL +1 | — | |
| 69515-52110 note |
Key, Cut
2009-02 → 2009-12
ended
|
ADE157,ZRE15# RHD 5D | — | |
| 69515-52110 note |
Key, Cut
2009-02 → 2009-12
ended
|
ADE157,ZRE15# RHD 5D | — | |
| 69515-52110 note |
Key, Cut
2009-12 → —
|
ZRE151 RHD | — | |
| 69515-52110 note |
Key, Cut
2009-12 → —
|
ZRE151 RHD | — | |
| 69515-52110 note |
Key, Cut
2009-12 → —
|
ADE15#,ZRE15# LHD SOL | — | |
| 69515-52110 note |
Key, Cut
2010-06 → —
|
ZWE150 | — | |
| 89745C — Battery, Transmitter | ||||
| 89745-52020 note |
Battery, Transmitter
2012-05 → —
|
ZWE150 RHD G | — | |
| 89745-52030 |
Battery, Transmitter
2010-06 → —
|
ZWE150 | — | |
| 89745-52030 note |
Battery, Transmitter
2009-12 → —
|
ADE15#,ZRE15# LHD SOL | — | |
| 89745-52030 note |
Battery, Transmitter
2009-12 → —
|
ZRE151 RHD 6F | — | |
| 89745-52030 note |
Battery, Transmitter
2009-12 → —
|
ZRE151 RHD 6FS | — | |
| 89745-52030 note |
Battery, Transmitter
2009-12 → —
|
ZRE151 RHD 6F | — | |
| 89745-52030 note |
Battery, Transmitter
2009-12 → —
|
ZRE151 RHD 6FS | — | |
| 89745-52030 note |
Battery, Transmitter
2009-12 → —
|
ZRE151 RHD 6FS | — | |
| 89745-52030 note |
Battery, Transmitter
2009-12 → —
|
ZRE151 RHD 6FS | — | |
| 89904B — Transmitter Sub-assy, Electrical Key | ||||
| 89904-0D030 note |
Transmitter Sub-assy, Electrical Key
2007-02 → 2008-06
ended
|
ADE15#,ZRE151 RHD | — | |
| 89904-0D030 note |
Transmitter Sub-assy, Electrical Key
2007-02 → 2008-06
ended
|
ADE15#,ZRE151 RHD | — | |
| 89904-0D030 note |
Transmitter Sub-assy, Electrical Key
2007-02 → 2008-06
ended
|
ADE15#,ZRE151 LHD SOL | — | |
| 89904-0D031 note |
Transmitter Sub-assy, Electrical Key
2008-07 → 2009-02
ended
|
ZRE151 RHD | — | |
| 89904-0D031 note |
Transmitter Sub-assy, Electrical Key
2008-07 → 2009-03
ended
|
ADE15# LHD SOL | — | |
| 89904-0D031 note |
Transmitter Sub-assy, Electrical Key
2008-07 → 2009-03
ended
|
ADE15# RHD | — | |
| 89904-0D031 note |
Transmitter Sub-assy, Electrical Key
2008-07 → 2009-03
ended
|
ADE15# RHD | — | |
| 89904-0D031 note |
Transmitter Sub-assy, Electrical Key
2008-07 → 2009-02
ended
|
ZRE151 LHD SOL | — | |
| 89904-0D031 note |
Transmitter Sub-assy, Electrical Key
2008-07 → 2009-02
ended
|
ZRE151 RHD | — | |
| 89904-0D031 note |
Transmitter Sub-assy, Electrical Key
2009-02 → 2009-12
ended
|
ADE157,ZRE15# RHD 5D | — | |
| 89904-0D031 note |
Transmitter Sub-assy, Electrical Key
2009-02 → 2010-01
ended
|
ZRE151 SOL HTWC;ADE15#,ZRE15# LHD +3 | — | |
| 89904-0D031 note |
Transmitter Sub-assy, Electrical Key
2009-02 → 2010-01
ended
|
ADE150 RHD DCRL;ADE157,ZRE15# RHD +1 | — | |
| 89904-0D031 note |
Transmitter Sub-assy, Electrical Key
2009-02 → 2010-01
ended
|
ADE150 RHD DCRL;ADE157,ZRE15# RHD +1 | — | |
| 89904-0D031 note |
Transmitter Sub-assy, Electrical Key
2009-02 → 2009-12
ended
|
ADE15#,ZRE15# LHD 5D SOL +1 | — | |
| 89904-0D031 note |
Transmitter Sub-assy, Electrical Key
2009-02 → 2009-12
ended
|
ADE157,ZRE15# RHD 5D | — | |
| 89904-02080 note |
Transmitter Sub-assy, Electrical Key
2009-12 → —
|
ZRE151 RHD 6FS | — | |
| 89904-02080 note |
Transmitter Sub-assy, Electrical Key
2009-12 → —
|
ZRE151 RHD 6FS | — | |
| 89904-02080 note |
Transmitter Sub-assy, Electrical Key
2009-12 → —
|
ZRE151 RHD 6F | — | |
| 89904-02080 note |
Transmitter Sub-assy, Electrical Key
2009-12 → —
|
ZRE151 RHD 6FS | — | |
| 89904-02080 note |
Transmitter Sub-assy, Electrical Key
2009-12 → —
|
ZRE151 RHD 6FS | — | |
| 89904-02080 note |
Transmitter Sub-assy, Electrical Key
2009-12 → —
|
ZRE151 RHD 6F | — | |
| 89904-02080 note |
Transmitter Sub-assy, Electrical Key
2009-12 → —
|
ADE15#,ZRE15# LHD SOL | — | |
| 89904-02080 |
Transmitter Sub-assy, Electrical Key
2010-06 → —
|
ZWE150 | — | |
| 89904-42150 note |
Transmitter Sub-assy, Electrical Key
2012-05 → —
|
ZWE150 RHD G | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
