Toyota Auris/Hybrid (UKP)
2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe
Supported model
Data version 2014-01

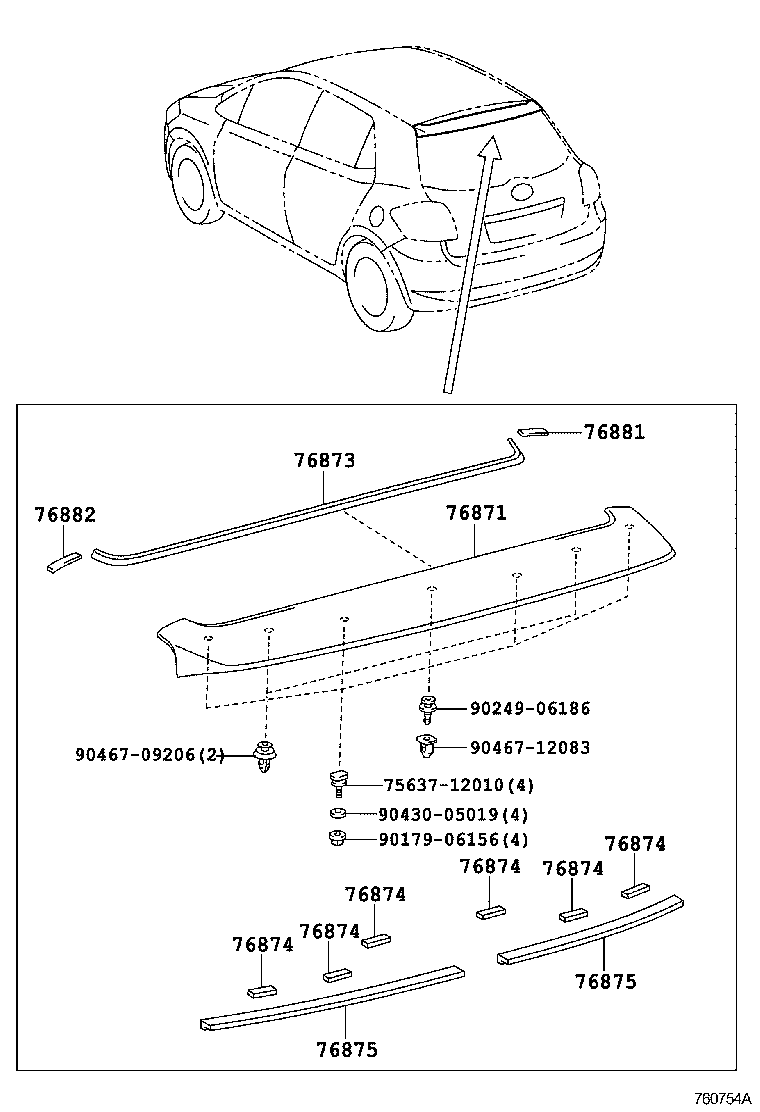

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 76871 — Spoiler, Rear | ||||
| 76871-02906 note |
Spoiler, Rear
2007-02 → 2007-05
ended
|
ZRE151,ZZE150 LHD | — | |
| 76871-02906 note |
Spoiler, Rear
2007-02 → 2007-05
ended
|
ADE15#,NDE150,ZRE151,ZZE150 | — | |
| 76871-02908 note |
Spoiler, Rear
2007-05 → 2008-05
ended
|
ADE15#,NDE150,ZRE151,ZZE150 | — | |
| 76871-02908 note |
Spoiler, Rear
2007-05 → 2008-05
ended
|
ZRE151,ZZE150 LHD | — | |
| 76871-02911 note |
Spoiler, Rear
2008-05 → 2009-02
ended
|
ZRE151,ZZE150 LHD | — | |
| 76871-02911 note |
Spoiler, Rear
2008-05 → 2009-03
ended
|
NDE150 5F,5FS;ADE15#,ZRE151,ZZE150 DCR,DCRL,HTWC | — | |
| 76871-12913 note |
Spoiler, Rear
2007-02 → 2009-02
ended
|
ZRE151,ZZE150 LHD | — | |
| 76871-02911 note |
Spoiler, Rear
2008-11 → 2009-12
ended
|
ADE150 RE150,ZRE15# LHD 5D +9 | — | |
| 76871-02911 note |
Spoiler, Rear
2008-11 → 2009-12
ended
|
NRE150,ZRE15# LHD 5D (6F,6FS) | — | |
| 76871-02911 note |
Spoiler, Rear
2008-11 → 2010-01
ended
|
ZRE151 NDE150,NRE150,ZRE15# 4FC;ADE150 3D +9 | — | |
| 76871-02911 note |
Spoiler, Rear
2008-11 → 2010-01
ended
|
ZRE151 4FC;NRE150,ZRE15# LHD 3D +1 | — | |
| 76871-12913 note |
Spoiler, Rear
2008-11 → 2009-12
ended
|
NRE150,ZRE15# LHD 5D (6F,6FS) | — | |
| 76871-12913 note |
Spoiler, Rear
2008-11 → 2010-01
ended
|
ZRE151 4FC;NRE150,ZRE15# LHD 3D +1 | — | |
| 76871-02912 note |
Spoiler, Rear
2010-09 → —
|
NDE150 E | — | |
| 76871-02912 note |
Spoiler, Rear
2010-06 → —
|
ZWE150 | — | |
| 76871-02915 note |
Spoiler, Rear
2009-12 → —
|
ZRE15# LHD SOL HTWVM | — | |
| 76871-02915 note |
Spoiler, Rear
2010-06 → —
|
NRE150 SOL | — | |
| 76871-02915 note |
Spoiler, Rear
2010-06 → —
|
NRE150 LHD SOL | — | |
| 76871-02915 note |
Spoiler, Rear
2009-12 → —
|
ADE150 LHD 5D SOL | — | |
| 76871-02915 note |
Spoiler, Rear
2009-12 → —
|
ADE157,ZRE152 LHD SOL;NDE150,ZRE151 SOL +1 | — | |
| 76871-02919 note |
Spoiler, Rear
2009-12 → —
|
ZRE152 LHD SOL;NRE150,ZRE151 LHD | — | |
| 76871-02919 note |
Spoiler, Rear
2009-12 → —
|
ADE15# LHD;NRE150,ZRE151;NDE150 E,SOL;ZRE152 LHD +3 | — | |
| 76871-02919 note |
Spoiler, Rear
2011-05 → —
|
ZWE150 | — | |
| 76871-12913 note |
Spoiler, Rear
2009-12 → —
|
ZRE152 LHD SOL;NRE150,ZRE151 LHD | — | |
| 76873 — Protector, Rear Spoiler, NO.2 | ||||
| 76872-12170 note |
Protector, Rear Spoiler, NO.2
2007-02 → 2008-11
ended
|
ZZE150 LHD | — | |
| 76872-12170 note |
Protector, Rear Spoiler, NO.2
2007-02 → 2009-02
ended
|
ZRE151 LHD | — | |
| 76873-02010 |
Protector, Rear Spoiler, NO.2
2008-05 → 2008-11
ended
|
ZZE150 | — | |
| 76873-02010 note |
Protector, Rear Spoiler, NO.2
2008-05 → 2008-11
ended
|
ZZE150 LHD | — | |
| 76873-02010 note |
Protector, Rear Spoiler, NO.2
2007-02 → 2008-04
ended
|
ZRE151,ZZE150 LHD | — | |
| 76873-02010 |
Protector, Rear Spoiler, NO.2
2008-05 → 2009-02
ended
|
NDE150,ZRE151 | — | |
| 76873-02010 note |
Protector, Rear Spoiler, NO.2
2008-05 → 2009-02
ended
|
ZRE151 LHD | — | |
| 76873-02010 |
Protector, Rear Spoiler, NO.2
2008-05 → 2009-03
ended
|
ADE15# | — | |
| 76873-02010 |
Protector, Rear Spoiler, NO.2
2007-02 → 2008-04
ended
|
ADE15#,NDE150,ZRE151,ZZE150 | — | |
| 76872-12170 note |
Protector, Rear Spoiler, NO.2
2008-11 → 2009-12
ended
|
NRE150,ZRE15# LHD 5D (6F,6FS) | — | |
| 76872-12170 note |
Protector, Rear Spoiler, NO.2
2008-11 → 2010-01
ended
|
ZRE151 4FC;NRE150,ZRE15# LHD 3D +1 | — | |
| 76873-02010 |
Protector, Rear Spoiler, NO.2
2008-11 → 2009-12
ended
|
ADE150 RE150,ZRE15# LHD 5D +9 | — | |
| 76873-02010 note |
Protector, Rear Spoiler, NO.2
2008-11 → 2009-12
ended
|
NRE150,ZRE15# LHD 5D (6F,6FS) | — | |
| 76873-02010 |
Protector, Rear Spoiler, NO.2
2008-11 → 2010-01
ended
|
ZRE151 NDE150,NRE150,ZRE15# 4FC;ADE150 3D +9 | — | |
| 76873-02010 note |
Protector, Rear Spoiler, NO.2
2008-11 → 2010-01
ended
|
ZRE151 4FC;NRE150,ZRE15# LHD 3D +1 | — | |
| 76873-02010 |
Protector, Rear Spoiler, NO.2
2009-12 → —
|
ADE15# LHD;NRE150,ZRE151;NDE150 E,SOL;ZRE152 LHD +3 | — | |
| 76873-02010 note |
Protector, Rear Spoiler, NO.2
2011-05 → —
|
ZWE150 | — | |
| 76873-02040 note |
Protector, Rear Spoiler, NO.2
2009-12 → —
|
ADE157,ZRE152 LHD SOL;NDE150,ZRE151 SOL +1 | — | |
| 76873-02040 note |
Protector, Rear Spoiler, NO.2
2009-12 → —
|
ADE150 LHD 5D SOL | — | |
| 76873-02040 note |
Protector, Rear Spoiler, NO.2
2010-06 → —
|
NRE150 LHD SOL | — | |
| 76873-02040 note |
Protector, Rear Spoiler, NO.2
2010-06 → —
|
NRE150 SOL | — | |
| 76873-02040 note |
Protector, Rear Spoiler, NO.2
2009-12 → —
|
ZRE15# LHD SOL HTWVM | — | |
| 76873-02050 |
Protector, Rear Spoiler, NO.2
2010-06 → —
|
ZWE150 | — | |
| 76873-02050 note |
Protector, Rear Spoiler, NO.2
2010-09 → —
|
NDE150 E | — | |
| 76874 — Protector, Rear Spoiler, NO.3 | ||||
| 76874-02020 |
Protector, Rear Spoiler, NO.3
2008-05 → 2009-03
ended
|
ADE15# | — | |
| 76874-02020 note |
Protector, Rear Spoiler, NO.3
2008-05 → 2009-02
ended
|
ZRE151 LHD | — | |
| 76874-02020 |
Protector, Rear Spoiler, NO.3
2008-05 → 2009-02
ended
|
NDE150,ZRE151 | — | |
| 76874-02020 note |
Protector, Rear Spoiler, NO.3
2008-05 → 2008-11
ended
|
ZZE150 LHD | — | |
| 76874-02020 note |
Protector, Rear Spoiler, NO.3
2007-02 → 2008-04
ended
|
ZRE151,ZZE150 LHD | — | |
| 76874-02020 |
Protector, Rear Spoiler, NO.3
2007-02 → 2008-04
ended
|
ADE15#,NDE150,ZRE151,ZZE150 | — | |
| 76874-02020 |
Protector, Rear Spoiler, NO.3
2008-05 → 2008-11
ended
|
ZZE150 | — | |
| 76874-12200 note |
Protector, Rear Spoiler, NO.3
2007-02 → 2009-02
ended
|
ZRE151 LHD | — | |
| 76874-12200 note |
Protector, Rear Spoiler, NO.3
2007-02 → 2008-11
ended
|
ZZE150 LHD | — | |
| 76874-02020 |
Protector, Rear Spoiler, NO.3
2008-11 → 2009-12
ended
|
ADE150 RE150,ZRE15# LHD 5D +9 | — | |
| 76874-02020 note |
Protector, Rear Spoiler, NO.3
2008-11 → 2009-12
ended
|
NRE150,ZRE15# LHD 5D (6F,6FS) | — | |
| 76874-02020 |
Protector, Rear Spoiler, NO.3
2008-11 → 2010-01
ended
|
ZRE151 NDE150,NRE150,ZRE15# 4FC;ADE150 3D +9 | — | |
| 76874-02020 note |
Protector, Rear Spoiler, NO.3
2008-11 → 2010-01
ended
|
ZRE151 4FC;NRE150,ZRE15# LHD 3D +1 | — | |
| 76874-12200 note |
Protector, Rear Spoiler, NO.3
2008-11 → 2009-12
ended
|
NRE150,ZRE15# LHD 5D (6F,6FS) | — | |
| 76874-12200 note |
Protector, Rear Spoiler, NO.3
2008-11 → 2010-01
ended
|
ZRE151 4FC;NRE150,ZRE15# LHD 3D +1 | — | |
| 76874-02020 |
Protector, Rear Spoiler, NO.3
2009-12 → —
|
ADE15# LHD;NRE150,ZRE151;NDE150 E,SOL;ZRE152 LHD +3 | — | |
| 76874-02020 note |
Protector, Rear Spoiler, NO.3
2011-05 → —
|
ZWE150 | — | |
| 76874-02050 note |
Protector, Rear Spoiler, NO.3
2010-06 → —
|
NRE150 LHD SOL | — | |
| 76874-02050 note |
Protector, Rear Spoiler, NO.3
2010-06 → —
|
NRE150 SOL | — | |
| 76874-02050 note |
Protector, Rear Spoiler, NO.3
2009-12 → —
|
ADE150 LHD 5D SOL | — | |
| 76874-02050 note |
Protector, Rear Spoiler, NO.3
2009-12 → —
|
ADE157,ZRE152 LHD SOL;NDE150,ZRE151 SOL +1 | — | |
| 76874-02050 note |
Protector, Rear Spoiler, NO.3
2009-12 → —
|
ZRE15# LHD SOL HTWVM | — | |
| 76874-02060 |
Protector, Rear Spoiler, NO.3
2010-06 → —
|
ZWE150 | — | |
| 76874-02060 note |
Protector, Rear Spoiler, NO.3
2010-09 → —
|
NDE150 E | — | |
| 76875 — Protector, Rear Spoiler, NO.4 | ||||
| 76873-12180 note |
Protector, Rear Spoiler, NO.4
2007-02 → 2008-11
ended
|
ZZE150 LHD | — | |
| 76873-12180 note |
Protector, Rear Spoiler, NO.4
2007-02 → 2009-02
ended
|
ZRE151 LHD | — | |
| 76875-02010 |
Protector, Rear Spoiler, NO.4
2007-02 → 2008-04
ended
|
ADE15#,NDE150,ZRE151,ZZE150 | — | |
| 76875-02010 note |
Protector, Rear Spoiler, NO.4
2007-02 → 2008-04
ended
|
ZRE151,ZZE150 LHD | — | |
| 76875-02010 |
Protector, Rear Spoiler, NO.4
2008-05 → 2008-11
ended
|
ZZE150 | — | |
| 76875-02010 note |
Protector, Rear Spoiler, NO.4
2008-05 → 2008-11
ended
|
ZZE150 LHD | — | |
| 76875-02010 |
Protector, Rear Spoiler, NO.4
2008-05 → 2009-02
ended
|
NDE150,ZRE151 | — | |
| 76875-02010 note |
Protector, Rear Spoiler, NO.4
2008-05 → 2009-02
ended
|
ZRE151 LHD | — | |
| 76875-02010 |
Protector, Rear Spoiler, NO.4
2008-05 → 2009-03
ended
|
ADE15# | — | |
| 76873-12180 note |
Protector, Rear Spoiler, NO.4
2008-11 → 2009-12
ended
|
NRE150,ZRE15# LHD 5D (6F,6FS) | — | |
| 76873-12180 note |
Protector, Rear Spoiler, NO.4
2008-11 → 2010-01
ended
|
ZRE151 4FC;NRE150,ZRE15# LHD 3D +1 | — | |
| 76875-02010 |
Protector, Rear Spoiler, NO.4
2008-11 → 2009-12
ended
|
ADE150 RE150,ZRE15# LHD 5D +9 | — | |
| 76875-02010 |
Protector, Rear Spoiler, NO.4
2008-11 → 2010-01
ended
|
ZRE151 NDE150,NRE150,ZRE15# 4FC;ADE150 3D +9 | — | |
| 76875-02010 note |
Protector, Rear Spoiler, NO.4
2008-11 → 2010-01
ended
|
ZRE151 4FC;NRE150,ZRE15# LHD 3D +1 | — | |
| 76875-02010 note |
Protector, Rear Spoiler, NO.4
2008-11 → 2009-12
ended
|
NRE150,ZRE15# LHD 5D (6F,6FS) | — | |
| 76875-02010 |
Protector, Rear Spoiler, NO.4
2009-12 → —
|
ADE15# LHD;NRE150,ZRE151;NDE150 E,SOL;ZRE152 LHD +3 | — | |
| 76875-02010 note |
Protector, Rear Spoiler, NO.4
2011-05 → —
|
ZWE150 | — | |
| 76875-02020 note |
Protector, Rear Spoiler, NO.4
2009-12 → —
|
ZRE15# LHD SOL HTWVM | — | |
| 76875-02020 note |
Protector, Rear Spoiler, NO.4
2009-12 → —
|
ADE157,ZRE152 LHD SOL;NDE150,ZRE151 SOL +1 | — | |
| 76875-02020 note |
Protector, Rear Spoiler, NO.4
2009-12 → —
|
ADE150 LHD 5D SOL | — | |
| 76875-02020 note |
Protector, Rear Spoiler, NO.4
2010-06 → —
|
NRE150 LHD SOL | — | |
| 76875-02020 note |
Protector, Rear Spoiler, NO.4
2010-06 → —
|
NRE150 SOL | — | |
| 76875-02030 |
Protector, Rear Spoiler, NO.4
2010-06 → —
|
ZWE150 | — | |
| 76875-02030 note |
Protector, Rear Spoiler, NO.4
2010-09 → —
|
NDE150 E | — | |
| 76881 — Protector, Rear Spoiler Side, NO.1 RH | ||||
| 76881-02090 note |
Protector, Rear Spoiler Side, NO.1 RH
2009-12 → —
|
ZRE15# LHD SOL HTWVM | — | |
| 76881-02090 note |
Protector, Rear Spoiler Side, NO.1 RH
2010-06 → —
|
NRE150 SOL | — | |
| 76881-02090 note |
Protector, Rear Spoiler Side, NO.1 RH
2010-06 → —
|
NRE150 LHD SOL | — | |
| 76881-02090 note |
Protector, Rear Spoiler Side, NO.1 RH
2009-12 → —
|
ADE150 LHD 5D SOL | — | |
| 76881-02090 note |
Protector, Rear Spoiler Side, NO.1 RH
2009-12 → —
|
ADE157,ZRE152 LHD SOL;NDE150,ZRE151 SOL +1 | — | |
| 76881-02110 |
Protector, Rear Spoiler Side, NO.1 RH
2010-06 → —
|
ZWE150 | — | |
| 76881-02110 note |
Protector, Rear Spoiler Side, NO.1 RH
2010-09 → —
|
NDE150 E | — | |
| 76882 — Protector, Rear Spoiler Side, NO.1 LH | ||||
| 76881-02090 note |
Protector, Rear Spoiler Side, NO.1 LH
2009-12 → —
|
ZRE15# LHD SOL HTWVM | — | |
| 76881-02090 note |
Protector, Rear Spoiler Side, NO.1 LH
2009-12 → —
|
ADE157,ZRE152 LHD SOL;NDE150,ZRE151 SOL +1 | — | |
| 76881-02090 note |
Protector, Rear Spoiler Side, NO.1 LH
2009-12 → —
|
ADE150 LHD 5D SOL | — | |
| 76881-02090 note |
Protector, Rear Spoiler Side, NO.1 LH
2010-06 → —
|
NRE150 LHD SOL | — | |
| 76881-02090 note |
Protector, Rear Spoiler Side, NO.1 LH
2010-06 → —
|
NRE150 SOL | — | |
| 76881-02110 |
Protector, Rear Spoiler Side, NO.1 LH
2010-06 → —
|
ZWE150 | — | |
| 76881-02110 note |
Protector, Rear Spoiler Side, NO.1 LH
2010-09 → —
|
NDE150 E | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
