Toyota Auris/Hybrid (UKP)
2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe
Supported model
Data version 2014-01

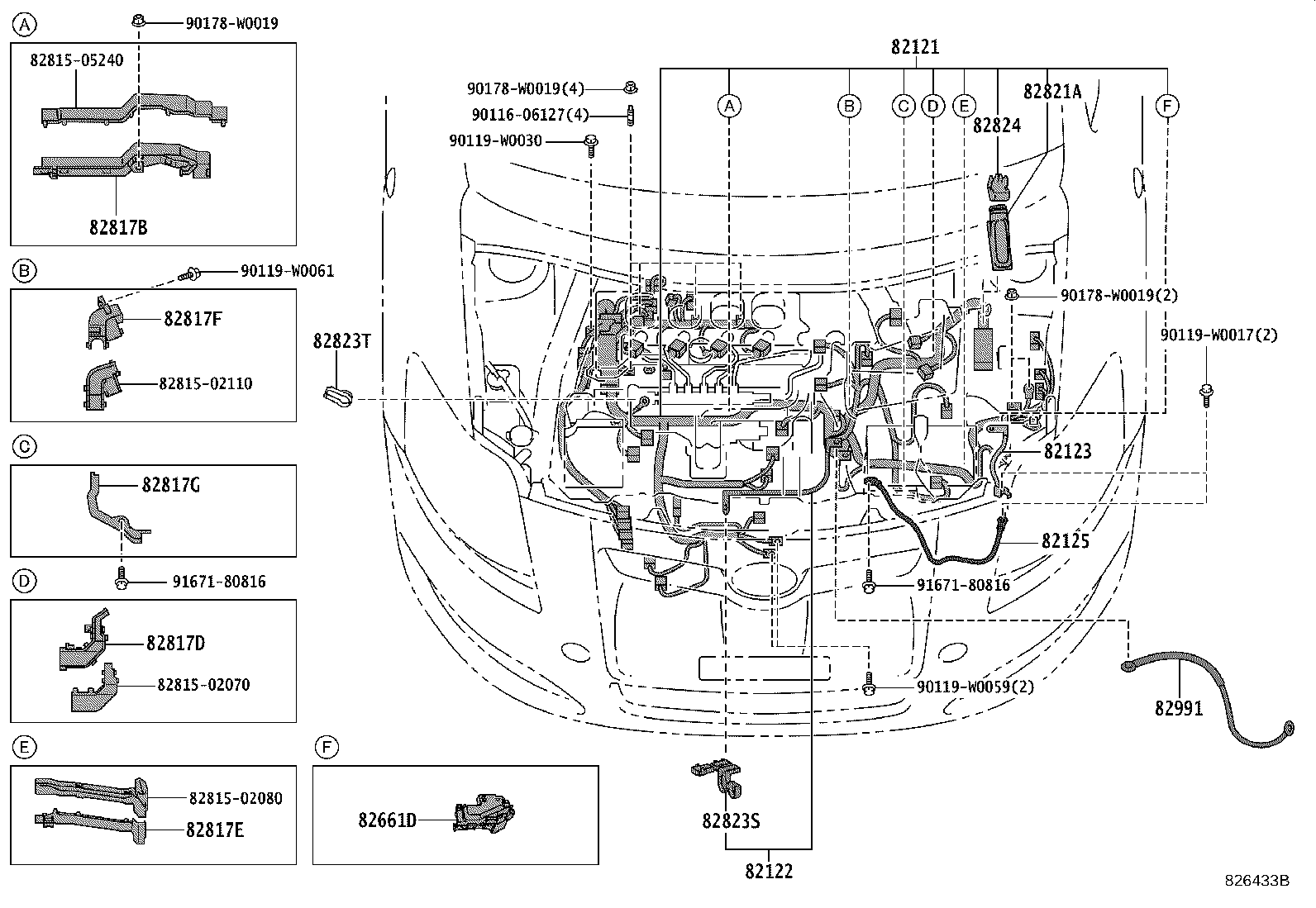

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-02A00 |
Wire, Engine
2007-02 → 2008-11
ended
|
ZZE150 | — | |
| 82121-02F40 |
Wire, Engine
2007-02 → 2009-02
ended
|
ZRE151 5FS | — | |
| 82121-02J20 |
Wire, Engine
2007-02 → 2007-10
ended
|
ADE157 | — | |
| 82121-02J21 |
Wire, Engine
2007-10 → 2008-08
ended
|
ADE157 | — | |
| 82121-02J22 |
Wire, Engine
2008-09 → 2009-03
ended
|
ADE157 | — | |
| 82121-02J40 |
Wire, Engine
2007-02 → 2007-10
ended
|
ADE150 DCRL | — | |
| 82121-02J41 |
Wire, Engine
2007-10 → 2009-03
ended
|
ADE150 DCRL | — | |
| 82121-02L30 |
Wire, Engine
2007-02 → 2009-02
ended
|
ZRE151 5F | — | |
| 82139-02170 |
Wire, Engine
2007-02 → 2009-02
ended
|
NDE150 5F | — | |
| 82139-02180 |
Wire, Engine
2007-02 → 2009-02
ended
|
NDE150 5FS | — | |
| 82139-02190 |
Wire, Engine
2007-02 → 2007-10
ended
|
ADE150 DCR | — | |
| 82139-02191 |
Wire, Engine
2007-10 → 2009-03
ended
|
ADE150 DCR | — | |
| 82121-02Q80 |
Wire, Engine
2009-02 → 2010-01
ended
|
ZRE151 3D 6FS | — | |
| 82121-02Q80 |
Wire, Engine
2009-02 → 2009-12
ended
|
ZRE151 5D 6FS | — | |
| 82121-02Q90 |
Wire, Engine
2009-02 → 2010-01
ended
|
NDE150 3D 6F DCR | — | |
| 82121-02Q90 |
Wire, Engine
2009-02 → 2009-12
ended
|
NDE150 5D 6F DCR | — | |
| 82121-02R00 |
Wire, Engine
2009-02 → 2010-01
ended
|
NDE150 3D 6FS DCR;NDE150 +4 | — | |
| 82121-02R00 |
Wire, Engine
2009-02 → 2009-12
ended
|
NDE150 5D 6FS SOL +1 | — | |
| 82121-02R20 |
Wire, Engine
2009-03 → 2009-12
ended
|
ADE157 5D;ADE150 LHD 5D | — | |
| 82121-02R20 |
Wire, Engine
2009-03 → 2010-01
ended
|
ADE157 3D;ADE150 RHD;ADE150 LHD +1 | — | |
| 82121-02R40 |
Wire, Engine
2009-02 → 2009-12
ended
|
ZRE15# 5D 6F | — | |
| 82121-02R40 |
Wire, Engine
2009-02 → 2010-01
ended
|
ZRE15# 3D 6F | — | |
| 82121-02R50 |
Wire, Engine
2009-02 → 2009-12
ended
|
NDE150 5D 6F DCRL | — | |
| 82121-02R50 |
Wire, Engine
2009-02 → 2010-01
ended
|
NDE150 3D 6F DCRL | — | |
| 82121-02R60 |
Wire, Engine
2009-02 → 2009-12
ended
|
NDE150 5D 6FS SOL +1 | — | |
| 82121-02R60 |
Wire, Engine
2009-02 → 2010-01
ended
|
NDE150 3D 6FS DCRL;NDE150 +4 | — | |
| 82121-02R80 |
Wire, Engine
2008-11 → 2009-11
ended
|
NRE150 | — | |
| 82121-02R81 |
Wire, Engine
2009-11 → 2009-12
ended
|
NRE150 | — | |
| 82121-02S00 note |
Wire, Engine
2009-04 → 2009-11
ended
|
NRE150 LHD 5D TERRA | — | |
| 82121-02S00 note |
Wire, Engine
2008-11 → 2009-11
ended
|
NRE150 | — | |
| 82121-02S00 note |
Wire, Engine
2008-11 → 2009-11
ended
|
NRE150 TERRA | — | |
| 82121-02S01 note |
Wire, Engine
2009-11 → 2009-12
ended
|
NRE150 LHD 5D TERRA | — | |
| 82121-02S01 note |
Wire, Engine
2009-11 → 2009-12
ended
|
NRE150 TERRA | — | |
| 82121-02S01 note |
Wire, Engine
2009-11 → 2009-12
ended
|
NRE150 | — | |
| 82121-02X30 |
Wire, Engine
2009-09 → 2010-01
ended
|
ZRE151 HTWC | — | |
| 82121-0Z120 |
Wire, Engine
2009-12 → 2009-12
ended
|
NRE150 5D | — | |
| 82121-0Z120 |
Wire, Engine
2009-12 → 2010-01
ended
|
NRE150 3D | — | |
| 82121-0Z130 note |
Wire, Engine
2009-12 → 2009-12
ended
|
NRE150 5D TERRA | — | |
| 82121-0Z130 note |
Wire, Engine
2009-12 → 2009-12
ended
|
NRE150 5D | — | |
| 82121-0Z130 note |
Wire, Engine
2009-12 → 2010-01
ended
|
NRE150 3D | — | |
| 82121-0Z130 note |
Wire, Engine
2009-12 → 2010-01
ended
|
NRE150 3D TERRA | — | |
| 82121-0Z130 note |
Wire, Engine
2009-12 → 2009-12
ended
|
NRE150 LHD 5D TERRA | — | |
| 82121-02Q80 |
Wire, Engine
2009-12 → —
|
ZRE151 6FS | — | |
| 82121-02Q90 |
Wire, Engine
2009-12 → —
|
NDE150 6F DCR | — | |
| 82121-02R00 |
Wire, Engine
2009-12 → —
|
NDE150 6FS SOL DCR | — | |
| 82121-02R20 |
Wire, Engine
2009-12 → —
|
ADE15# LHD | — | |
| 82121-02R40 |
Wire, Engine
2009-12 → —
|
ZRE151 6F;ZRE152 LHD SOL | — | |
| 82121-02R50 |
Wire, Engine
2009-12 → 2010-07
ended
|
NDE150 6F DCRL | — | |
| 82121-02R60 |
Wire, Engine
2009-12 → 2010-07
ended
|
NDE150 6FS SOL DCRL | — | |
| 82121-02U90 note |
Wire, Engine
2009-12 → —
|
NRE150 LHD 5D TERRA | — | |
| 82121-02U90 note |
Wire, Engine
2009-12 → —
|
NRE150 LHD 5D TERRA | — | |
| 82121-02U90 note |
Wire, Engine
2009-12 → —
|
NRE150 TERRA | — | |
| 82121-02U90 note |
Wire, Engine
2009-12 → —
|
NRE150 | — | |
| 82121-02U90 note |
Wire, Engine
2009-12 → —
|
NRE150 TERRA | — | |
| 82121-02U90 note |
Wire, Engine
2009-12 → —
|
NRE150 | — | |
| 82121-02V00 note |
Wire, Engine
2009-12 → —
|
NRE150 | — | |
| 82121-02V00 note |
Wire, Engine
2009-12 → —
|
NRE150 TERRA | — | |
| 82121-02V00 note |
Wire, Engine
2009-12 → —
|
NRE150 LHD 5D TERRA | — | |
| 82121-02V10 |
Wire, Engine
2010-07 → —
|
NDE150 6F DCRL | — | |
| 82121-02V20 |
Wire, Engine
2010-07 → —
|
NDE150 6FS DCRL | — | |
| 82121-02V80 |
Wire, Engine
2009-12 → —
|
NRE150 | — | |
| 82121-02X30 |
Wire, Engine
2010-01 → 2010-07
ended
|
ZRE151 HTWC | — | |
| 82121-02X30 note |
Wire, Engine
2010-07 → —
|
ZRE151 HTWC | — | |
| 82121-02X30 note |
Wire, Engine
2010-07 → —
|
ZRE151 HTWC | — | |
| 82121-0Z210 |
Wire, Engine
2010-07 → —
|
ZRE151 HTWC | — | |
| 82121-12M60 |
Wire, Engine
2012-06 → —
|
ZWE150 | — | |
| 82121-47101 |
Wire, Engine
2010-06 → 2012-06
ended
|
ZWE150 | — | |
| 82122 — Wire, Engine, NO.2 | ||||
| 82122-02030 |
Wire, Engine, NO.2
2007-02 → 2009-03
ended
|
ADE15# | — | |
| 82122-02040 note |
Wire, Engine, NO.2
2007-02 → 2009-02
ended
|
NDE150 LHD | — | |
| 82122-02040 note |
Wire, Engine, NO.2
2007-02 → 2009-02
ended
|
NDE150 | — | |
| 82122-02050 |
Wire, Engine, NO.2
2007-02 → 2009-02
ended
|
NDE150 | — | |
| 82122-02090 |
Wire, Engine, NO.2
2009-03 → 2010-01
ended
|
ADE157 3D;ADE150 RHD;ADE150 LHD +1 | — | |
| 82122-02090 |
Wire, Engine, NO.2
2009-03 → 2009-12
ended
|
ADE157 5D;ADE150 LHD 5D | — | |
| 82122-02100 note |
Wire, Engine, NO.2
2009-02 → 2009-12
ended
|
NDE150 5D (E,SOL);NDE150 5D +2 | — | |
| 82122-02100 note |
Wire, Engine, NO.2
2009-02 → 2010-01
ended
|
NDE150 3D;NDE150 5D 6FS +1 | — | |
| 82122-02100 note |
Wire, Engine, NO.2
2009-02 → 2010-01
ended
|
NDE150 LHD 3D;NDE150 5D +2 | — | |
| 82122-02100 note |
Wire, Engine, NO.2
2009-02 → 2009-12
ended
|
NDE150 LHD 5D (E,SOL);NDE150 +4 | — | |
| 82122-02110 |
Wire, Engine, NO.2
2009-02 → 2009-12
ended
|
NDE150 5D (E,SOL);NDE150 5D +2 | — | |
| 82122-02110 |
Wire, Engine, NO.2
2009-02 → 2010-01
ended
|
NDE150 3D;NDE150 5D 6FS +1 | — | |
| 82122-02090 |
Wire, Engine, NO.2
2009-12 → —
|
ADE15# LHD | — | |
| 82122-02100 note |
Wire, Engine, NO.2
2009-12 → —
|
NDE150 LHD (E,SOL);NDE150 LHD +2 | — | |
| 82122-02100 note |
Wire, Engine, NO.2
2009-12 → —
|
NDE150 E,SOL;NDE150 6F TERRA | — | |
| 82122-02110 |
Wire, Engine, NO.2
2009-12 → —
|
NDE150 E,SOL;NDE150 6F TERRA | — | |
| 82122-47010 |
Wire, Engine, NO.2
2010-06 → —
|
ZWE150 | — | |
| 82123 — Wire, Engine, NO.3 | ||||
| 82123-02270 |
Wire, Engine, NO.3
2007-02 → 2008-11
ended
|
ZZE150 | — | |
| 82123-02270 |
Wire, Engine, NO.3
2007-02 → 2009-02
ended
|
ZRE151 | — | |
| 82123-02280 |
Wire, Engine, NO.3
2007-02 → 2009-02
ended
|
NDE150 | — | |
| 82123-02280 |
Wire, Engine, NO.3
2007-02 → 2009-03
ended
|
ADE15# | — | |
| 82123-02270 |
Wire, Engine, NO.3
2008-11 → 2009-12
ended
|
NRE150 5D | — | |
| 82123-02270 |
Wire, Engine, NO.3
2008-11 → 2010-01
ended
|
NRE150 3D;ZRE151 4FC | — | |
| 82123-02410 |
Wire, Engine, NO.3
2009-02 → 2010-01
ended
|
ADE157,NDE150 3D;ADE150 RHD DCRL;ADE150 +6 | — | |
| 82123-02410 |
Wire, Engine, NO.3
2009-02 → 2009-12
ended
|
ADE150 LHD 5D DCRL;NDE150 +5 | — | |
| 82123-02420 |
Wire, Engine, NO.3
2009-02 → 2009-12
ended
|
ZRE15# 5D HTWVM | — | |
| 82123-02420 note |
Wire, Engine, NO.3
2008-11 → 2010-01
ended
|
NRE150 3D | — | |
| 82123-02420 note |
Wire, Engine, NO.3
2008-11 → 2009-12
ended
|
NRE150 5D | — | |
| 82123-02420 |
Wire, Engine, NO.3
2009-02 → 2010-01
ended
|
ZRE15# 3D | — | |
| 82123-02270 |
Wire, Engine, NO.3
2009-12 → —
|
NRE150,ZRE151 HTWC | — | |
| 82123-02410 |
Wire, Engine, NO.3
2009-12 → —
|
ADE15# LHD;NDE150 E,SOL;NDE150 6F +1 | — | |
| 82123-02420 |
Wire, Engine, NO.3
2009-12 → —
|
ZRE151 HTWVM;ZRE152 LHD SOL | — | |
| 82123-02420 note |
Wire, Engine, NO.3
2009-12 → —
|
NRE150 | — | |
| 82123-02470 |
Wire, Engine, NO.3
2010-06 → —
|
ZWE150 | — | |
| 82125 — Wire, Transmission | ||||
| 82125-02020 |
Wire, Transmission
2007-02 → 2009-03
ended
|
ADE15# | — | |
| 82125-02030 |
Wire, Transmission
2007-02 → 2009-02
ended
|
NDE150 | — | |
| 82125-02050 |
Wire, Transmission
2007-02 → 2008-11
ended
|
ZZE150 | — | |
| 82125-02050 |
Wire, Transmission
2007-02 → 2009-02
ended
|
ZRE151 | — | |
| 82125-02020 |
Wire, Transmission
2009-03 → 2010-01
ended
|
ADE157 3D;ADE150 RHD;ADE150 LHD +1 | — | |
| 82125-02020 |
Wire, Transmission
2009-03 → 2009-12
ended
|
ADE157 5D;ADE150 LHD 5D | — | |
| 82125-02310 |
Wire, Transmission
2009-02 → 2009-12
ended
|
NDE150 5D (E,SOL);NDE150 5D +2 | — | |
| 82125-02310 |
Wire, Transmission
2009-02 → 2010-01
ended
|
NDE150 3D;NDE150 5D 6FS +1 | — | |
| 82125-02320 |
Wire, Transmission
2008-11 → 2010-01
ended
|
NRE150,ZRE15# 3D (6F,6FS) | — | |
| 82125-02320 |
Wire, Transmission
2008-11 → 2009-12
ended
|
NRE150,ZRE15# 5D (6F,6FS) | — | |
| 82125-02460 |
Wire, Transmission
2009-09 → 2010-01
ended
|
ZRE151 HTWC | — | |
| 82125-02020 |
Wire, Transmission
2009-12 → —
|
ADE15# LHD | — | |
| 82125-02310 |
Wire, Transmission
2009-12 → —
|
NDE150 E,SOL;NDE150 6F TERRA | — | |
| 82125-02320 |
Wire, Transmission
2009-12 → —
|
ZRE152 LHD SOL;NRE150,ZRE151 MTM | — | |
| 82125-02460 |
Wire, Transmission
2010-01 → —
|
ZRE151 HTWC | — | |
| 82661D — Cover, Relay Block, Side NO.1 | ||||
| 82661-12280 |
Cover, Relay Block, Side NO.1
2007-02 → 2008-11
ended
|
ZZE150 | — | |
| 82661-12280 |
Cover, Relay Block, Side NO.1
2007-02 → 2009-02
ended
|
NDE150,ZRE151 | — | |
| 82661-12280 |
Cover, Relay Block, Side NO.1
2007-02 → 2009-03
ended
|
ADE15# | — | |
| 82661-12280 |
Cover, Relay Block, Side NO.1
2008-11 → 2009-12
ended
|
ADE150 RE150,ZRE15# LHD 5D +9 | — | |
| 82661-12280 |
Cover, Relay Block, Side NO.1
2008-11 → 2010-01
ended
|
ZRE151 NDE150,NRE150,ZRE15# 4FC;ADE150 3D +9 | — | |
| 82661-12280 |
Cover, Relay Block, Side NO.1
2009-12 → —
|
ADE15# LHD;NRE150,ZRE151;NDE150 E,SOL;ZRE152 LHD +3 | — | |
| 82661-47040 |
Cover, Relay Block, Side NO.1
2010-06 → —
|
ZWE150 | — | |
| 82817B — Protector, Wiring Harness, NO.3 | ||||
| 82817-02360 |
Protector, Wiring Harness, NO.3
2007-02 → 2009-03
ended
|
ADE150 | — | |
| 82817-02380 |
Protector, Wiring Harness, NO.3
2007-02 → 2009-02
ended
|
NDE150 | — | |
| 82817-12B80 |
Protector, Wiring Harness, NO.3
2007-02 → 2009-03
ended
|
ADE157 | — | |
| 82817-02380 |
Protector, Wiring Harness, NO.3
2009-02 → 2009-12
ended
|
NDE150 5D (E,SOL);NDE150 5D +2 | — | |
| 82817-02380 |
Protector, Wiring Harness, NO.3
2009-02 → 2010-01
ended
|
NDE150 3D;NDE150 5D 6FS +1 | — | |
| 82817-05490 |
Protector, Wiring Harness, NO.3
2009-03 → 2009-12
ended
|
ADE157 5D;ADE150 LHD 5D | — | |
| 82817-05490 |
Protector, Wiring Harness, NO.3
2009-03 → 2010-01
ended
|
ADE157 3D;ADE150 RHD;ADE150 LHD +1 | — | |
| 82817-12860 |
Protector, Wiring Harness, NO.3
2009-02 → 2009-12
ended
|
ZRE15# 5D HTWVM | — | |
| 82817-12860 |
Protector, Wiring Harness, NO.3
2009-02 → 2010-01
ended
|
ZRE15# 3D;ZRE151 HTWC | — | |
| 82817-12J70 |
Protector, Wiring Harness, NO.3
2008-11 → 2009-12
ended
|
NRE150 5D | — | |
| 82817-12J70 |
Protector, Wiring Harness, NO.3
2008-11 → 2010-01
ended
|
NRE150 3D | — | |
| 82817-02380 |
Protector, Wiring Harness, NO.3
2009-12 → —
|
NDE150 E,SOL;NDE150 6F TERRA | — | |
| 82817-05490 |
Protector, Wiring Harness, NO.3
2009-12 → —
|
ADE15# LHD | — | |
| 82817-12860 |
Protector, Wiring Harness, NO.3
2009-12 → —
|
ZRE151 HTWVM;ZRE152 LHD SOL | — | |
| 82817-12860 |
Protector, Wiring Harness, NO.3
2010-01 → —
|
ZRE151 HTWC | — | |
| 82817-12J70 |
Protector, Wiring Harness, NO.3
2009-12 → —
|
NRE150 | — | |
| 82817-47800 |
Protector, Wiring Harness, NO.3
2010-06 → —
|
ZWE150 | — | |
| 82817D — Protector, Wiring Harness, NO.5 | ||||
| 82817-02380 |
Protector, Wiring Harness, NO.5
2007-02 → 2009-03
ended
|
ADE15# | — | |
| 82817-02410 |
Protector, Wiring Harness, NO.5
2007-02 → 2009-02
ended
|
NDE150 | — | |
| 82817-02380 |
Protector, Wiring Harness, NO.5
2009-03 → 2009-12
ended
|
ADE157 5D;ADE150 LHD 5D | — | |
| 82817-02380 |
Protector, Wiring Harness, NO.5
2009-03 → 2010-01
ended
|
ADE157 3D;ADE150 RHD;ADE150 LHD +1 | — | |
| 82817-02800 |
Protector, Wiring Harness, NO.5
2009-02 → 2009-12
ended
|
NDE150 5D (E,SOL);NDE150 5D +2 | — | |
| 82817-02800 |
Protector, Wiring Harness, NO.5
2009-02 → 2010-01
ended
|
NDE150 3D;NDE150 5D 6FS +1 | — | |
| 82817-12J10 |
Protector, Wiring Harness, NO.5
2008-11 → 2009-12
ended
|
NRE150,ZRE15# 5D (6F,6FS) | — | |
| 82817-12J10 |
Protector, Wiring Harness, NO.5
2008-11 → 2010-01
ended
|
ZRE151 4FC;NRE150,ZRE15# 3D (6F,6FS) | — | |
| 82817-02380 |
Protector, Wiring Harness, NO.5
2009-12 → —
|
ADE15# LHD | — | |
| 82817-02800 |
Protector, Wiring Harness, NO.5
2009-12 → —
|
NDE150 E,SOL;NDE150 6F TERRA | — | |
| 82817-12J10 |
Protector, Wiring Harness, NO.5
2009-12 → —
|
NRE150,ZRE151;ZRE152 LHD SOL | — | |
| 82817-47740 |
Protector, Wiring Harness, NO.5
2010-06 → —
|
ZWE150 | — | |
| 82817E — Protector, Wiring Harness, NO.6 | ||||
| 82817-02390 |
Protector, Wiring Harness, NO.6
2007-02 → 2009-03
ended
|
ADE15# | — | |
| 82817-02430 |
Protector, Wiring Harness, NO.6
2007-02 → 2009-02
ended
|
NDE150 | — | |
| 82817-02390 |
Protector, Wiring Harness, NO.6
2009-03 → 2009-12
ended
|
ADE157 5D;ADE150 LHD 5D | — | |
| 82817-02390 |
Protector, Wiring Harness, NO.6
2009-03 → 2010-01
ended
|
ADE157 3D;ADE150 RHD;ADE150 LHD +1 | — | |
| 82817-02430 |
Protector, Wiring Harness, NO.6
2009-02 → 2009-12
ended
|
NDE150 5D (E,SOL);NDE150 5D +2 | — | |
| 82817-02430 |
Protector, Wiring Harness, NO.6
2009-02 → 2010-01
ended
|
NDE150 3D;NDE150 5D 6FS +1 | — | |
| 82817-02760 |
Protector, Wiring Harness, NO.6
2009-02 → 2009-12
ended
|
ZRE15# 5D HTWVM | — | |
| 82817-02760 |
Protector, Wiring Harness, NO.6
2009-02 → 2010-01
ended
|
ZRE15# 3D | — | |
| 82817-12J60 |
Protector, Wiring Harness, NO.6
2008-11 → 2009-12
ended
|
NRE150 5D | — | |
| 82817-12J60 |
Protector, Wiring Harness, NO.6
2008-11 → 2010-01
ended
|
NRE150 3D | — | |
| 82817-02390 |
Protector, Wiring Harness, NO.6
2009-12 → —
|
ADE15# LHD | — | |
| 82817-02430 |
Protector, Wiring Harness, NO.6
2009-12 → —
|
NDE150 E,SOL;NDE150 6F TERRA | — | |
| 82817-02760 |
Protector, Wiring Harness, NO.6
2009-12 → —
|
ZRE151 HTWVM;ZRE152 LHD SOL | — | |
| 82817-12J60 |
Protector, Wiring Harness, NO.6
2009-12 → —
|
NRE150 | — | |
| 82817-47810 |
Protector, Wiring Harness, NO.6
2010-06 → —
|
ZWE150 RHD | — | |
| 82817-75140 |
Protector, Wiring Harness, NO.6
2010-06 → —
|
ZWE150 LHD | — | |
| 82817F — Protector, Wiring Harness, NO.7 | ||||
| 82817-02420 |
Protector, Wiring Harness, NO.7
2007-02 → 2009-03
ended
|
ADE15# | — | |
| 82817-12860 |
Protector, Wiring Harness, NO.7
2007-02 → 2009-02
ended
|
NDE150 | — | |
| 82817-02420 |
Protector, Wiring Harness, NO.7
2009-03 → 2009-12
ended
|
ADE157 5D;ADE150 LHD 5D | — | |
| 82817-02420 |
Protector, Wiring Harness, NO.7
2009-03 → 2010-01
ended
|
ADE157 3D;ADE150 RHD;ADE150 LHD +1 | — | |
| 82817-02770 |
Protector, Wiring Harness, NO.7
2009-02 → 2009-12
ended
|
ZRE15# 5D HTWVM | — | |
| 82817-02770 |
Protector, Wiring Harness, NO.7
2009-02 → 2010-01
ended
|
ZRE15# 3D | — | |
| 82817-0D170 |
Protector, Wiring Harness, NO.7
2009-02 → 2009-12
ended
|
NDE150 5D (E,SOL);NDE150 5D +2 | — | |
| 82817-0D170 |
Protector, Wiring Harness, NO.7
2009-02 → 2010-01
ended
|
NDE150 3D;NDE150 5D 6FS +1 | — | |
| 82817-12860 |
Protector, Wiring Harness, NO.7
2008-11 → 2009-12
ended
|
NRE150 5D | — | |
| 82817-12860 |
Protector, Wiring Harness, NO.7
2008-11 → 2010-01
ended
|
NRE150 3D | — | |
| 82817-02420 |
Protector, Wiring Harness, NO.7
2009-12 → —
|
ADE15# LHD | — | |
| 82817-02770 |
Protector, Wiring Harness, NO.7
2009-12 → —
|
ZRE151 HTWVM;ZRE152 LHD SOL | — | |
| 82817-0D170 |
Protector, Wiring Harness, NO.7
2009-12 → —
|
NDE150 E,SOL;NDE150 6F TERRA | — | |
| 82817-12860 |
Protector, Wiring Harness, NO.7
2009-12 → —
|
NRE150 | — | |
| 82817-47610 |
Protector, Wiring Harness, NO.7
2010-06 → —
|
ZWE150 RHD | — | |
| 82817-47850 |
Protector, Wiring Harness, NO.7
2010-06 → —
|
ZWE150 LHD | — | |
| 82817G — Protector, Wiring Harness, NO.8 | ||||
| 82817-02440 |
Protector, Wiring Harness, NO.8
2007-02 → 2009-03
ended
|
ADE15# | — | |
| 82817-12A10 |
Protector, Wiring Harness, NO.8
2007-02 → 2009-02
ended
|
NDE150 | — | |
| 82817-02440 |
Protector, Wiring Harness, NO.8
2009-03 → 2009-12
ended
|
ADE157 5D;ADE150 LHD 5D | — | |
| 82817-02440 |
Protector, Wiring Harness, NO.8
2009-03 → 2010-01
ended
|
ADE157 3D;ADE150 RHD;ADE150 LHD +1 | — | |
| 82817-0D180 |
Protector, Wiring Harness, NO.8
2009-02 → 2009-12
ended
|
NDE150 5D (E,SOL);NDE150 5D +2 | — | |
| 82817-0D180 |
Protector, Wiring Harness, NO.8
2009-02 → 2010-01
ended
|
NDE150 3D;NDE150 5D 6FS +1 | — | |
| 82817-12J90 |
Protector, Wiring Harness, NO.8
2008-11 → 2009-12
ended
|
NRE150 5D | — | |
| 82817-12J90 |
Protector, Wiring Harness, NO.8
2008-11 → 2010-01
ended
|
NRE150 3D | — | |
| 82817-02440 |
Protector, Wiring Harness, NO.8
2009-12 → —
|
ADE15# LHD | — | |
| 82817-0D180 |
Protector, Wiring Harness, NO.8
2009-12 → —
|
NDE150 E,SOL;NDE150 6F TERRA | — | |
| 82817-12J90 |
Protector, Wiring Harness, NO.8
2009-12 → —
|
NRE150 | — | |
| 82817-47830 |
Protector, Wiring Harness, NO.8
2010-06 → —
|
ZWE150 RHD | — | |
| 82821A — Cover, Connector | ||||
| 82821-12560 |
Cover, Connector
2007-02 → 2009-02
ended
|
ZRE151 | — | |
| 82821-12560 |
Cover, Connector
2007-02 → 2009-03
ended
|
ADE15# | — | |
| 82821-12560 |
Cover, Connector
2009-09 → 2010-01
ended
|
ZRE151 HTWC | — | |
| 82821-12560 |
Cover, Connector
2009-12 → —
|
ADE15# LHD;NRE150,ZRE151;ZRE152 LHD SOL | — | |
| 82823S — Cap, Starter Terminal | ||||
| 82823-20080 |
Cap, Starter Terminal
2007-02 → 2009-02
ended
|
NDE150 | — | |
| 82823-20090 |
Cap, Starter Terminal
2007-02 → 2009-03
ended
|
ADE15# | — | |
| 82823-30120 |
Cap, Starter Terminal
2007-02 → 2009-02
ended
|
ZRE151,ZZE150 | — | |
| 82823-12090 |
Cap, Starter Terminal
2009-09 → 2010-01
ended
|
ZRE151 HTWC | — | |
| 82823-20100 |
Cap, Starter Terminal
2009-03 → 2010-01
ended
|
ADE15# | — | |
| 82823-12110 |
Cap, Starter Terminal
2009-12 → 2012-10
ended
|
ZRE151;ZRE152 LHD SOL | — | |
| 82823-20100 |
Cap, Starter Terminal
2009-12 → 2012-10
ended
|
ADE15# LHD | — | |
| 82823T — Cap, Alternator Terminal | ||||
| 82823-22050 |
Cap, Alternator Terminal
2007-02 → 2009-03
ended
|
NDE150 5F,5FS;ADE15#,ZRE151,ZZE150 DCR,DCRL,HTWC | — | |
| 82823-22050 |
Cap, Alternator Terminal
2008-11 → 2010-01
ended
|
NDE150 6F,6FS;ADE15#,NRE150,ZRE15# (4FC,6F,6FS) (DCRL,HTWC,HTWVM) | — | |
| 82823-22050 |
Cap, Alternator Terminal
2009-12 → 2013-05
ended
|
ADE15# LHD;NRE150,ZRE151;NDE150 E,SOL;ZRE152 LHD +3 | — | |
| 82824 — Connector, Wiring Harness | ||||
| 82824-34100 |
Connector, Wiring Harness
2009-12 → —
|
ADE15# LHD;NRE150,ZRE151;ZRE152 LHD SOL | — | |
| 82991 — Wire, Fusible Link Repair | ||||
| 82991-12110 |
Wire, Fusible Link Repair
2007-02 → 2008-11
ended
|
ZZE150 | — | |
| 82991-12110 |
Wire, Fusible Link Repair
2007-02 → 2009-02
ended
|
ZRE151 | — | |
| 82991-12120 |
Wire, Fusible Link Repair
2007-02 → 2009-02
ended
|
NDE150 | — | |
| 82991-12120 |
Wire, Fusible Link Repair
2007-02 → 2009-03
ended
|
ADE15# | — | |
| 82991-12110 |
Wire, Fusible Link Repair
2008-11 → 2009-12
ended
|
NRE150,ZRE15# 5D (6F,6FS) | — | |
| 82991-12110 |
Wire, Fusible Link Repair
2008-11 → 2010-01
ended
|
ZRE151 4FC;NRE150,ZRE15# 3D (6F,6FS) | — | |
| 82991-12120 |
Wire, Fusible Link Repair
2009-02 → 2009-12
ended
|
ADE150 LHD 5D DCRL;NDE150 +5 | — | |
| 82991-12120 |
Wire, Fusible Link Repair
2009-02 → 2010-01
ended
|
ADE157,NDE150 3D;ADE150 RHD DCRL;ADE150 +6 | — | |
| 82991-12110 |
Wire, Fusible Link Repair
2009-12 → —
|
NRE150,ZRE151;ZRE152 LHD SOL | — | |
| 82991-12120 |
Wire, Fusible Link Repair
2009-12 → —
|
ADE15# LHD;NDE150 E,SOL;NDE150 6F +1 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
