Toyota Auris/Hybrid (UKP)
2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe
Supported model
Data version 2014-01

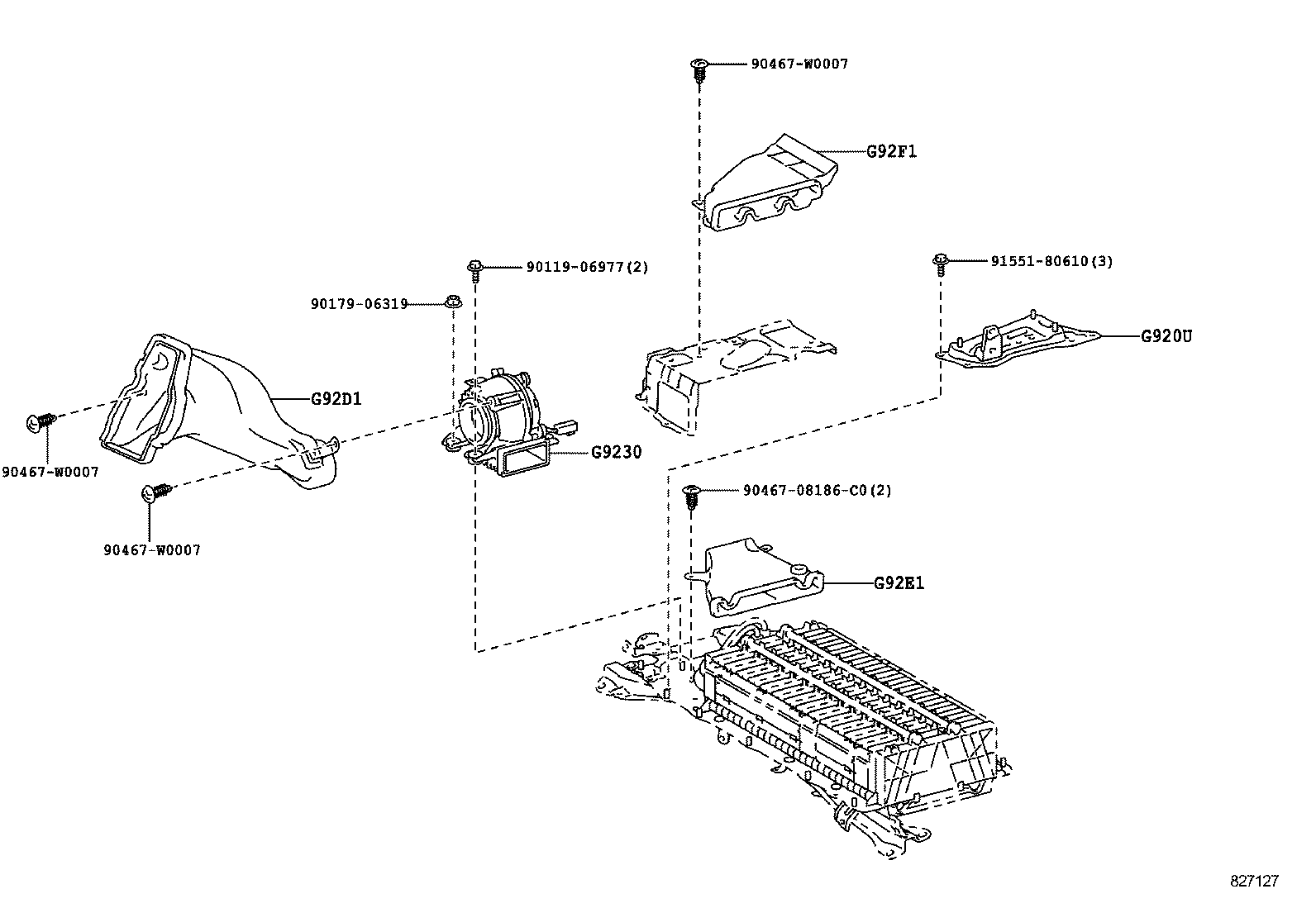

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| G920U — Bracket Sub-assy, HV Battery Carrier, NO.4 | ||||
| G920U-47010 |
Bracket Sub-assy, HV Battery Carrier, NO.4
2010-06 → —
|
ZWE150 | — | |
| G9230 — Blower Assy, Battery Cooling | ||||
| G9230-47070 |
Blower Assy, Battery Cooling
2010-06 → 2011-05
ended
|
ZWE150 | — | |
| G9230-76010 |
Blower Assy, Battery Cooling
2011-06 → —
|
ZWE150 | — | |
| G92D1 — Duct, Hybrid Battery Intake, NO.1 | ||||
| G92D1-12010 |
Duct, Hybrid Battery Intake, NO.1
2010-06 → —
|
ZWE150 | — | |
| G92E1 — Duct, HV Battery Cover Intake, NO.1 | ||||
| G92E1-47010 |
Duct, HV Battery Cover Intake, NO.1
2010-06 → —
|
ZWE150 | — | |
| G92F1 — Duct, Hybrid Battery Exhaust, NO.1 | ||||
| G92F1-47010 |
Duct, Hybrid Battery Exhaust, NO.1
2010-06 → —
|
ZWE150 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
