Toyota Auris/Hybrid (UKP)

2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

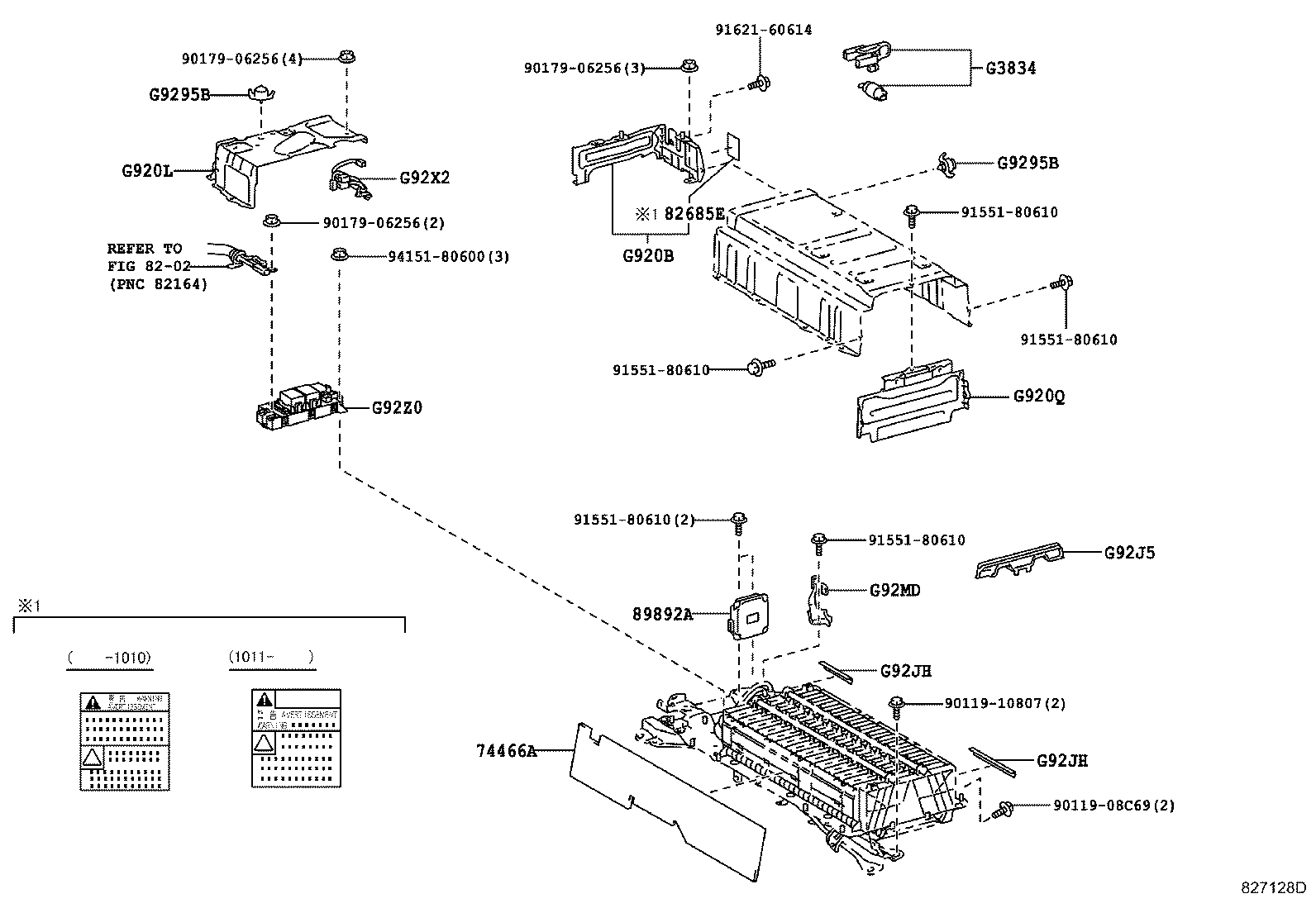

Exploded illustration 827128D G3834 — GRIP, SERVICE PLUG (1 parts) G92X2 — WIRE, HV BATTERY PACK, NO.2 (1 parts) 9155180610 — not listed in this catalogue 9011910807 — not listed in this catalogue 9155180610 — not listed in this catalogue 9011908C69 — not listed in this catalogue 9155180610 — not listed in this catalogue 9155180610 — not listed in this catalogue 9155180610 — not listed in this catalogue 9017906256 — not listed in this catalogue 9017906256 — not listed in this catalogue 9415180600 — not listed in this catalogue G92MD — BRACKET, HV BATTERY UPPER CARRIER, NO.7 (1 parts) 89892A — SENSOR, BATTERY VOLTAGE (1 parts) 74466A — PANEL, BATTERY CARRIER, NO.6 (1 parts) G9295B — STRIKER, BATTERY COVER LOCK (1 parts) G9295B — STRIKER, BATTERY COVER LOCK (1 parts) G920Q — SHIELD SUB-ASSY, HYBRID BATTERY, NO.1 (1 parts) G92J5 — PACKING, HYBRID BATTERY, NO.1 (1 parts) G92JH — SHEET, HYBRID BATTERY COVER (2 parts) G92JH — SHEET, HYBRID BATTERY COVER (2 parts) G920L — COVER SUB-ASSY, HYBRID BATTERY, UPPER NO.1 (1 parts) 8202 — not listed in this catalogue G92Z0 — BLOCK ASSY, HV BATTERY JUNCTION (2 parts) 82685E — PLATE, SERVICE PLUG CAUTION (2 parts) 9162160614 — not listed in this catalogue 9017906256 — not listed in this catalogue G920B — BRACKET SUB-ASSY, HV BATTERY CARRIER, NO.1 (1 parts)
827128D · 15 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
74466A — Panel, Battery Carrier, NO.6
G92H9-12010 Panel, Battery Carrier, NO.6
2010-06 → —
ZWE150 —
82685E — Plate, Service Plug Caution
82685-47100 Plate, Service Plug Caution
2010-06 → 2010-10 ended
ZWE150 —
82685-76010 Plate, Service Plug Caution
2010-11 → —
ZWE150 —
89892A — Sensor, Battery Voltage
89892-47020 Sensor, Battery Voltage
2010-06 → —
ZWE150 —
G3834 — Grip, Service Plug
G3834-48010 Grip, Service Plug
2010-06 → —
ZWE150 —
G920B — Bracket Sub-assy, HV Battery Carrier, NO.1
G920B-47020 Bracket Sub-assy, HV Battery Carrier, NO.1
2010-06 → —
ZWE150 —
G920L — Cover Sub-assy, Hybrid Battery, Upper NO.1
G920L-47010 Cover Sub-assy, Hybrid Battery, Upper NO.1
2010-06 → —
ZWE150 —
G920Q — Shield Sub-assy, Hybrid Battery, NO.1
G920Q-47010 Shield Sub-assy, Hybrid Battery, NO.1
2010-06 → —
ZWE150 —
G9295B — Striker, Battery Cover Lock
G9295-30020 Striker, Battery Cover Lock
2010-06 → —
ZWE150 —
G92J5 — Packing, Hybrid Battery, NO.1
G92J5-47020 Packing, Hybrid Battery, NO.1
2010-06 → —
ZWE150 —
G92JH — Sheet, Hybrid Battery Cover
G92J2-12010 note Sheet, Hybrid Battery Cover
2010-06 → —
ZWE150 —
G92J3-12010 note Sheet, Hybrid Battery Cover
2010-06 → —
ZWE150 —
G92MD — Bracket, HV Battery Upper Carrier, NO.7
G92MD-47010 Bracket, HV Battery Upper Carrier, NO.7
2010-06 → —
ZWE150 —
G92X2 — Wire, HV Battery Pack, NO.2
G92X2-47010 Wire, HV Battery Pack, NO.2
2010-06 → —
ZWE150 —
G92Z0 — Block Assy, HV Battery Junction
G92Z0-47010 Block Assy, HV Battery Junction
2010-06 → 2010-07 ended
ZWE150 —
G92Z0-47011 Block Assy, HV Battery Junction
2010-08 → —
ZWE150 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
