Toyota Auris/Hybrid (UKP)

2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

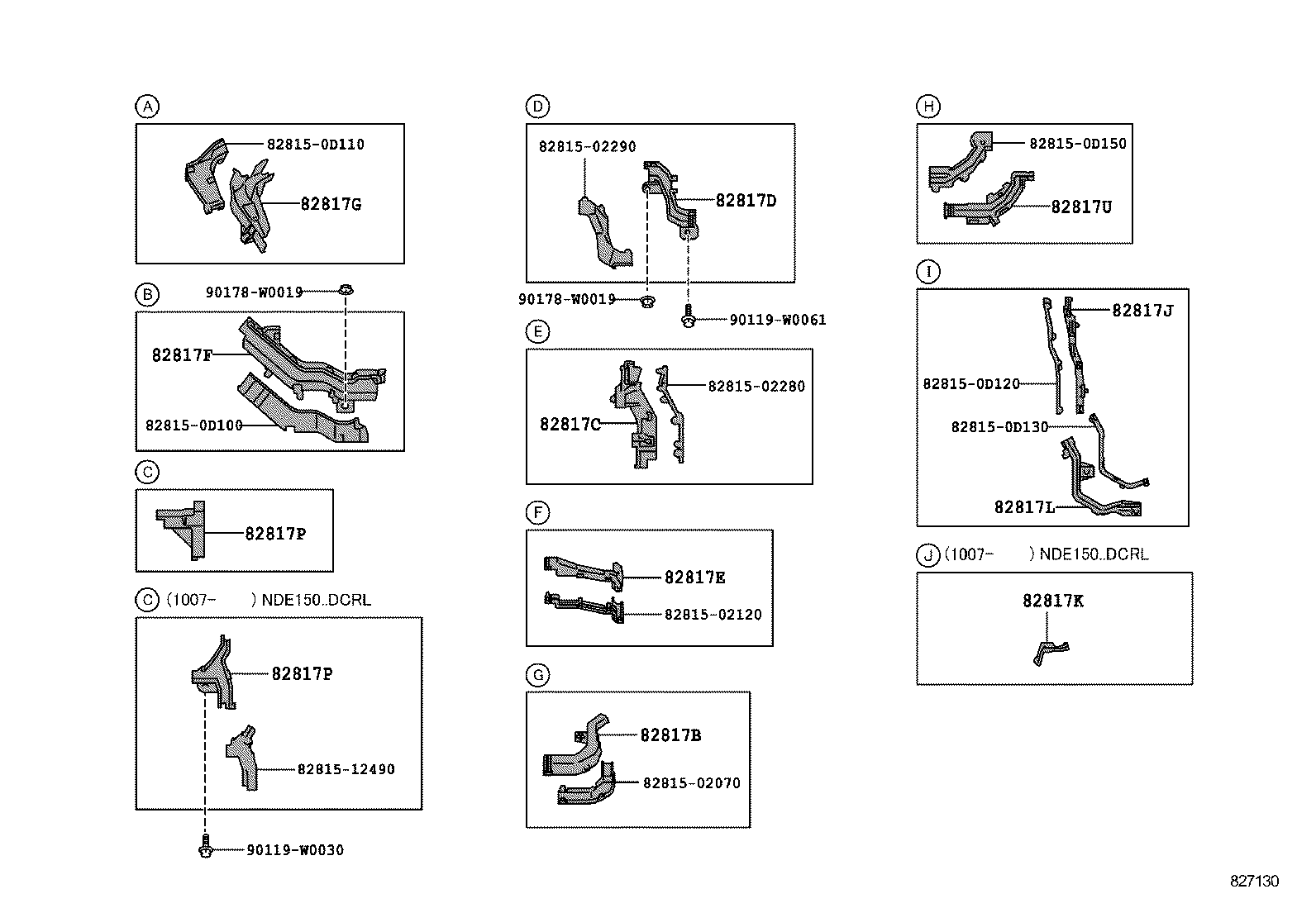

Exploded illustration 827130 82817B — PROTECTOR, WIRING HARNESS, NO.3 (17 parts) 8281502070 — not listed in this catalogue 828150D150 — not listed in this catalogue 82817E — PROTECTOR, WIRING HARNESS, NO.6 (16 parts) 82817P — PROTECTOR, WIRING HARNESS, NO.14 (6 parts) 82817P — PROTECTOR, WIRING HARNESS, NO.14 (6 parts) 82817D — PROTECTOR, WIRING HARNESS, NO.5 (12 parts) 82817C — PROTECTOR, WIRING HARNESS, NO.4 (12 parts) 82817F — PROTECTOR, WIRING HARNESS, NO.7 (16 parts) 82817G — PROTECTOR, WIRING HARNESS, NO.8 (12 parts) 82817U — PROTECTOR, WIRING HARNESS, NO.16 (3 parts) 82817L — PROTECTOR, WIRING HARNESS, NO.11 (3 parts) 82817K — PROTECTOR, WIRING HARNESS, NO.10 (1 parts) 82817J — PROTECTOR, WIRING HARNESS, NO.9 (6 parts) 8281502120 — not listed in this catalogue 8281502290 — not listed in this catalogue 8281512490 — not listed in this catalogue 828150D100 — not listed in this catalogue 828150D110 — not listed in this catalogue 8281502280 — not listed in this catalogue 90178W0019 — not listed in this catalogue 90178W0019 — not listed in this catalogue 90119W0061 — not listed in this catalogue 90119W0030 — not listed in this catalogue 828150D120 — not listed in this catalogue 828150D130 — not listed in this catalogue
827130 · 12 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
104 parts on this figure
Part number Description Fitment Price
82817B — Protector, Wiring Harness, NO.3
82817-02360 Protector, Wiring Harness, NO.3
2007-02 → 2009-03 ended
ADE150 —
82817-02380 Protector, Wiring Harness, NO.3
2007-02 → 2009-02 ended
NDE150 —
82817-12B80 Protector, Wiring Harness, NO.3
2007-02 → 2009-03 ended
ADE157 —
82817-02380 Protector, Wiring Harness, NO.3
2009-02 → 2009-12 ended
NDE150 5D (E,SOL);NDE150 5D +2 —
82817-02380 Protector, Wiring Harness, NO.3
2009-02 → 2010-01 ended
NDE150 3D;NDE150 5D 6FS +1 —
82817-05490 Protector, Wiring Harness, NO.3
2009-03 → 2009-12 ended
ADE157 5D;ADE150 LHD 5D —
82817-05490 Protector, Wiring Harness, NO.3
2009-03 → 2010-01 ended
ADE157 3D;ADE150 RHD;ADE150 LHD +1 —
82817-12860 Protector, Wiring Harness, NO.3
2009-02 → 2009-12 ended
ZRE15# 5D HTWVM —
82817-12860 Protector, Wiring Harness, NO.3
2009-02 → 2010-01 ended
ZRE15# 3D;ZRE151 HTWC —
82817-12J70 Protector, Wiring Harness, NO.3
2008-11 → 2009-12 ended
NRE150 5D —
82817-12J70 Protector, Wiring Harness, NO.3
2008-11 → 2010-01 ended
NRE150 3D —
82817-02380 Protector, Wiring Harness, NO.3
2009-12 → —
NDE150 E,SOL;NDE150 6F TERRA —
82817-05490 Protector, Wiring Harness, NO.3
2009-12 → —
ADE15# LHD —
82817-12860 Protector, Wiring Harness, NO.3
2009-12 → —
ZRE151 HTWVM;ZRE152 LHD SOL —
82817-12860 Protector, Wiring Harness, NO.3
2010-01 → —
ZRE151 HTWC —
82817-12J70 Protector, Wiring Harness, NO.3
2009-12 → —
NRE150 —
82817-47800 Protector, Wiring Harness, NO.3
2010-06 → —
ZWE150 —
82817C — Protector, Wiring Harness, NO.4
82817-02370 Protector, Wiring Harness, NO.4
2007-02 → 2009-03 ended
ADE15# —
82817-02400 Protector, Wiring Harness, NO.4
2007-02 → 2009-02 ended
NDE150 —
82817-02780 Protector, Wiring Harness, NO.4
2009-02 → 2009-12 ended
ZRE15# 5D HTWVM —
82817-02780 Protector, Wiring Harness, NO.4
2009-02 → 2010-01 ended
ZRE15# 3D —
82817-02790 Protector, Wiring Harness, NO.4
2009-02 → 2009-12 ended
NDE150 5D (E,SOL);NDE150 5D +2 —
82817-02790 Protector, Wiring Harness, NO.4
2009-02 → 2010-01 ended
NDE150 3D;NDE150 5D 6FS +1 —
82817-0D140 Protector, Wiring Harness, NO.4
2008-11 → 2009-12 ended
NRE150 5D —
82817-0D140 Protector, Wiring Harness, NO.4
2008-11 → 2010-01 ended
NRE150 3D —
82817-02780 Protector, Wiring Harness, NO.4
2009-12 → —
ZRE151 HTWVM;ZRE152 LHD SOL —
82817-02790 Protector, Wiring Harness, NO.4
2009-12 → —
NDE150 E,SOL;NDE150 6F TERRA —
82817-0D140 Protector, Wiring Harness, NO.4
2009-12 → —
NRE150 —
82817-47730 Protector, Wiring Harness, NO.4
2010-06 → —
ZWE150 —
82817D — Protector, Wiring Harness, NO.5
82817-02380 Protector, Wiring Harness, NO.5
2007-02 → 2009-03 ended
ADE15# —
82817-02410 Protector, Wiring Harness, NO.5
2007-02 → 2009-02 ended
NDE150 —
82817-02380 Protector, Wiring Harness, NO.5
2009-03 → 2009-12 ended
ADE157 5D;ADE150 LHD 5D —
82817-02380 Protector, Wiring Harness, NO.5
2009-03 → 2010-01 ended
ADE157 3D;ADE150 RHD;ADE150 LHD +1 —
82817-02800 Protector, Wiring Harness, NO.5
2009-02 → 2009-12 ended
NDE150 5D (E,SOL);NDE150 5D +2 —
82817-02800 Protector, Wiring Harness, NO.5
2009-02 → 2010-01 ended
NDE150 3D;NDE150 5D 6FS +1 —
82817-12J10 Protector, Wiring Harness, NO.5
2008-11 → 2009-12 ended
NRE150,ZRE15# 5D (6F,6FS) —
82817-12J10 Protector, Wiring Harness, NO.5
2008-11 → 2010-01 ended
ZRE151 4FC;NRE150,ZRE15# 3D (6F,6FS) —
82817-02380 Protector, Wiring Harness, NO.5
2009-12 → —
ADE15# LHD —
82817-02800 Protector, Wiring Harness, NO.5
2009-12 → —
NDE150 E,SOL;NDE150 6F TERRA —
82817-12J10 Protector, Wiring Harness, NO.5
2009-12 → —
NRE150,ZRE151;ZRE152 LHD SOL —
82817-47740 Protector, Wiring Harness, NO.5
2010-06 → —
ZWE150 —
82817E — Protector, Wiring Harness, NO.6
82817-02390 Protector, Wiring Harness, NO.6
2007-02 → 2009-03 ended
ADE15# —
82817-02430 Protector, Wiring Harness, NO.6
2007-02 → 2009-02 ended
NDE150 —
82817-02390 Protector, Wiring Harness, NO.6
2009-03 → 2009-12 ended
ADE157 5D;ADE150 LHD 5D —
82817-02390 Protector, Wiring Harness, NO.6
2009-03 → 2010-01 ended
ADE157 3D;ADE150 RHD;ADE150 LHD +1 —
82817-02430 Protector, Wiring Harness, NO.6
2009-02 → 2009-12 ended
NDE150 5D (E,SOL);NDE150 5D +2 —
82817-02430 Protector, Wiring Harness, NO.6
2009-02 → 2010-01 ended
NDE150 3D;NDE150 5D 6FS +1 —
82817-02760 Protector, Wiring Harness, NO.6
2009-02 → 2009-12 ended
ZRE15# 5D HTWVM —
82817-02760 Protector, Wiring Harness, NO.6
2009-02 → 2010-01 ended
ZRE15# 3D —
82817-12J60 Protector, Wiring Harness, NO.6
2008-11 → 2009-12 ended
NRE150 5D —
82817-12J60 Protector, Wiring Harness, NO.6
2008-11 → 2010-01 ended
NRE150 3D —
82817-02390 Protector, Wiring Harness, NO.6
2009-12 → —
ADE15# LHD —
82817-02430 Protector, Wiring Harness, NO.6
2009-12 → —
NDE150 E,SOL;NDE150 6F TERRA —
82817-02760 Protector, Wiring Harness, NO.6
2009-12 → —
ZRE151 HTWVM;ZRE152 LHD SOL —
82817-12J60 Protector, Wiring Harness, NO.6
2009-12 → —
NRE150 —
82817-47810 Protector, Wiring Harness, NO.6
2010-06 → —
ZWE150 RHD —
82817-75140 Protector, Wiring Harness, NO.6
2010-06 → —
ZWE150 LHD —
82817F — Protector, Wiring Harness, NO.7
82817-02420 Protector, Wiring Harness, NO.7
2007-02 → 2009-03 ended
ADE15# —
82817-12860 Protector, Wiring Harness, NO.7
2007-02 → 2009-02 ended
NDE150 —
82817-02420 Protector, Wiring Harness, NO.7
2009-03 → 2010-01 ended
ADE157 3D;ADE150 RHD;ADE150 LHD +1 —
82817-02420 Protector, Wiring Harness, NO.7
2009-03 → 2009-12 ended
ADE157 5D;ADE150 LHD 5D —
82817-02770 Protector, Wiring Harness, NO.7
2009-02 → 2009-12 ended
ZRE15# 5D HTWVM —
82817-02770 Protector, Wiring Harness, NO.7
2009-02 → 2010-01 ended
ZRE15# 3D —
82817-0D170 Protector, Wiring Harness, NO.7
2009-02 → 2010-01 ended
NDE150 3D;NDE150 5D 6FS +1 —
82817-0D170 Protector, Wiring Harness, NO.7
2009-02 → 2009-12 ended
NDE150 5D (E,SOL);NDE150 5D +2 —
82817-12860 Protector, Wiring Harness, NO.7
2008-11 → 2010-01 ended
NRE150 3D —
82817-12860 Protector, Wiring Harness, NO.7
2008-11 → 2009-12 ended
NRE150 5D —
82817-02420 Protector, Wiring Harness, NO.7
2009-12 → —
ADE15# LHD —
82817-02770 Protector, Wiring Harness, NO.7
2009-12 → —
ZRE151 HTWVM;ZRE152 LHD SOL —
82817-0D170 Protector, Wiring Harness, NO.7
2009-12 → —
NDE150 E,SOL;NDE150 6F TERRA —
82817-12860 Protector, Wiring Harness, NO.7
2009-12 → —
NRE150 —
82817-47610 Protector, Wiring Harness, NO.7
2010-06 → —
ZWE150 RHD —
82817-47850 Protector, Wiring Harness, NO.7
2010-06 → —
ZWE150 LHD —
82817G — Protector, Wiring Harness, NO.8
82817-02440 Protector, Wiring Harness, NO.8
2007-02 → 2009-03 ended
ADE15# —
82817-12A10 Protector, Wiring Harness, NO.8
2007-02 → 2009-02 ended
NDE150 —
82817-02440 Protector, Wiring Harness, NO.8
2009-03 → 2010-01 ended
ADE157 3D;ADE150 RHD;ADE150 LHD +1 —
82817-02440 Protector, Wiring Harness, NO.8
2009-03 → 2009-12 ended
ADE157 5D;ADE150 LHD 5D —
82817-0D180 Protector, Wiring Harness, NO.8
2009-02 → 2009-12 ended
NDE150 5D (E,SOL);NDE150 5D +2 —
82817-0D180 Protector, Wiring Harness, NO.8
2009-02 → 2010-01 ended
NDE150 3D;NDE150 5D 6FS +1 —
82817-12J90 Protector, Wiring Harness, NO.8
2008-11 → 2010-01 ended
NRE150 3D —
82817-12J90 Protector, Wiring Harness, NO.8
2008-11 → 2009-12 ended
NRE150 5D —
82817-02440 Protector, Wiring Harness, NO.8
2009-12 → —
ADE15# LHD —
82817-0D180 Protector, Wiring Harness, NO.8
2009-12 → —
NDE150 E,SOL;NDE150 6F TERRA —
82817-12J90 Protector, Wiring Harness, NO.8
2009-12 → —
NRE150 —
82817-47830 Protector, Wiring Harness, NO.8
2010-06 → —
ZWE150 RHD —
82817J — Protector, Wiring Harness, NO.9
82817-05410 Protector, Wiring Harness, NO.9
2007-02 → 2009-03 ended
ADE150 —
82817-12A20 Protector, Wiring Harness, NO.9
2007-02 → 2009-02 ended
NDE150 —
82817-0D190 Protector, Wiring Harness, NO.9
2009-02 → 2009-12 ended
NDE150 5D (E,SOL);NDE150 5D +2 —
82817-0D190 Protector, Wiring Harness, NO.9
2009-02 → 2010-01 ended
NDE150 3D;NDE150 5D 6FS +1 —
82817-0D190 Protector, Wiring Harness, NO.9
2009-12 → —
NDE150 E,SOL;NDE150 6F TERRA —
82817-12860 Protector, Wiring Harness, NO.9
2010-06 → —
ZWE150 RHD —
82817K — Protector, Wiring Harness, NO.10
82817-12K60 Protector, Wiring Harness, NO.10
2010-07 → —
NDE150 DCRL —
82817L — Protector, Wiring Harness, NO.11
82817-0D200 Protector, Wiring Harness, NO.11
2009-02 → 2009-12 ended
NDE150 5D (E,SOL);NDE150 5D +2 —
82817-0D200 Protector, Wiring Harness, NO.11
2009-02 → 2010-01 ended
NDE150 3D;NDE150 5D 6FS +1 —
82817-0D200 Protector, Wiring Harness, NO.11
2009-12 → —
NDE150 E,SOL;NDE150 6F TERRA —
82817P — Protector, Wiring Harness, NO.14
82817-02750 Protector, Wiring Harness, NO.14
2007-08 → 2009-02 ended
NDE150 —
82817-0D230 Protector, Wiring Harness, NO.14
2009-02 → 2009-12 ended
NDE150 5D (E,SOL);NDE150 5D +2 —
82817-0D230 Protector, Wiring Harness, NO.14
2009-02 → 2010-01 ended
NDE150 3D;NDE150 5D 6FS +1 —
82817-0D230 Protector, Wiring Harness, NO.14
2009-12 → 2010-07 ended
NDE150 RHD DCRL;NDE150 LHD +6 —
82817-0D230 Protector, Wiring Harness, NO.14
2009-12 → —
NDE150 SOL DCR;NDE150 6F +2 —
82817-12F90 Protector, Wiring Harness, NO.14
2010-07 → —
NDE150 DCRL —
82817U — Protector, Wiring Harness, NO.16
82817-0D210 Protector, Wiring Harness, NO.16
2009-02 → 2009-12 ended
NDE150 5D (E,SOL);NDE150 5D +2 —
82817-0D210 Protector, Wiring Harness, NO.16
2009-02 → 2010-01 ended
NDE150 3D;NDE150 5D 6FS +1 —
82817-0D210 Protector, Wiring Harness, NO.16
2009-12 → —
NDE150 E,SOL;NDE150 6F TERRA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
