Toyota Auris/Hybrid (UKP)
2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe
Supported model
Data version 2014-01

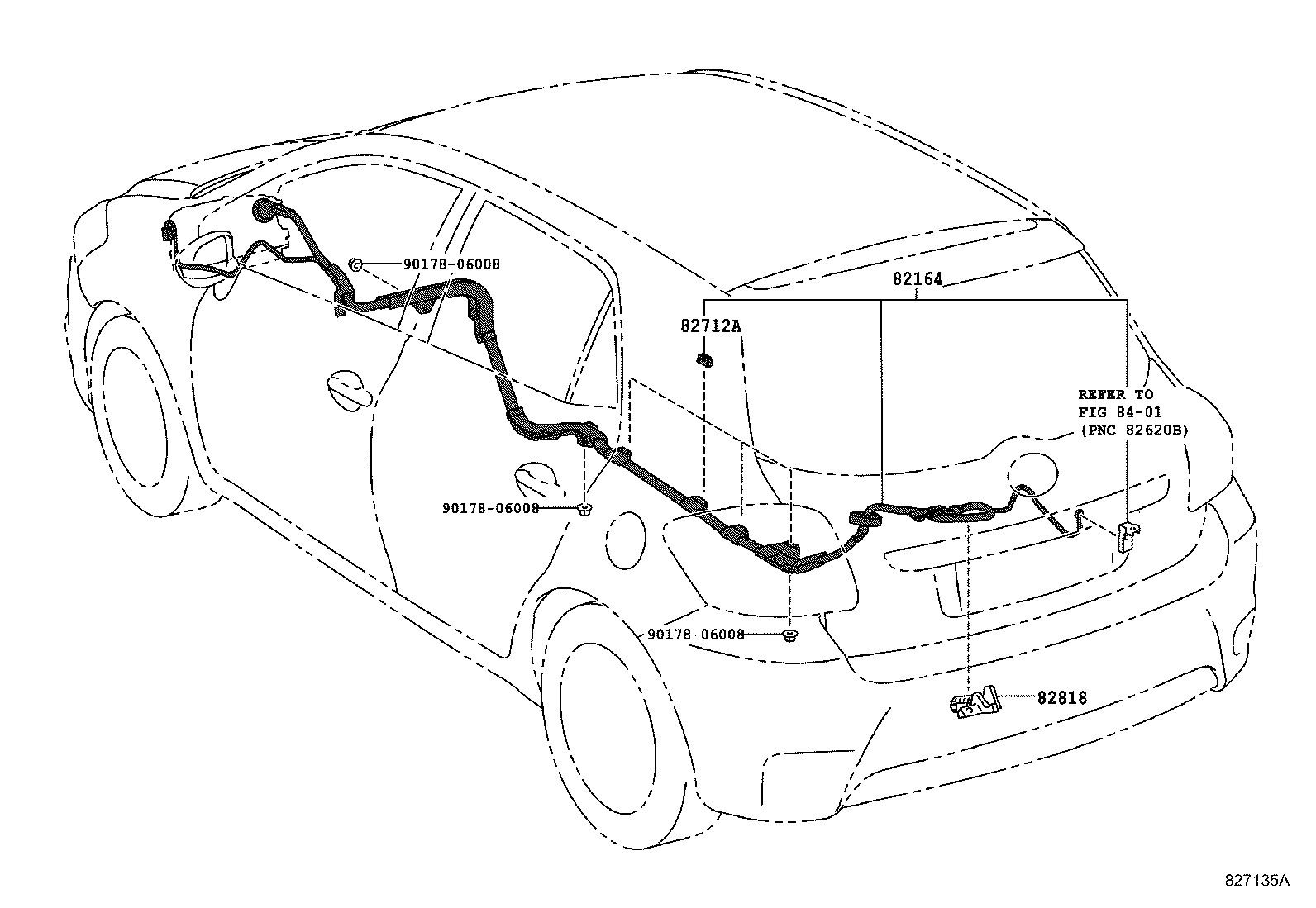

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82164 — Wire, Frame | ||||
| 82164-12140 |
Wire, Frame
2010-06 → —
|
ZWE150 LHD | — | |
| 82164-12150 |
Wire, Frame
2010-06 → —
|
ZWE150 RHD | — | |
| 82712A — Support, Wiring Harness | ||||
| 82712-47270 |
Support, Wiring Harness
2010-06 → —
|
ZWE150 | — | |
| 82818 — Protector, Wiring Harness, NO.2 | ||||
| 82817-12F00 |
Protector, Wiring Harness, NO.2
2010-06 → —
|
ZWE150 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
