Toyota Auris/Hybrid (UKP)
2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe
Supported model
Data version 2014-01

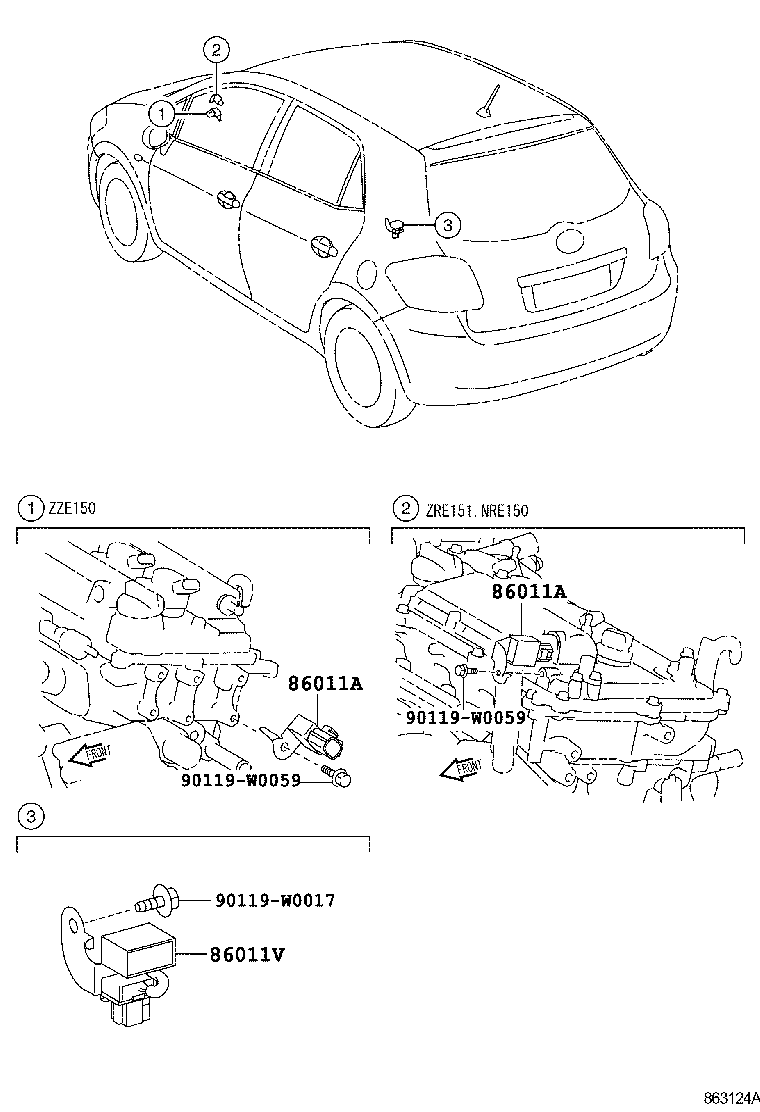

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86011A — Condenser, Radio Setting | ||||
| 90080-88003 |
Condenser, Radio Setting
2007-02 → 2008-11
ended
|
ZZE150 | — | |
| 90980-04196 |
Condenser, Radio Setting
2007-02 → 2009-02
ended
|
ZRE151 | — | |
| 90980-04194 |
Condenser, Radio Setting
2009-10 → 2009-12
ended
|
ZRE15# 5D HTWVM | — | |
| 90980-04194 |
Condenser, Radio Setting
2009-10 → 2010-01
ended
|
ZRE15# 3D;ZRE151 HTWC | — | |
| 90980-04196 |
Condenser, Radio Setting
2008-11 → 2009-10
ended
|
ZRE15# 4FC,6F,6FS | — | |
| 90980-04196 |
Condenser, Radio Setting
2008-11 → 2009-11
ended
|
NRE150 | — | |
| 90980-04194 |
Condenser, Radio Setting
2009-12 → —
|
ZRE151;ZRE152 LHD SOL | — | |
| 86011V — Condenser, Radio Setting | ||||
| 90980-05357 |
Condenser, Radio Setting
2007-02 → 2008-11
ended
|
ZZE150 | — | |
| 90980-05357 |
Condenser, Radio Setting
2007-02 → 2009-02
ended
|
NDE150,ZRE151 | — | |
| 90980-05357 |
Condenser, Radio Setting
2007-02 → 2009-03
ended
|
ADE15# | — | |
| 90980-05357 |
Condenser, Radio Setting
2008-11 → 2009-12
ended
|
ADE150 RE150,ZRE15# LHD 5D +9 | — | |
| 90980-05357 |
Condenser, Radio Setting
2008-11 → 2010-01
ended
|
ZRE151 NDE150,NRE150,ZRE15# 4FC;ADE150 3D +9 | — | |
| 90980-04179 |
Condenser, Radio Setting
2009-12 → —
|
ADE15# LHD;NDE150 E,SOL;ZRE152 LHD +3 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
