Toyota Auris/Hybrid (UKP)
2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe
Supported model
Data version 2014-01

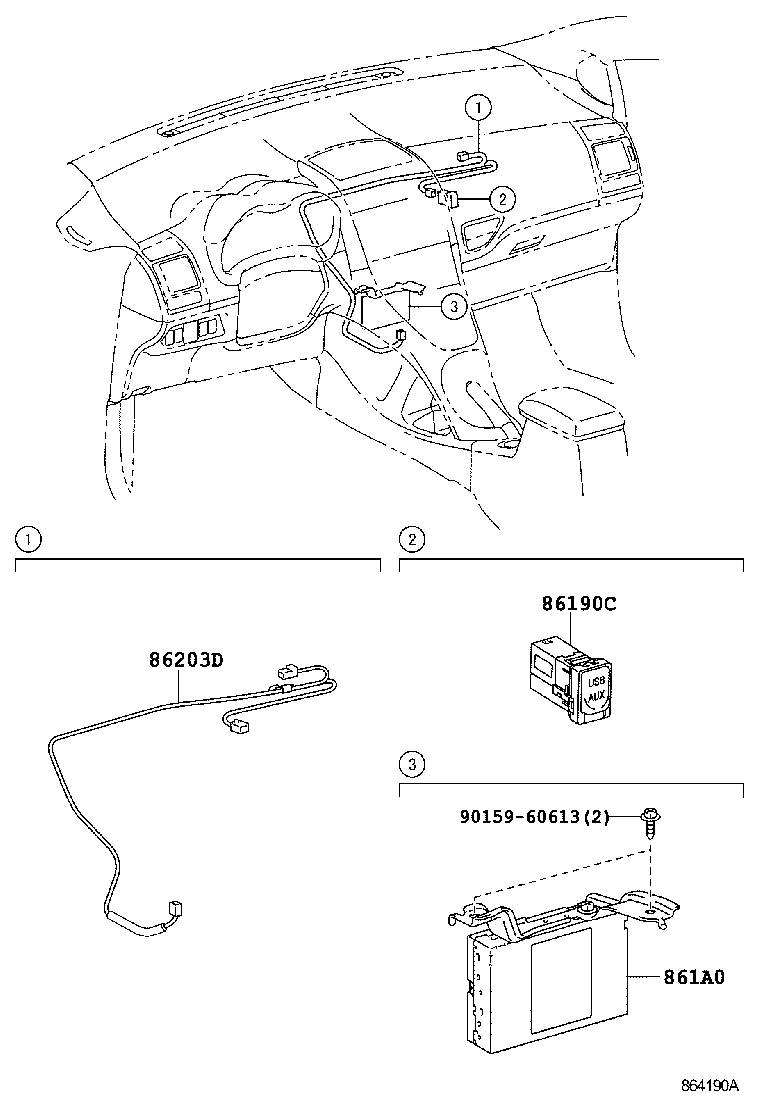

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86190C — Adapter Assy, Stereo Jack, NO.1 | ||||
| 86190-02060 |
Adapter Assy, Stereo Jack, NO.1
2009-12 → —
|
ADE15# LHD;NDE150 E,SOL;ZRE152 LHD +3 | — | |
| 86190-0D010 note |
Adapter Assy, Stereo Jack, NO.1
2009-12 → 2011-11
ended
|
ZRE151 ) LHD 6FS +5 | — | |
| 861A0 — Computer Assy, Multi-media Interface | ||||
| 861A0-02010 |
Computer Assy, Multi-media Interface
2009-12 → —
|
ADE15#,ZRE152 LHD SOL;NDE150,NRE150,ZRE151,ZWE150 G,SOL | — | |
| 861A0-02010 note |
Computer Assy, Multi-media Interface
2009-12 → —
|
NDE150 6F (E,TERRA);ADE150,NRE150,ZRE151 TERRA | — | |
| 861A0-02010 note |
Computer Assy, Multi-media Interface
2009-12 → —
|
NDE150 6F (E,TERRA);ADE150,NRE150,ZRE151 TERRA | — | |
| 861A0-02010 note |
Computer Assy, Multi-media Interface
2009-12 → —
|
NDE150 E | — | |
| 86203D — Wire, Stereo Component, NO.1 | ||||
| 86203-12310 note |
Wire, Stereo Component, NO.1
2011-11 → 2012-11
ended
|
ZRE151,ZWE150 RHD | — | |
| 86203-12310 note |
Wire, Stereo Component, NO.1
2011-11 → 2012-11
ended
|
ZRE151,ZWE150 RHD | — | |
| 86203-12310 note |
Wire, Stereo Component, NO.1
2012-03 → 2012-11
ended
|
NRE150 RHD SOL;NDE150 RHD +3 | — | |
| 86203-12310 note |
Wire, Stereo Component, NO.1
2012-03 → 2012-11
ended
|
NRE150 RHD SOL;NDE150 RHD +3 | — | |
| 86203-12320 |
Wire, Stereo Component, NO.1
2009-12 → 2013-05
ended
|
NDE150 D LHD 6F +4 | — | |
| 86203-12330 |
Wire, Stereo Component, NO.1
2009-12 → 2012-11
ended
|
NDE150,NRE150,ZRE151,ZWE150 RHD | — | |
| 86203-12470 note |
Wire, Stereo Component, NO.1
2011-11 → 2012-11
ended
|
ADE15#,ZRE15#,ZWE150 LHD (G,SOL) | — | |
| 86203-12470 note |
Wire, Stereo Component, NO.1
2011-11 → 2012-11
ended
|
ADE15#,ZRE15#,ZWE150 LHD (G,SOL) | — | |
| 86203-12470 note |
Wire, Stereo Component, NO.1
2012-03 → 2012-11
ended
|
NDE150,NRE150 LHD (E,SOL) (DCRL,HTWC) | — | |
| 86203-12470 note |
Wire, Stereo Component, NO.1
2012-03 → 2012-11
ended
|
NDE150,NRE150 LHD (E,SOL) (DCRL,HTWC) | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
