Toyota Auris/Hybrid (UKP)
2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe
Supported model
Data version 2014-01

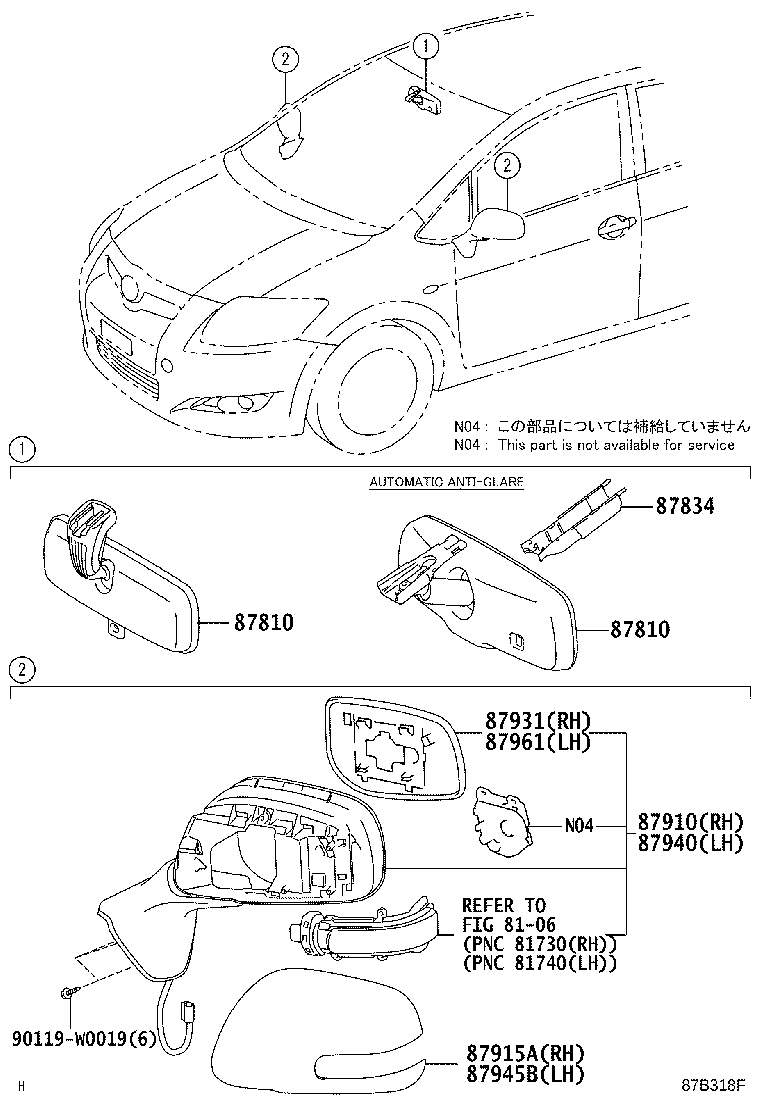

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87810 — Mirror Assy, Inner Rear View | ||||
| 87810-02090 note |
Mirror Assy, Inner Rear View
2007-02 → 2008-09
ended
|
ADE15#,NDE150,ZRE151,ZZE150 SOL | — | |
| 87810-0D011 |
Mirror Assy, Inner Rear View
2007-02 → 2008-11
ended
|
ZZE150 | — | |
| 87810-0D011 |
Mirror Assy, Inner Rear View
2007-02 → 2009-03
ended
|
ADE15# | — | |
| 87810-0D011 |
Mirror Assy, Inner Rear View
2007-02 → 2009-02
ended
|
NDE150,ZRE151 | — | |
| 87810-0F050 note |
Mirror Assy, Inner Rear View
2008-10 → 2009-02
ended
|
NDE150,ZRE151 SOL | — | |
| 87810-0F050 note |
Mirror Assy, Inner Rear View
2008-10 → 2008-11
ended
|
ZZE150 SOL | — | |
| 87810-0F050 note |
Mirror Assy, Inner Rear View
2008-10 → 2009-03
ended
|
ADE15# SOL | — | |
| 87810-0D011 |
Mirror Assy, Inner Rear View
2008-11 → 2009-12
ended
|
ADE150 RE150,ZRE15# LHD 5D +9 | — | |
| 87810-0D011 |
Mirror Assy, Inner Rear View
2008-11 → 2010-01
ended
|
ZRE151 NDE150,NRE150,ZRE15# 4FC;ADE150 3D +9 | — | |
| 87810-0F050 note |
Mirror Assy, Inner Rear View
2008-11 → 2009-04
ended
|
NDE150,NRE150 RHD (6F,6FS) SOL | — | |
| 87810-0F050 note |
Mirror Assy, Inner Rear View
2008-11 → 2009-12
ended
|
NDE150 150 LHD LHD +9 | — | |
| 87810-0F050 note |
Mirror Assy, Inner Rear View
2008-11 → 2010-01
ended
|
ZRE151 D 4FC SOL +13 | — | |
| 87810-02140 note |
Mirror Assy, Inner Rear View
2009-12 → 2011-07
ended
|
ZRE151 SOL;ADE15#,ZRE152 LHD SOL | — | |
| 87810-02140 |
Mirror Assy, Inner Rear View
2010-06 → 2011-07
ended
|
ZWE150 | — | |
| 87810-02180 |
Mirror Assy, Inner Rear View
2011-07 → 2011-11
ended
|
ZWE150 | — | |
| 87810-02180 note |
Mirror Assy, Inner Rear View
2011-07 → 2011-11
ended
|
ADE15#,ZRE15# SOL | — | |
| 87810-0D011 note |
Mirror Assy, Inner Rear View
2011-11 → —
|
ZWE150 SOL | — | |
| 87810-0D011 |
Mirror Assy, Inner Rear View
2009-12 → —
|
ADE15# LHD;NRE150,ZRE151;NDE150 E,SOL;ZRE152 LHD +3 | — | |
| 87810-0D011 note |
Mirror Assy, Inner Rear View
2010-06 → 2011-11
ended
|
ZWE150 SOL | — | |
| 87810-0W111 note |
Mirror Assy, Inner Rear View
2009-12 → —
|
ZRE151 SOL;ADE15#,ZRE152 LHD SOL | — | |
| 87810-0W111 |
Mirror Assy, Inner Rear View
2011-11 → —
|
ZWE150 | — | |
| 87810-0W111 note |
Mirror Assy, Inner Rear View
2010-06 → 2011-11
ended
|
ZWE150 | — | |
| 87834 — Cover, Inner Rear View Mirror Stay Holder | ||||
| 87818-33010 note |
Cover, Inner Rear View Mirror Stay Holder
2007-02 → 2008-11
ended
|
ZZE150 SOL | — | |
| 87818-33010 note |
Cover, Inner Rear View Mirror Stay Holder
2007-02 → 2009-02
ended
|
NDE150,ZRE151 SOL | — | |
| 87818-33010 note |
Cover, Inner Rear View Mirror Stay Holder
2007-02 → 2009-03
ended
|
ADE15# SOL | — | |
| 87818-0F040 note |
Cover, Inner Rear View Mirror Stay Holder
2009-10 → 2009-12
ended
|
ADE157,ZRE15# 5D MTM SOL;ADE150,NDE150,NRE150 +3 | — | |
| 87818-0F040 note |
Cover, Inner Rear View Mirror Stay Holder
2009-10 → 2010-01
ended
|
ADE150 SOL RHD;ZRE151 SOL +5 | — | |
| 87818-33010 note |
Cover, Inner Rear View Mirror Stay Holder
2008-11 → 2009-10
ended
|
NDE150,NRE150 ,HTWVM) LHD (6F,6FS) +4 | — | |
| 87818-33010 note |
Cover, Inner Rear View Mirror Stay Holder
2008-11 → 2009-04
ended
|
NDE150,NRE150 RHD (6F,6FS) SOL | — | |
| 87818-02060 note |
Cover, Inner Rear View Mirror Stay Holder
2009-12 → 2011-11
ended
|
ZRE151 SOL;ADE15#,ZRE152 LHD SOL | — | |
| 87818-02060 |
Cover, Inner Rear View Mirror Stay Holder
2010-06 → 2011-11
ended
|
ZWE150 | — | |
| 87818-0F040 note |
Cover, Inner Rear View Mirror Stay Holder
2010-06 → 2011-11
ended
|
ZWE150 | — | |
| 87818-0F040 note |
Cover, Inner Rear View Mirror Stay Holder
2009-12 → —
|
ZRE151 SOL;ADE15#,ZRE152 LHD SOL | — | |
| 87818-0F040 |
Cover, Inner Rear View Mirror Stay Holder
2011-11 → —
|
ZWE150 | — | |
| 87910 — Mirror Assy, Outer Rear View, RH | ||||
| 87901-02260 note |
Mirror Assy, Outer Rear View, RH
2007-02 → 2008-11
ended
|
ZZE150 LHD | — | |
| 87901-02260 note |
Mirror Assy, Outer Rear View, RH
2007-02 → 2009-03
ended
|
ADE15# LHD | — | |
| 87901-02260 note |
Mirror Assy, Outer Rear View, RH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 LHD | — | |
| 87901-02270 note |
Mirror Assy, Outer Rear View, RH
2007-02 → 2008-11
ended
|
ZZE150 LHD | — | |
| 87901-02270 note |
Mirror Assy, Outer Rear View, RH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 LHD TERRA | — | |
| 87901-02270 note |
Mirror Assy, Outer Rear View, RH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 LHD | — | |
| 87901-02270 note |
Mirror Assy, Outer Rear View, RH
2007-02 → 2008-11
ended
|
ZZE150 LHD TERRA | — | |
| 87901-02270 note |
Mirror Assy, Outer Rear View, RH
2007-02 → 2009-03
ended
|
ADE150 TERRA | — | |
| 87901-02270 note |
Mirror Assy, Outer Rear View, RH
2007-02 → 2009-03
ended
|
ADE15# LHD | — | |
| 87901-02280 note |
Mirror Assy, Outer Rear View, RH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 RHD | — | |
| 87901-02280 note |
Mirror Assy, Outer Rear View, RH
2007-02 → 2009-03
ended
|
ADE15# RHD | — | |
| 87901-02280 note |
Mirror Assy, Outer Rear View, RH
2007-02 → 2008-11
ended
|
ZZE150 RHD | — | |
| 87901-02290 note |
Mirror Assy, Outer Rear View, RH
2007-02 → 2008-11
ended
|
ZZE150 RHD TERRA | — | |
| 87901-02290 note |
Mirror Assy, Outer Rear View, RH
2007-02 → 2008-11
ended
|
ZZE150 RHD | — | |
| 87901-02290 note |
Mirror Assy, Outer Rear View, RH
2007-02 → 2009-02
ended
|
NDE150 RHD TERRA | — | |
| 87901-02290 note |
Mirror Assy, Outer Rear View, RH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 RHD | — | |
| 87901-02290 note |
Mirror Assy, Outer Rear View, RH
2007-02 → 2009-03
ended
|
ADE15# RHD | — | |
| 87901-02260 note |
Mirror Assy, Outer Rear View, RH
2008-11 → 2009-12
ended
|
NDE150 LHD LHD 5D +9 | — | |
| 87901-02260 note |
Mirror Assy, Outer Rear View, RH
2008-11 → 2010-01
ended
|
ZRE151 .LHD 4FC;NDE150 3D +8 | — | |
| 87901-02270 note |
Mirror Assy, Outer Rear View, RH
2008-11 → 2009-12
ended
|
NDE150 LHD LHD 5D +9 | — | |
| 87901-02270 note |
Mirror Assy, Outer Rear View, RH
2008-11 → 2009-12
ended
|
NDE150 RL,HTWC,HTWVM) LHD 5D +7 | — | |
| 87901-02270 note |
Mirror Assy, Outer Rear View, RH
2008-11 → 2010-01
ended
|
NDE150 WC);ADE150,NRE150,ZRE15# LHD LHD +11 | — | |
| 87901-02270 note |
Mirror Assy, Outer Rear View, RH
2008-11 → 2010-01
ended
|
ZRE151 .LHD 4FC;NDE150 3D +8 | — | |
| 87901-02280 note |
Mirror Assy, Outer Rear View, RH
2008-11 → 2009-12
ended
|
ADE157,NDE150,NRE150,ZRE15# RHD 5D (6F,6FS) | — | |
| 87901-02280 note |
Mirror Assy, Outer Rear View, RH
2008-11 → 2010-01
ended
|
ADE150 RHD DCRL;ADE157,NDE150,NRE150,ZRE15# RHD +2 | — | |
| 87901-02290 note |
Mirror Assy, Outer Rear View, RH
2008-11 → 2009-12
ended
|
NDE150,NRE150 RHD 5D 6F +1 | — | |
| 87901-02290 note |
Mirror Assy, Outer Rear View, RH
2008-11 → 2009-12
ended
|
ADE157,NDE150,NRE150,ZRE15# RHD 5D (6F,6FS) | — | |
| 87901-02290 note |
Mirror Assy, Outer Rear View, RH
2008-11 → 2010-01
ended
|
NDE150,NRE150 RHD 3D 6F +1 | — | |
| 87901-02290 note |
Mirror Assy, Outer Rear View, RH
2008-11 → 2010-01
ended
|
ADE150 RHD DCRL;ADE157,NDE150,NRE150,ZRE15# RHD +2 | — | |
| 87901-12260 note |
Mirror Assy, Outer Rear View, RH
2009-05 → 2009-12
ended
|
NDE150 LHD E | — | |
| 87901-12270 note |
Mirror Assy, Outer Rear View, RH
2009-05 → 2009-12
ended
|
NDE150 RHD E | — | |
| 87901-02130 note |
Mirror Assy, Outer Rear View, RH
2009-12 → —
|
NDE150 LHD 6F (E,TERRA);ADE150,NRE150,ZRE151 +2 | — | |
| 87901-02180 note |
Mirror Assy, Outer Rear View, RH
2009-12 → —
|
NDE150 LHD 6F (E,TERRA);ADE150,NRE150,ZRE151 +2 | — | |
| 87901-02190 note |
Mirror Assy, Outer Rear View, RH
2009-12 → —
|
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 LHD (G,SOL) | — | |
| 87901-02190 note |
Mirror Assy, Outer Rear View, RH
2009-12 → —
|
NDE150 LHD 6F (E,TERRA);ADE150,NRE150,ZRE151 +2 | — | |
| 87901-02200 note |
Mirror Assy, Outer Rear View, RH
2009-12 → —
|
NDE150 D LHD 6F +4 | — | |
| 87901-02210 note |
Mirror Assy, Outer Rear View, RH
2009-12 → —
|
NDE150,NRE150 RHD (E,TERRA) | — | |
| 87901-02300 note |
Mirror Assy, Outer Rear View, RH
2009-12 → —
|
NDE150,NRE150 RHD (E,TERRA) | — | |
| 87901-02310 note |
Mirror Assy, Outer Rear View, RH
2009-12 → —
|
NDE150,NRE150,ZRE151,ZWE150 RHD (G,SOL) | — | |
| 87901-02310 note |
Mirror Assy, Outer Rear View, RH
2009-12 → —
|
NDE150,NRE150 RHD (E,TERRA) | — | |
| 87901-02320 note |
Mirror Assy, Outer Rear View, RH
2009-12 → —
|
NDE150,NRE150,ZRE151,ZWE150 RHD | — | |
| 87901-12260 note |
Mirror Assy, Outer Rear View, RH
2009-12 → —
|
NDE150 LHD E | — | |
| 87901-12270 note |
Mirror Assy, Outer Rear View, RH
2009-12 → —
|
NDE150 RHD E | — | |
| 87915A — Cover, Outer Mirror, RH | ||||
| 87915-02270 |
Cover, Outer Mirror, RH
2007-02 → 2008-11
ended
|
ZZE150 TERRA | — | |
| 87915-02270 |
Cover, Outer Mirror, RH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 TERRA | — | |
| 87915-02270 |
Cover, Outer Mirror, RH
2007-02 → 2009-03
ended
|
ADE150 TERRA | — | |
| 87915-02909 note |
Cover, Outer Mirror, RH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 TERRA | — | |
| 87915-02909 note |
Cover, Outer Mirror, RH
2007-02 → 2009-03
ended
|
ADE150 TERRA | — | |
| 87915-02909 note |
Cover, Outer Mirror, RH
2007-02 → 2009-03
ended
|
ADE150 TERRA | — | |
| 87915-02909 |
Cover, Outer Mirror, RH
2007-02 → 2009-03
ended
|
ADE15# SOL | — | |
| 87915-02909 note |
Cover, Outer Mirror, RH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 TERRA | — | |
| 87915-02909 |
Cover, Outer Mirror, RH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 SOL | — | |
| 87915-02909 note |
Cover, Outer Mirror, RH
2007-02 → 2008-11
ended
|
ZZE150 TERRA | — | |
| 87915-02909 note |
Cover, Outer Mirror, RH
2007-02 → 2008-11
ended
|
ZZE150 TERRA | — | |
| 87915-02909 |
Cover, Outer Mirror, RH
2007-02 → 2008-11
ended
|
ZZE150 SOL | — | |
| 87915-02270 |
Cover, Outer Mirror, RH
2008-11 → 2009-12
ended
|
NDE150 WVM) 5D 6F +5 | — | |
| 87915-02270 |
Cover, Outer Mirror, RH
2008-11 → 2010-01
ended
|
NDE150 DE150,NRE150,ZRE15# 3D 3D +9 | — | |
| 87915-02909 |
Cover, Outer Mirror, RH
2008-11 → 2009-12
ended
|
ADE150 LHD 5D SOL +4 | — | |
| 87915-02909 note |
Cover, Outer Mirror, RH
2008-11 → 2009-12
ended
|
NDE150 WVM) 5D 6F +5 | — | |
| 87915-02909 note |
Cover, Outer Mirror, RH
2008-11 → 2009-12
ended
|
NDE150 WVM) 5D 6F +5 | — | |
| 87915-02909 |
Cover, Outer Mirror, RH
2008-11 → 2010-01
ended
|
ZRE151 ,ZRE15# 4FC 3D +9 | — | |
| 87915-02909 note |
Cover, Outer Mirror, RH
2008-11 → 2010-01
ended
|
NDE150 DE150,NRE150,ZRE15# 3D 3D +9 | — | |
| 87915-02909 note |
Cover, Outer Mirror, RH
2008-11 → 2010-01
ended
|
NDE150 DE150,NRE150,ZRE15# 3D 3D +9 | — | |
| 87915-12050 note |
Cover, Outer Mirror, RH
2009-05 → 2009-12
ended
|
NDE150 E | — | |
| 87915-02330 |
Cover, Outer Mirror, RH
2009-12 → —
|
NDE150 6F (E,TERRA);ADE150,NRE150,ZRE151 TERRA | — | |
| 87915-02918 note |
Cover, Outer Mirror, RH
2009-12 → —
|
NDE150 6F (E,TERRA);ADE150,NRE150,ZRE151 TERRA | — | |
| 87915-02918 note |
Cover, Outer Mirror, RH
2009-12 → —
|
NDE150 6F (E,TERRA);ADE150,NRE150,ZRE151 TERRA | — | |
| 87915-02918 |
Cover, Outer Mirror, RH
2009-12 → —
|
ADE15#,ZRE152 LHD SOL;NDE150,NRE150,ZRE151,ZWE150 G,SOL | — | |
| 87915-12050 note |
Cover, Outer Mirror, RH
2009-12 → —
|
NDE150 E | — | |
| 87931 — Outer Mirror, RH | ||||
| 87908-02710 |
Outer Mirror, RH
2007-02 → 2009-03
ended
|
ADE15# LHD | — | |
| 87908-02710 |
Outer Mirror, RH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 LHD | — | |
| 87908-02710 |
Outer Mirror, RH
2007-02 → 2008-11
ended
|
ZZE150 LHD | — | |
| 87908-02720 note |
Outer Mirror, RH
2007-02 → 2008-11
ended
|
ZZE150 LHD | — | |
| 87908-02720 note |
Outer Mirror, RH
2007-02 → 2009-03
ended
|
ADE15# LHD | — | |
| 87908-02720 note |
Outer Mirror, RH
2007-02 → 2008-11
ended
|
ZZE150 LHD TERRA | — | |
| 87908-02720 note |
Outer Mirror, RH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 LHD TERRA | — | |
| 87908-02720 note |
Outer Mirror, RH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 LHD | — | |
| 87908-02720 note |
Outer Mirror, RH
2007-02 → 2009-03
ended
|
ADE150 TERRA | — | |
| 87908-02750 |
Outer Mirror, RH
2007-02 → 2008-11
ended
|
ZZE150 RHD | — | |
| 87908-02750 |
Outer Mirror, RH
2007-02 → 2009-03
ended
|
ADE15# RHD | — | |
| 87908-02750 |
Outer Mirror, RH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 RHD | — | |
| 87908-02760 note |
Outer Mirror, RH
2007-02 → 2009-02
ended
|
NDE150 RHD TERRA | — | |
| 87908-02760 note |
Outer Mirror, RH
2007-02 → 2008-11
ended
|
ZZE150 RHD | — | |
| 87908-02760 note |
Outer Mirror, RH
2007-02 → 2008-11
ended
|
ZZE150 RHD TERRA | — | |
| 87908-02760 note |
Outer Mirror, RH
2007-02 → 2009-03
ended
|
ADE15# RHD | — | |
| 87908-02760 note |
Outer Mirror, RH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 RHD | — | |
| 87908-02710 |
Outer Mirror, RH
2008-11 → 2009-12
ended
|
NDE150 LHD LHD 5D +9 | — | |
| 87908-02710 |
Outer Mirror, RH
2008-11 → 2010-01
ended
|
ZRE151 .LHD 4FC;NDE150 3D +8 | — | |
| 87908-02720 note |
Outer Mirror, RH
2008-11 → 2010-01
ended
|
ZRE151 .LHD 4FC;NDE150 3D +8 | — | |
| 87908-02720 note |
Outer Mirror, RH
2008-11 → 2010-01
ended
|
NDE150 WC);ADE150,NRE150,ZRE15# LHD LHD +11 | — | |
| 87908-02720 note |
Outer Mirror, RH
2008-11 → 2009-12
ended
|
NDE150 LHD LHD 5D +9 | — | |
| 87908-02720 note |
Outer Mirror, RH
2008-11 → 2009-12
ended
|
NDE150 RL,HTWC,HTWVM) LHD 5D +7 | — | |
| 87908-02750 |
Outer Mirror, RH
2008-11 → 2010-01
ended
|
ADE150 RHD DCRL;ADE157,NDE150,NRE150,ZRE15# RHD +2 | — | |
| 87908-02750 |
Outer Mirror, RH
2008-11 → 2009-12
ended
|
ADE157,NDE150,NRE150,ZRE15# RHD 5D (6F,6FS) | — | |
| 87908-02760 note |
Outer Mirror, RH
2008-11 → 2010-01
ended
|
ADE150 RHD DCRL;ADE157,NDE150,NRE150,ZRE15# RHD +2 | — | |
| 87908-02760 note |
Outer Mirror, RH
2008-11 → 2009-12
ended
|
ADE157,NDE150,NRE150,ZRE15# RHD 5D (6F,6FS) | — | |
| 87908-02760 note |
Outer Mirror, RH
2008-11 → 2010-01
ended
|
NDE150,NRE150 RHD 3D 6F +1 | — | |
| 87908-02760 note |
Outer Mirror, RH
2008-11 → 2009-12
ended
|
NDE150,NRE150 RHD 5D 6F +1 | — | |
| 87931-12A80 note |
Outer Mirror, RH
2009-05 → 2009-12
ended
|
NDE150 LHD E | — | |
| 87931-12B00 note |
Outer Mirror, RH
2009-05 → 2009-12
ended
|
NDE150 RHD E | — | |
| 87908-02710 |
Outer Mirror, RH
2009-12 → —
|
NDE150 D LHD 6F +4 | — | |
| 87908-02720 note |
Outer Mirror, RH
2009-12 → —
|
NDE150 LHD 6F (E,TERRA);ADE150,NRE150,ZRE151 +2 | — | |
| 87908-02720 note |
Outer Mirror, RH
2009-12 → —
|
NDE150 D LHD 6F +4 | — | |
| 87908-02750 |
Outer Mirror, RH
2009-12 → —
|
NDE150,NRE150,ZRE151,ZWE150 RHD | — | |
| 87908-02760 note |
Outer Mirror, RH
2009-12 → —
|
NDE150,NRE150 RHD (E,TERRA) | — | |
| 87908-02760 note |
Outer Mirror, RH
2009-12 → —
|
NDE150,NRE150,ZRE151,ZWE150 RHD | — | |
| 87931-12A80 note |
Outer Mirror, RH
2009-12 → —
|
NDE150 LHD E | — | |
| 87931-12B00 note |
Outer Mirror, RH
2009-12 → —
|
NDE150 RHD E | — | |
| 87940 — Mirror Assy, Outer Rear View, LH | ||||
| 87906-02250 note |
Mirror Assy, Outer Rear View, LH
2007-02 → 2008-11
ended
|
ZZE150 LHD | — | |
| 87906-02250 note |
Mirror Assy, Outer Rear View, LH
2007-02 → 2009-03
ended
|
ADE15# LHD | — | |
| 87906-02250 note |
Mirror Assy, Outer Rear View, LH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 LHD | — | |
| 87906-02260 note |
Mirror Assy, Outer Rear View, LH
2007-02 → 2009-03
ended
|
ADE15# LHD | — | |
| 87906-02260 note |
Mirror Assy, Outer Rear View, LH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 LHD | — | |
| 87906-02260 note |
Mirror Assy, Outer Rear View, LH
2007-02 → 2009-03
ended
|
ADE150 TERRA | — | |
| 87906-02260 note |
Mirror Assy, Outer Rear View, LH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 LHD TERRA | — | |
| 87906-02260 note |
Mirror Assy, Outer Rear View, LH
2007-02 → 2008-11
ended
|
ZZE150 LHD | — | |
| 87906-02260 note |
Mirror Assy, Outer Rear View, LH
2007-02 → 2008-11
ended
|
ZZE150 LHD TERRA | — | |
| 87906-02270 note |
Mirror Assy, Outer Rear View, LH
2007-02 → 2008-11
ended
|
ZZE150 RHD | — | |
| 87906-02270 note |
Mirror Assy, Outer Rear View, LH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 RHD | — | |
| 87906-02270 note |
Mirror Assy, Outer Rear View, LH
2007-02 → 2009-03
ended
|
ADE15# RHD | — | |
| 87906-02280 note |
Mirror Assy, Outer Rear View, LH
2007-02 → 2009-03
ended
|
ADE15# RHD | — | |
| 87906-02280 note |
Mirror Assy, Outer Rear View, LH
2007-02 → 2008-11
ended
|
ZZE150 RHD | — | |
| 87906-02280 note |
Mirror Assy, Outer Rear View, LH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 RHD | — | |
| 87906-02280 note |
Mirror Assy, Outer Rear View, LH
2007-02 → 2009-02
ended
|
NDE150 RHD TERRA | — | |
| 87906-02280 note |
Mirror Assy, Outer Rear View, LH
2007-02 → 2008-11
ended
|
ZZE150 RHD TERRA | — | |
| 87906-02250 note |
Mirror Assy, Outer Rear View, LH
2008-11 → 2009-12
ended
|
NDE150 LHD LHD 5D +9 | — | |
| 87906-02250 note |
Mirror Assy, Outer Rear View, LH
2008-11 → 2010-01
ended
|
ZRE151 .LHD 4FC;NDE150 3D +8 | — | |
| 87906-02260 note |
Mirror Assy, Outer Rear View, LH
2008-11 → 2009-12
ended
|
NDE150 LHD LHD 5D +9 | — | |
| 87906-02260 note |
Mirror Assy, Outer Rear View, LH
2008-11 → 2010-01
ended
|
ZRE151 .LHD 4FC;NDE150 3D +8 | — | |
| 87906-02260 note |
Mirror Assy, Outer Rear View, LH
2008-11 → 2010-01
ended
|
NDE150 WC);ADE150,NRE150,ZRE15# LHD LHD +11 | — | |
| 87906-02260 note |
Mirror Assy, Outer Rear View, LH
2008-11 → 2009-12
ended
|
NDE150 RL,HTWC,HTWVM) LHD 5D +7 | — | |
| 87906-02270 note |
Mirror Assy, Outer Rear View, LH
2008-11 → 2009-12
ended
|
ADE157,NDE150,NRE150,ZRE15# RHD 5D (6F,6FS) | — | |
| 87906-02270 note |
Mirror Assy, Outer Rear View, LH
2008-11 → 2010-01
ended
|
ADE150 RHD DCRL;ADE157,NDE150,NRE150,ZRE15# RHD +2 | — | |
| 87906-02280 note |
Mirror Assy, Outer Rear View, LH
2008-11 → 2009-12
ended
|
NDE150,NRE150 RHD 5D 6F +1 | — | |
| 87906-02280 note |
Mirror Assy, Outer Rear View, LH
2008-11 → 2010-01
ended
|
NDE150,NRE150 RHD 3D 6F +1 | — | |
| 87906-02280 note |
Mirror Assy, Outer Rear View, LH
2008-11 → 2010-01
ended
|
ADE150 RHD DCRL;ADE157,NDE150,NRE150,ZRE15# RHD +2 | — | |
| 87906-02280 note |
Mirror Assy, Outer Rear View, LH
2008-11 → 2009-12
ended
|
ADE157,NDE150,NRE150,ZRE15# RHD 5D (6F,6FS) | — | |
| 87906-12340 note |
Mirror Assy, Outer Rear View, LH
2009-05 → 2009-12
ended
|
NDE150 LHD E | — | |
| 87906-12350 note |
Mirror Assy, Outer Rear View, LH
2009-05 → 2009-12
ended
|
NDE150 RHD E | — | |
| 87906-02170 note |
Mirror Assy, Outer Rear View, LH
2009-12 → —
|
NDE150 LHD 6F (E,TERRA);ADE150,NRE150,ZRE151 +2 | — | |
| 87906-02180 note |
Mirror Assy, Outer Rear View, LH
2009-12 → —
|
NDE150 LHD 6F (E,TERRA);ADE150,NRE150,ZRE151 +2 | — | |
| 87906-02190 note |
Mirror Assy, Outer Rear View, LH
2009-12 → —
|
ADE15#,NDE150,NRE150,ZRE15#,ZWE150 LHD (G,SOL) | — | |
| 87906-02190 note |
Mirror Assy, Outer Rear View, LH
2009-12 → —
|
NDE150 LHD 6F (E,TERRA);ADE150,NRE150,ZRE151 +2 | — | |
| 87906-02200 note |
Mirror Assy, Outer Rear View, LH
2009-12 → —
|
NDE150 D LHD 6F +4 | — | |
| 87906-02290 note |
Mirror Assy, Outer Rear View, LH
2009-12 → —
|
NDE150,NRE150 RHD (E,TERRA) | — | |
| 87906-02300 note |
Mirror Assy, Outer Rear View, LH
2009-12 → —
|
NDE150,NRE150 RHD (E,TERRA) | — | |
| 87906-02310 note |
Mirror Assy, Outer Rear View, LH
2009-12 → —
|
NDE150,NRE150,ZRE151,ZWE150 RHD (G,SOL) | — | |
| 87906-02310 note |
Mirror Assy, Outer Rear View, LH
2009-12 → —
|
NDE150,NRE150 RHD (E,TERRA) | — | |
| 87906-02320 note |
Mirror Assy, Outer Rear View, LH
2009-12 → —
|
NDE150,NRE150,ZRE151,ZWE150 RHD | — | |
| 87906-12340 note |
Mirror Assy, Outer Rear View, LH
2009-12 → —
|
NDE150 LHD E | — | |
| 87906-12350 note |
Mirror Assy, Outer Rear View, LH
2009-12 → —
|
NDE150 RHD E | — | |
| 87945B — Cover, Outer Mirror, LH | ||||
| 87945-02270 |
Cover, Outer Mirror, LH
2007-02 → 2008-11
ended
|
ZZE150 TERRA | — | |
| 87945-02270 |
Cover, Outer Mirror, LH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 TERRA | — | |
| 87945-02270 |
Cover, Outer Mirror, LH
2007-02 → 2009-03
ended
|
ADE150 TERRA | — | |
| 87945-02909 note |
Cover, Outer Mirror, LH
2007-02 → 2009-03
ended
|
ADE150 TERRA | — | |
| 87945-02909 note |
Cover, Outer Mirror, LH
2007-02 → 2009-03
ended
|
ADE150 TERRA | — | |
| 87945-02909 |
Cover, Outer Mirror, LH
2007-02 → 2009-03
ended
|
ADE15# SOL | — | |
| 87945-02909 |
Cover, Outer Mirror, LH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 SOL | — | |
| 87945-02909 note |
Cover, Outer Mirror, LH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 TERRA | — | |
| 87945-02909 note |
Cover, Outer Mirror, LH
2007-02 → 2008-11
ended
|
ZZE150 TERRA | — | |
| 87945-02909 note |
Cover, Outer Mirror, LH
2007-02 → 2008-11
ended
|
ZZE150 TERRA | — | |
| 87945-02909 |
Cover, Outer Mirror, LH
2007-02 → 2008-11
ended
|
ZZE150 SOL | — | |
| 87945-02909 note |
Cover, Outer Mirror, LH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 TERRA | — | |
| 87945-02270 |
Cover, Outer Mirror, LH
2008-11 → 2009-12
ended
|
NDE150 WVM) 5D 6F +5 | — | |
| 87945-02270 |
Cover, Outer Mirror, LH
2008-11 → 2010-01
ended
|
NDE150 DE150,NRE150,ZRE15# 3D 3D +9 | — | |
| 87945-02909 note |
Cover, Outer Mirror, LH
2008-11 → 2009-12
ended
|
NDE150 WVM) 5D 6F +5 | — | |
| 87945-02909 note |
Cover, Outer Mirror, LH
2008-11 → 2010-01
ended
|
NDE150 DE150,NRE150,ZRE15# 3D 3D +9 | — | |
| 87945-02909 note |
Cover, Outer Mirror, LH
2008-11 → 2010-01
ended
|
NDE150 DE150,NRE150,ZRE15# 3D 3D +9 | — | |
| 87945-02909 |
Cover, Outer Mirror, LH
2008-11 → 2010-01
ended
|
ZRE151 ,ZRE15# 4FC 3D +9 | — | |
| 87945-02909 note |
Cover, Outer Mirror, LH
2008-11 → 2009-12
ended
|
NDE150 WVM) 5D 6F +5 | — | |
| 87945-02909 |
Cover, Outer Mirror, LH
2008-11 → 2009-12
ended
|
ADE150 LHD 5D SOL +4 | — | |
| 87945-12050 note |
Cover, Outer Mirror, LH
2009-05 → 2009-12
ended
|
NDE150 E | — | |
| 87945-02330 |
Cover, Outer Mirror, LH
2009-12 → —
|
NDE150 6F (E,TERRA);ADE150,NRE150,ZRE151 TERRA | — | |
| 87945-02918 note |
Cover, Outer Mirror, LH
2009-12 → —
|
NDE150 6F (E,TERRA);ADE150,NRE150,ZRE151 TERRA | — | |
| 87945-02918 note |
Cover, Outer Mirror, LH
2009-12 → —
|
NDE150 6F (E,TERRA);ADE150,NRE150,ZRE151 TERRA | — | |
| 87945-02918 |
Cover, Outer Mirror, LH
2009-12 → —
|
ADE15#,ZRE152 LHD SOL;NDE150,NRE150,ZRE151,ZWE150 G,SOL | — | |
| 87945-12050 note |
Cover, Outer Mirror, LH
2009-12 → —
|
NDE150 E | — | |
| 87961 — Mirror Outer, LH | ||||
| 87909-02690 |
Mirror Outer, LH
2007-02 → 2008-11
ended
|
ZZE150 LHD | — | |
| 87909-02690 |
Mirror Outer, LH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 LHD | — | |
| 87909-02690 |
Mirror Outer, LH
2007-02 → 2009-03
ended
|
ADE15# LHD | — | |
| 87909-02700 note |
Mirror Outer, LH
2007-02 → 2008-11
ended
|
ZZE150 LHD TERRA | — | |
| 87909-02700 note |
Mirror Outer, LH
2007-02 → 2008-11
ended
|
ZZE150 LHD | — | |
| 87909-02700 note |
Mirror Outer, LH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 LHD TERRA | — | |
| 87909-02700 note |
Mirror Outer, LH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 LHD | — | |
| 87909-02700 note |
Mirror Outer, LH
2007-02 → 2009-03
ended
|
ADE15# LHD | — | |
| 87909-02700 note |
Mirror Outer, LH
2007-02 → 2009-03
ended
|
ADE150 TERRA | — | |
| 87909-02730 |
Mirror Outer, LH
2007-02 → 2008-11
ended
|
ZZE150 RHD | — | |
| 87909-02730 |
Mirror Outer, LH
2007-02 → 2009-03
ended
|
ADE15# RHD | — | |
| 87909-02730 |
Mirror Outer, LH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 RHD | — | |
| 87909-02740 note |
Mirror Outer, LH
2007-02 → 2009-02
ended
|
NDE150 RHD TERRA | — | |
| 87909-02740 note |
Mirror Outer, LH
2007-02 → 2009-03
ended
|
ADE15# RHD | — | |
| 87909-02740 note |
Mirror Outer, LH
2007-02 → 2008-11
ended
|
ZZE150 RHD | — | |
| 87909-02740 note |
Mirror Outer, LH
2007-02 → 2008-11
ended
|
ZZE150 RHD TERRA | — | |
| 87909-02740 note |
Mirror Outer, LH
2007-02 → 2009-02
ended
|
NDE150,ZRE151 RHD | — | |
| 87909-02690 |
Mirror Outer, LH
2008-11 → 2009-12
ended
|
NDE150 LHD LHD 5D +9 | — | |
| 87909-02690 |
Mirror Outer, LH
2008-11 → 2010-01
ended
|
ZRE151 .LHD 4FC;NDE150 3D +8 | — | |
| 87909-02700 note |
Mirror Outer, LH
2008-11 → 2010-01
ended
|
NDE150 WC);ADE150,NRE150,ZRE15# LHD LHD +11 | — | |
| 87909-02700 note |
Mirror Outer, LH
2008-11 → 2010-01
ended
|
ZRE151 .LHD 4FC;NDE150 3D +8 | — | |
| 87909-02700 note |
Mirror Outer, LH
2008-11 → 2009-12
ended
|
NDE150 LHD LHD 5D +9 | — | |
| 87909-02700 note |
Mirror Outer, LH
2008-11 → 2009-12
ended
|
NDE150 RL,HTWC,HTWVM) LHD 5D +7 | — | |
| 87909-02730 |
Mirror Outer, LH
2008-11 → 2010-01
ended
|
ADE150 RHD DCRL;ADE157,NDE150,NRE150,ZRE15# RHD +2 | — | |
| 87909-02730 |
Mirror Outer, LH
2008-11 → 2009-12
ended
|
ADE157,NDE150,NRE150,ZRE15# RHD 5D (6F,6FS) | — | |
| 87909-02740 note |
Mirror Outer, LH
2008-11 → 2009-12
ended
|
ADE157,NDE150,NRE150,ZRE15# RHD 5D (6F,6FS) | — | |
| 87909-02740 note |
Mirror Outer, LH
2008-11 → 2010-01
ended
|
ADE150 RHD DCRL;ADE157,NDE150,NRE150,ZRE15# RHD +2 | — | |
| 87909-02740 note |
Mirror Outer, LH
2008-11 → 2010-01
ended
|
NDE150,NRE150 RHD 3D 6F +1 | — | |
| 87909-02740 note |
Mirror Outer, LH
2008-11 → 2009-12
ended
|
NDE150,NRE150 RHD 5D 6F +1 | — | |
| 87961-12A90 note |
Mirror Outer, LH
2009-05 → 2009-12
ended
|
NDE150 LHD E | — | |
| 87961-12B10 note |
Mirror Outer, LH
2009-05 → 2009-12
ended
|
NDE150 RHD E | — | |
| 87909-02690 |
Mirror Outer, LH
2009-12 → —
|
NDE150 D LHD 6F +4 | — | |
| 87909-02700 note |
Mirror Outer, LH
2009-12 → —
|
NDE150 LHD 6F (E,TERRA);ADE150,NRE150,ZRE151 +2 | — | |
| 87909-02700 note |
Mirror Outer, LH
2009-12 → —
|
NDE150 D LHD 6F +4 | — | |
| 87909-02730 |
Mirror Outer, LH
2009-12 → —
|
NDE150,NRE150,ZRE151,ZWE150 RHD | — | |
| 87909-02740 note |
Mirror Outer, LH
2009-12 → —
|
NDE150,NRE150 RHD (E,TERRA) | — | |
| 87909-02740 note |
Mirror Outer, LH
2009-12 → —
|
NDE150,NRE150,ZRE151,ZWE150 RHD | — | |
| 87961-12A90 note |
Mirror Outer, LH
2009-12 → —
|
NDE150 LHD E | — | |
| 87961-12B10 note |
Mirror Outer, LH
2009-12 → —
|
NDE150 RHD E | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
