Toyota Auris/Hybrid (UKP)

2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Crankshaft & Piston

31 part groups · 8 illustrations

Illustrations

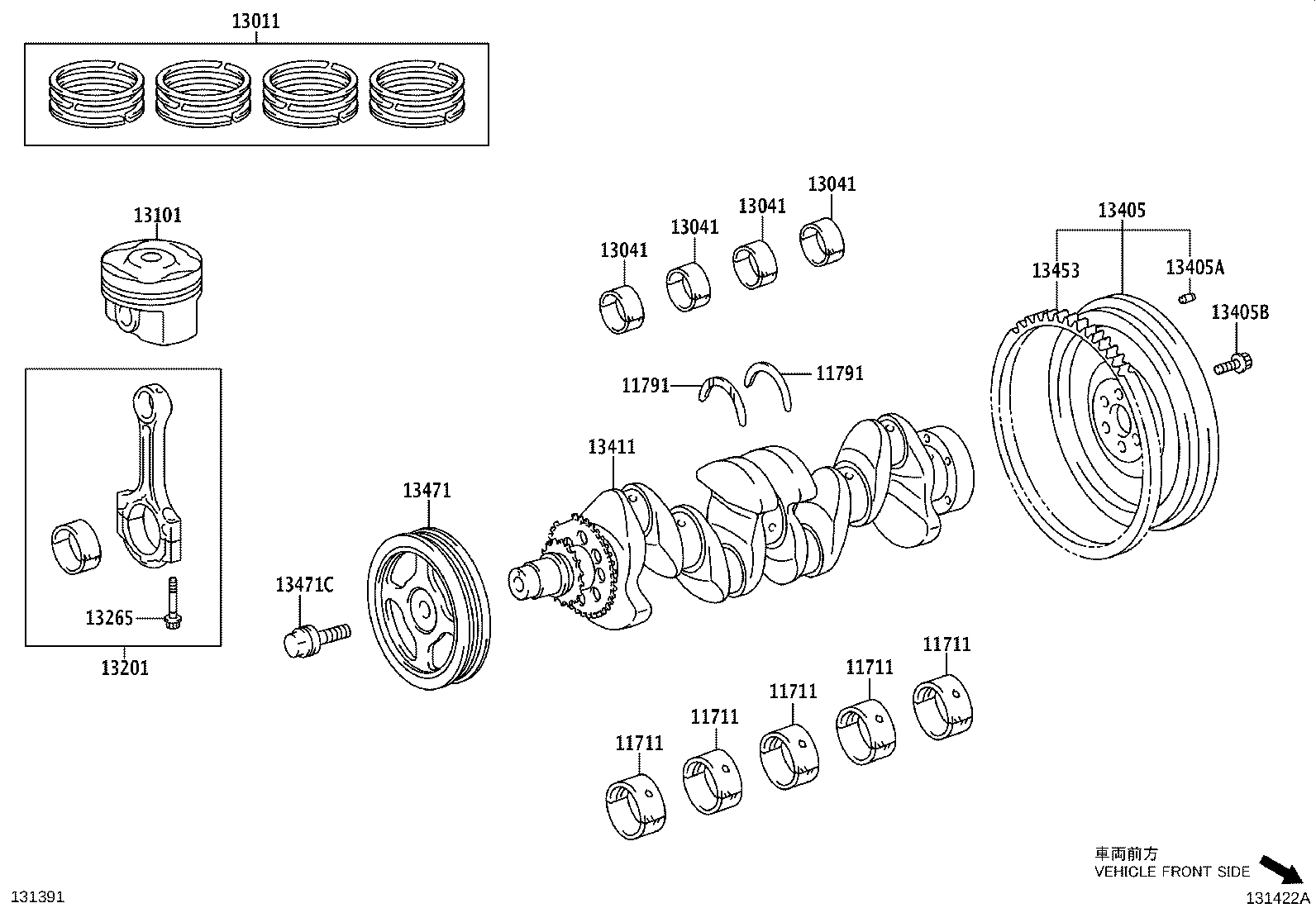

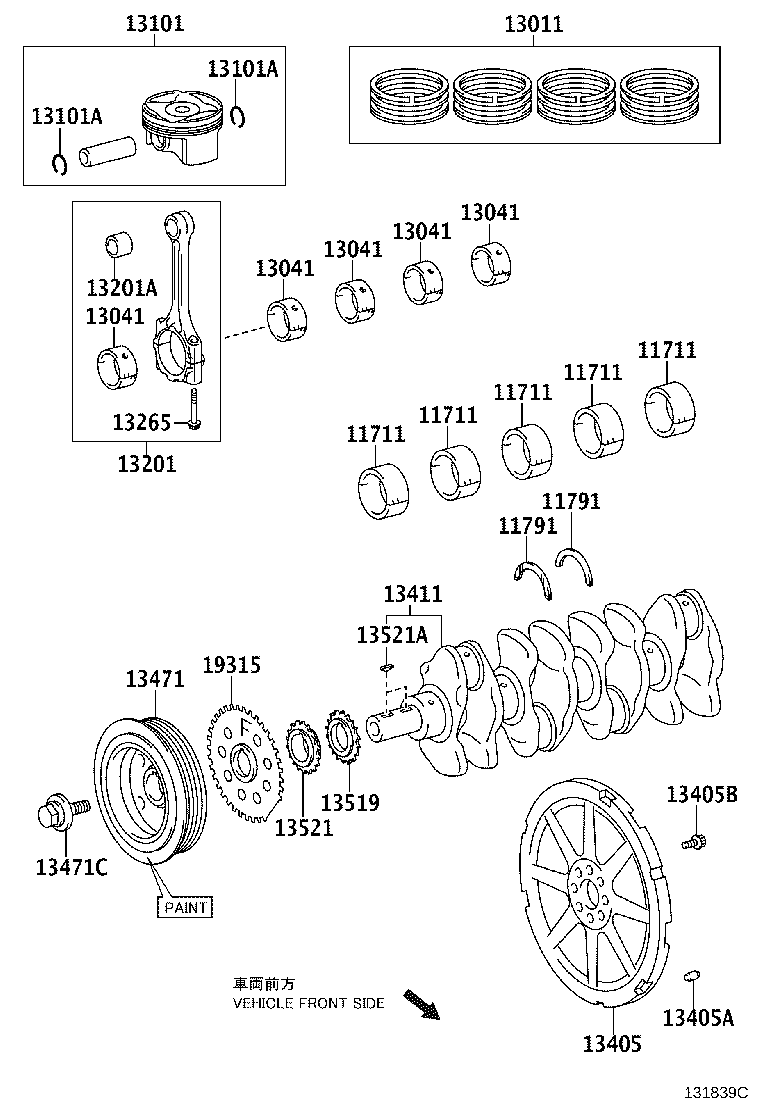

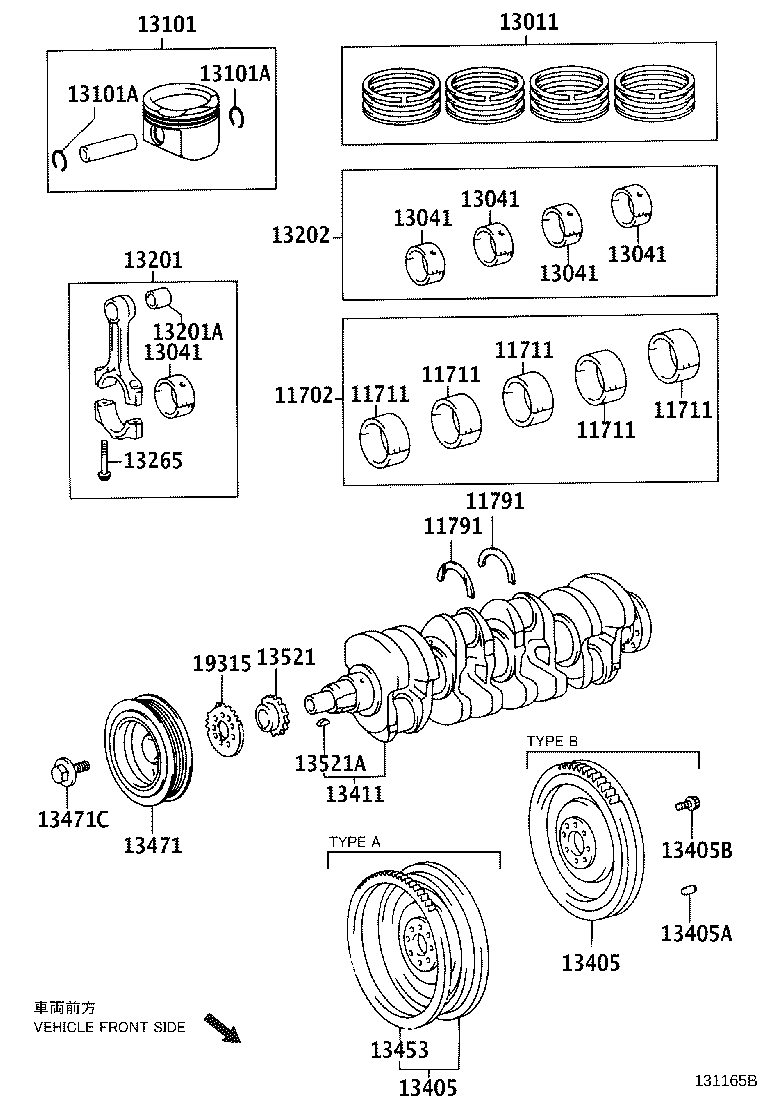

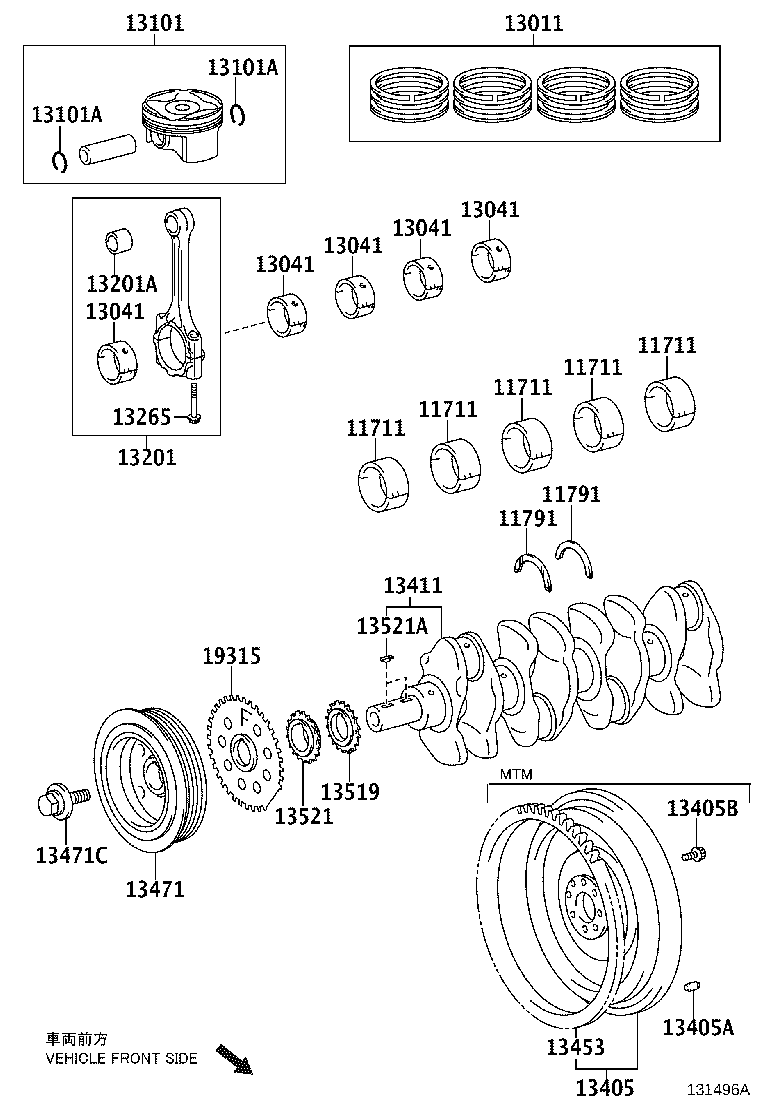

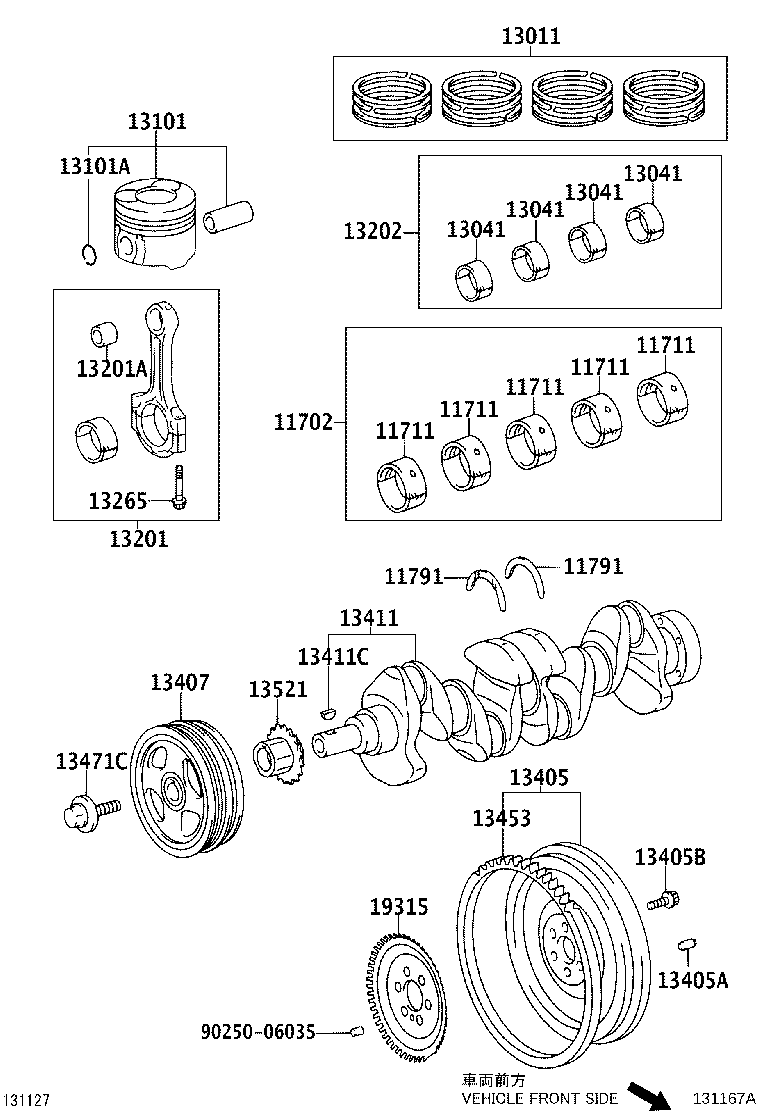

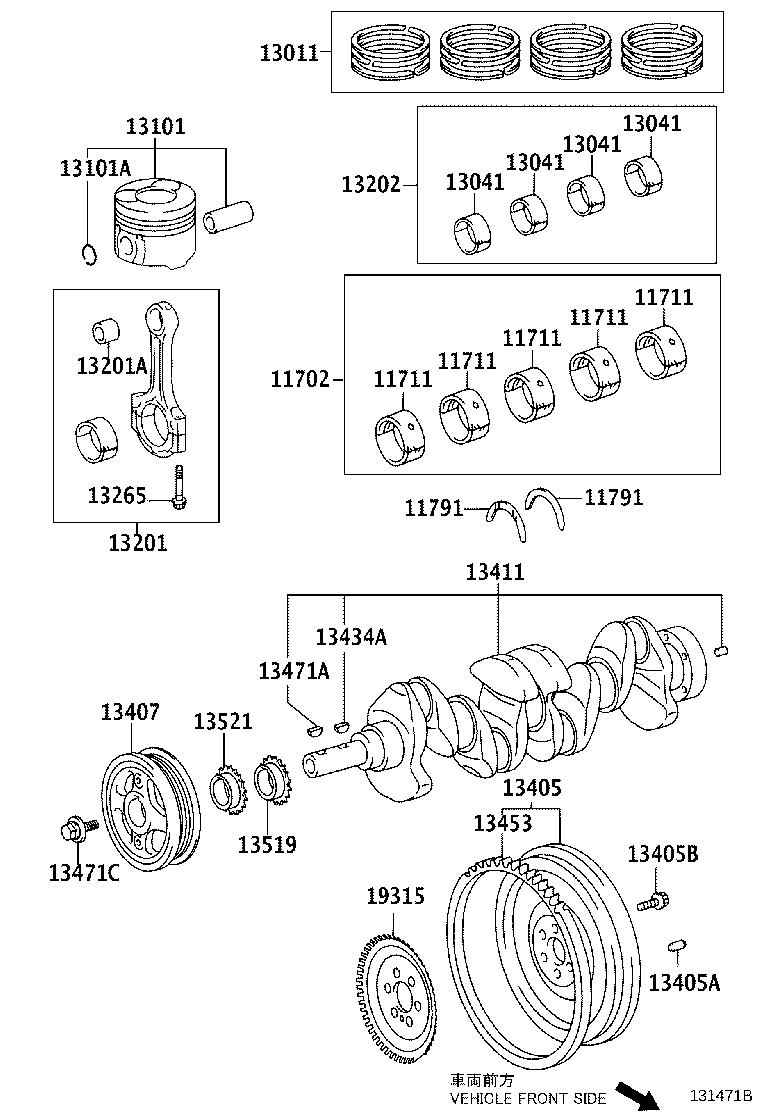

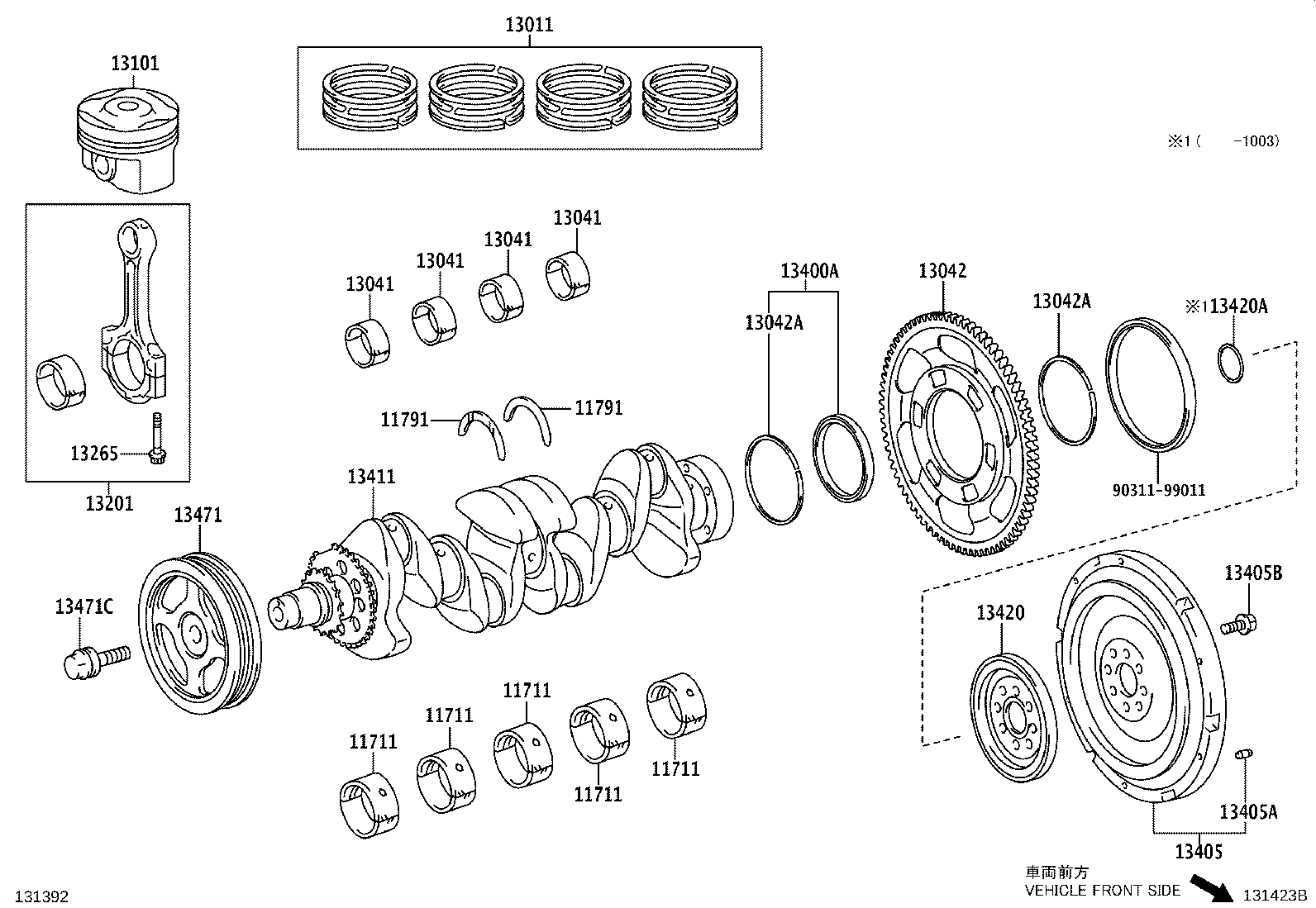

Figure 131169C 131169C 2007-02 → — Figure 131167A 131167A 2007-02 → 2009-02 Figure 131471B 131471B 2009-02 → — Figure 131422A 131422A 2008-11 → — Figure 131423B 131423B 2008-11 → — Figure 131496A 131496A 2007-02 → — Figure 131165B 131165B 2007-02 → — Figure 131839C 131839C 2010-06 → —

Part groups

PNCDescription
11702 Bearing Set, Crankshaft
11711 Bearing, Crankshaft
11791 Washer, Crankshaft Thrust, Upper
13011 Ring Set, Piston
13041 Bearing, Connecting Rod
13042 Gear Sub-assy, Ers Ring
13042A Ring, Snap(FOR RING GEAR)
13101 Piston Sub-assy, W/Pin
13101A Ring, Hole Snap(FOR PISTON PIN)
13201 Rod Sub-assy, Connecting
13201A Bush(FOR CONNECTING ROD SMALL END)
13202 Bearing Set, Connecting Rod
13265 Bolt, Connecting Rod
13400A Bearing(FOR CRANKSHAFT)
13405 Flywheel Sub-assy
13405A Pin, Straight(FOR FLYWHEEL)
13405B Bolt, Flywheel Setting
13407 Damper Sub-assy, Crankshaft
13411 Crankshaft
13411C Pin, Straight(FOR CRANKSHAFT)
13420 Cluch Assy, Ers 1Way
13420A Ring, O(FOR 1WEY CLUTCH)
13434A Key(FOR OIL PUMP DRIVE SPLINE)
13453 Gear, Flywheel Ring
13471 Pulley, Crankshaft
13471A Key, Crankshaft(FOR CRANKSHAFT PULLEY SET)
13471C Bolt(FOR CRANKSHAFT PULLEY SET)
13519 Gear, Oil Pump Drive
13521 Gear OR Sprocket, Crankshaft Timing
13521A Key(FOR CRANKSHAFT TIMING GEAR)
19315 Plate, Crank Angle Sensor, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
