Toyota Auris/Hybrid (UKP)

2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

57 part groups · 17 illustrations

Illustrations

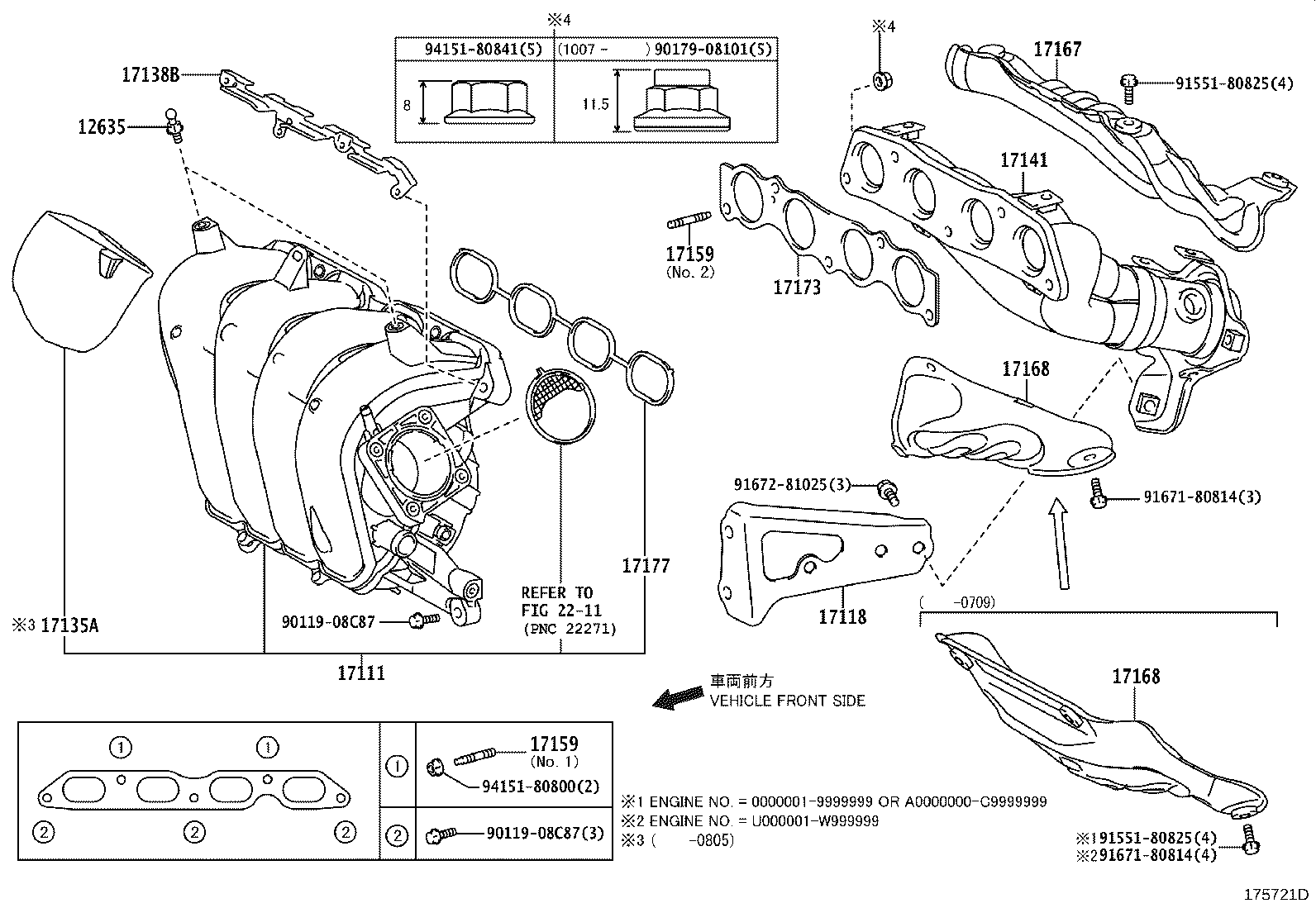

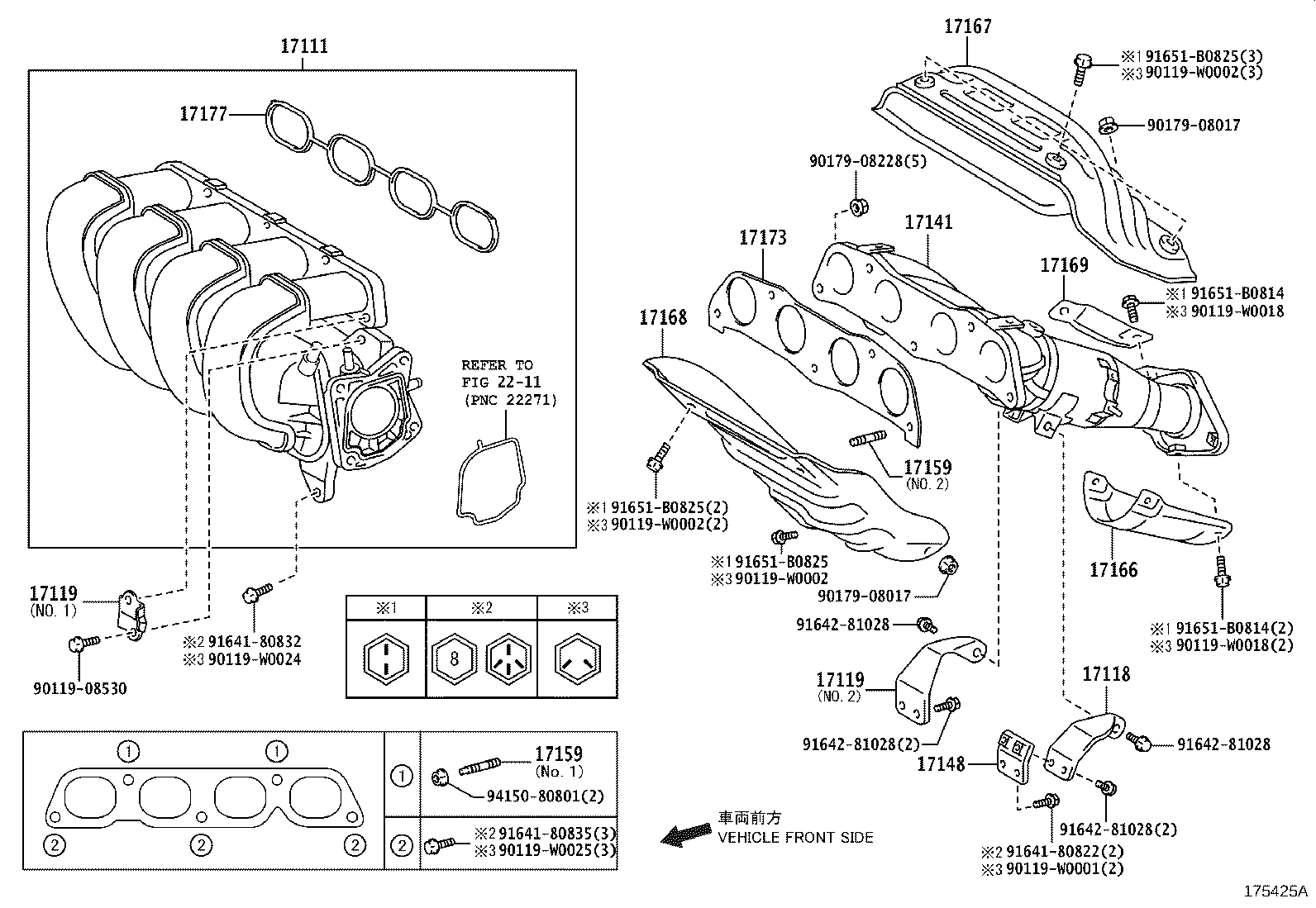

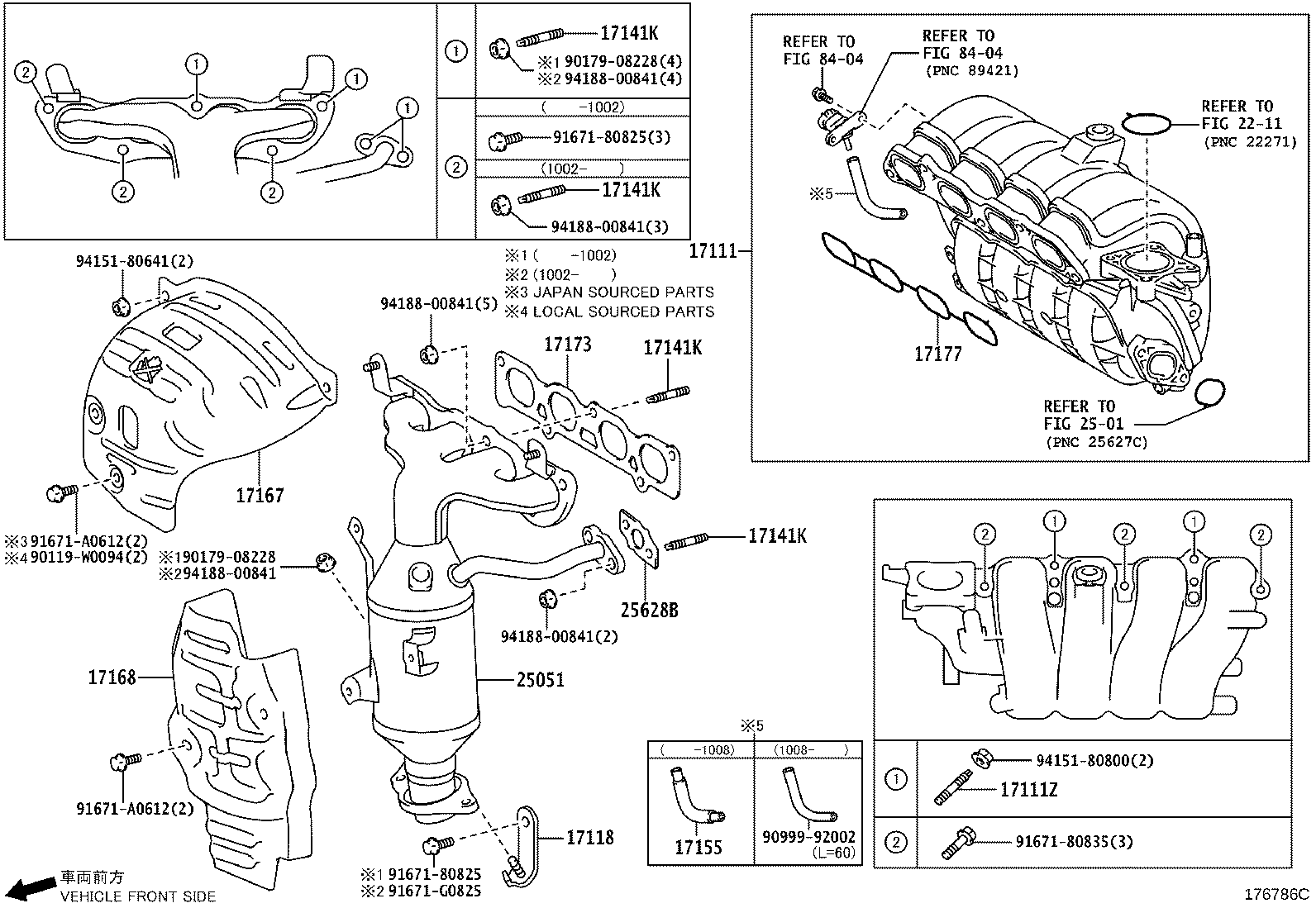

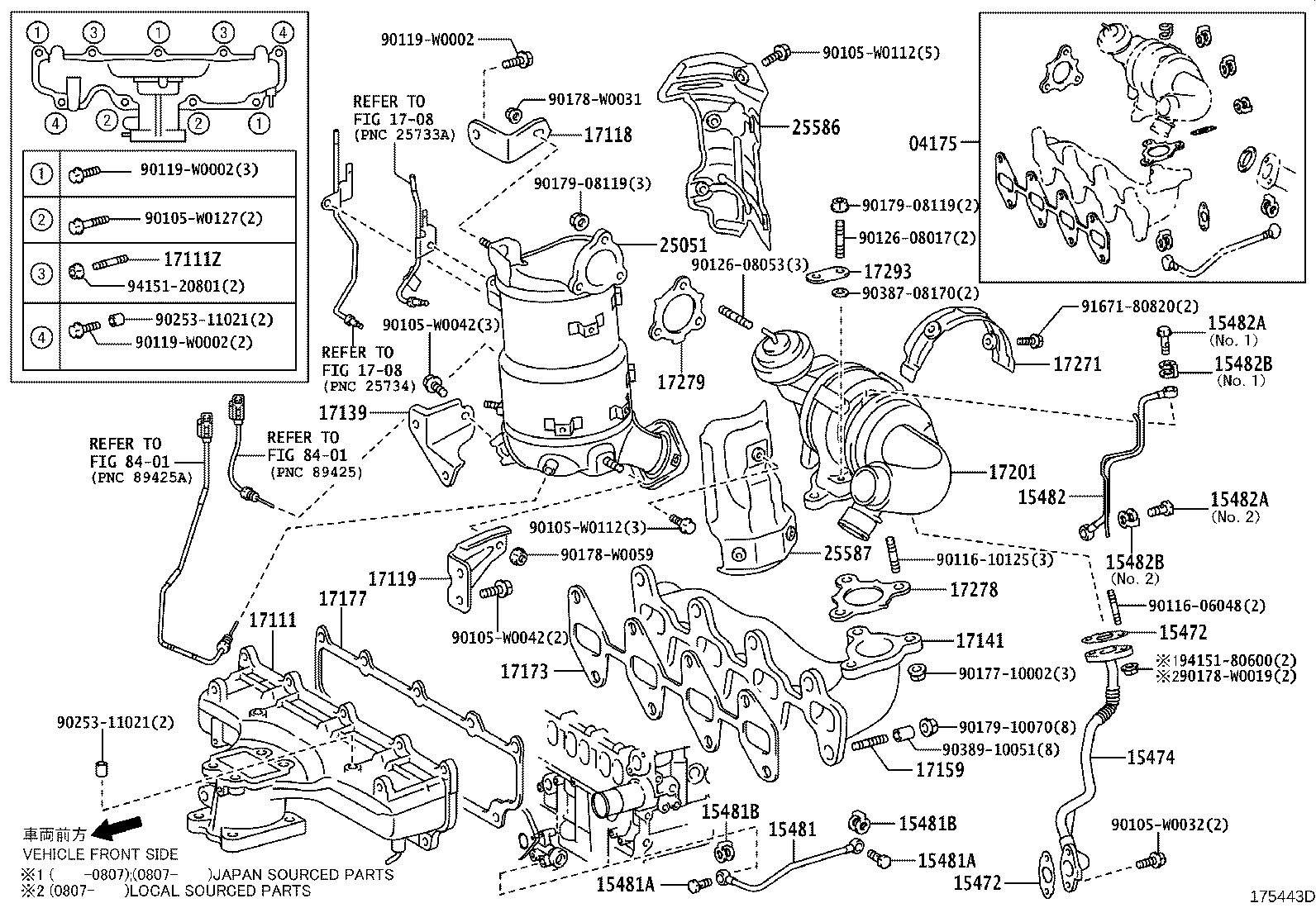

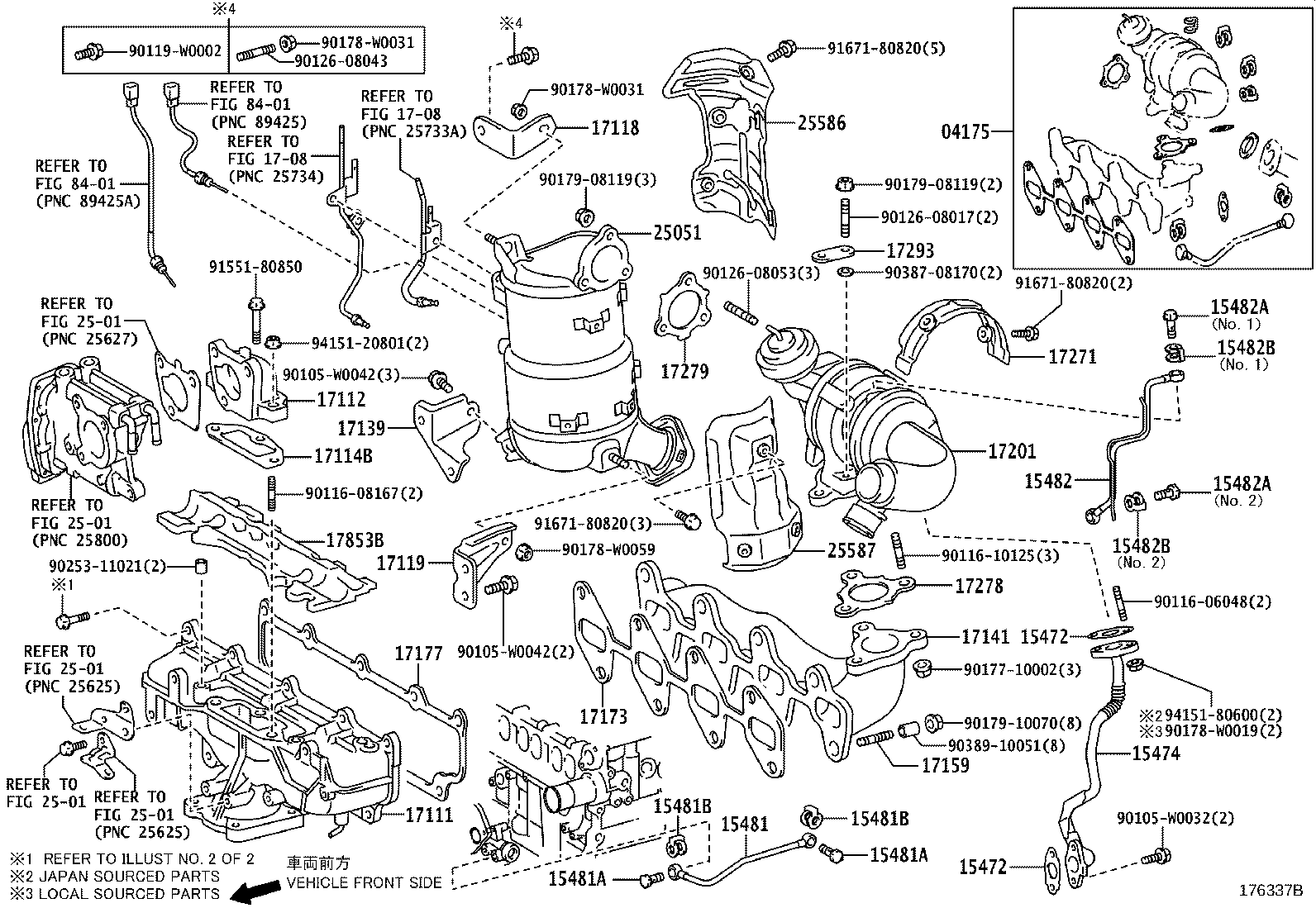

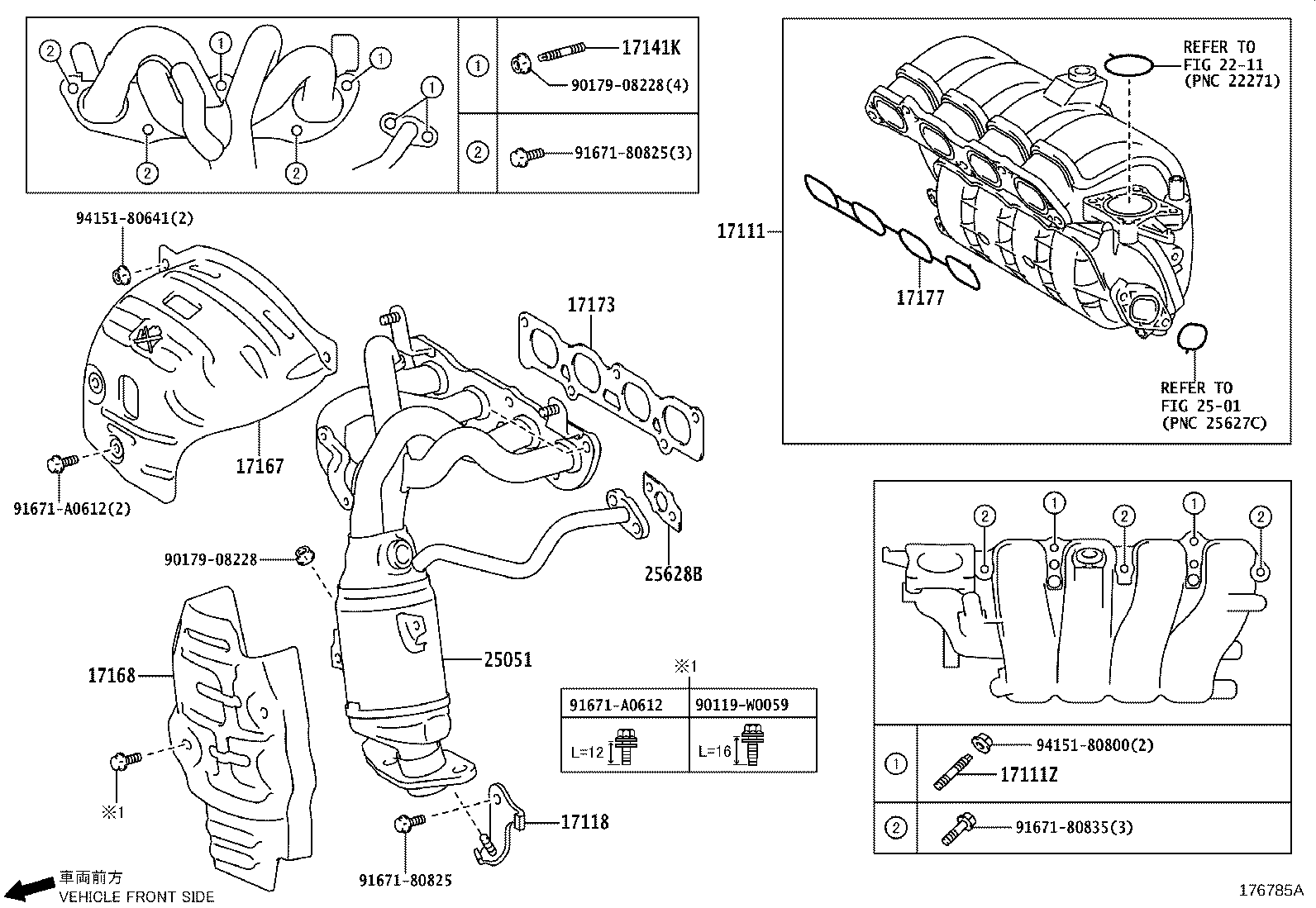

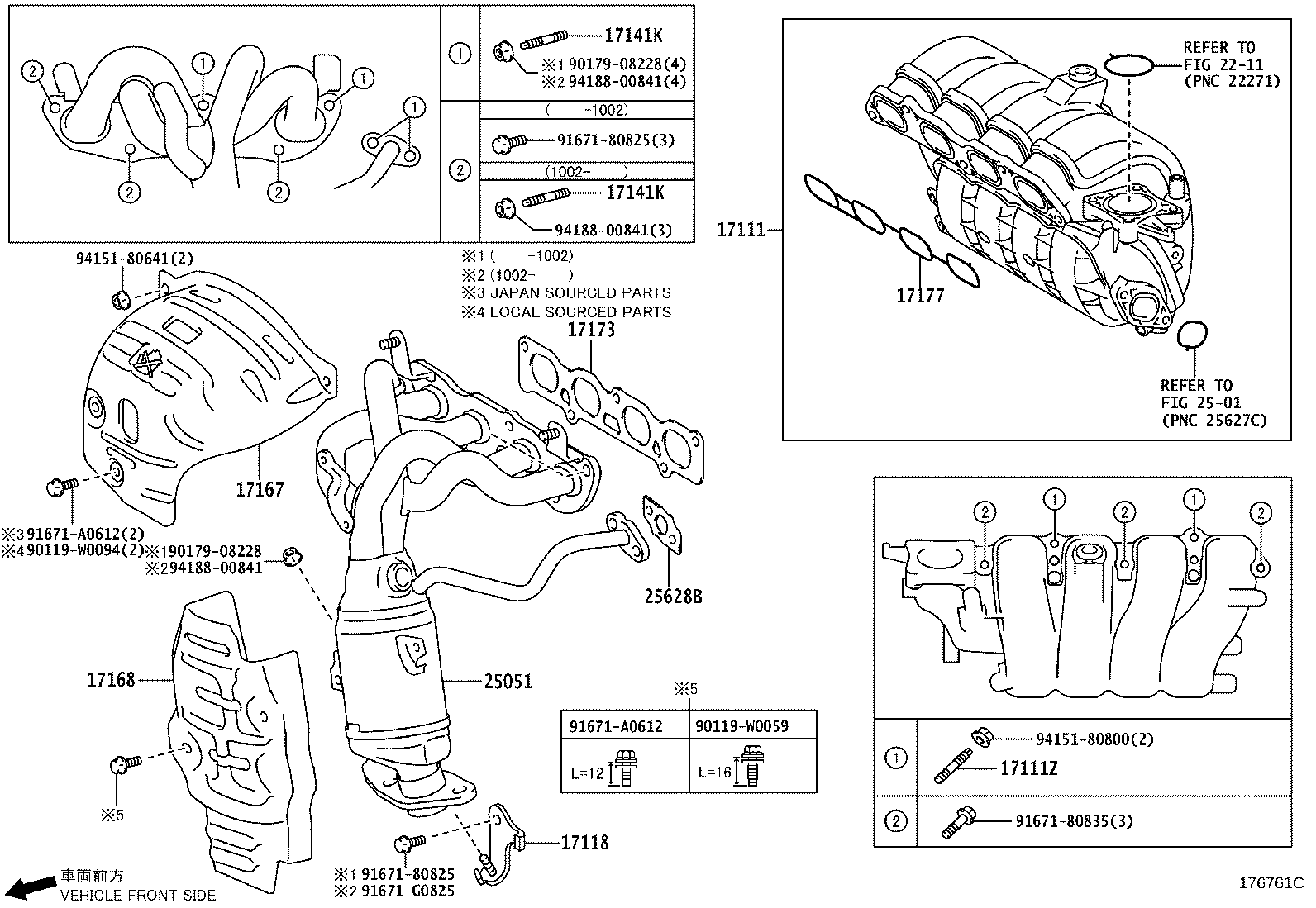

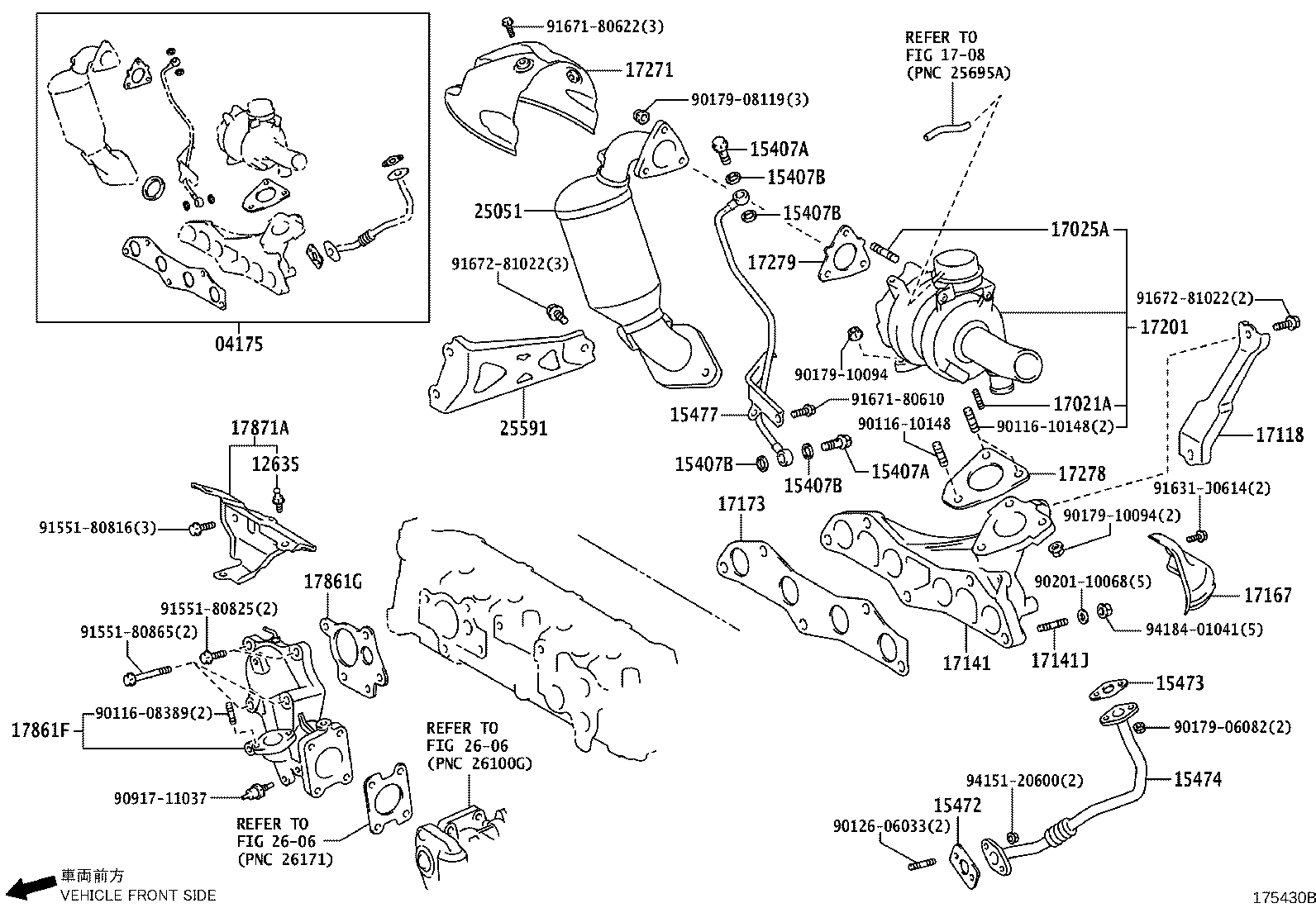

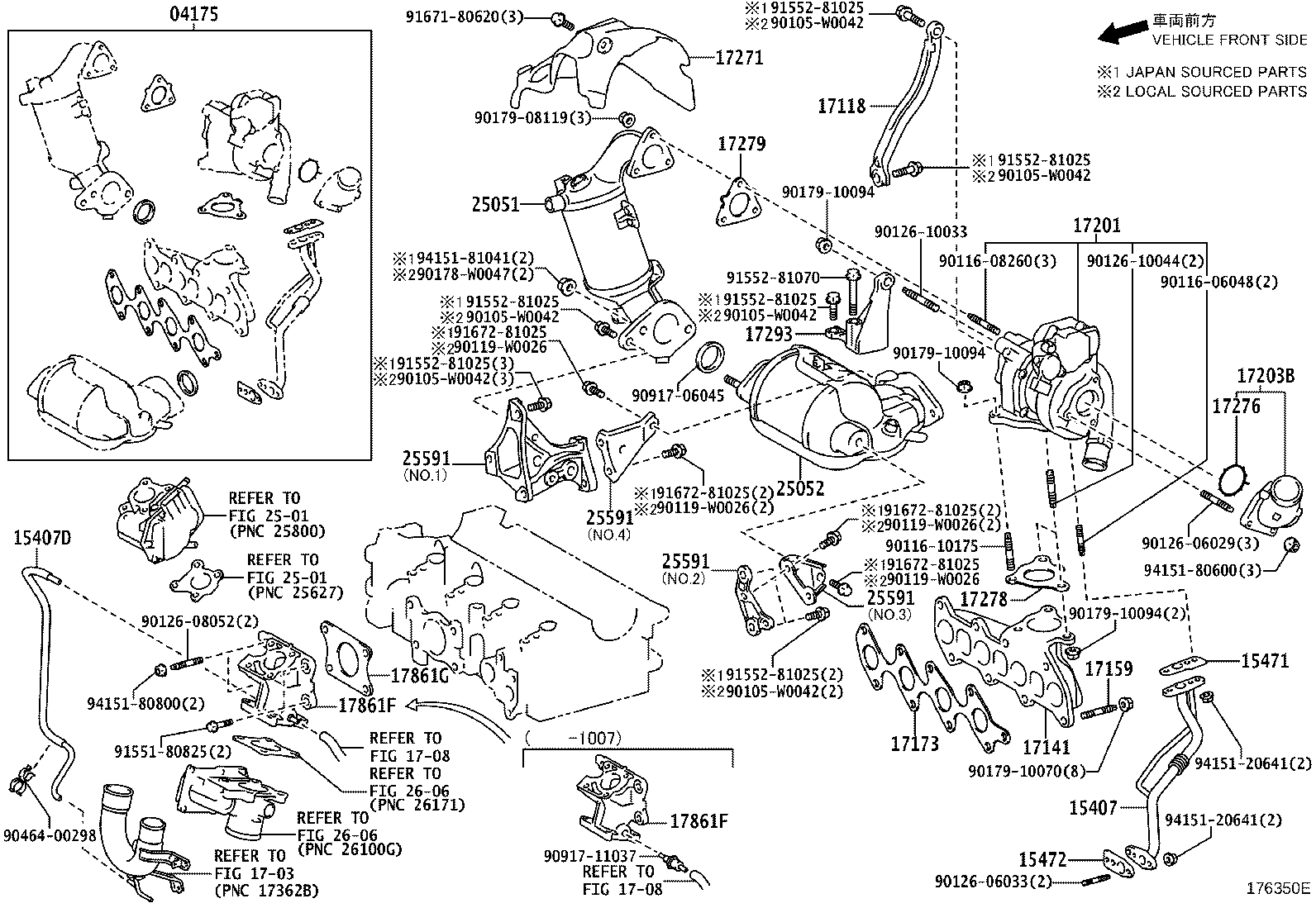

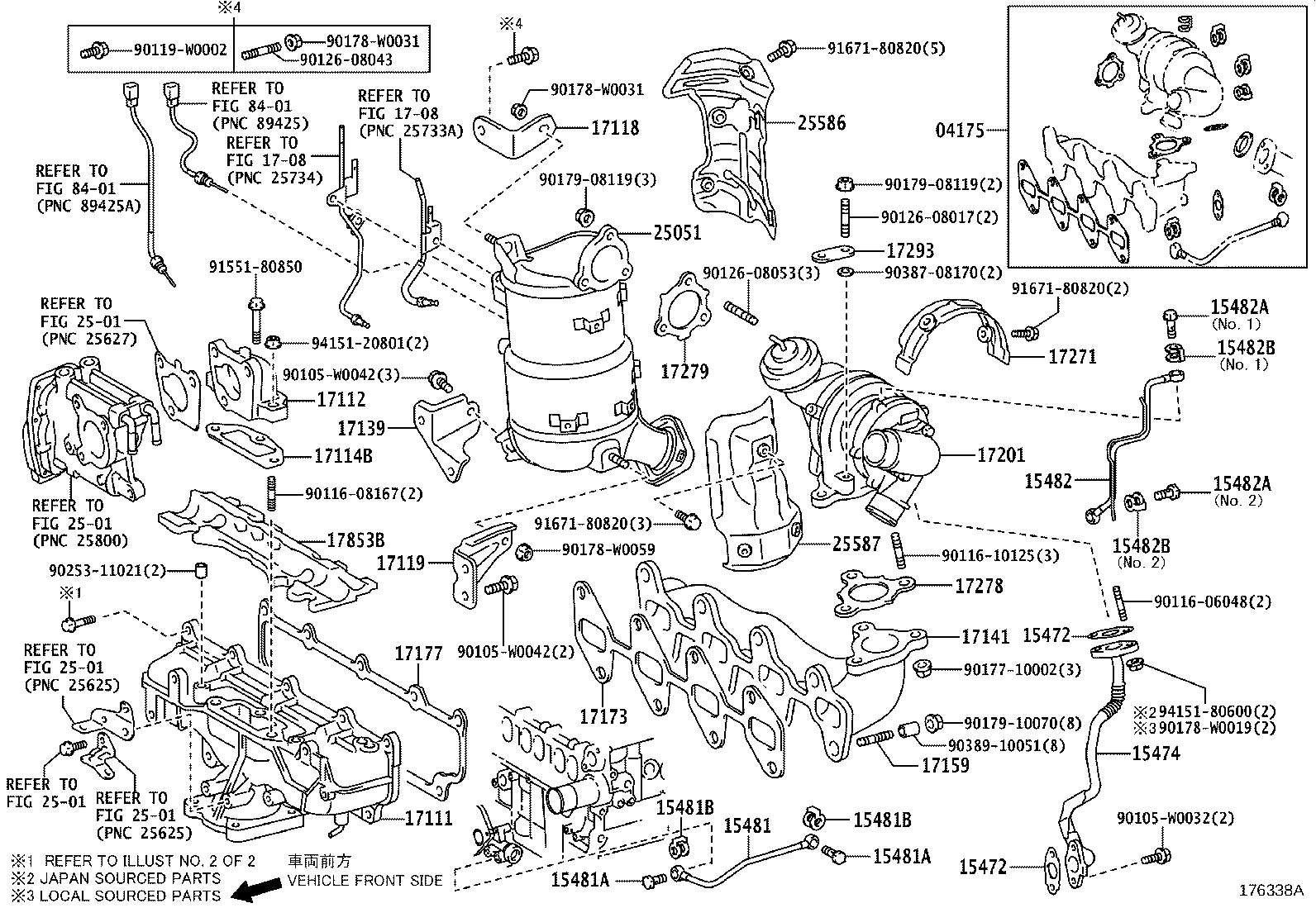

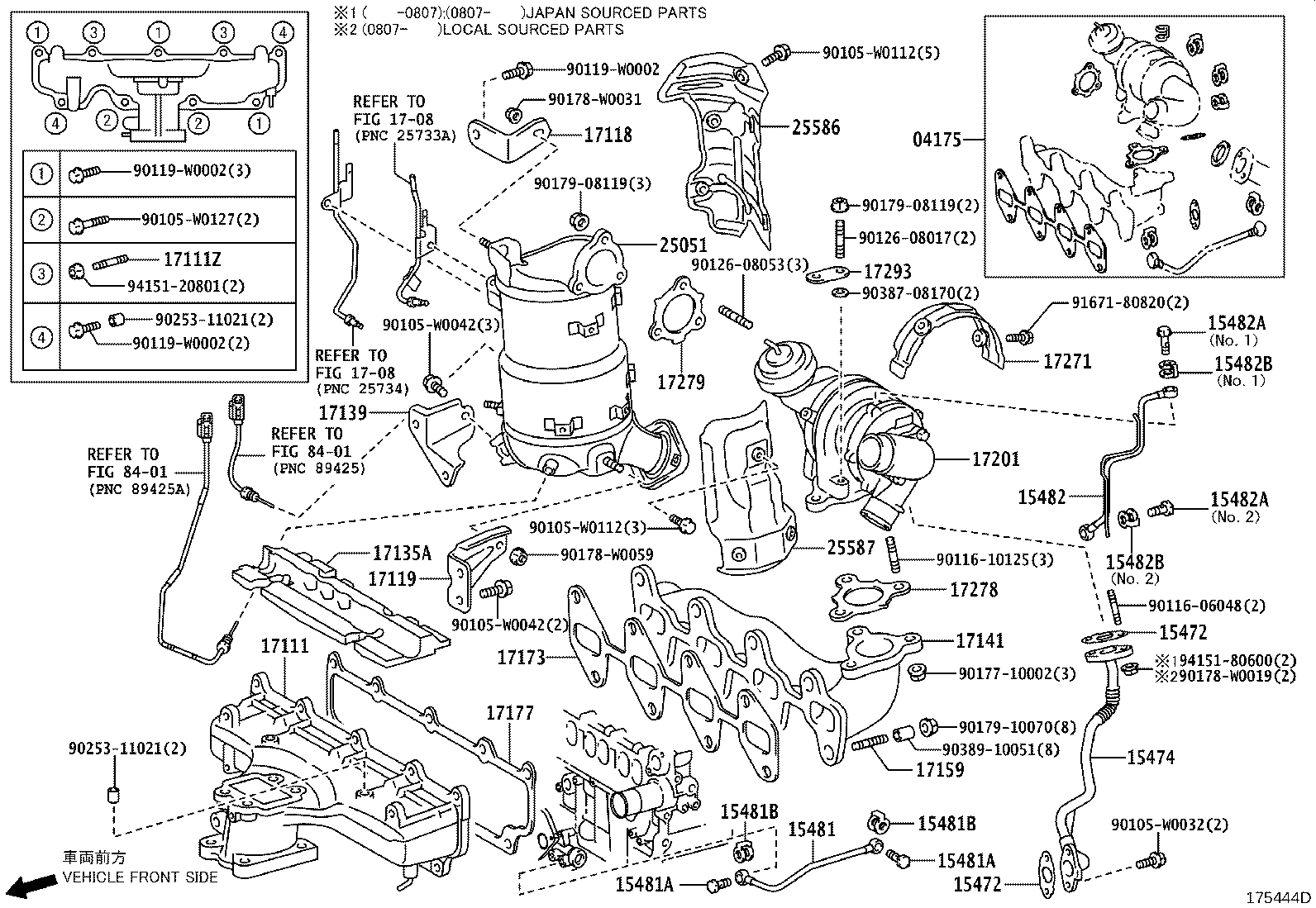

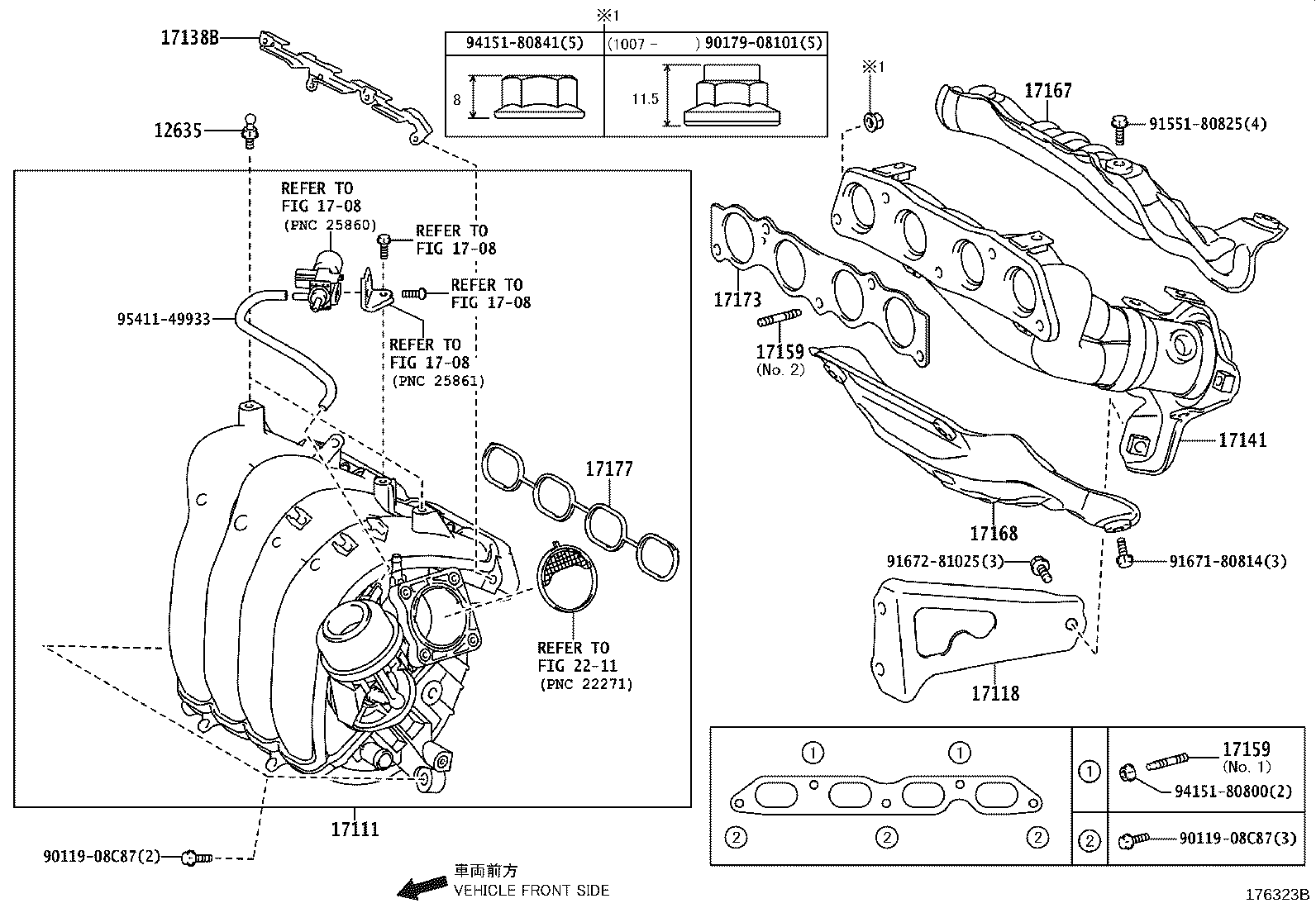

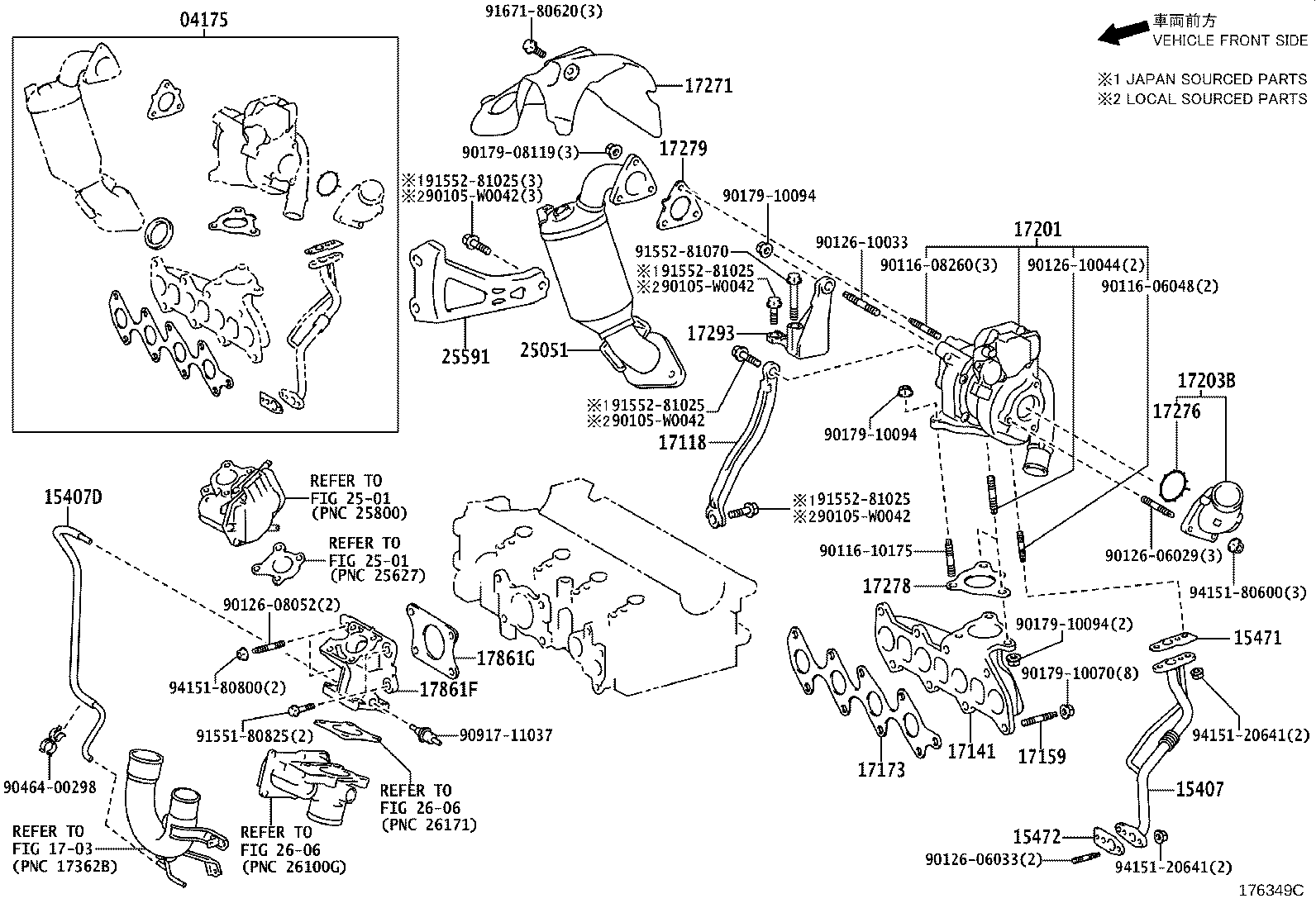

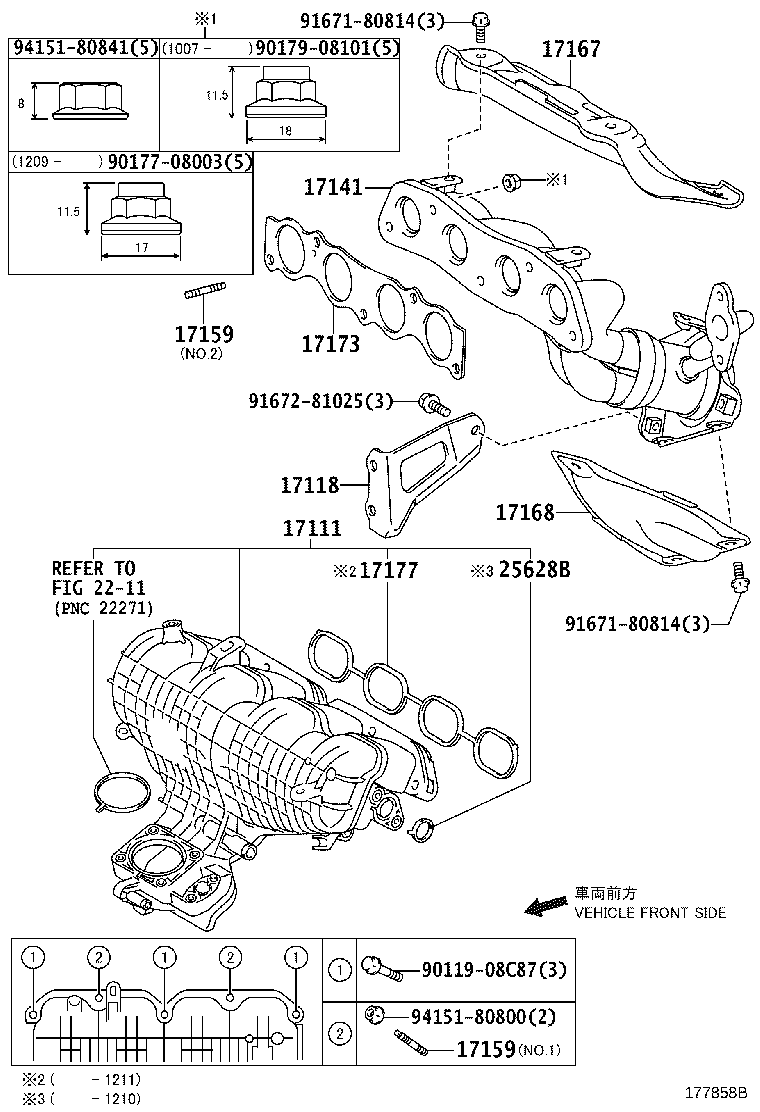

Figure 175442D 175442D 2007-02 → 2009-03 Figure 175442D 175442D 2007-02 → — Figure 175443D 175443D 2007-02 → 2009-03 Figure 175444D 175444D 2007-02 → 2009-03 Figure 176337B 176337B 2009-03 → — Figure 176338A 176338A 2009-03 → — Figure 176336 176336 2009-03 → — Figure 175430B 175430B 2007-02 → 2009-02 Figure 176785A 176785A 2008-11 → 2010-01 Figure 176761C 176761C 2009-12 → — Figure 176786C 176786C 2009-12 → — Figure 176349C 176349C 2009-02 → — Figure 176350E 176350E 2009-02 → — Figure 175721D 175721D 2007-02 → — Figure 175425A 175425A 2007-02 → — Figure 176323B 176323B 2009-02 → — Figure 177858B 177858B 2010-06 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
12635 Joint, Engine Cover
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15407D Hose, Oil, NO.1
15471 Gasket, Turbo Oil Inlet
15472 Gasket, Turbo Oil Outlet, NO.1
15473 Gasket, Turbo Oil Outlet, NO.2
15474 Pipe, Turbo Oil Outlet
15477 Pipe, Turbo Oil Inlet
15481 Pipe, Turbo Oil, NO.1
15481A Bolt, Union, NO.1
15481B Gasket(FOR UNION BOLT NO.1)
15482 Pipe, Turbo Oil, NO.2
15482A Bolt, Union, NO.2
15482B Gasket(FOR UNION BOLT NO.2)
17021A Bolt, Stud(FOR BEARING HOUSING)
17025A Bolt, Stud(FOR TURBINE HOUSING)
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17112 Manifold, Intake, NO.2
17114B Gasket, Intake Flange
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17135A Insulator, Intake Manifold, NO.1
17138B Stay, Intake Manifold
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17141J Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17148 Plate, Exhaust Manifold(FOR EGR INLET)
17155 Hose(FOR MANIFOLD)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17166 Insulator, Exhaust Manifold Heat,NO.4
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17169 Insulator, Exhaust Manifold Heat, NO.3
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17201 Turbocharger Sub-assy
17203B Elbow Sub-assy, Compressor Inlet
17271 Insulator, Turbo, NO.1
17276 Gasket, Compressor Inlet
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17293 Stay, Turbocharger
17853B Insulator, Intake Manifold
17861F Connector, Intake Air
17861G Gasket, Intake Air Connector
17871A Stay, Air Connector
25051 Converter Sub-assy, Exhaust Manifold
25052 Converter Sub-assy, Exhaust Manifold, NO.2
25586 Insulator, Manifold Converter, NO.1
25587 Insulator, Manifold Converter, NO.2
25591 Bracket, Manifold Support
25628B Gasket, Egr Inlet
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
