Toyota Auris/Hybrid (UKP)

2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

30 part groups · 6 illustrations

Illustrations

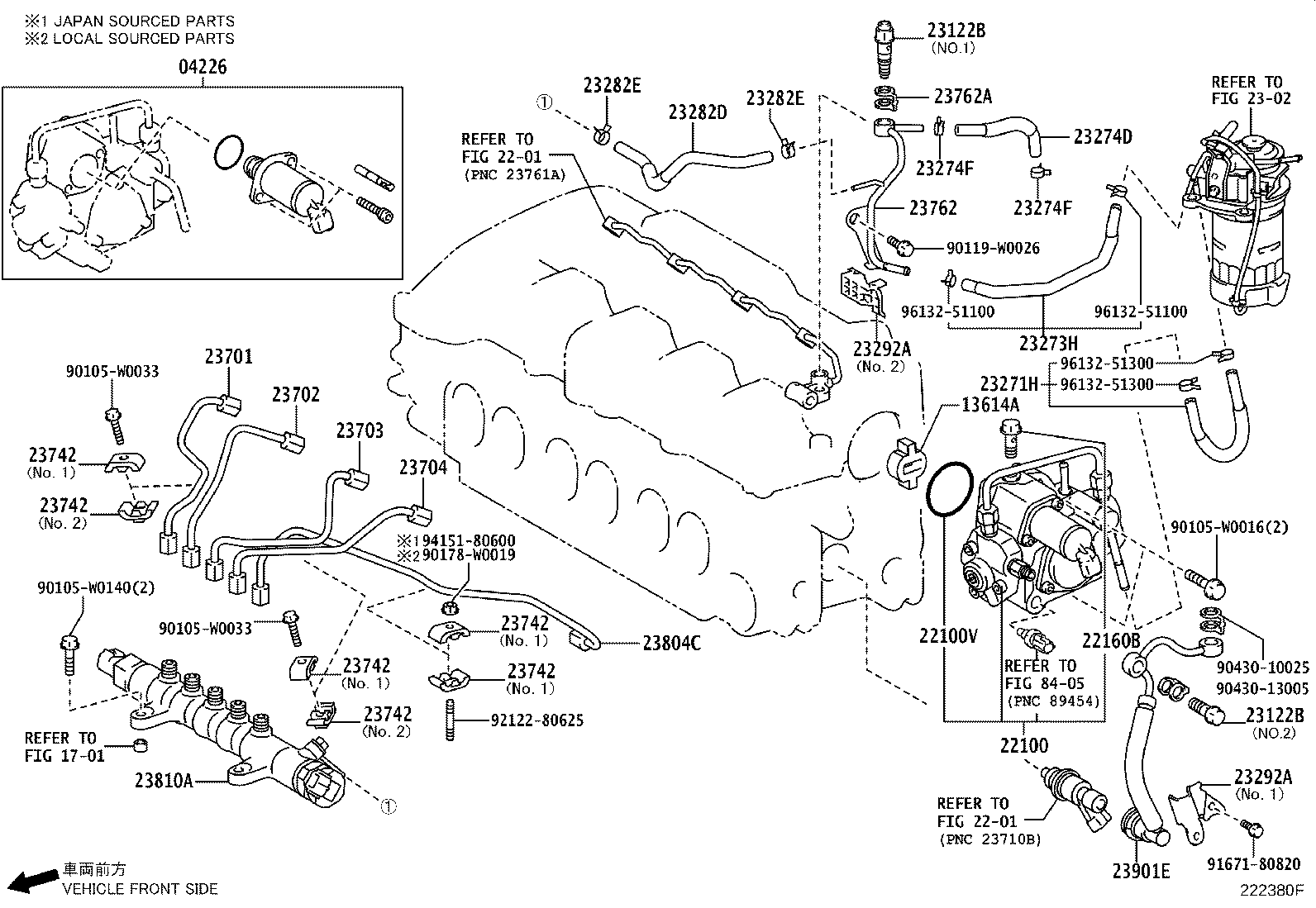

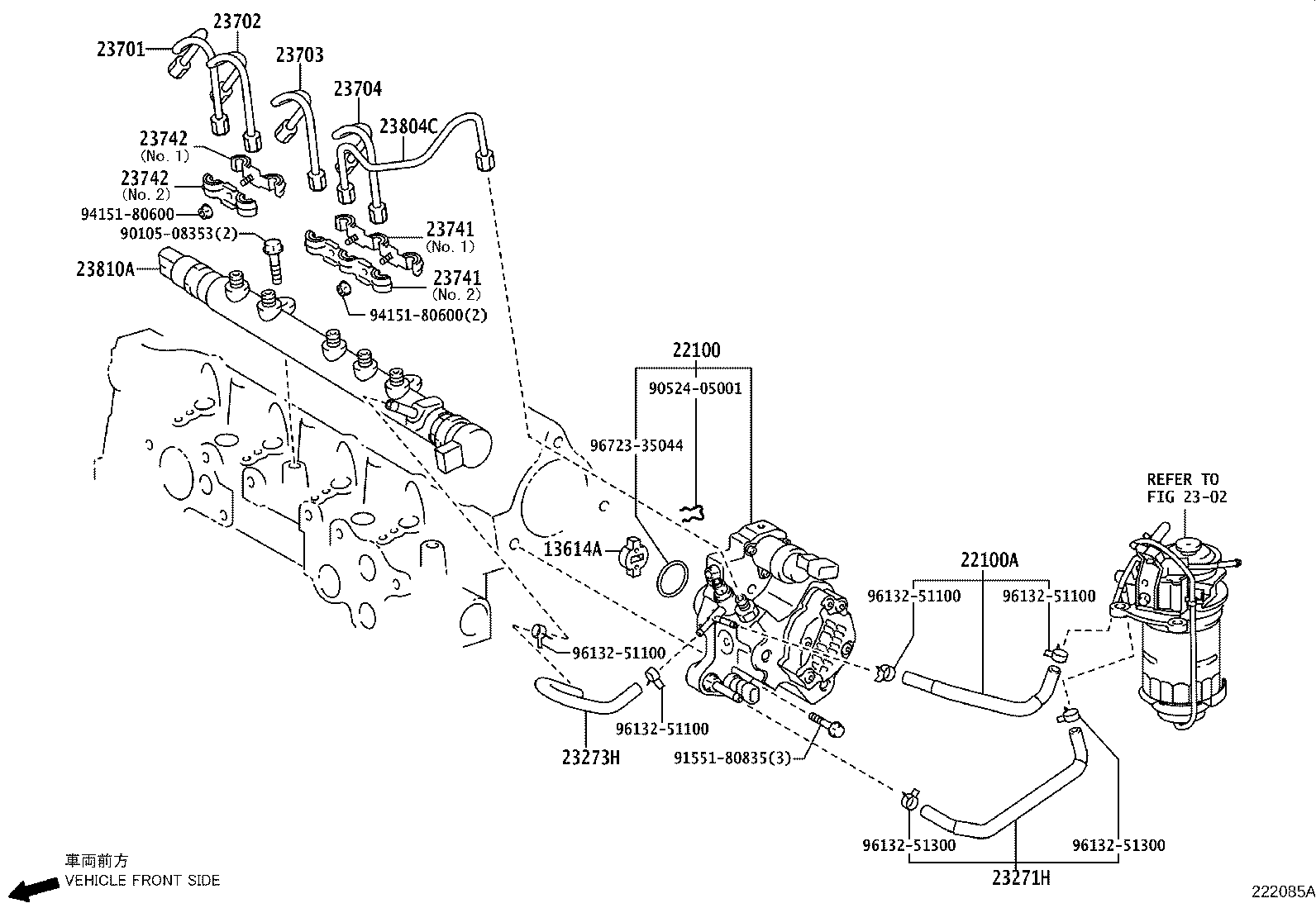

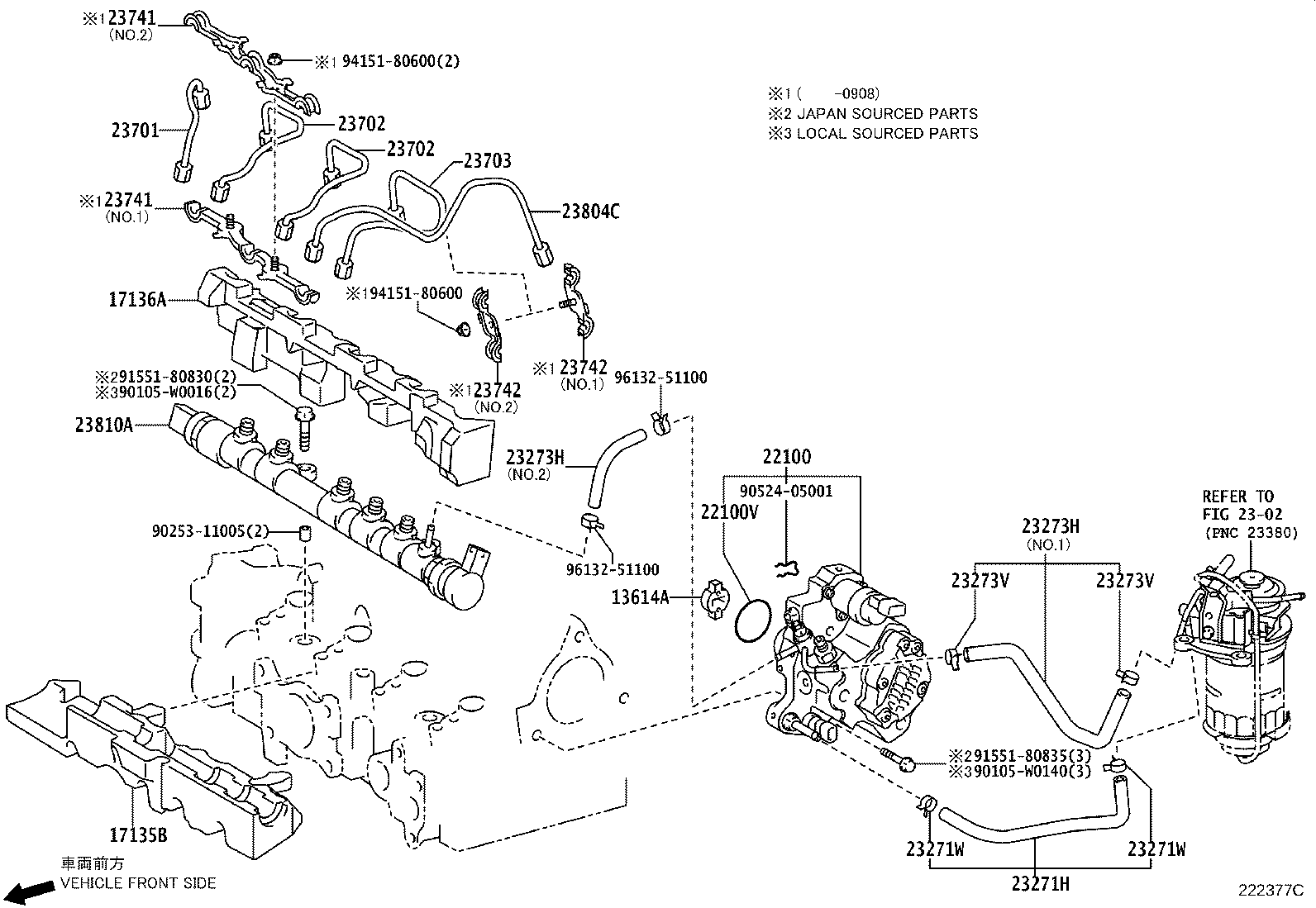

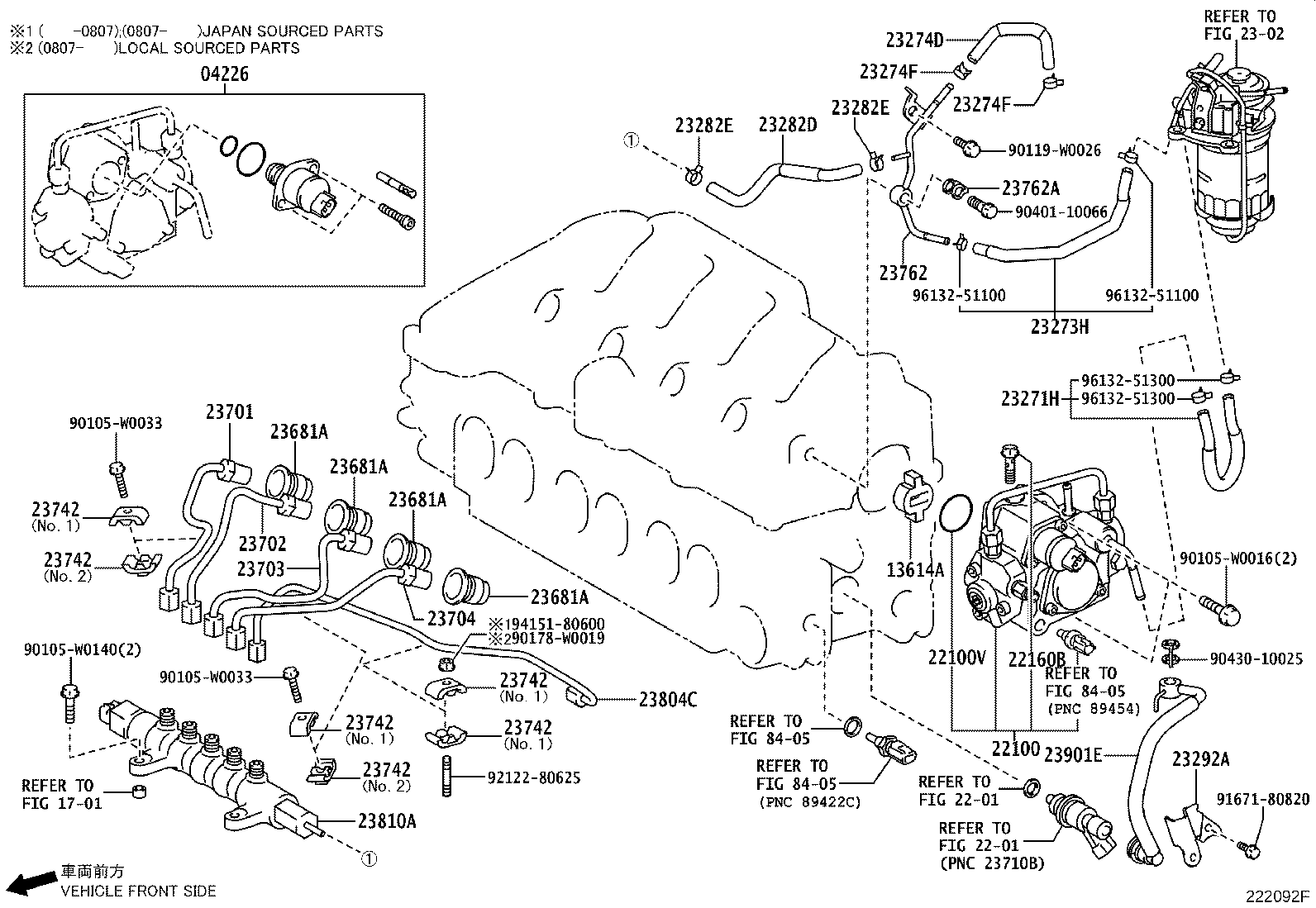

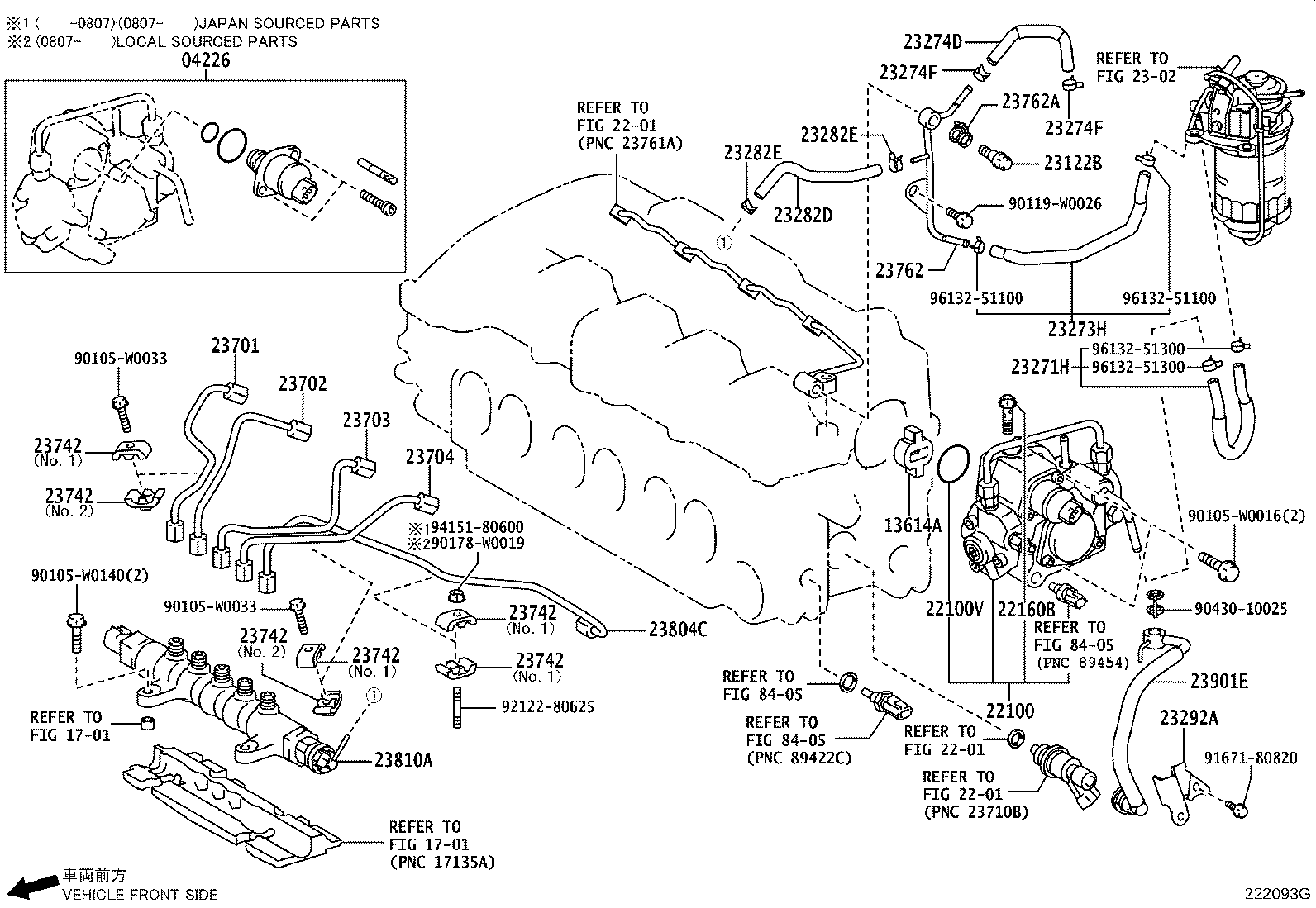

Figure 222091G 222091G 2007-02 → — Figure 222092F 222092F 2007-02 → 2009-03 Figure 222093G 222093G 2007-02 → 2009-03 Figure 222380F 222380F 2009-03 → — Figure 222085A 222085A 2007-02 → 2009-02 Figure 222377C 222377C 2009-02 → —

Part groups

PNCDescription
04226 Valve Kit, Suction Control
13614A Coupling, Supply Pump Drive, NO.1
17135B Insulator, Intake Manifold, NO.1
17136A Insulator, Intake Manifold, NO.2
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22100V Ring, O(FOR INJECTION PUMP)
22160B Screw
23122B Valve, Check
23271H Hose, Fuel, NO.1
23271W Clip(FOR FUEL HOSE NO.1)
23273H Hose, Fuel, NO.2
23273V Clip(FOR FUEL HOSE NO.2)
23274D Hose, Fuel, NO.3
23274F Clip(FOR FUEL HOSE NO.3)
23282D Hose, Fuel, NO.4
23282E Clip(FOR FUEL HOSE NO.4)
23292A Protector, Fuel Hose
23681A Seal, Nozzle Holder
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23741 Clamp, Injection Pipe, NO.1
23742 Clamp, Injection Pipe, NO.2
23762 Pipe, Nozzle Leakage, NO.2
23762A Gasket, Nozzle Leakage Pipe NO.2
23804C Pipe Sub-assy, Fuel Inlet
23810A Rail Assy, Common
23901E Tube Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
