Venturi

3 part groups · 6 illustrations

Illustrations

Figure 260309A

260309A 2007-02 → 2008-02

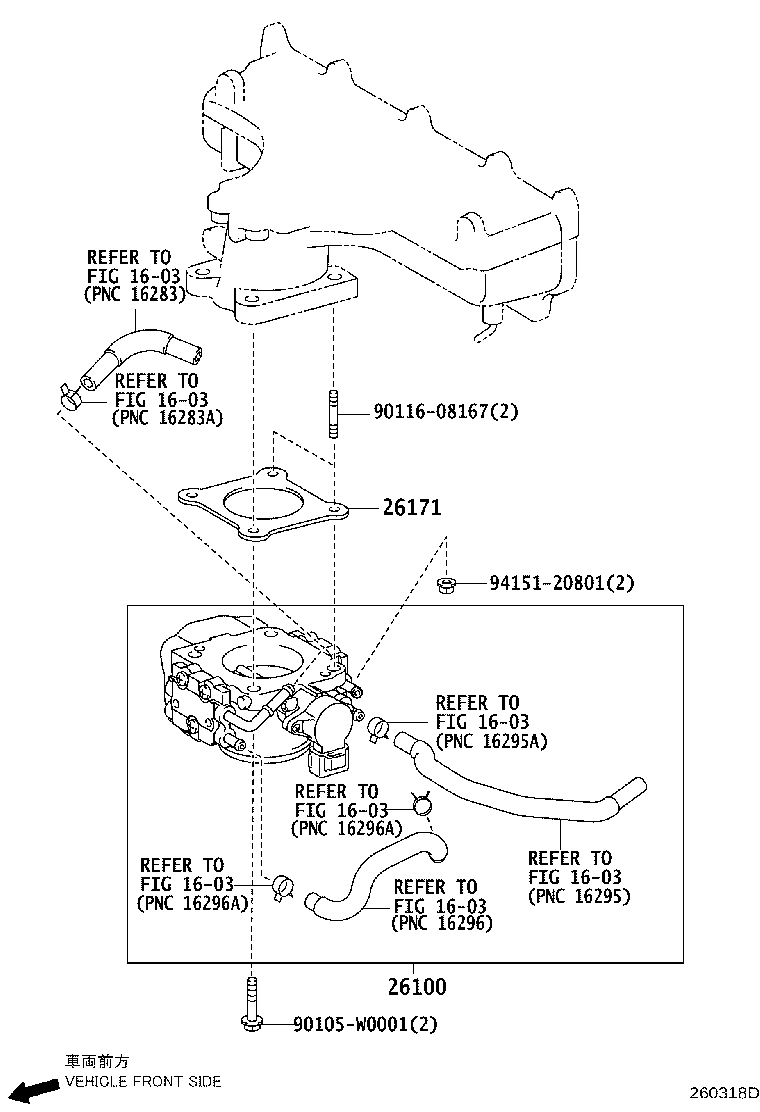

Figure 260318D

260318D 2008-02 → 2009-03

Figure 260318D

260318D 2008-02 → —

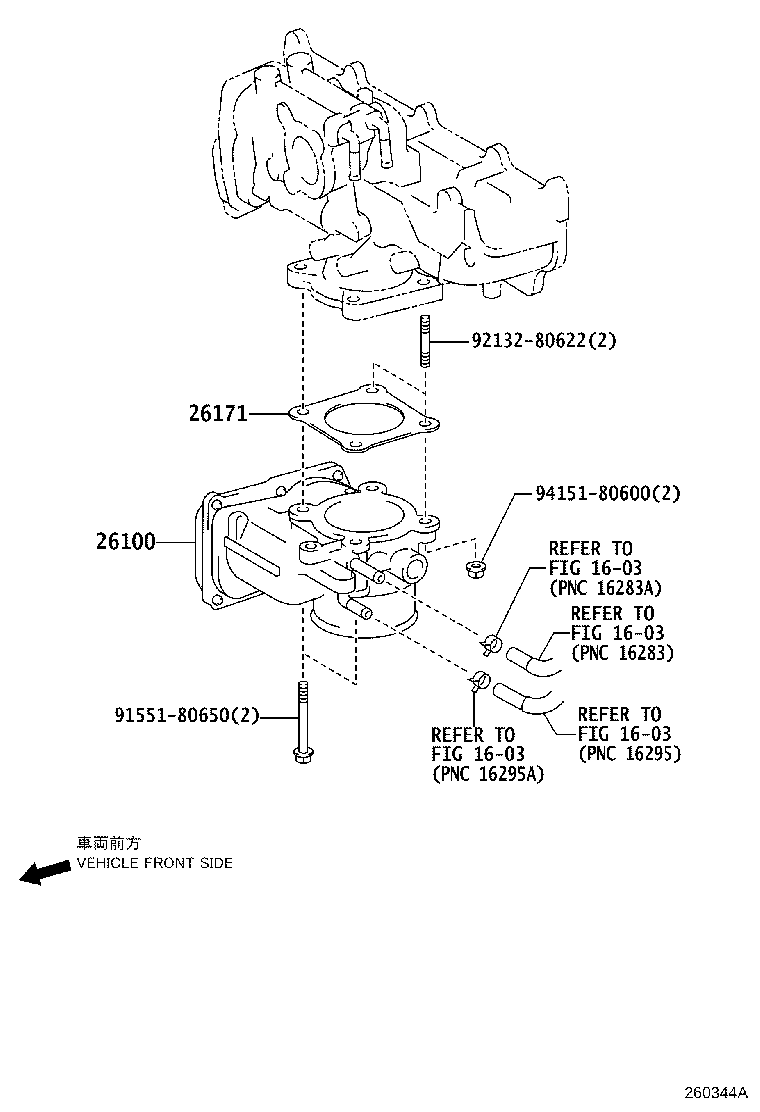

Figure 260344A

260344A 2009-03 → —

Figure 260308A

260308A 2007-02 → 2009-02

Figure 260342B

260342B 2009-02 → —

Part groups

PNC	Description
26100	Venturi Assy
26100G	Body Assy, Diesel Throttle
26171	Gasket, Venturi

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
