Toyota Auris/Hybrid (UKP)

2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch & Release Fork

10 part groups · 6 illustrations

Illustrations

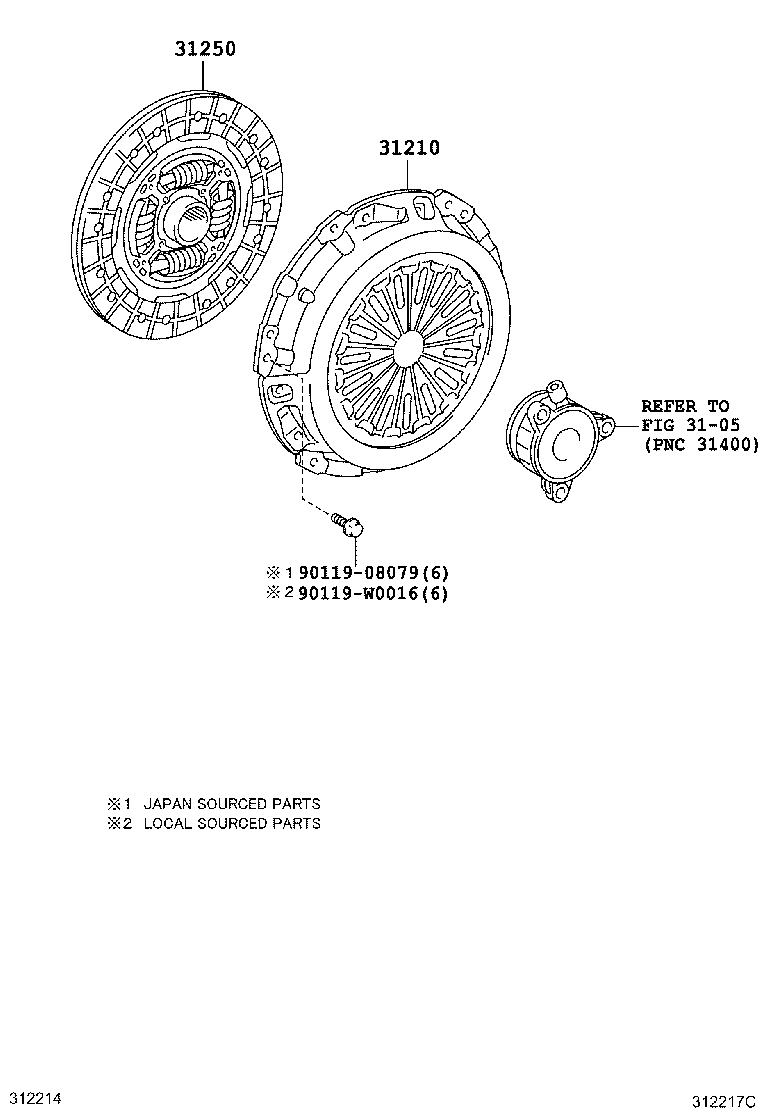

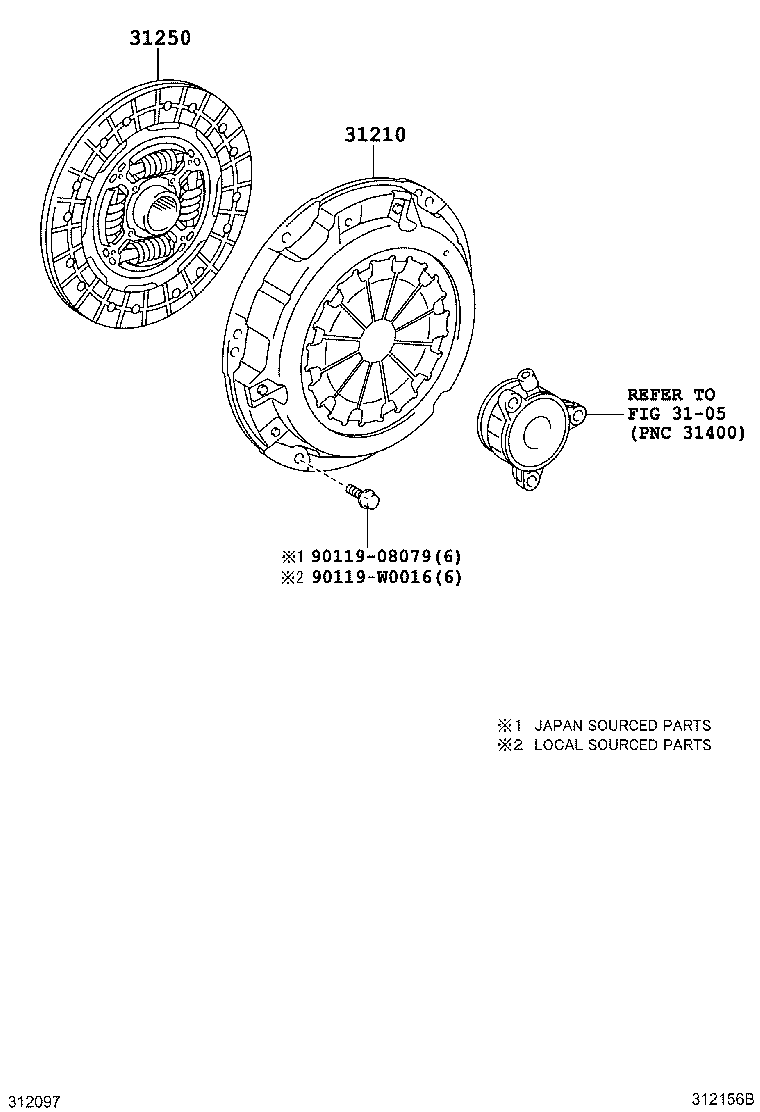

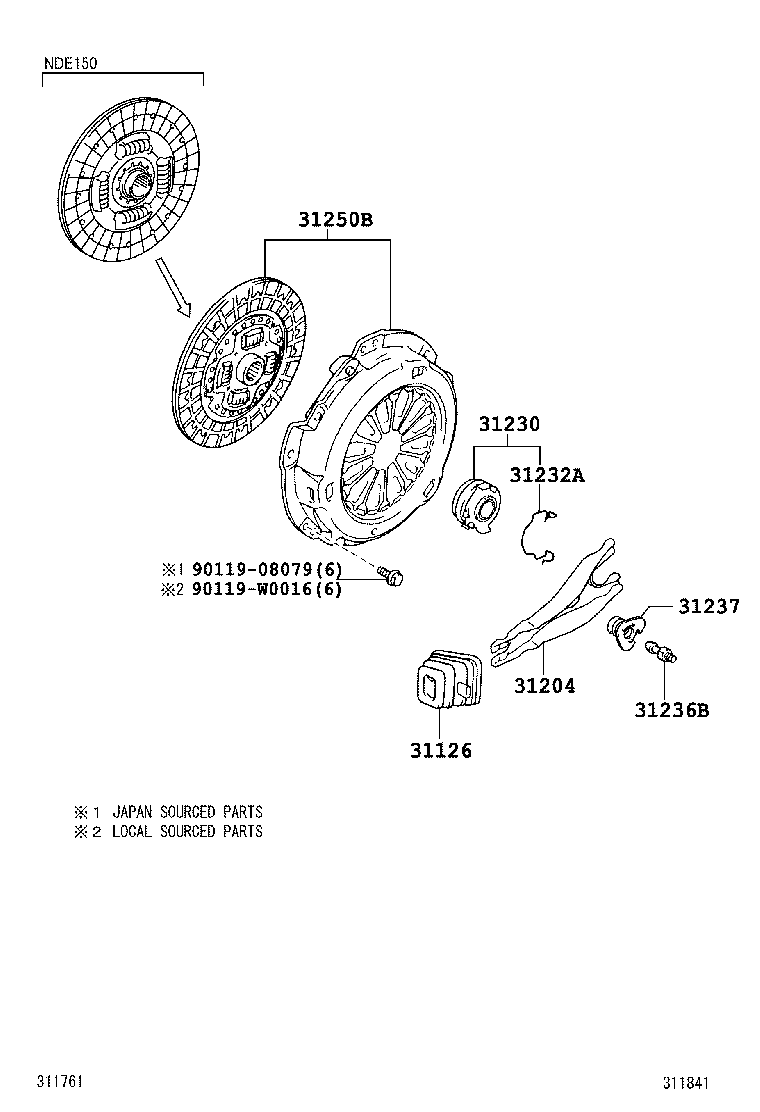

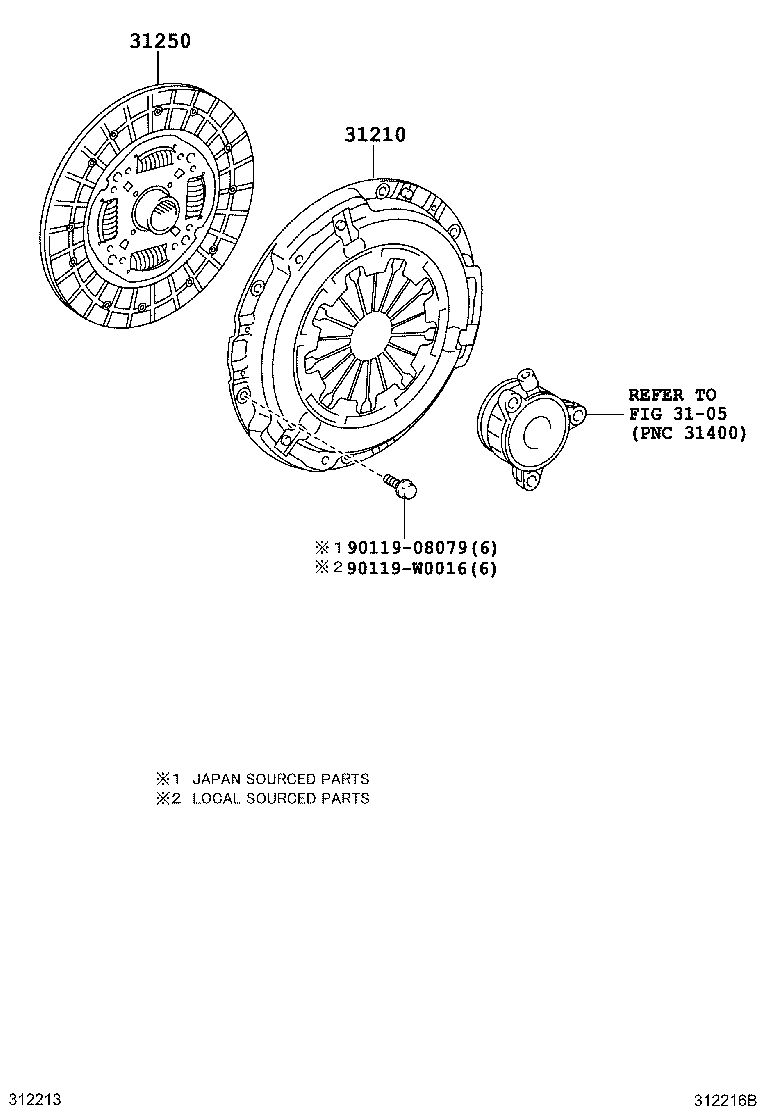

Figure 311840 311840 2007-02 → — Figure 311841 311841 2007-02 → — Figure 311842 311842 2007-02 → — Figure 312156B 312156B 2008-11 → — Figure 312216B 312216B 2009-02 → — Figure 312217C 312217C 2009-02 → —

Part groups

PNCDescription
31001 Clutch Set, Cover & Disc
31126 Boot, Clutch Release Fork
31204 Fork Sub-assy, Clutch Release
31210 Cover Assy, Clutch
31230 Bearing Assy, Clutch Release
31232A Clip, Release Bearing Hub
31236B Support, Release Fork
31237 Boot, Clutch Release Fork Support
31250 Disc Assy, Clutch
31250B Disc Set, Adjustable Clutch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
