Toyota Auris/Hybrid (UKP)

2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Pump & Actuator, Sequential OR Multi-mode Manual Transaxle

6 part groups · 2 illustrations

Illustrations

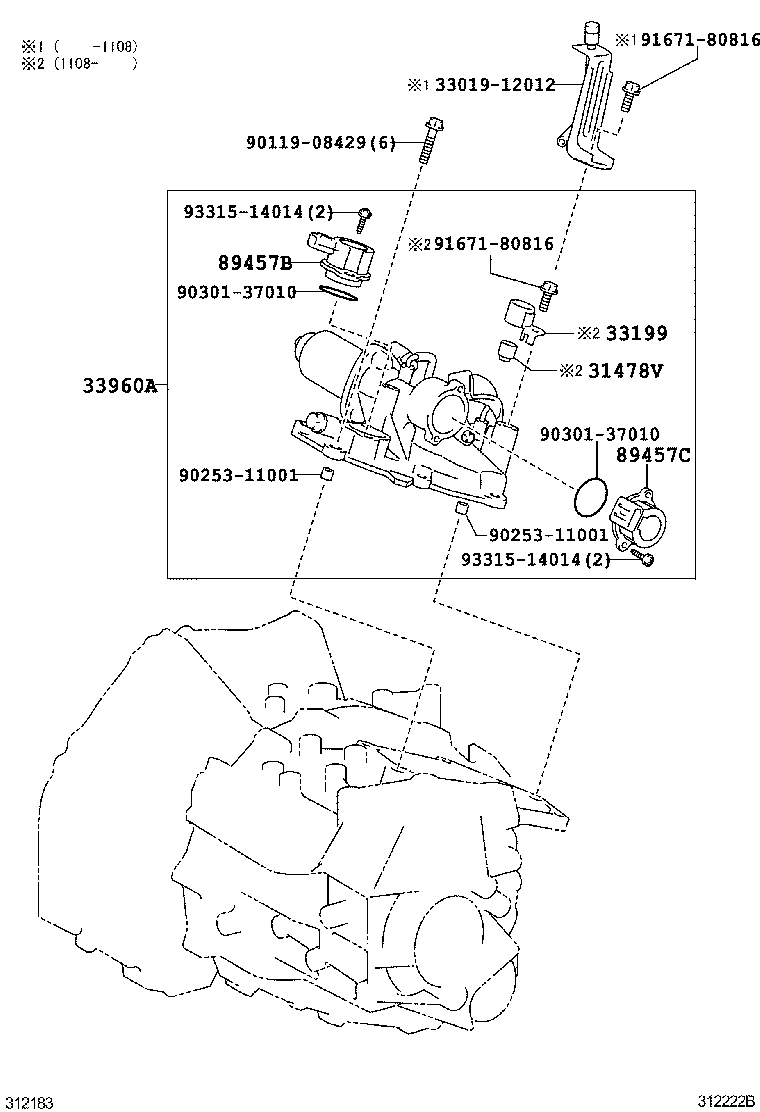

Figure 311864C 311864C 2007-02 → — Figure 312222B 312222B 2009-02 → —

Part groups

PNCDescription
31478V Cap, Breather Plug
33199 Protector, Breather
33960A Actuator Assy, Shift & Select
33960B Breather Plug, Shift & Select Actuator
89457B Stroke Sensor, Shift
89457C Stroke Sensor, Select
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
