Toyota Auris/Hybrid (UKP)

2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 5 illustrations

Illustrations

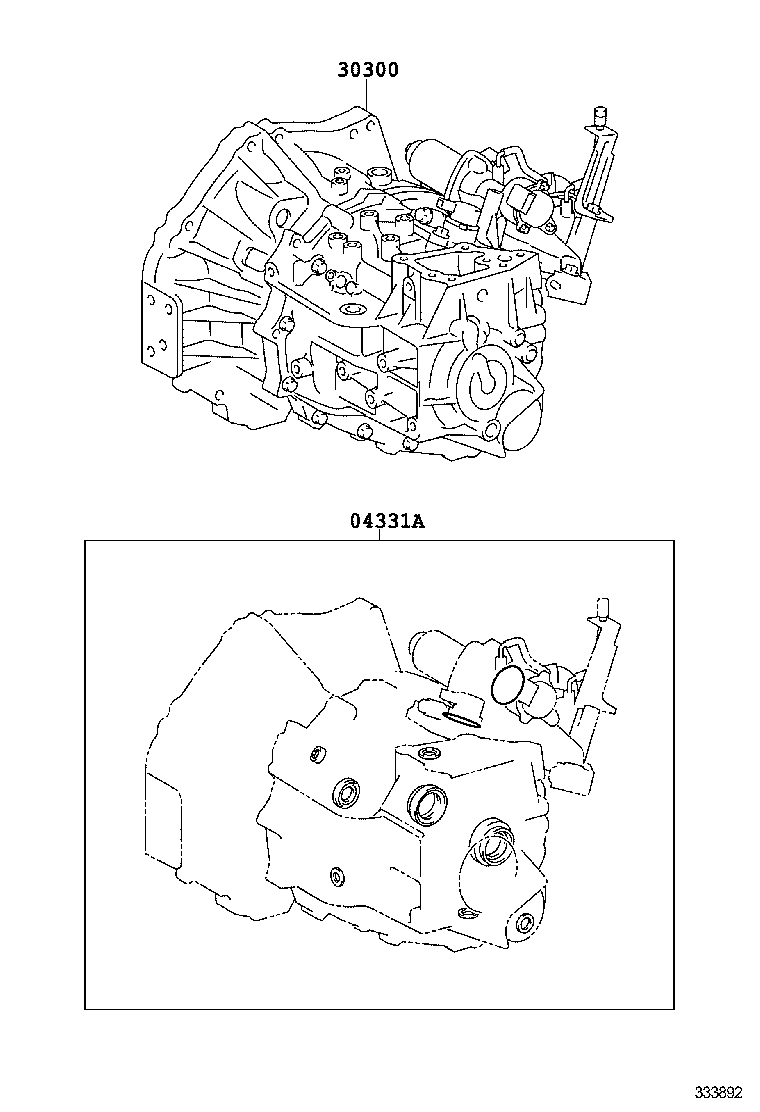

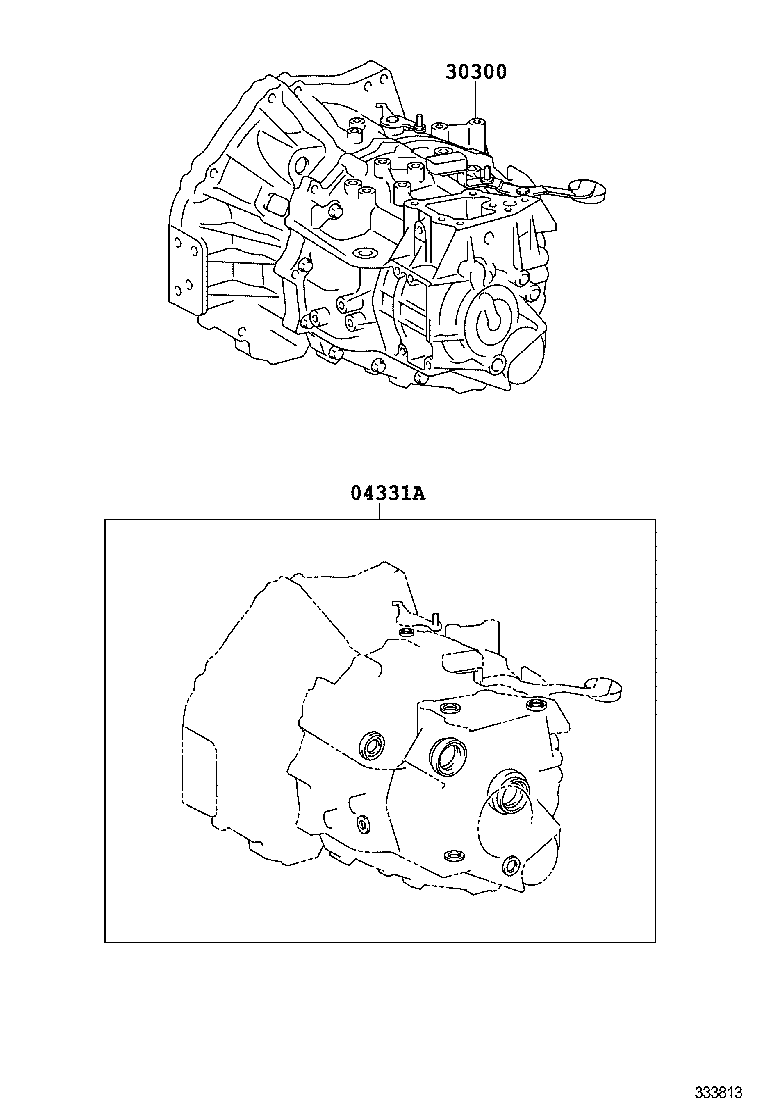

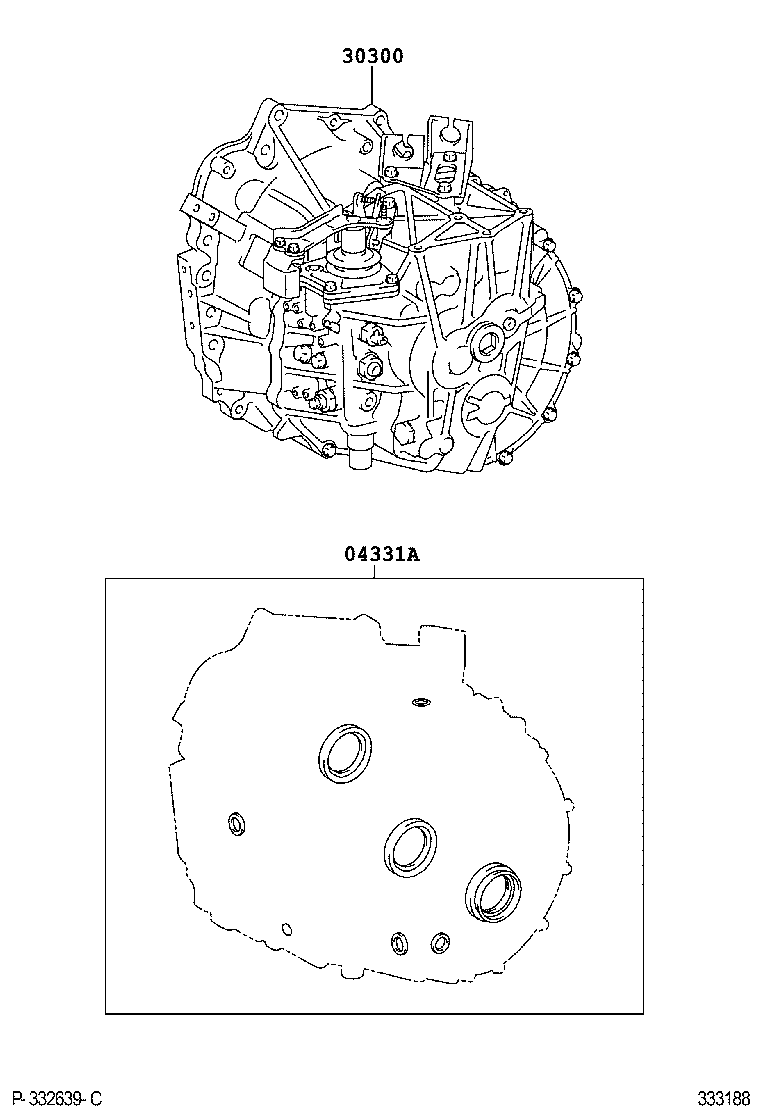

Figure 333599B 333599B 2007-02 → 2009-02 Figure 333188 333188 2007-02 → — Figure 333813 333813 2008-11 → — Figure 333814 333814 2008-11 → — Figure 333892 333892 2009-02 → —

Part groups

PNCDescription
04331A Gasket Kit, Transaxle Overhaul(MTM)
30300 Transaxle Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
