Toyota Auris/Hybrid (UKP)

2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

10 part groups · 19 illustrations

Illustrations

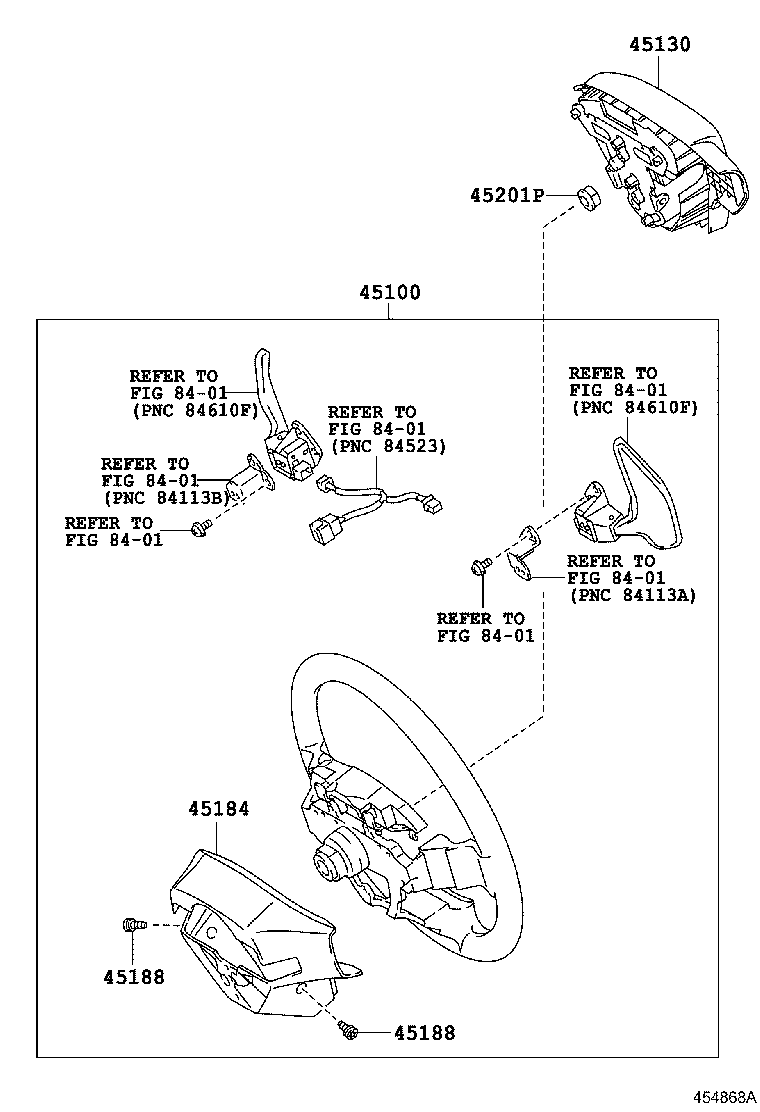

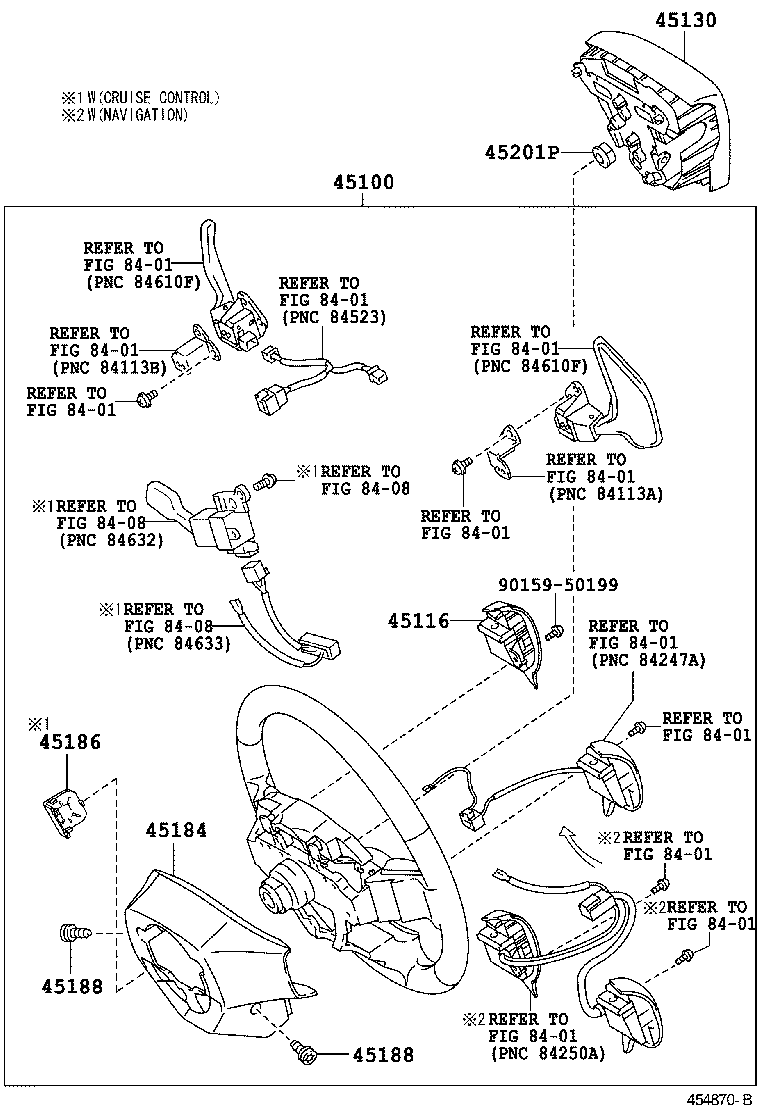

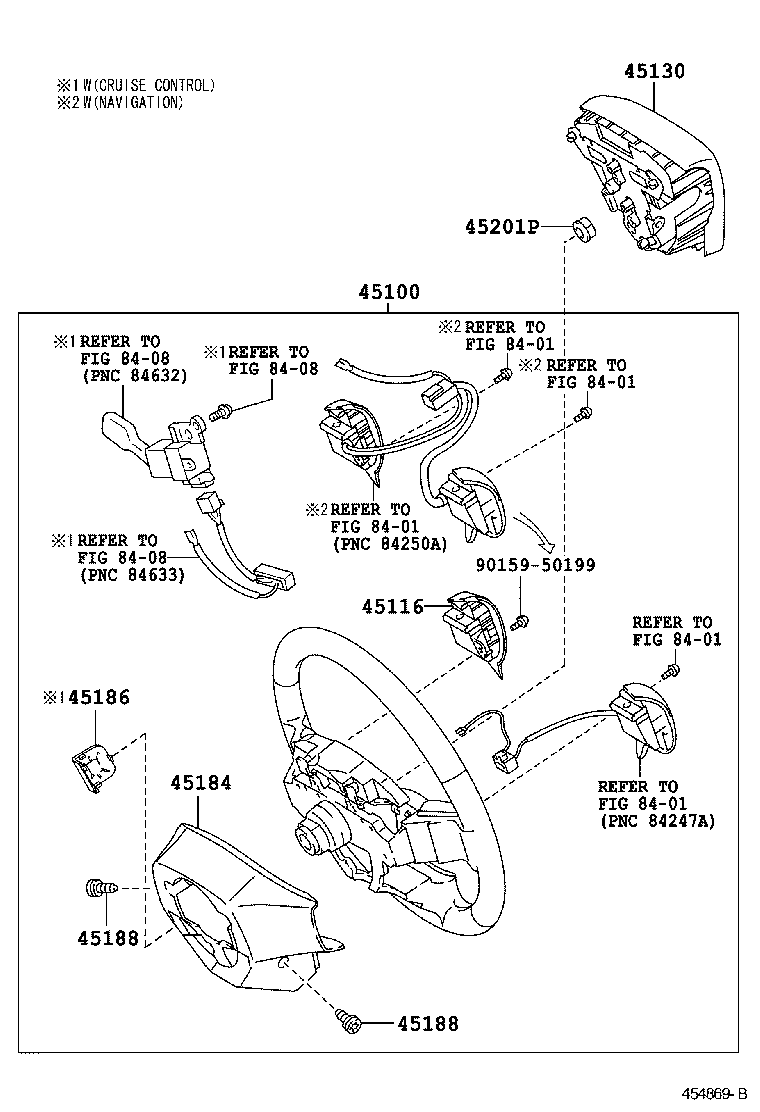

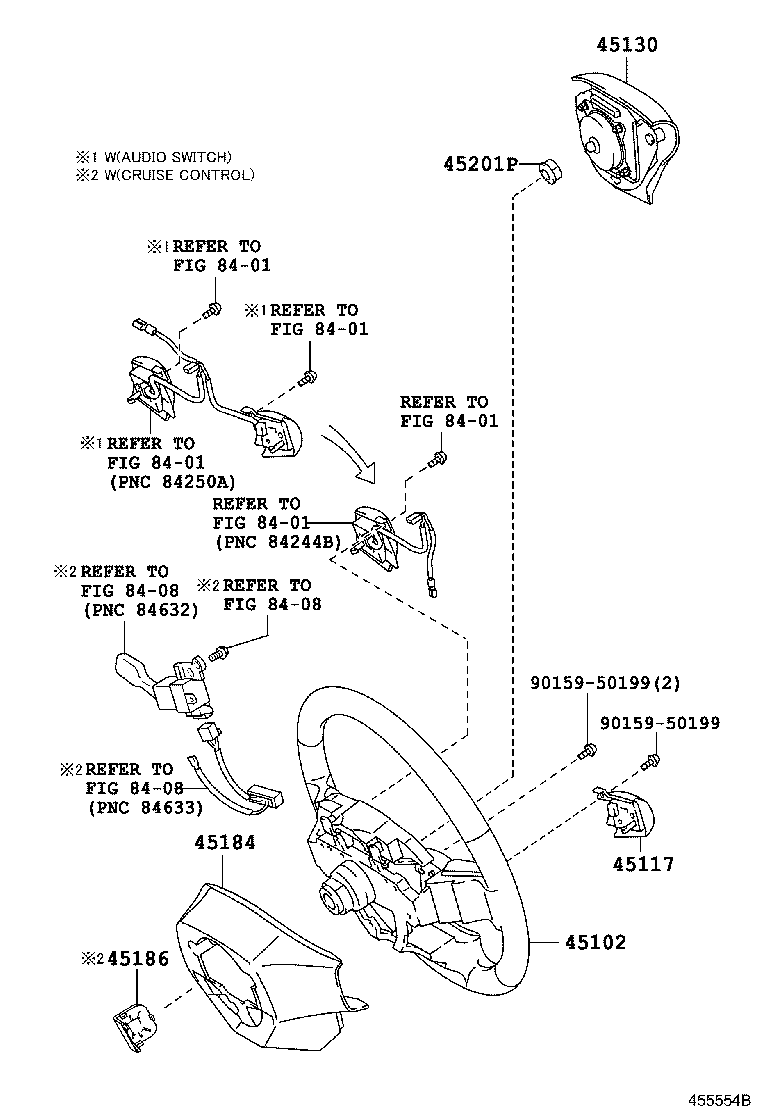

Figure 455179 455179 2007-02 → 2009-12 Figure 455179 455179 2007-02 → 2009-12 Figure 455179 455179 2007-02 → 2010-01 Figure 455179 455179 2007-02 → 2010-01 Figure 454868A 454868A 2007-02 → 2009-12 Figure 454868A 454868A 2007-02 → 2010-01 Figure 454868A 454868A 2007-02 → 2010-01 Figure 454869B 454869B 2007-02 → 2009-12 Figure 454869B 454869B 2007-02 → 2009-12 Figure 454869B 454869B 2007-02 → 2009-12 Figure 454869B 454869B 2007-02 → 2010-01 Figure 454869B 454869B 2007-02 → 2010-01 Figure 454869B 454869B 2009-04 → 2009-12 Figure 454870B 454870B 2007-02 → 2009-12 Figure 454870B 454870B 2007-02 → 2010-01 Figure 455554B 455554B 2009-12 → — Figure 455554B 455554B 2010-01 → — Figure 455555B 455555B 2009-12 → — Figure 455555B 455555B 2010-01 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45102 Wheel Sub-assy, Steering
45107 Wire Sub-assy, Horn Button
45116 Ornament, Steering Wheel, NO.1
45117 Ornament, Steering Wheel, NO.2
45130 Button Assy, Horn
45184 Cover, Steering Wheel Boss, Lower
45186 Cover, Steering Wheel, Lower NO.2
45188 Screw, Steering Wheel Pad Attaching
45201P Nut, Steering Wheel Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
