Toyota Auris/Hybrid (UKP)

2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Parking Brake & Cable

12 part groups · 11 illustrations

Illustrations

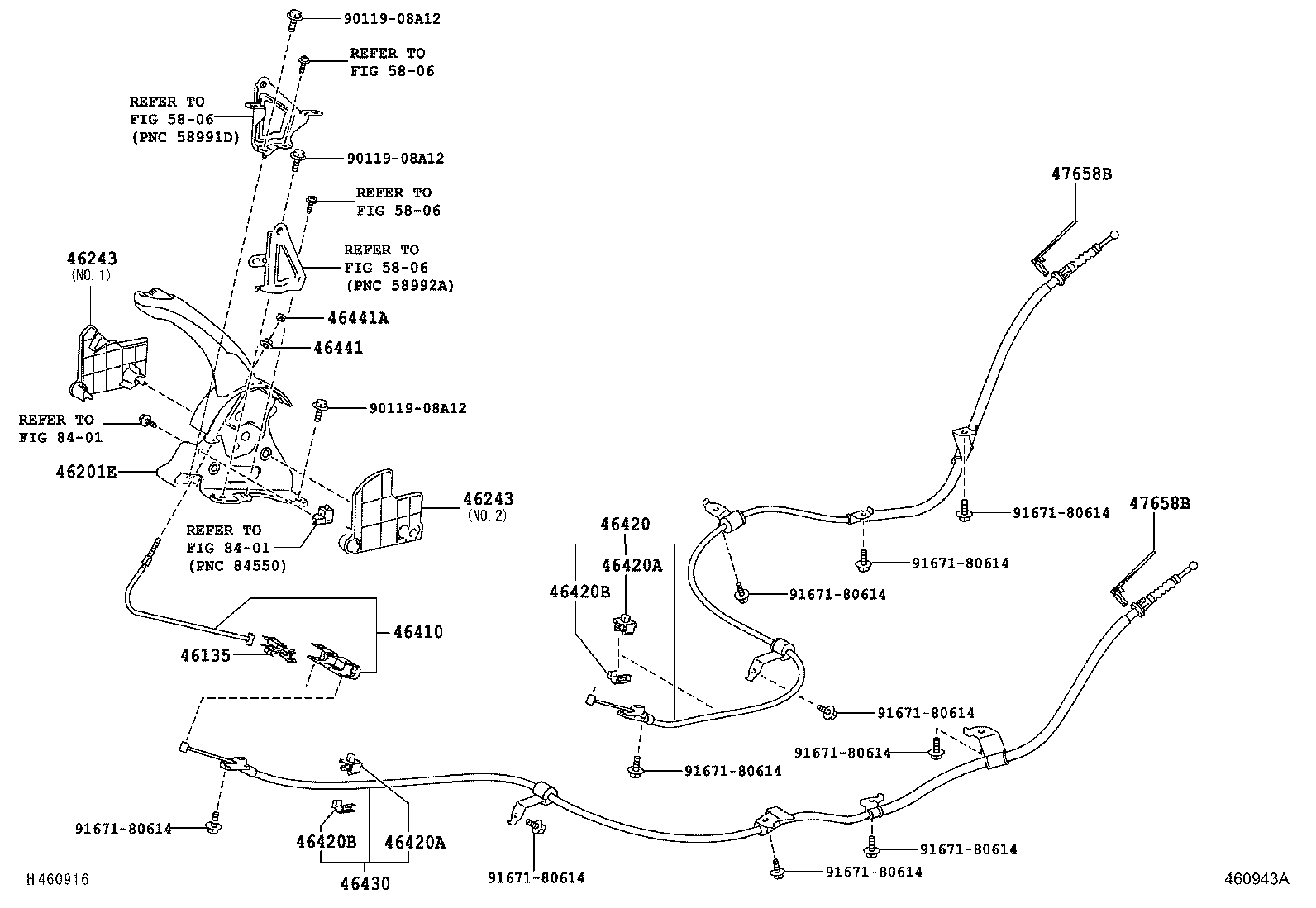

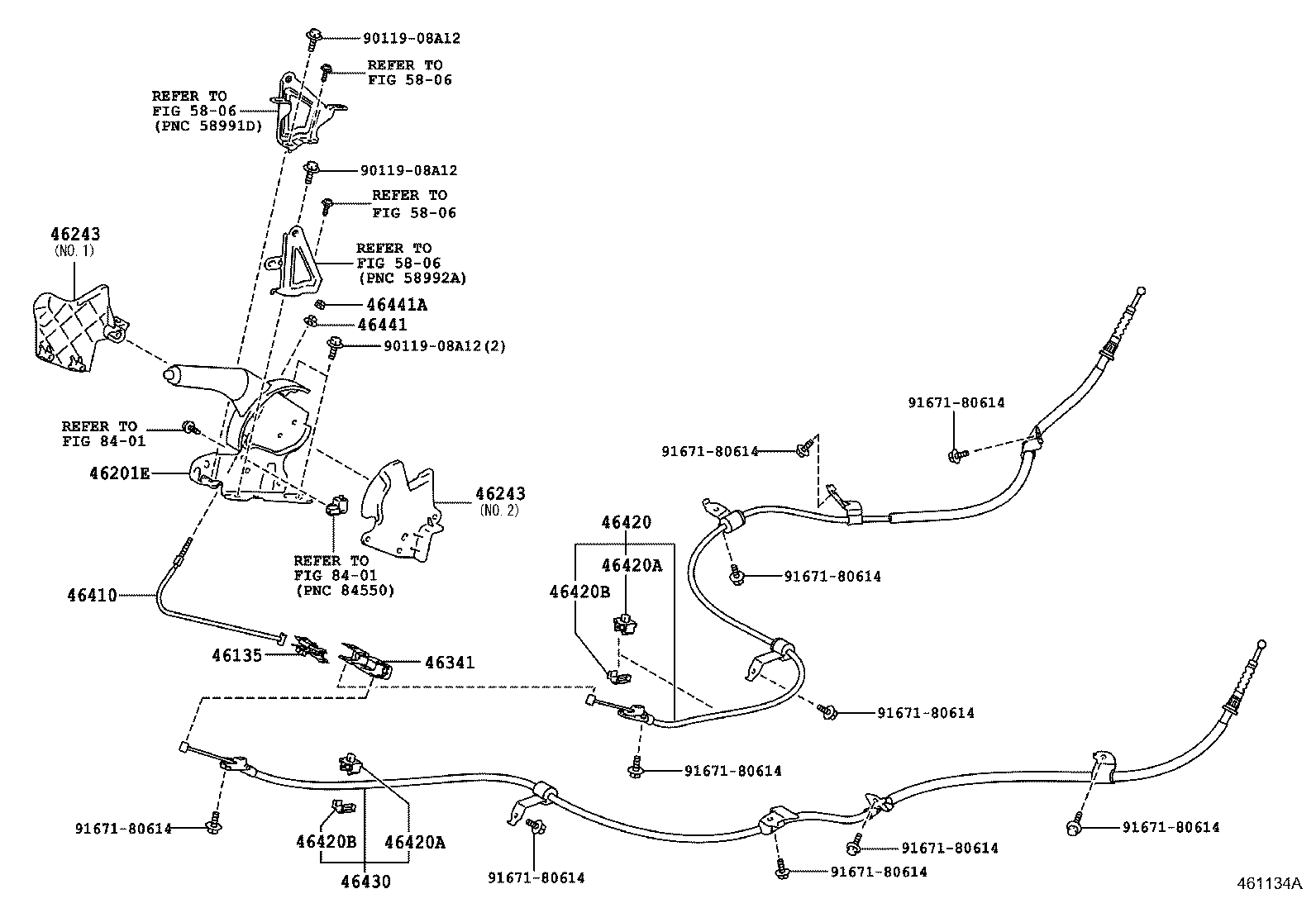

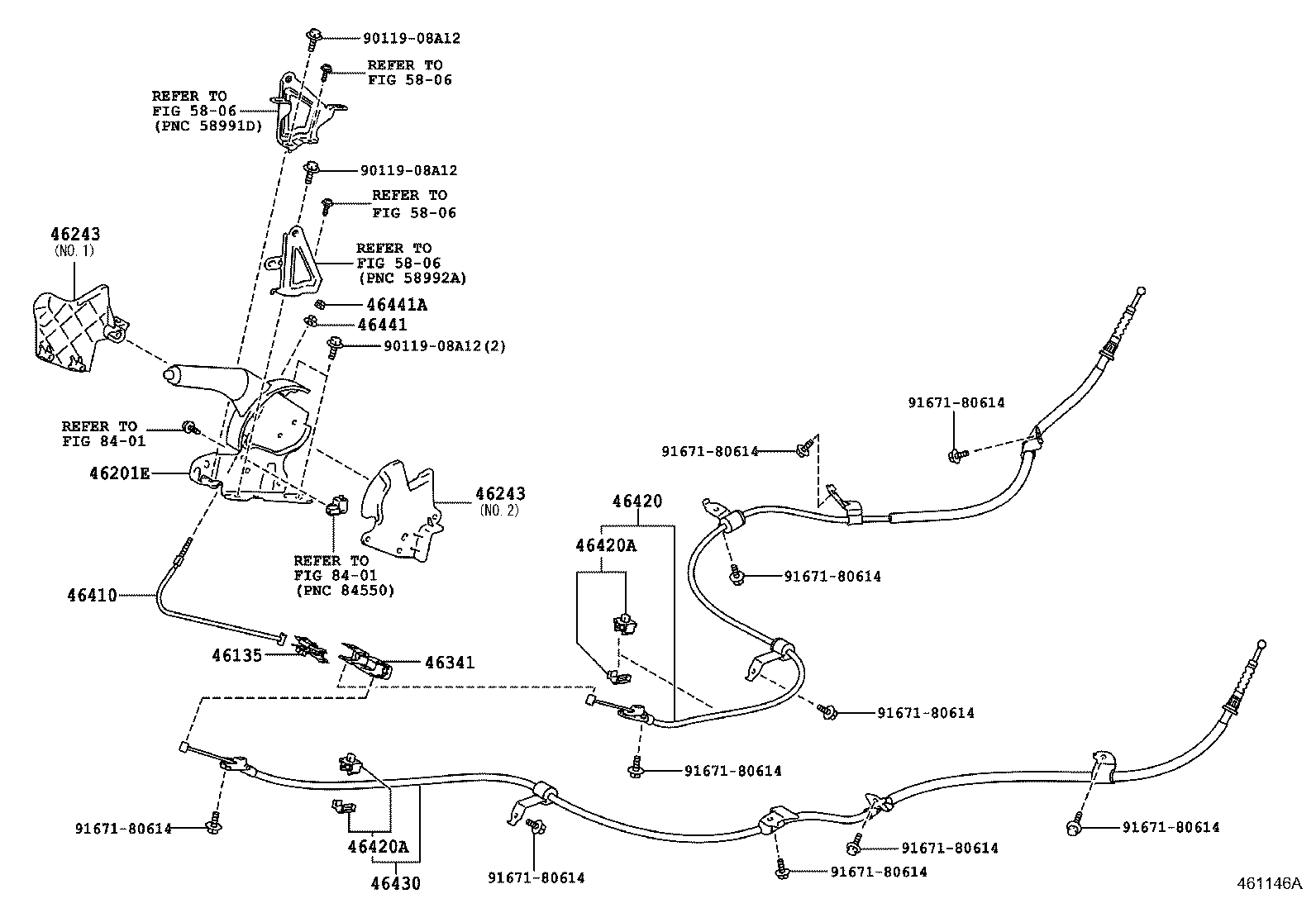

Figure 460942B 460942B 2007-02 → 2009-12 Figure 460942B 460942B 2007-02 → 2010-01 Figure 460942B 460942B 2009-12 → 2010-01 Figure 460942B 460942B 2009-12 → 2010-01 Figure 461134A 461134A 2009-12 → — Figure 461134A 461134A 2010-01 → — Figure 460943B 460943B 2007-02 → 2009-12 Figure 460943B 460943B 2007-02 → 2010-01 Figure 461135A 461135A 2009-12 → — Figure 461135A 461135A 2010-01 → — Figure 461146A 461146A 2010-06 → —

Part groups

PNCDescription
46135 Stopper, Parking Brake Cable End
46201E Lever Sub-assy, Parking Brake
46243 Cover, Parking Brake Lever
46341 Equalizer, Parking Brake
46410 Cable Assy, Parking Brake, NO.1
46420 Cable Assy, Parking Brake, NO.2
46420A Clamp, NO.1(FOR PARKING BRAKE CABLE)
46420B Clamp, NO.2(FOR PARKING BRAKE CABLE)
46430 Cable Assy, Parking Brake, NO.3
46441 Nut, Wire Adjusting, NO.1
46441A Nut, Wire Adjusting, NO.2
47658B Protector, Parking Brake Lever
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
