Toyota Auris/Hybrid (UKP)

2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

17 part groups · 15 illustrations

Illustrations

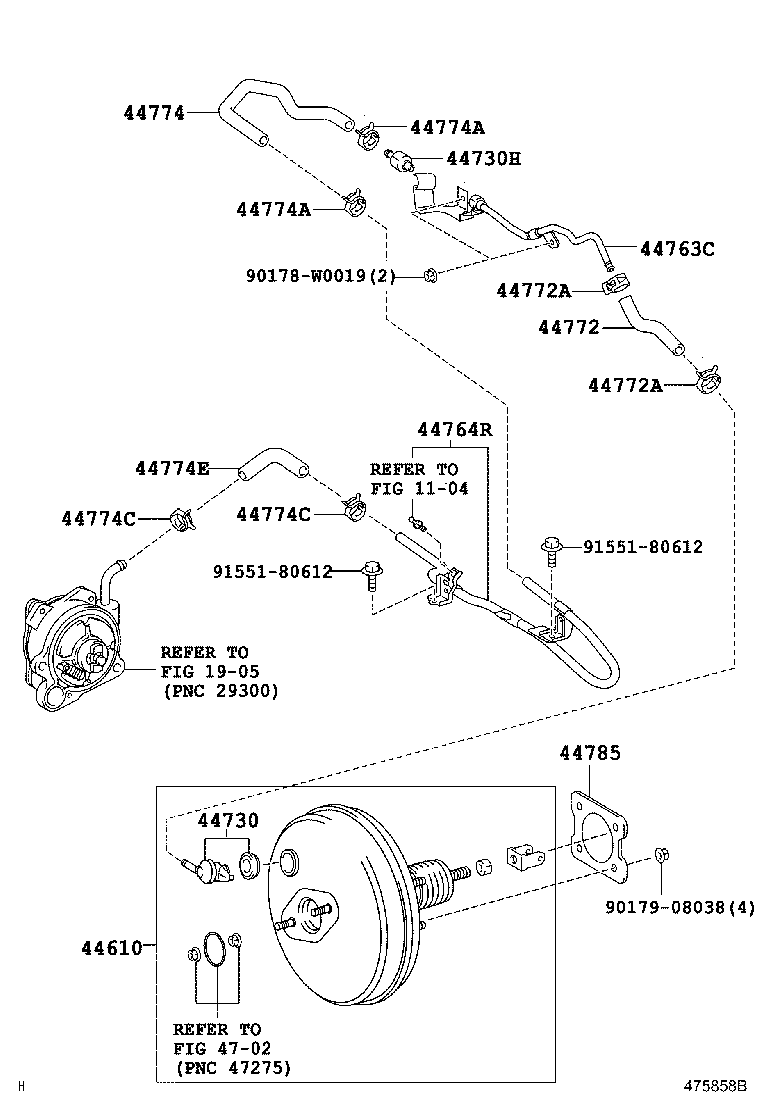

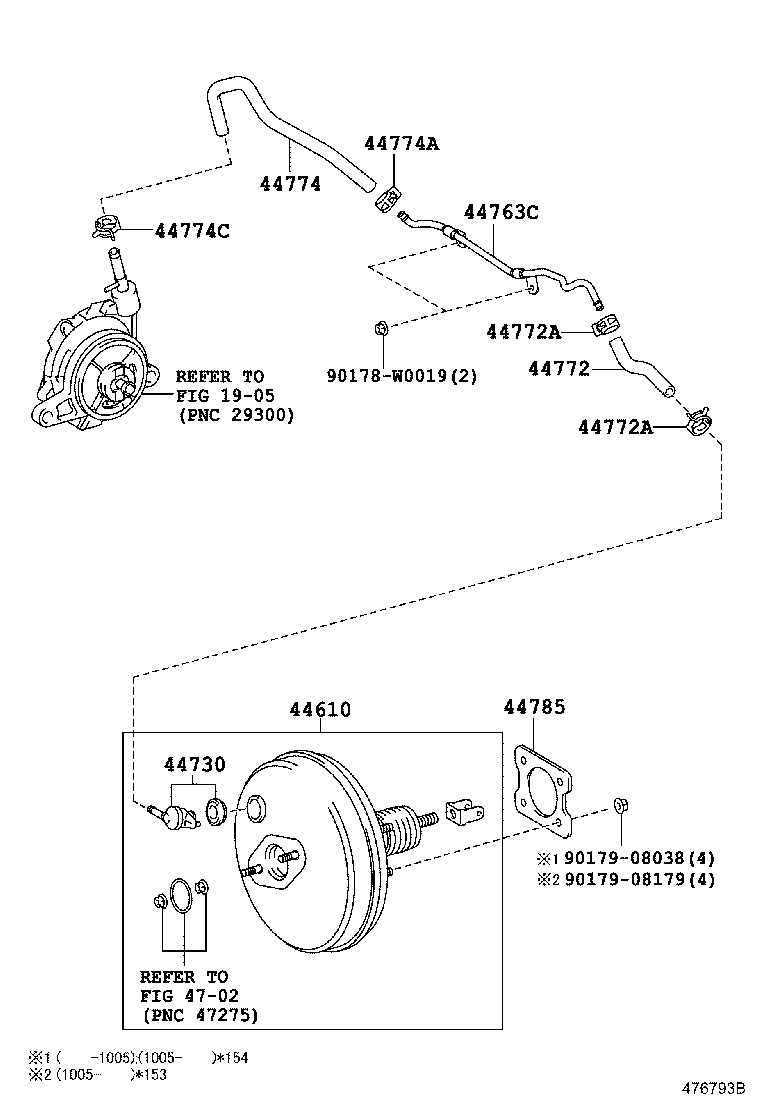

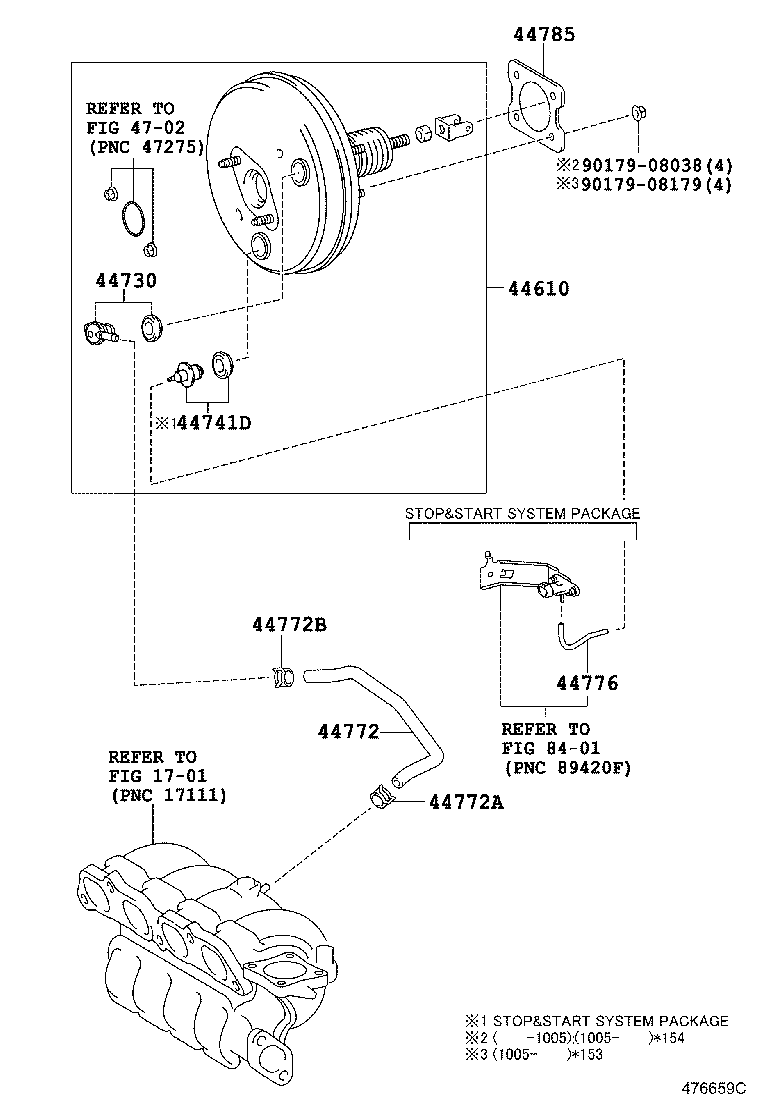

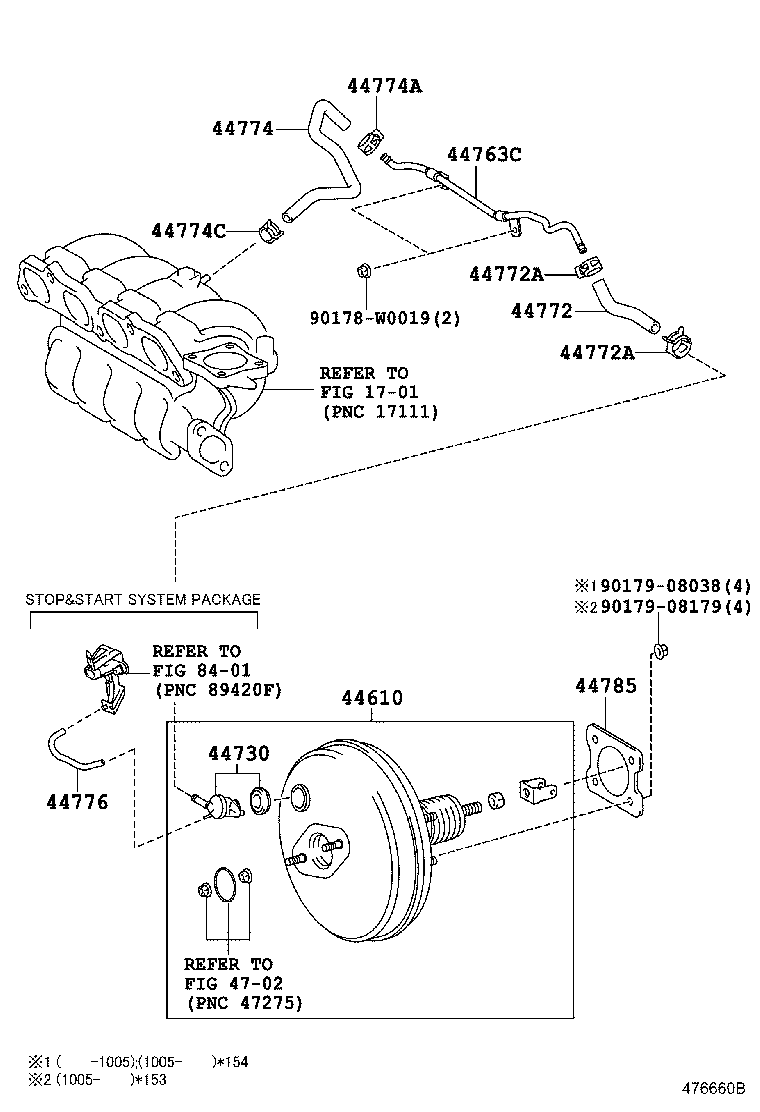

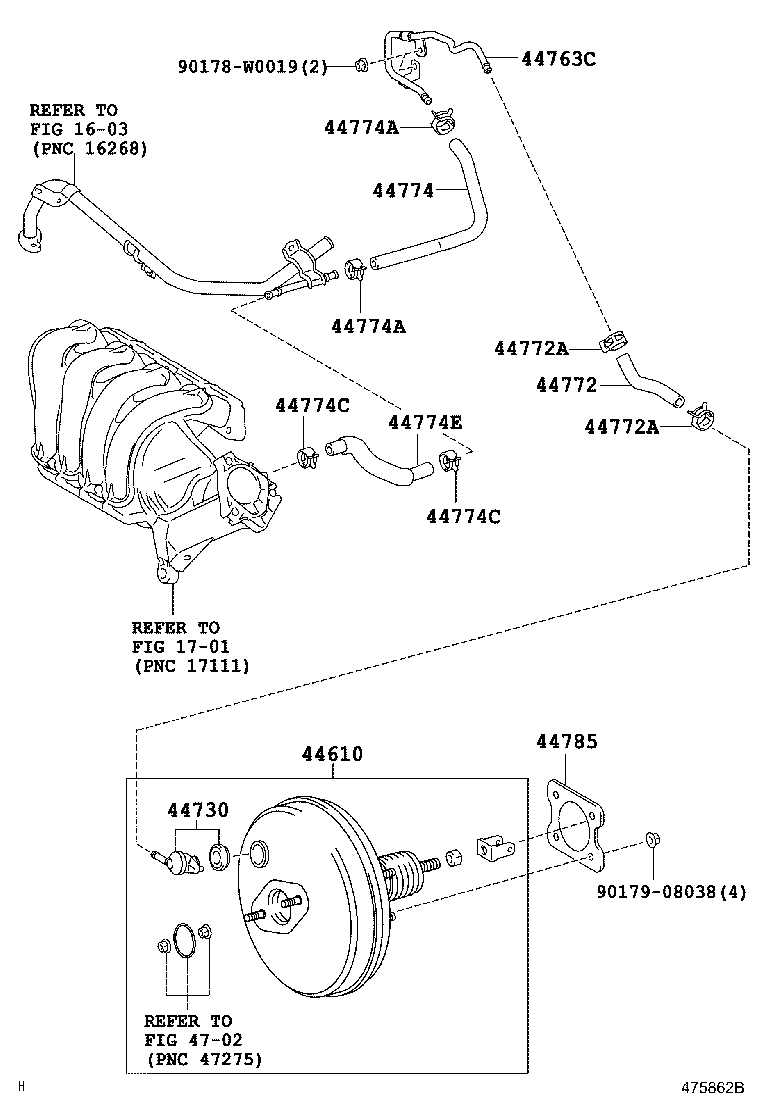

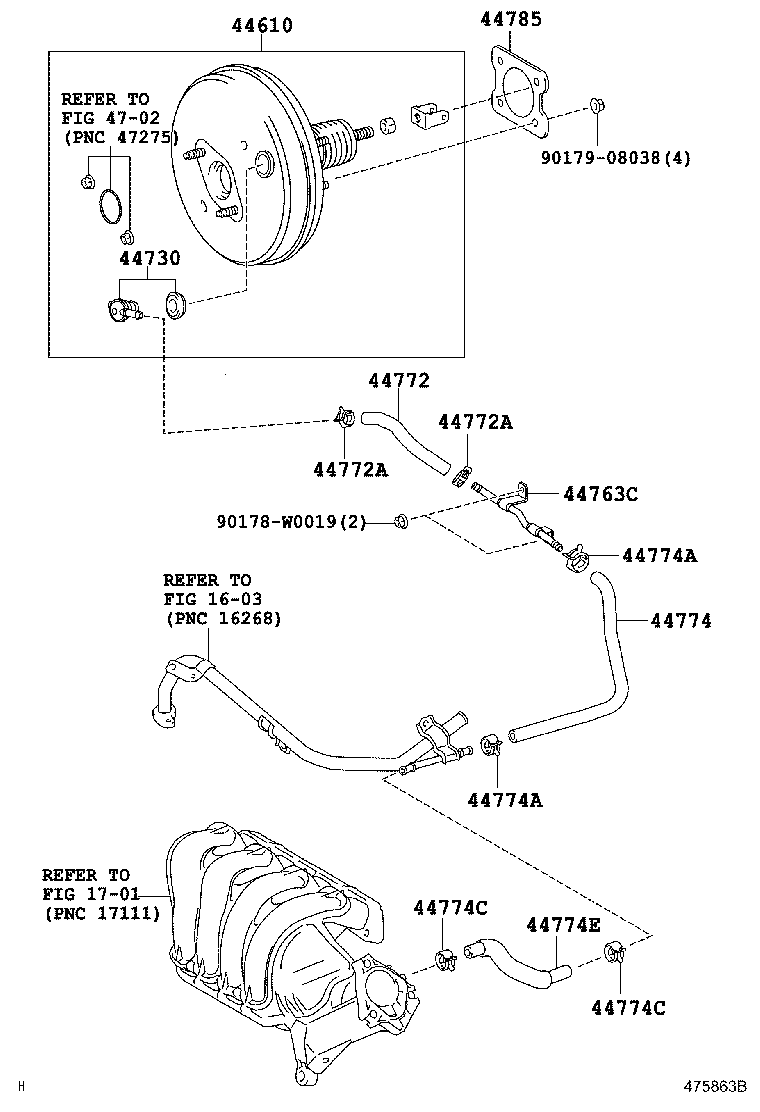

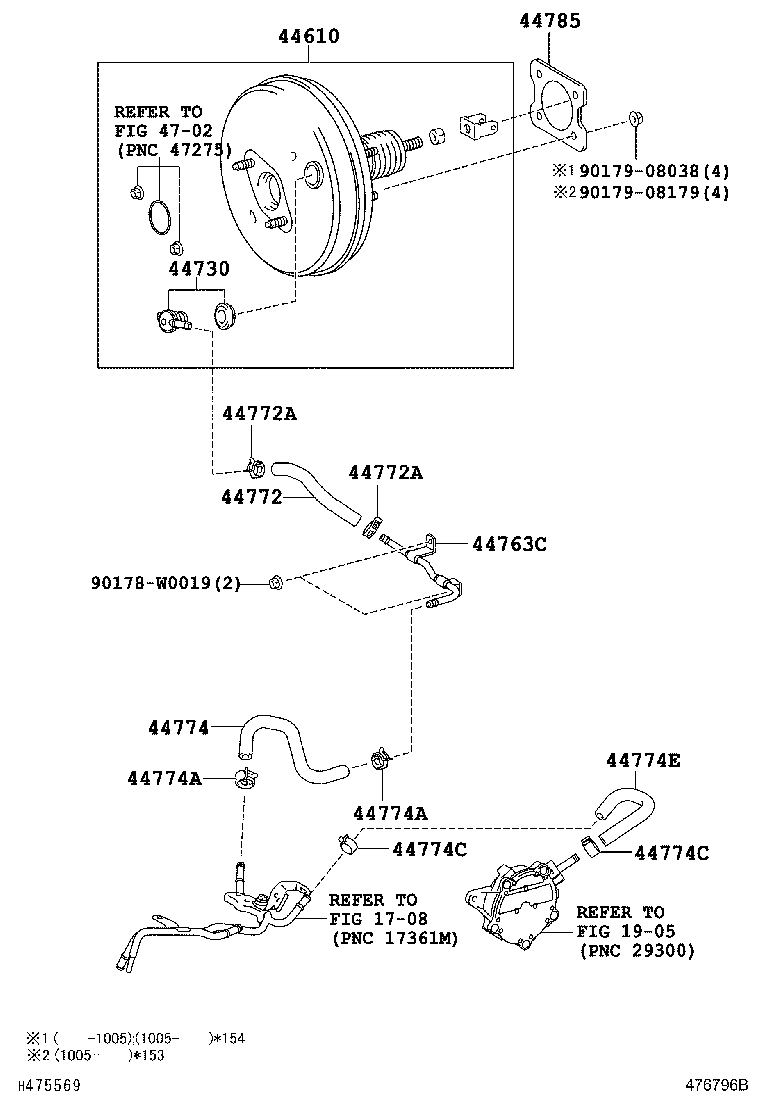

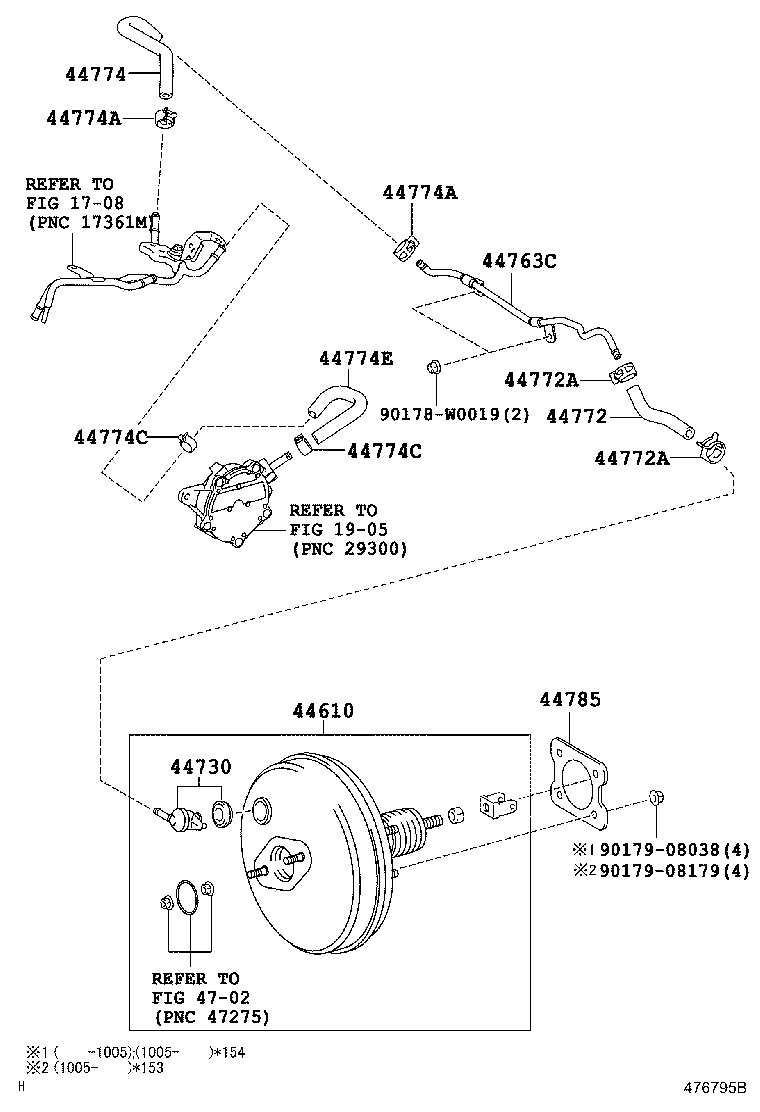

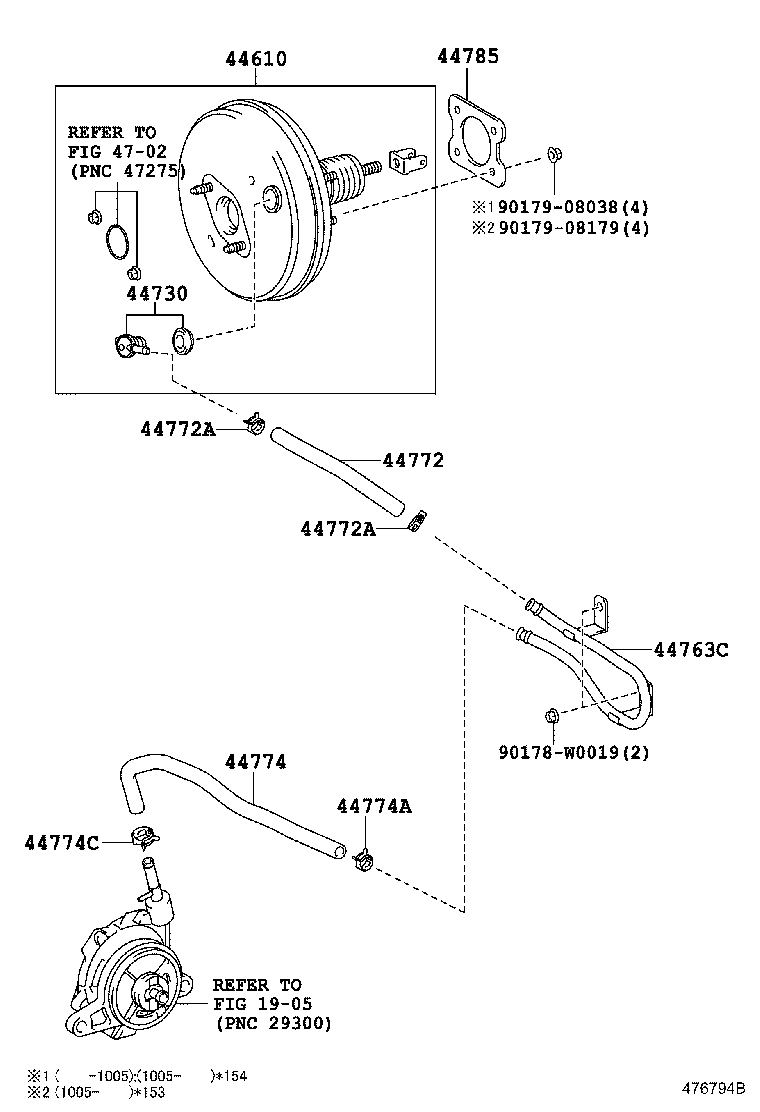

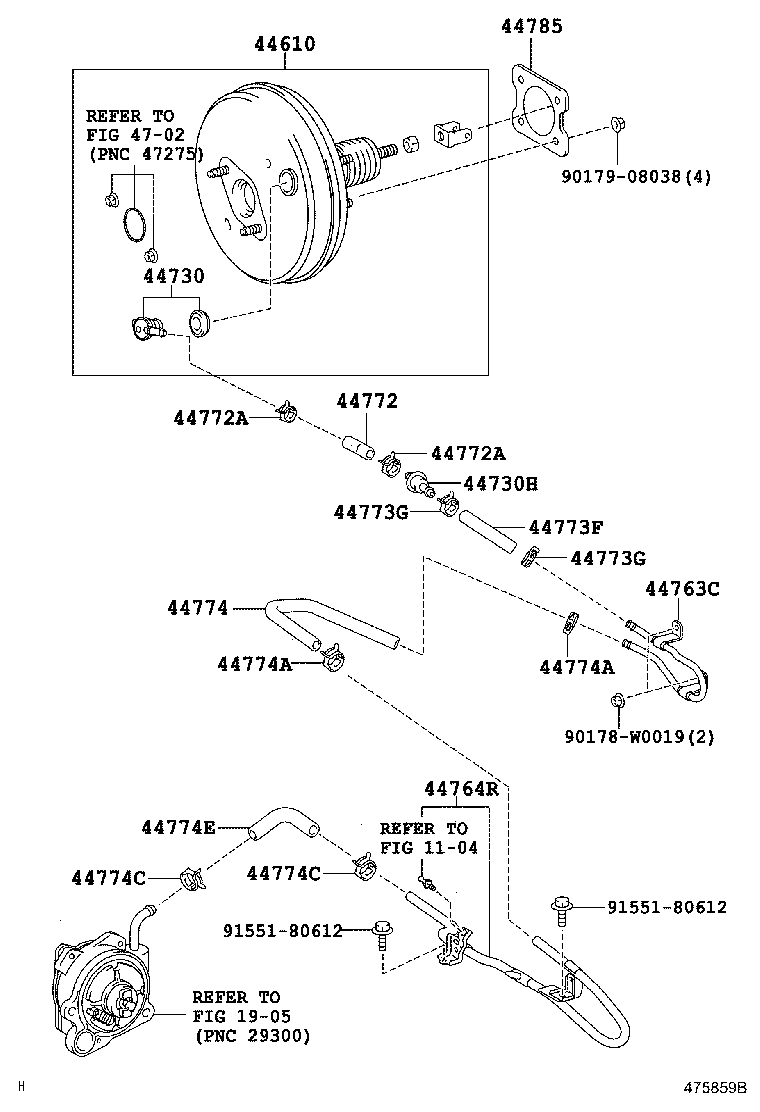

Figure 475856C 475856C 2007-02 → — Figure 475857B 475857B 2007-02 → 2010-01 Figure 475858B 475858B 2007-02 → 2009-02 Figure 476793B 476793B 2009-02 → — Figure 476660B 476660B 2008-11 → — Figure 475859B 475859B 2007-02 → 2009-02 Figure 476794B 476794B 2009-02 → — Figure 476659C 476659C 2008-11 → — Figure 475860C 475860C 2007-02 → 2009-02 Figure 475860C 475860C 2009-09 → — Figure 476795B 476795B 2009-02 → — Figure 475861B 475861B 2007-02 → 2009-02 Figure 476796B 476796B 2009-02 → — Figure 475862B 475862B 2007-02 → 2008-11 Figure 475863B 475863B 2007-02 → 2008-11

Part groups

PNCDescription
44610 Booster Assy, Brake
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730H Valve Assy, Vacuum Check(FOR VACUUM RESERVOIR)
44741D Body, Vacuum Check Valve
44763C Tube, Hose TO Hose, NO.2
44764R Tube, Connector TO Vacuum Reservoir
44772 Hose, Check Valve TO Connector Tube
44772A Clip(FOR CHECK VALVE TO CONNECTOR TUBE)
44772B Hose, Check Valve TO Brake Booster
44773F Hose, Union TO Check Valve
44773G Clip(FOR UNION TO CHECK VALVE HOSE)
44774 Hose, Union TO Connector Tube
44774A Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774C Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44774E Hose, Union TO Connector Tube
44776 Hose, Brake Booster
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
