Toyota Auris/Hybrid (UKP)
2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe
Supported model
Data version 2014-01

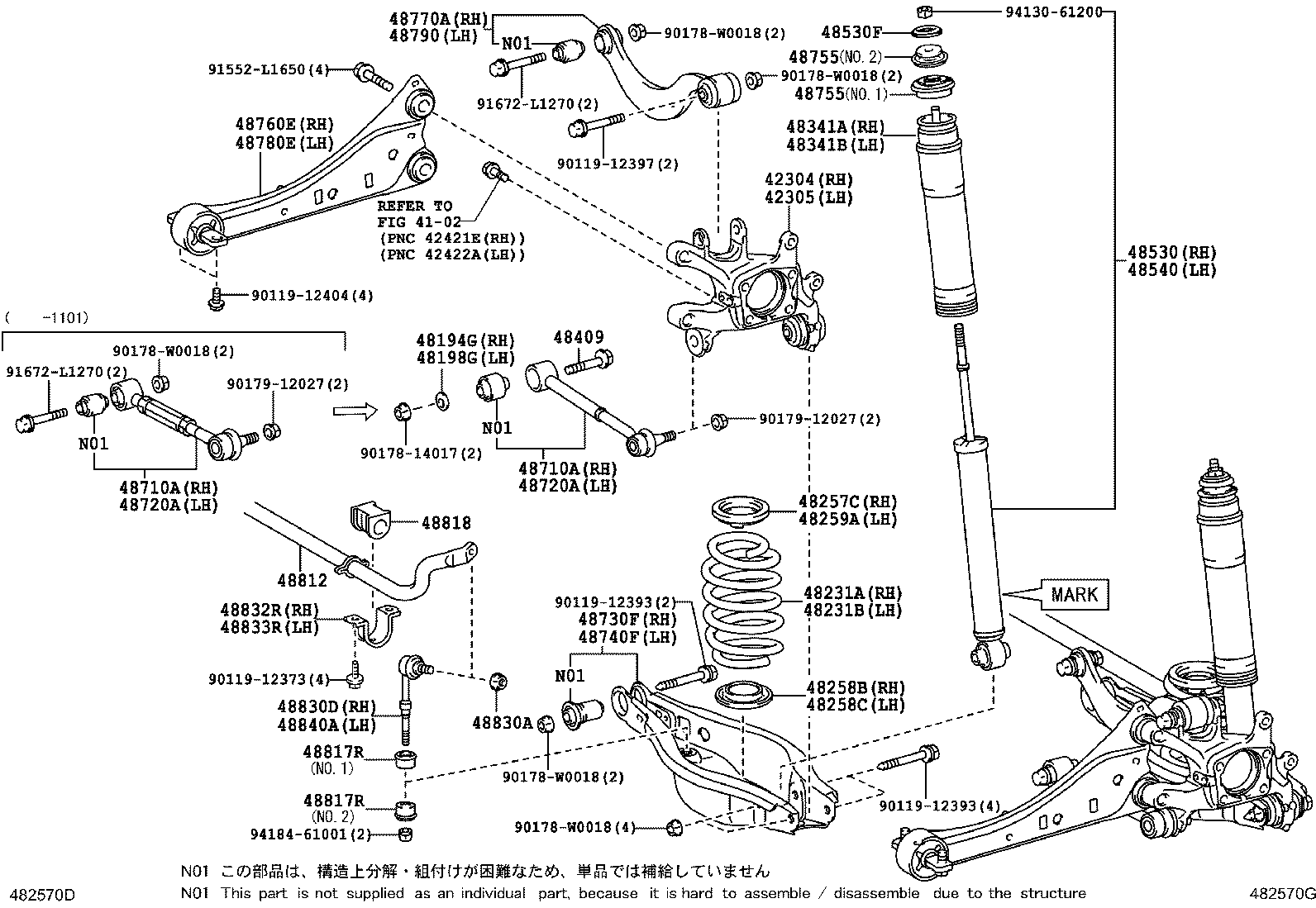

Rear Spring & Shock Absorber
36 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 42110F | Beam Assy, Rear Axle |
| 42304 | Carrier Sub-assy, Rear Axle, RH |
| 42305 | Carrier Sub-assy, Rear Axle, LH |
| 48194G | Cam, Rear Suspension Camber Adjust, NO.1 RH |
| 48198G | Cam, Rear Suspension Camber Adjust, NO.1 LH |
| 48231A | Spring, Coil, Rear RH |
| 48231B | Spring, Coil, Rear LH |
| 48257C | Insulator, Rear Coil Spring, Upper RH |
| 48258B | Insulator, Rear Coil Spring, Lower RH |
| 48258C | Insulator, Rear Coil Spring, Lower LH |
| 48259A | Insulator, Rear Coil Spring, Upper LH |
| 48341A | Bumper, Rear Spring, NO.1 RH |
| 48341B | Bumper, Rear Spring, NO.1 LH |
| 48409 | Cam Sub-assy, Rear Suspension Toe Adjust |
| 48530 | Absorber Assy, Shock, Rear RH |
| 48530F | Retainer, Shock Absorber Cushion(FOR REAR) |
| 48540 | Absorber Assy, Shock, Rear LH |
| 48710A | Arm Assy, Rear Suspension, NO.1 RH |
| 48720A | Arm Assy, Rear Suspension, NO.1 LH |
| 48725F | Bush, Rear Axle Carrier, RH |
| 48725G | Bush, Rear Axle Carrier, LH |
| 48730F | Arm Assy, Rear Suspension, NO.2 RH |
| 48740F | Arm Assy, Rear Suspension, NO.2 LH |
| 48755 | Support, Rear Suspension |
| 48760E | Arm Assy, Trailing, Rear RH |
| 48770A | Arm Assy, Upper Control, Rear RH |
| 48780E | Arm Assy, Trailing, Rear LH |
| 48790 | Arm Assy, Upper Control, Rear LH |
| 48812 | Bar, Stabilizer, Rear |
| 48817R | Cushion, Stabilizer(FOR REAR) |
| 48818 | Bush, Stabilizer, Rear |
| 48830A | Nut(FOR REAR STABILIZER LINK) |
| 48830D | Link Assy, Rear Stabilizer, RH |
| 48832R | Bracket, Rear Stabilizer Bar, NO.1 RH |
| 48833R | Bracket, Rear Stabilizer Bar, NO.1 LH |
| 48840A | Link Assy, Rear Stabilizer, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
