Toyota Auris/Hybrid (UKP)

2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

20 part groups · 6 illustrations

Illustrations

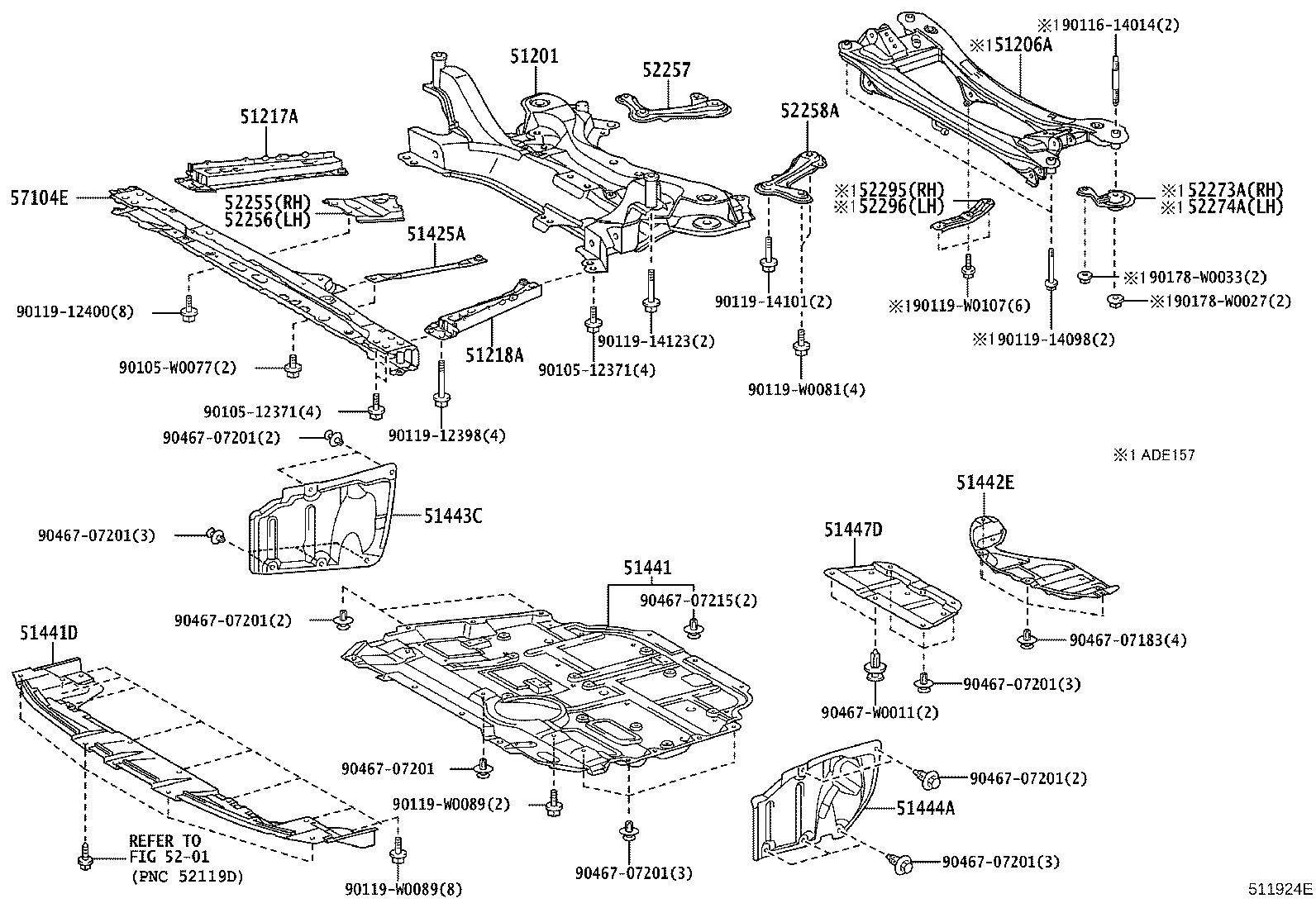

Figure 511671H 511671H 2007-02 → 2009-02 Figure 511671H 511671H 2007-02 → 2009-03 Figure 511671H 511671H 2007-02 → — Figure 511671H 511671H 2009-02 → — Figure 511924E 511924E 2009-02 → — Figure 511924E 511924E 2009-03 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51217A Reinforcement, Front Suspension Member, RH
51218A Reinforcement, Front Suspension Member, LH
51425A Reinforcement, Engine Front Mounting Bracket, Lower
51441 Cover, Engine Under, NO.1
51441D Cover, Engine Under
51442E Cover, Engine Under, NO.2
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
51447D Cover, Engine Under, NO.4 Center
52255 Brace, Front Suspension Member, Front RH
52256 Brace, Front Suspension Member, Front LH
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
52273A Stopper, Rear Suspension Member, Lower RH
52274A Stopper, Rear Suspension Member, Lower LH
52295 Brace, Rear Suspension Member, RH
52296 Brace, Rear Suspension Member, LH
57104E Member Sub-assy, Front Cross
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
