Toyota Auris/Hybrid (UKP)

2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

17 part groups · 6 illustrations

Illustrations

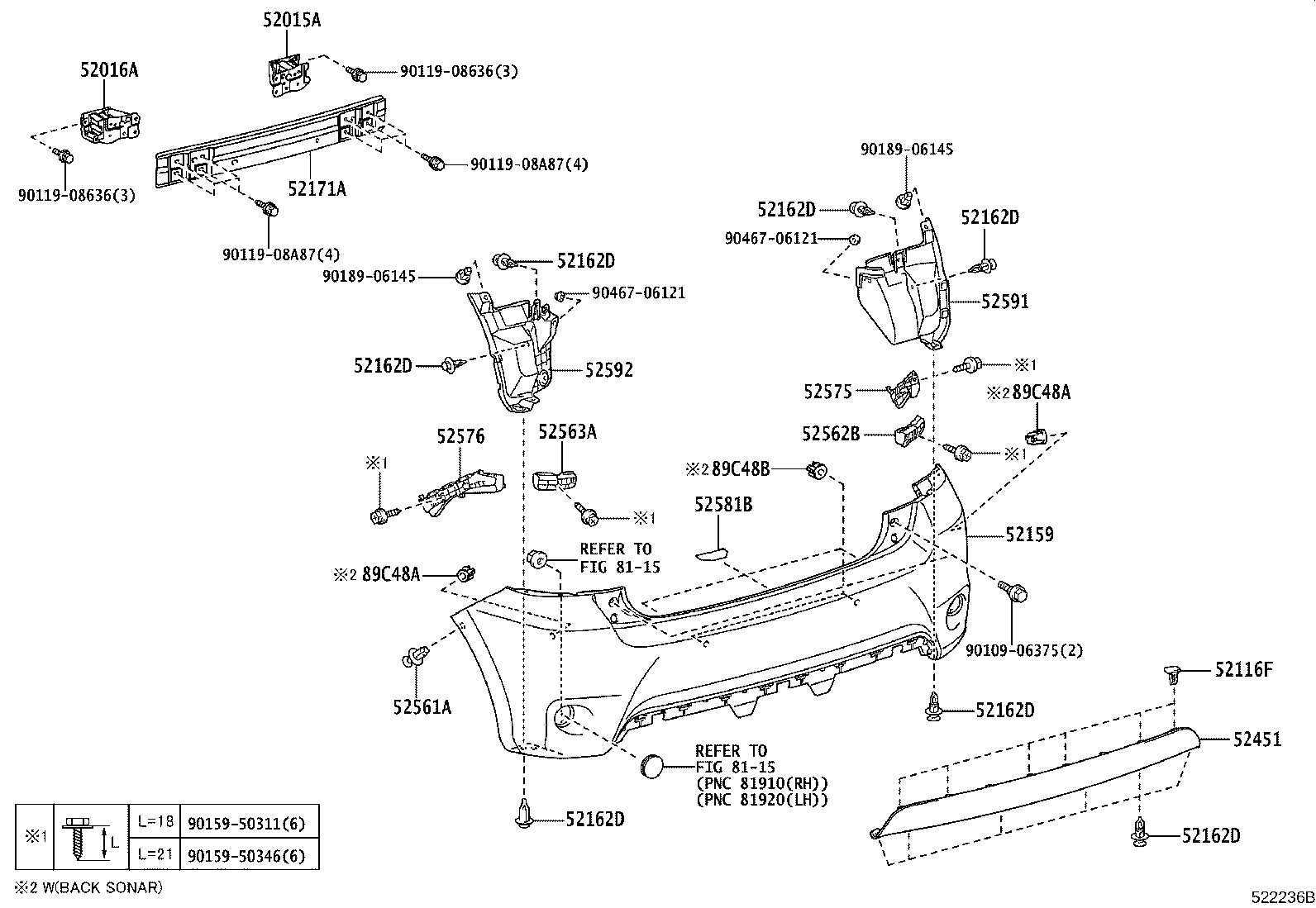

Figure 521726G 521726G 2007-02 → 2009-12 Figure 521726G 521726G 2009-12 → 2010-01 Figure 521726G 521726G 2009-12 → 2010-01 Figure 522236B 522236B 2009-12 → — Figure 522236B 522236B 2009-12 → — Figure 522236B 522236B 2010-01 → —

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52116F Retainer, Rear Bumper
52159 Cover, Rear Bumper
52162D Piece, Rear Bumper
52171A Reinforcement, Rear Bumper, NO.1
52451 Guard, Rear Bumper
52561A Clip(FOR REAR BUMPER RETAINER)
52562B Retainer, Rear Bumper, Upper RH
52563A Retainer, Rear Bumper, Upper LH
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52581B Protector, Rear Bumper
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
89C48A Retainer, Ultrasonic Sensor, Rear Corner
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
