Toyota Auris/Hybrid (UKP)

2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

4 part groups · 6 illustrations

Illustrations

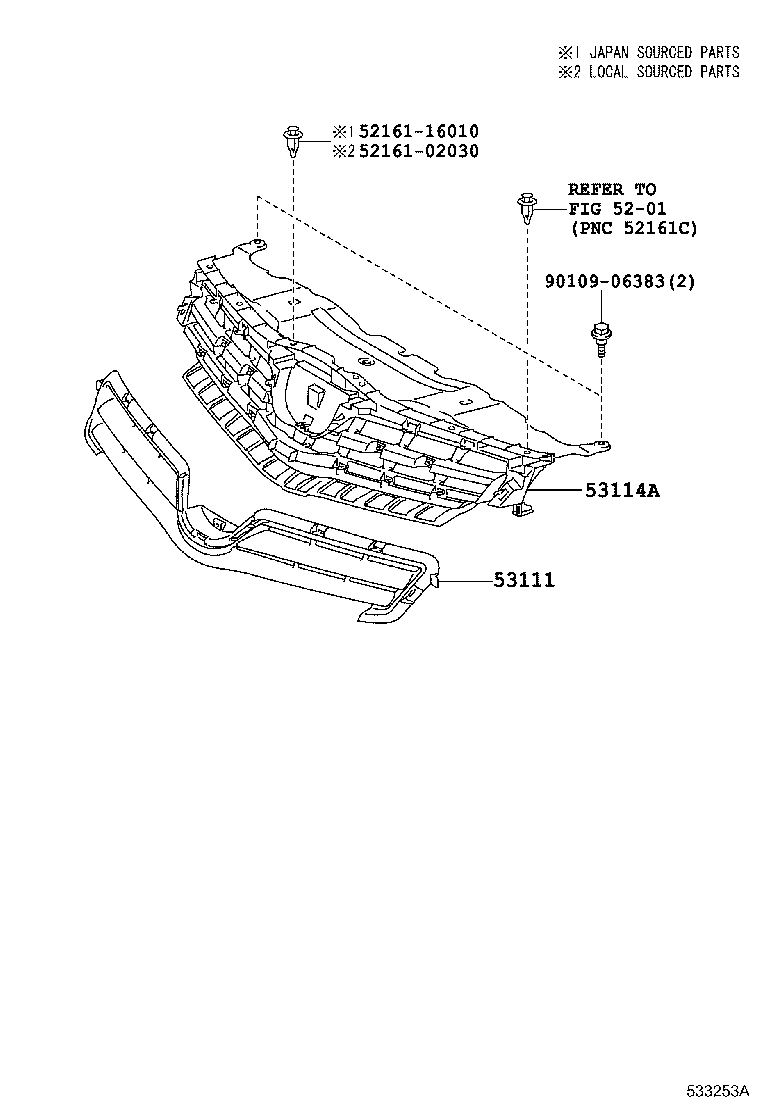

Figure 532483D 532483D 2007-02 → 2009-12 Figure 532483D 532483D 2009-12 → 2010-01 Figure 532483D 532483D 2009-12 → 2010-01 Figure 533253A 533253A 2009-12 → — Figure 533253A 533253A 2010-01 → — Figure 533251A 533251A 2010-06 → —

Part groups

PNCDescription
53111 Grille, Radiator
53114A Grille, Radiator, Inner
53121A Moulding, Radiator Grille
75317A Plate, Radiator Grille Ornament
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
