Toyota Auris/Hybrid (UKP)
2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe
Supported model
Data version 2014-01

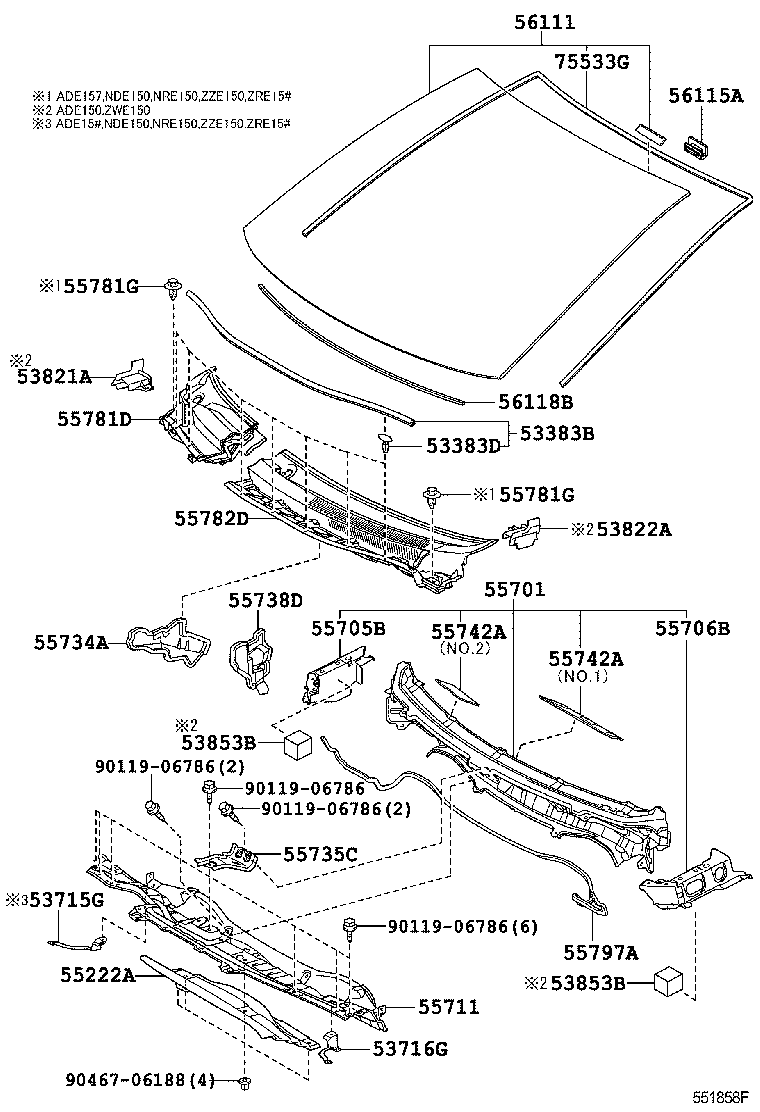

Cowl Panel & Windshield Glass
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53383B | Seal, Hood TO Cowl Top |
| 53383D | Clip(FOR HOOD TO COWL TOP SEAL) |
| 53715G | Extension, Front Fender Apron, Rear RH |
| 53716G | Extension, Front Fender Apron, Rear LH |
| 53821A | Protector, Front Side Panel, NO.1 RH |
| 53822A | Protector, Front Side Panel, NO.1 LH |
| 53853B | Pad, Front Wheel Opening Extension, NO.1 |
| 55222A | Insulator, Dash Panel, Outer Center |
| 55701 | Panel Sub-assy, Cowl |
| 55705B | Panel Sub-assy, Cowl Top Side, RH |
| 55706B | Panel Sub-assy, Cowl Top Side, LH |
| 55711 | Panel, Cowl Top, Outer |
| 55734A | Plate, Water Guard, RH |
| 55735C | Reinforcement, Cowl Body Mounting, RH |
| 55736D | Reinforcement, Cowl Body Mounting, LH |
| 55737B | Seal, Heater Air Duct Splash Shield, NO.1 |
| 55738D | Seal, Heater Air Duct Splash Shield, NO.2 |
| 55742A | Sheet, Cowl Top Insulator |
| 55781D | Louver, Cowl Top Ventilator, RH |
| 55781G | Clip, Cowl Top Ventilator Louver |
| 55782D | Louver, Cowl Top Ventilator, LH |
| 55797A | Seal, Cowl Water Extract |
| 56111 | Glass, Windshield |
| 56115A | Stopper, Windshield Glass, NO.1 |
| 56118B | Dam, Window Glass Adhesive, NO.2 |
| 75533G | Moulding, Windshield, Outside |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
