Toyota Auris/Hybrid (UKP)

2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

9 part groups · 2 illustrations

Illustrations

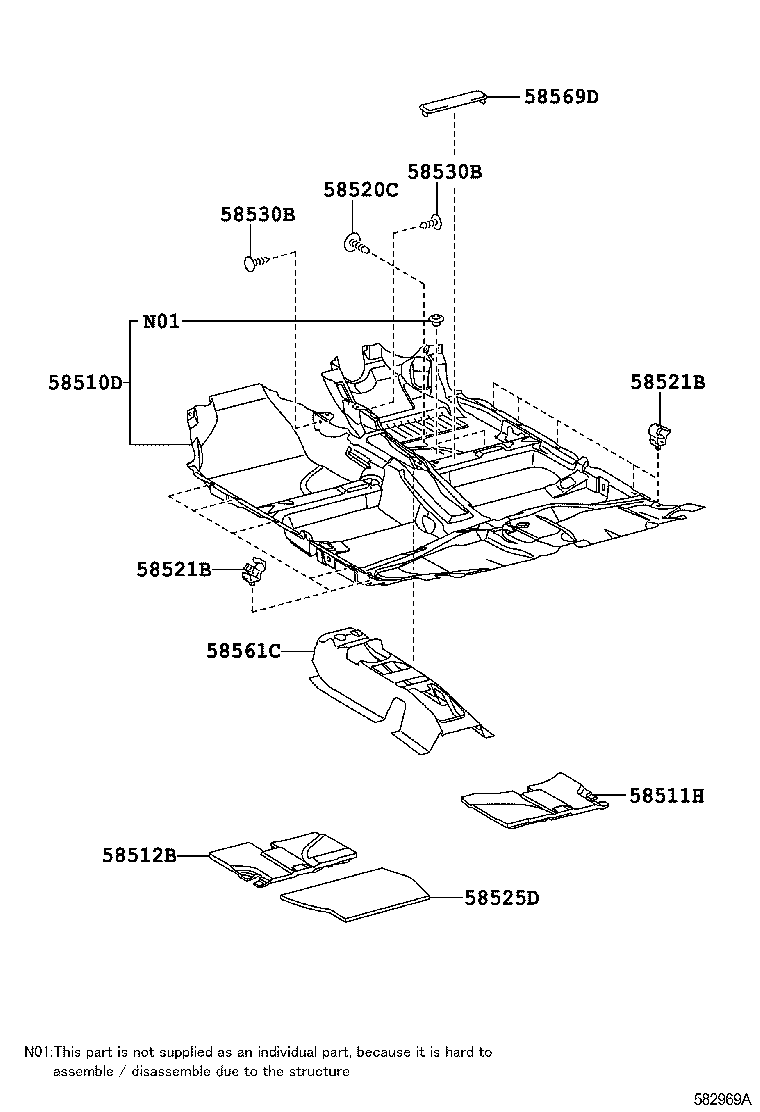

Figure 582970B 582970B 2007-02 → — Figure 582969A 582969A 2007-02 → —

Part groups

PNCDescription
58510D Carpet Assy, Floor, Front
58511H Mat, Floor, Front RH
58512B Mat, Floor, Front LH
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58525D Mat, Front Floor, Rear NO.3
58530B Clip(FOR FRONT FLOOR CARPET)
58561C Silencer, Front Floor, NO.1
58569D Cover, Front Floor Caution Plate
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
