Toyota Auris/Hybrid (UKP)

2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

22 part groups · 8 illustrations

Illustrations

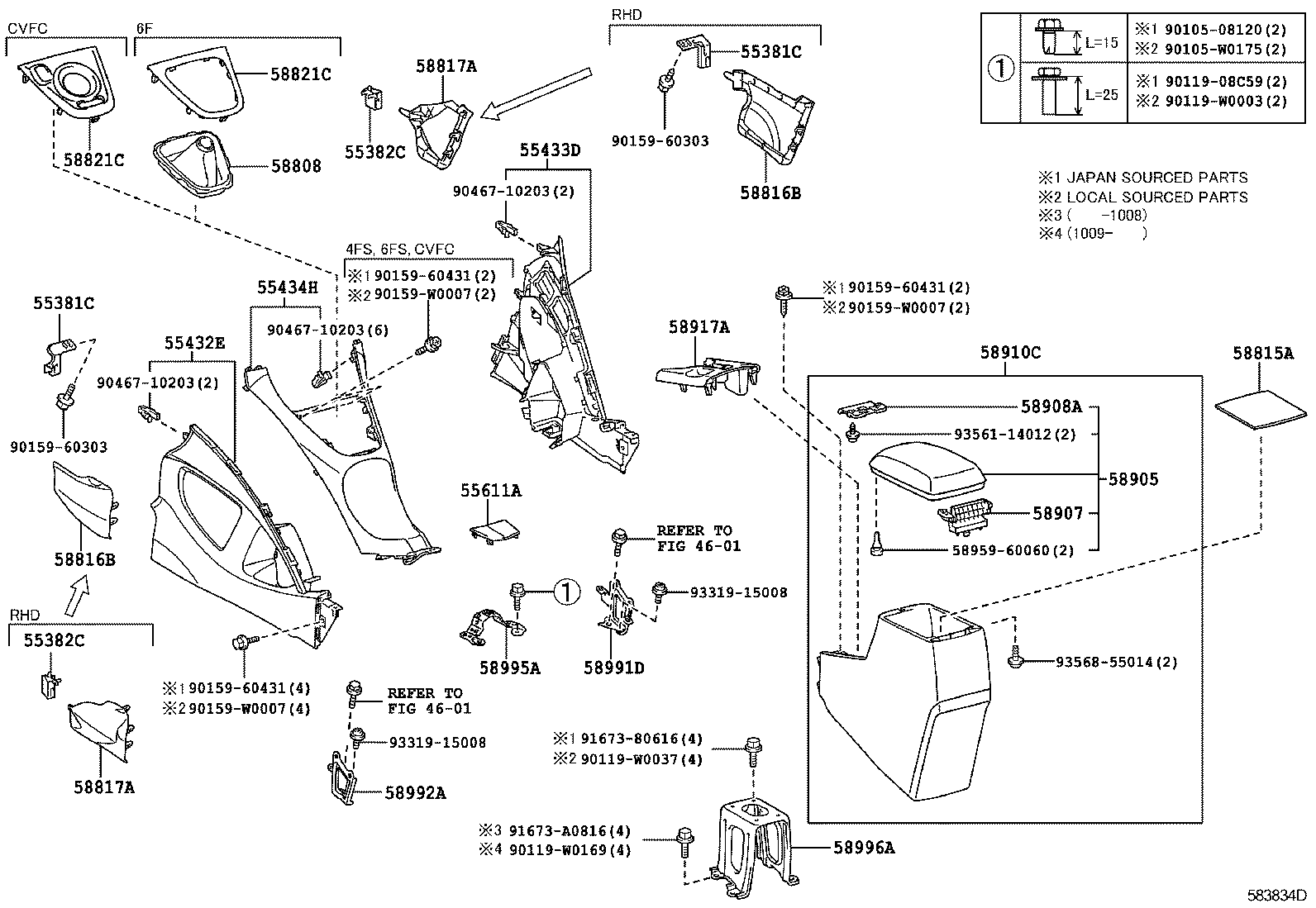

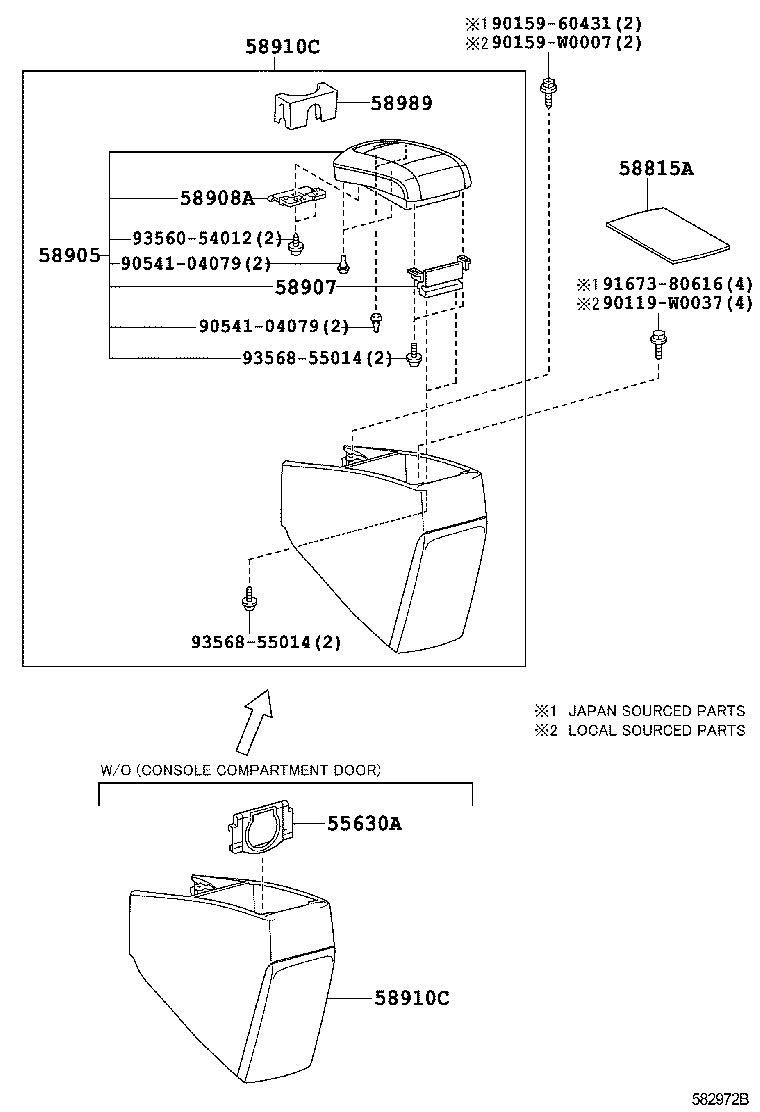

Figure 582971F 582971F 2007-02 → 2009-12 Figure 582971F 582971F 2007-02 → 2010-01 Figure 582971F 582971F 2009-12 → 2010-01 Figure 582972B 582972B 2007-02 → 2009-12 Figure 582972B 582972B 2007-02 → 2010-01 Figure 582972B 582972B 2009-12 → 2010-01 Figure 583834D 583834D 2009-12 → — Figure 583834D 583834D 2010-01 → —

Part groups

PNCDescription
55381C Bracket, Finish Panel Mounting, NO.1
55382C Bracket, Finish Panel Mounting, NO.2
55432E Panel, Instrument Panel Finish, Lower NO.1
55433D Panel, Instrument Panel Finish, Lower NO.2
55434H Panel, Instrument Panel Finish, Lower Center
55611A Tray, Instrument Panel Under
55630A Holder, Rear Console Box, Cup
58808 Cover Sub-assy, Shifting Hole
58815A Carpet, Console Box
58816B Insert, Console Box
58817A Insert, Console Box, Front NO.2
58821C Panel, Console, Upper
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58910C Box Assy, Console, Rear
58917A Cover, Console Box, Rear
58989 Panel, Console Compartment Door
58991D Bracket, Console Box Mounting, Upr RH
58992A Bracket, Console Box Mounting, Upr LH
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
