Toyota Auris/Hybrid (UKP)
2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe
Supported model
Data version 2014-01

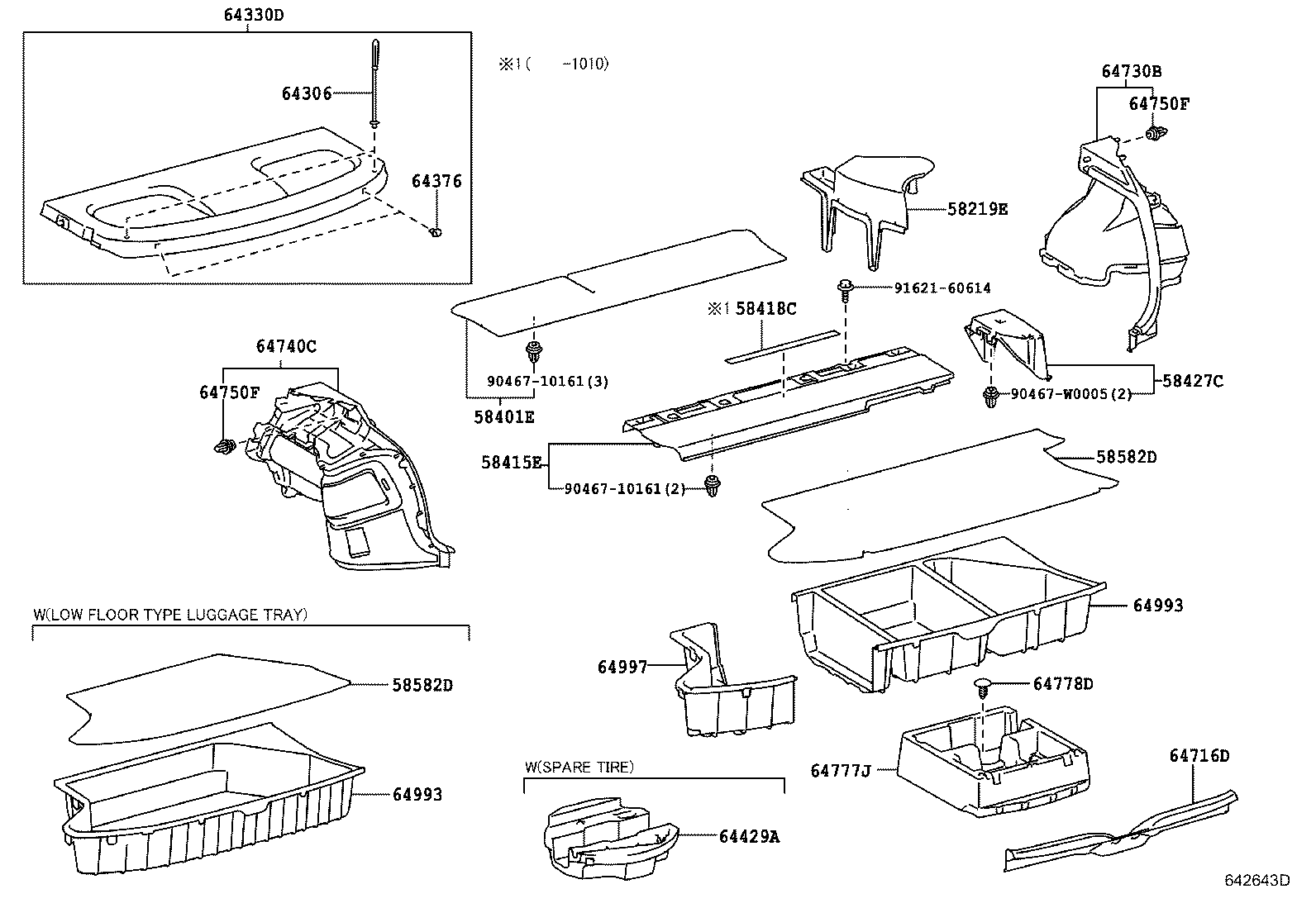

Deck Board & Deck Trim Cover
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58219E | Cover, Battery Box |
| 58401E | Board Sub-assy, Deck |
| 58415E | Board, Rear Floor, NO.1 |
| 58418C | Plate, Deck Board |
| 58427C | Spacer, Rear Floor Board |
| 58460D | Striker Assy, Luggage Hold Belt |
| 58582D | Mat, Rear Floor, Rear |
| 63709B | Band Sub-assy, Room Rack |
| 64306 | Suspender Sub-assy, Package Tray Trim |
| 64330D | Panel Assy, Package Tray Trim |
| 64376 | Spacer, Package Tray Trim, NO.2 |
| 64429A | Box, Luggage Compartment Trim |
| 64716D | Cover, Deck Trim, Rear |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64745 | Cover, Rear Combination Lamp Service, RH |
| 64746 | Cover, Rear Combination Lamp Service, LH |
| 64750F | Clip(FOR DECK SIDE TRIM PANEL) |
| 64777J | Cushion, Spare Wheel |
| 64778D | Protector, Spare Wheel |
| 64993 | Box, Deck Floor, Rear |
| 64995 | Box, Deck Floor, RH |
| 64997 | Box, Deck Floor, LH |
| 81496A | Guide, Rear Combination Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
