Toyota Auris/Hybrid (UKP)
2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe
Supported model
Data version 2014-01

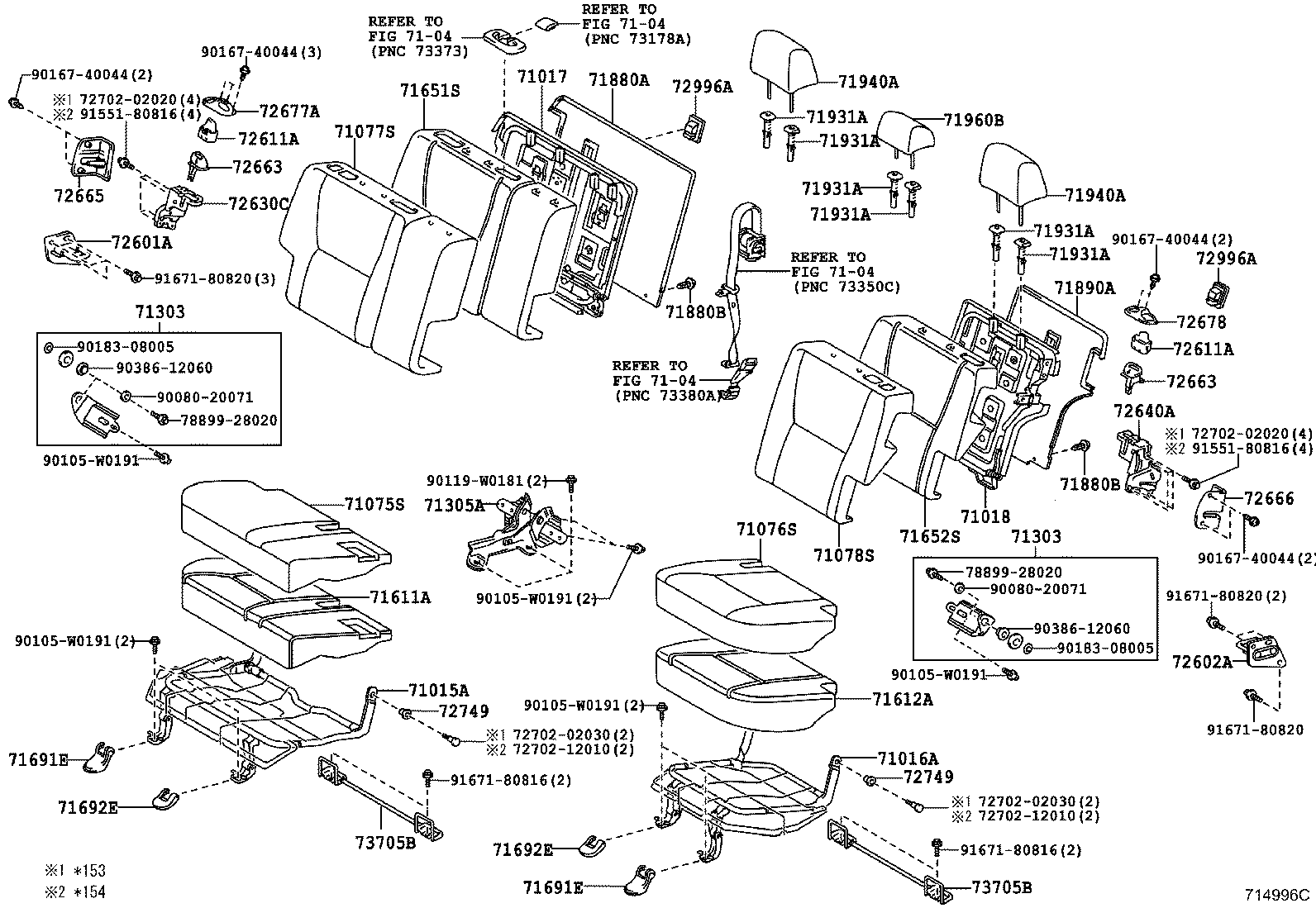

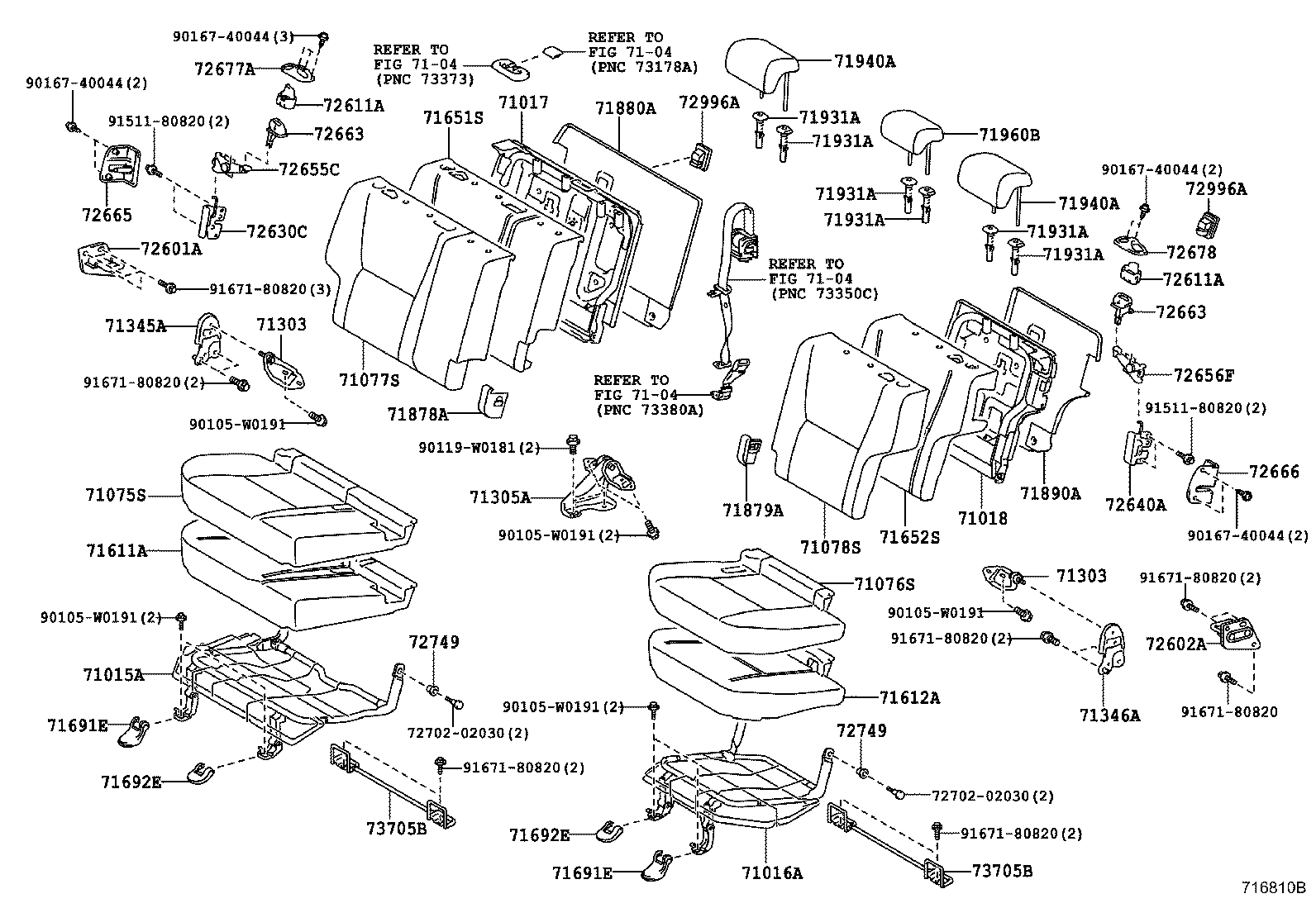

Rear Seat & Seat Track
45 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 71015A | Frame Sub-assy, Rear Seat Cushion, RH |
| 71016A | Frame Sub-assy, Rear Seat Cushion, LH |
| 71017 | Frame Sub-assy, Rear Seatback, RH |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71075S | Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE) |
| 71076S | Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71303 | Hinge Sub-assy, Rear Seatback |
| 71305A | Hinge Sub-assy, Rear Seatback, Center |
| 71345A | Stay, Rear Seatback, RH |
| 71346A | Stay, Rear Seatback, LH |
| 71611A | Pad, Rear Seat Cushion, RH |
| 71612A | Pad, Rear Seat Cushion, LH |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71691E | Cover, Rear Seat Cushion Hinge, NO.1 |
| 71692E | Cover, Rear Seat Cushion Hinge, NO.2 |
| 71878A | Cover, Rear Seat Reclining, Inner RH |
| 71879A | Cover, Rear Seat Reclining, Inner LH |
| 71880A | Carpet Assy, Rear Seatback Board, RH |
| 71880B | Clip(FOR REAR SEATBACK CARPET) |
| 71890A | Carpet Assy, Rear Seatback Board, LH |
| 71931A | Support, Rear Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72601A | Striker Sub-assy, Rear Seatback Look, RH |
| 72602A | Striker Sub-assy, Rear Seatback Lock, LH |
| 72611A | Base, Rear Seat Lock |
| 72630C | Lock Assy, Rear Seatback, RH |
| 72640A | Lock Assy, Rear Seatback, LH |
| 72655C | Link, Rear Seatback Lock Control, NO.1 RH |
| 72656F | Link, Rear Seatback Lock Control, NO.1 LH |
| 72663 | Lever, Rear Seat Lock Control, NO.1 |
| 72665 | Cover, Rear Seatback Lock, RH |
| 72666 | Cover, Rear Seatback Lock, LH |
| 72677A | Base, Rear Seatback Lock Control Lever, RH |
| 72678 | Base, Rear Seatback Lock Control Lever, LH |
| 72749 | Spacer, Rear Seat Reclining |
| 72830 | Armrest Assy, Rear Seat, Center |
| 72830T | Bush (FOR REAR SEAT CENTER ARMREST) |
| 72848A | Cap, Seat Armrest, NO.1 |
| 72868B | Cover, Center Armrest Hinge |
| 72996A | Cover, Rear Seatback |
| 73705B | Bracket Sub-assy, Cross Anchor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
