Toyota Auris/Hybrid (UKP)
2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe
Supported model
Data version 2014-01
Seat Belt & Child Restraint Seat

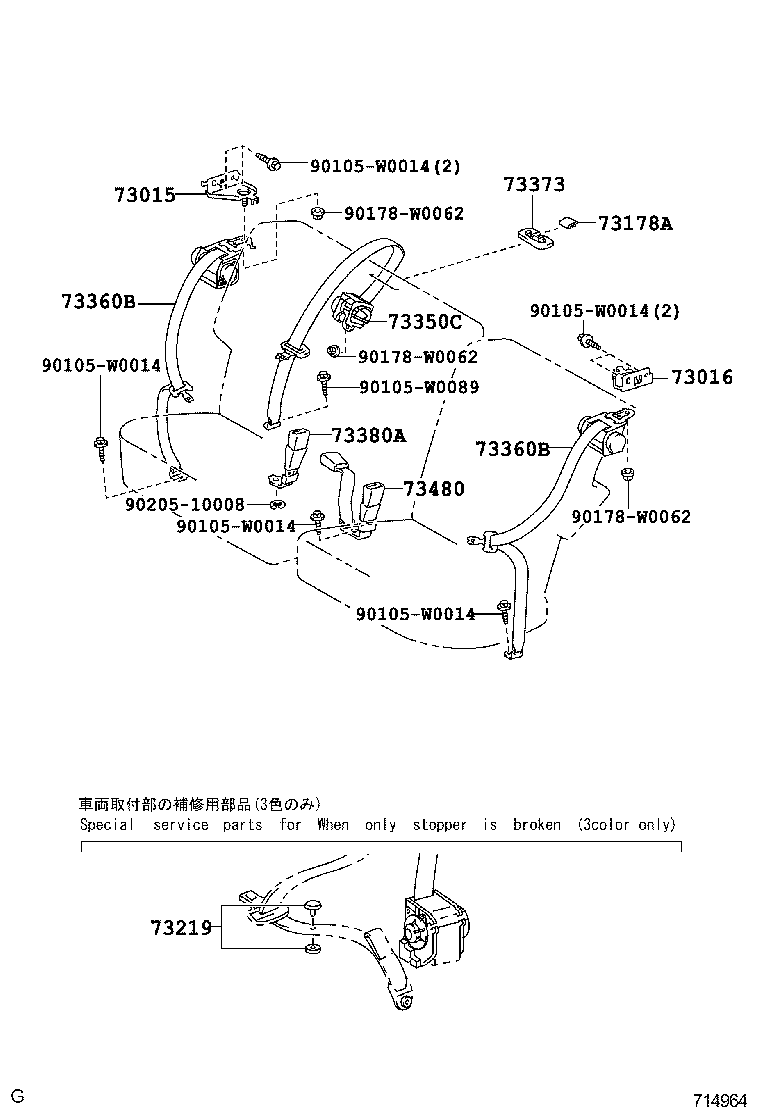

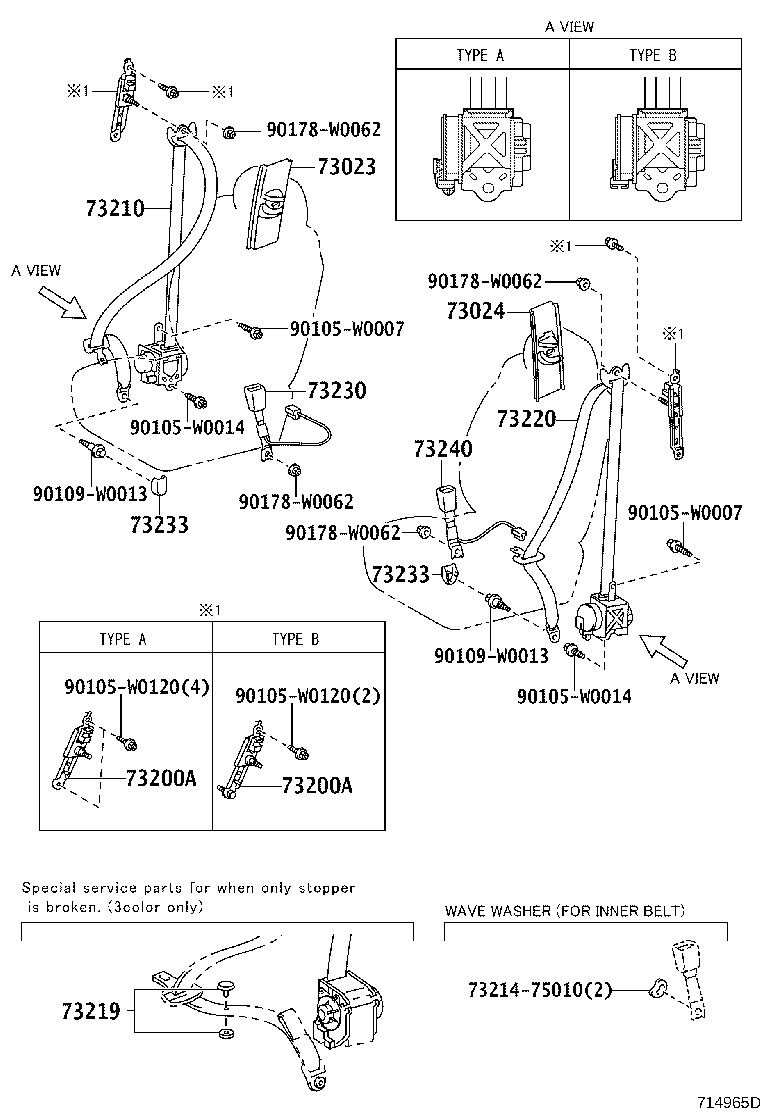

19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 73015 | Bracket Sub-assy, Belt Outer Anchor, RH |
| 73016 | Bracket Sub-assy, Belt Outer Anchor, LH |
| 73023 | Plate Sub-assy, Front Shoulder Belt Anchor, RH |
| 73024 | Plate Sub-assy, Front Shoulder Belt Anchor, LH |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73201C | Bar Sub-assy, Front Seat Belt, Outer RH |
| 73202B | Bar Sub-assy, Front Seat Belt, Outer LH |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73350C | Belt Assy, Rear Seat, Outer Center |
| 73360B | Belt Assy, Rear Seat, Outer |
| 73373 | Cover, Rear Seat Shoulder Belt |
| 73380A | Belt Assy, Rear Seat, Inner |
| 73480 | Belt Assy, Rear Seat Inner W/Center, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
