Armrest & Visor

10 part groups · 3 illustrations

Illustrations

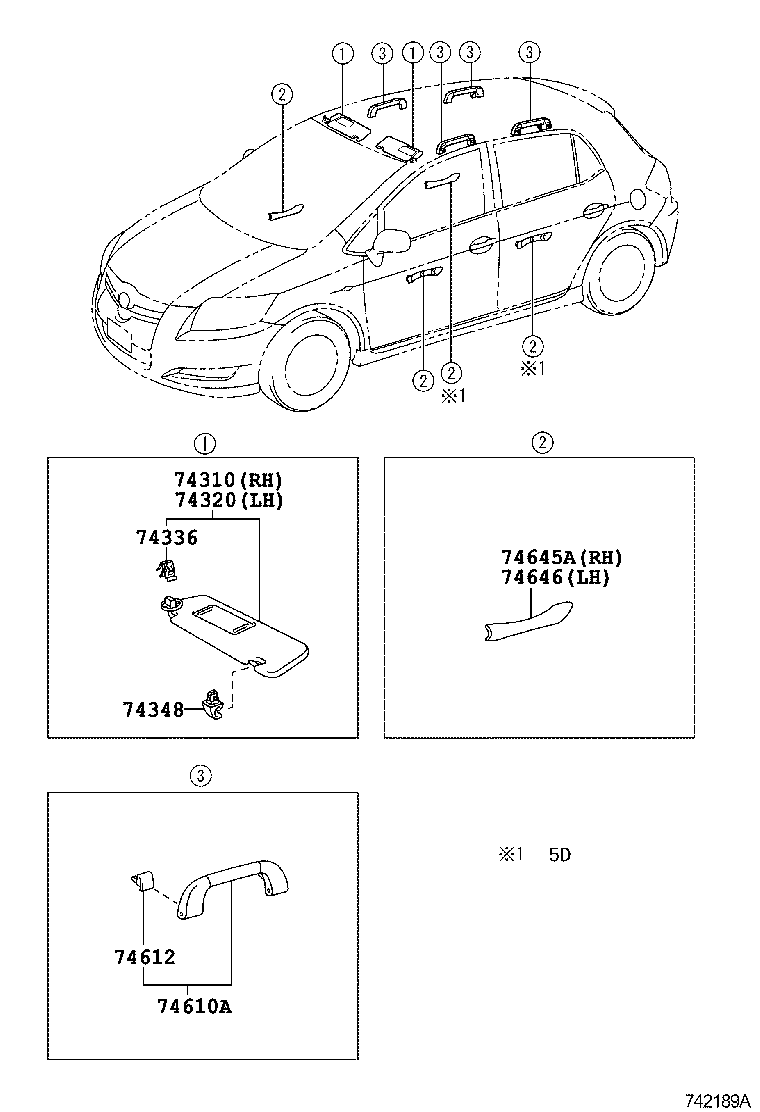

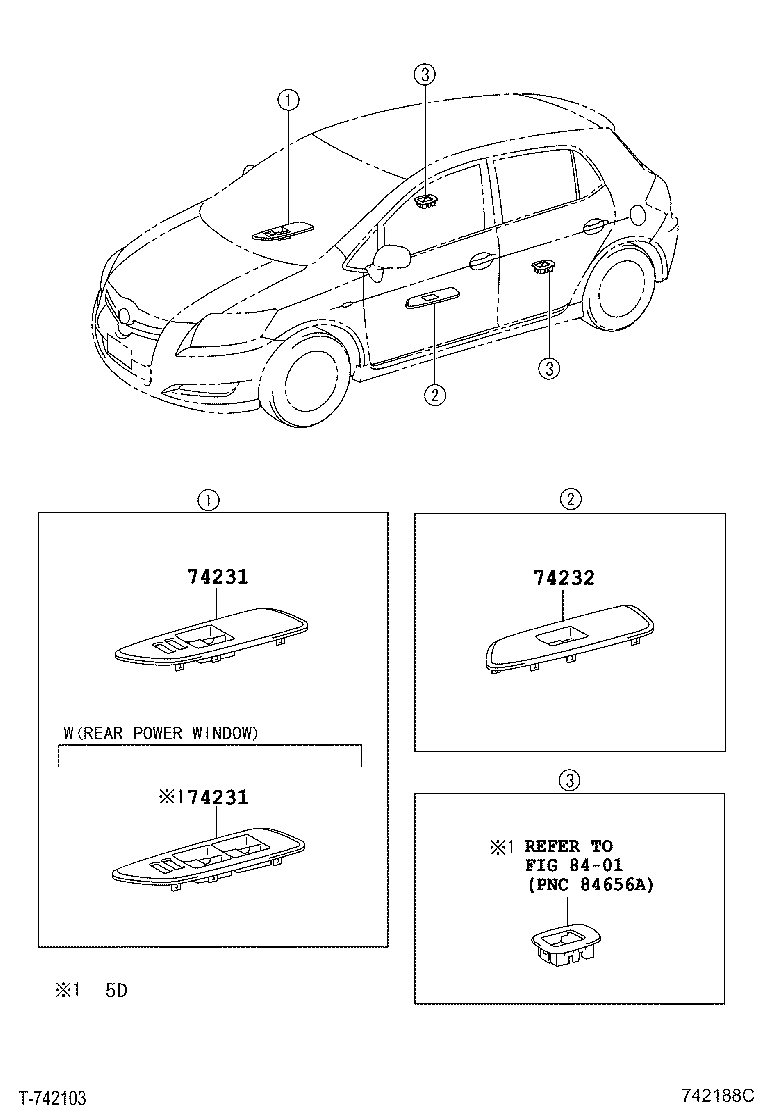

Figure 742187C 742187C 2007-02 → — Figure 742188C 742188C 2007-02 → — Figure 742189A 742189A 2007-02 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74336 Clip, Visor Arm Set
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74612 Cover, Assist Grip
74645A Cover, Door Assist Grip, RH
74646 Cover, Door Assist Grip, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
