Toyota Auris/Hybrid (UKP)

2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

20 part groups · 3 illustrations

Illustrations

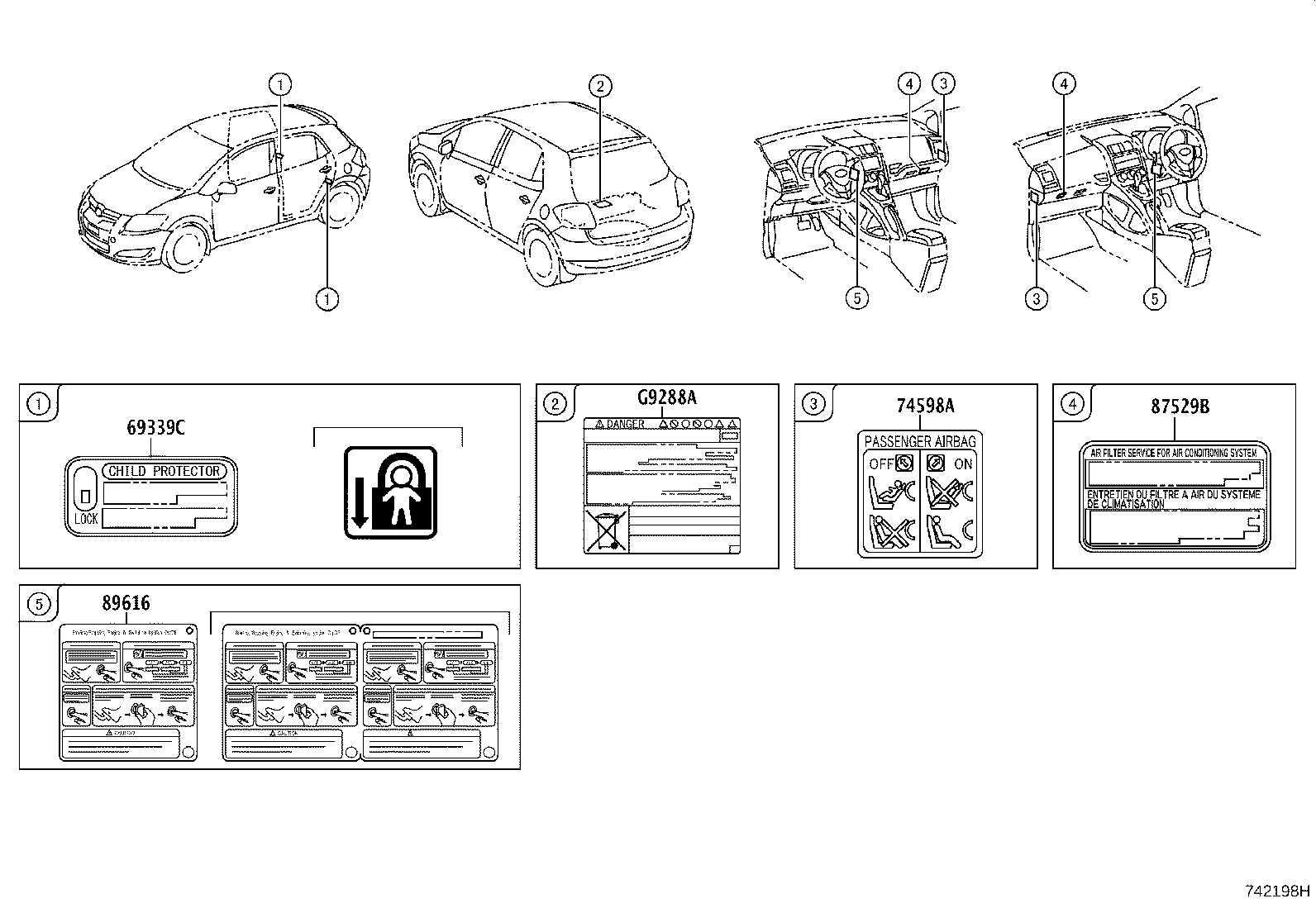

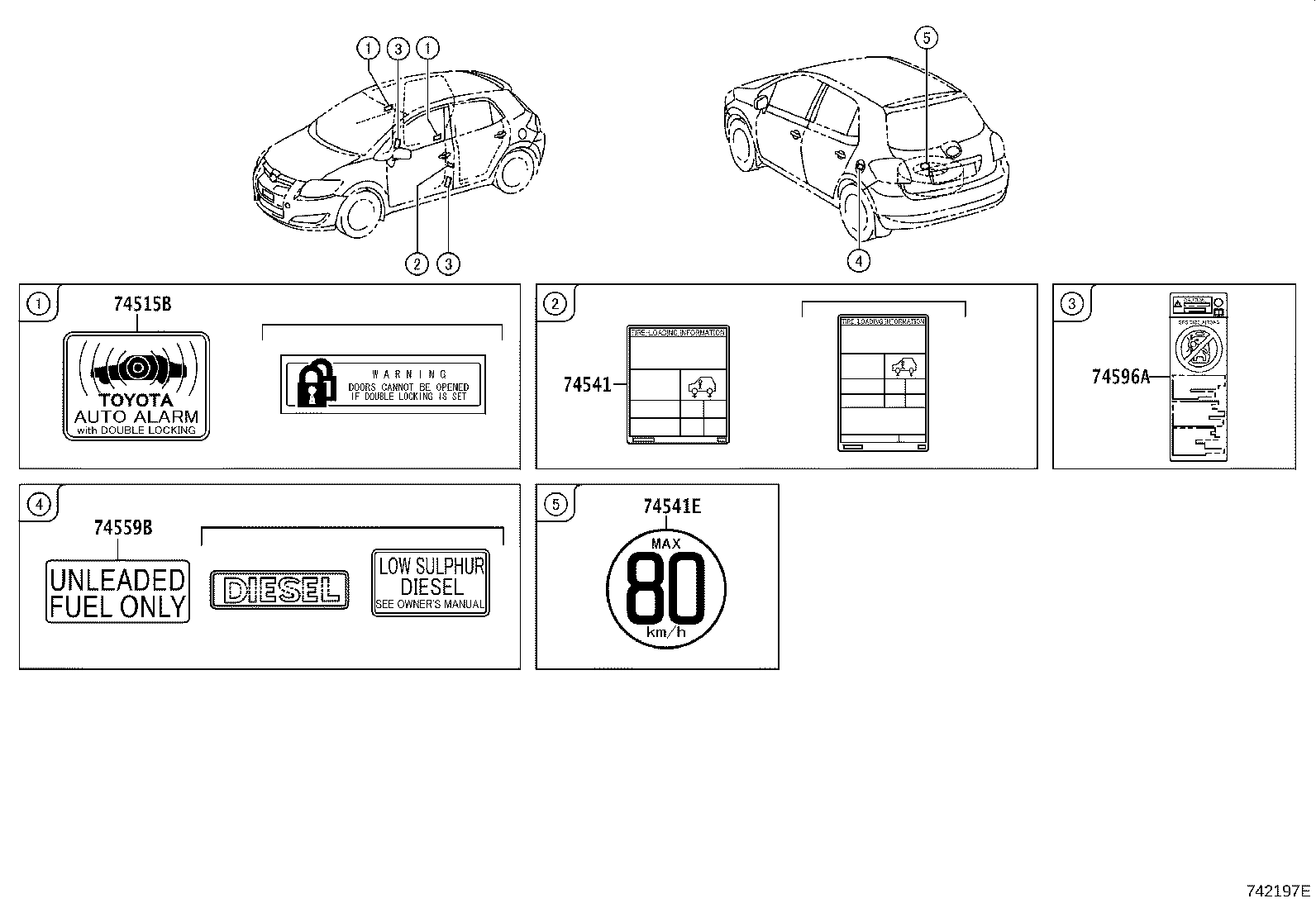

Figure 745535A 745535A 2007-02 → — Figure 742197E 742197E 2007-02 → — Figure 742198H 742198H 2007-02 → —

Part groups

PNCDescription
11285A Label, Coolant System Notice
11291B Plate, Engine Name
11293D Label, Engine Caution
11295C Label, Engine Service Notice, NO.2
11296C Label, Engine Service Information
15369A Label, Engine Oil Information
69339C Label, Child Protector Information
74515B Plate, Theft Warning
74541 Plate, Tire Pressure Caution
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
74567A Plate, E.C.E Approved Number
74596A Label, Side Airbag Caution
74598A Label, Passenger Airbag Caution
87529B Label, A/C Filter Information
88723E Label, Cooler Service Caution
89616 Label, Push Start Information
C6177 Label, Heater Notice
G9275 Label, Battery Caution, NO.1
G9288A Label, Battery Carging Notice
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
