Toyota Auris/Hybrid (UKP)

2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

20 part groups · 6 illustrations

Illustrations

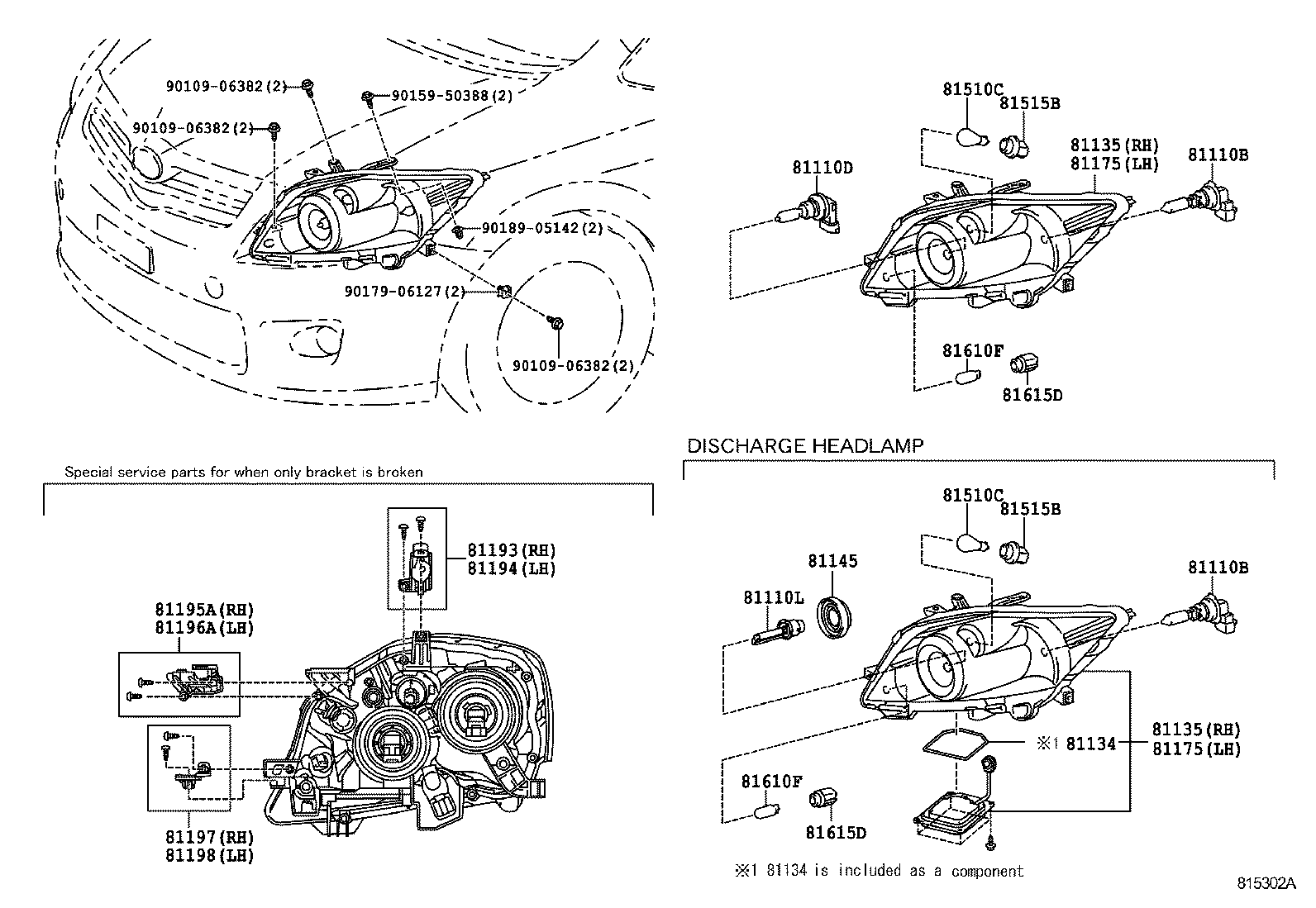

Figure 814159B 814159B 2007-02 → 2009-12 Figure 814159B 814159B 2007-02 → 2010-01 Figure 814159B 814159B 2009-12 → 2010-01 Figure 815302A 815302A 2009-12 → — Figure 815302A 815302A 2009-12 → — Figure 815302A 815302A 2010-01 → —

Part groups

PNCDescription
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81116C Bracket, Headlamp, RH
81117A Bracket, Headlamp, RH
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81145 Cover, Headlamp, NO.2
81156A Bracket, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81194 Retainer, Headlamp Protector, Upper LH
81195A Retainer, Headlamp Protector, Lower RH
81196A Retainer, Headlamp Protector, Lower LH
81197 Bracket, Headlamp, Lower RH
81198 Bracket, Headlamp, Lwr LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
