Toyota Auris/Hybrid (UKP)

2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

130 part groups · 29 illustrations

Illustrations

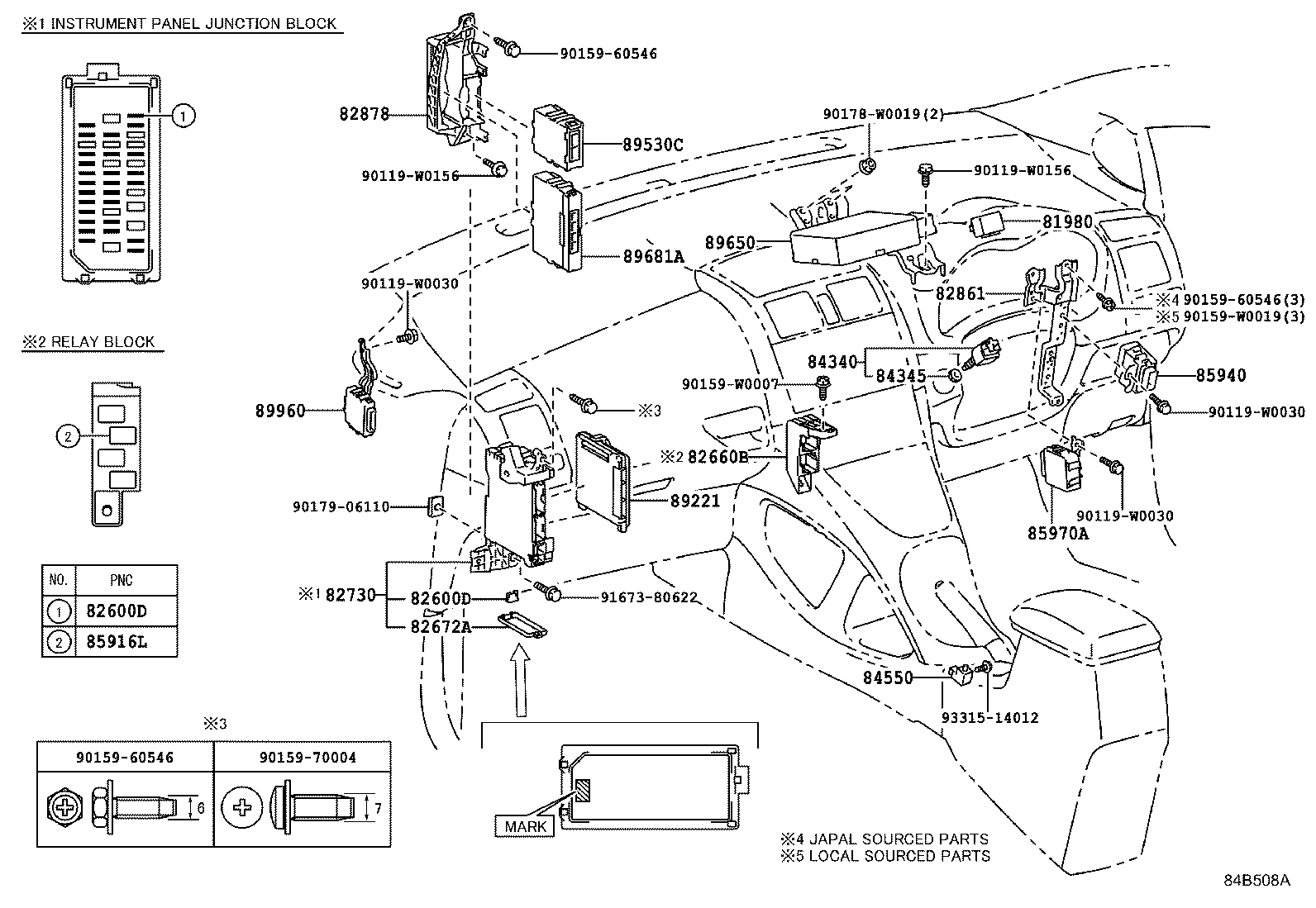

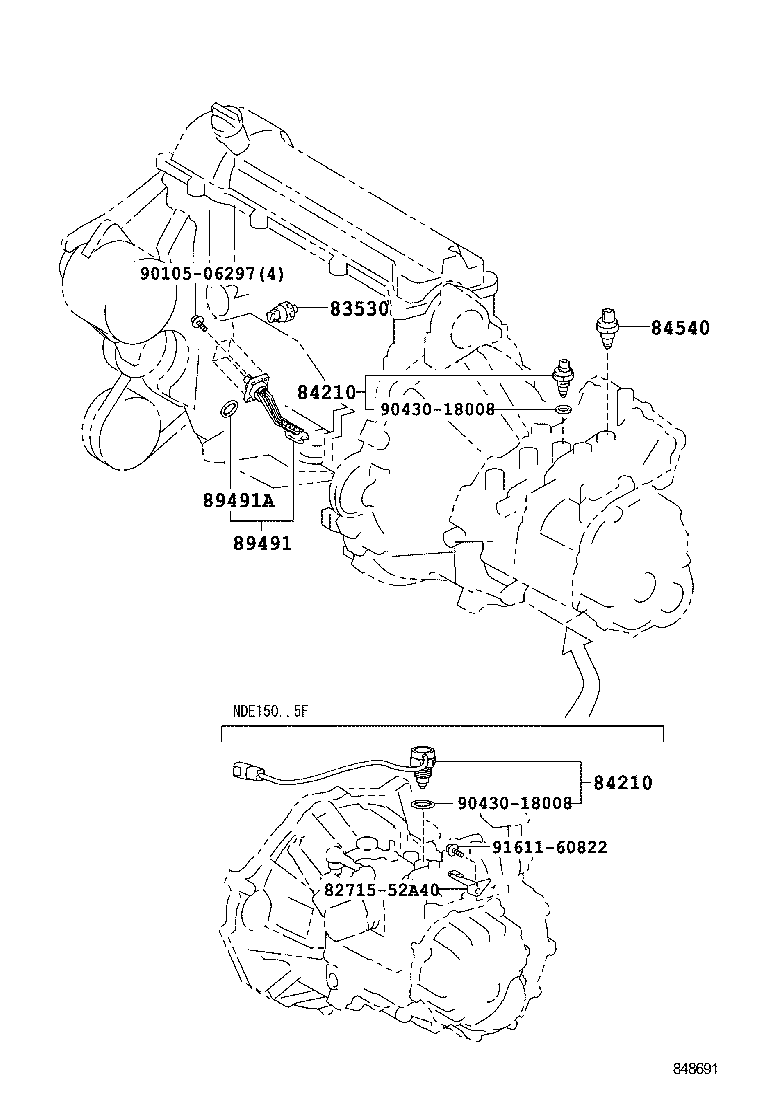

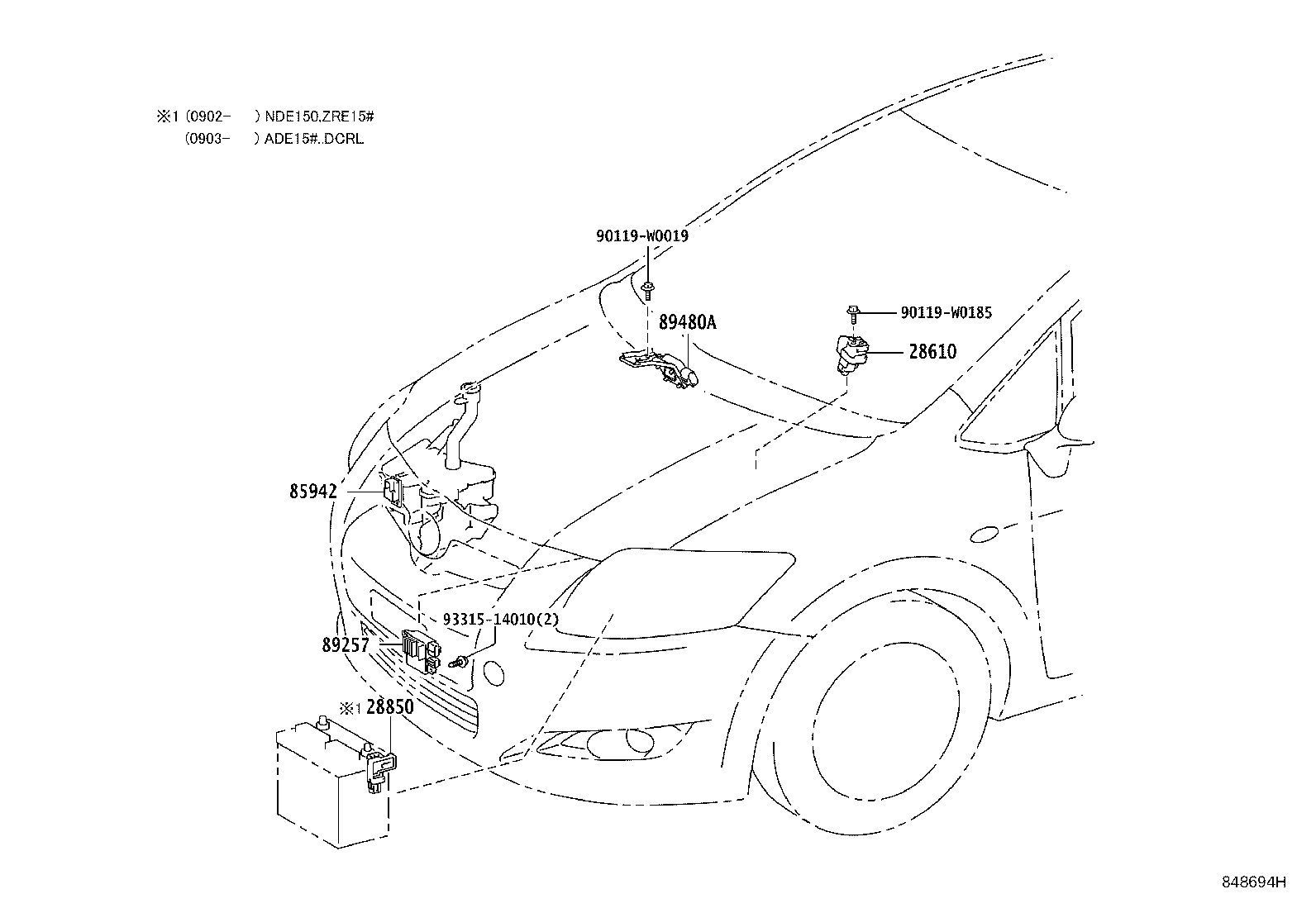

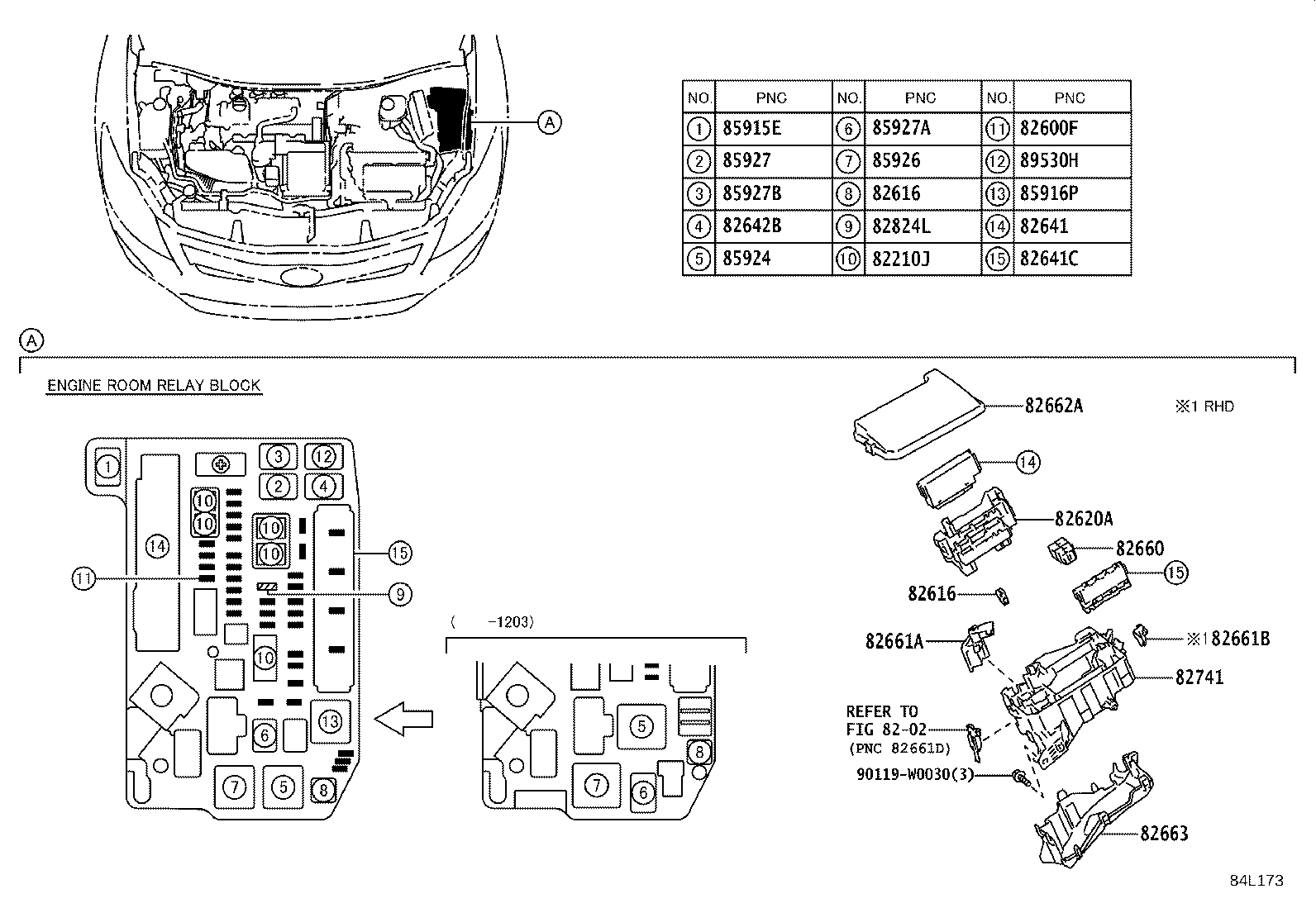

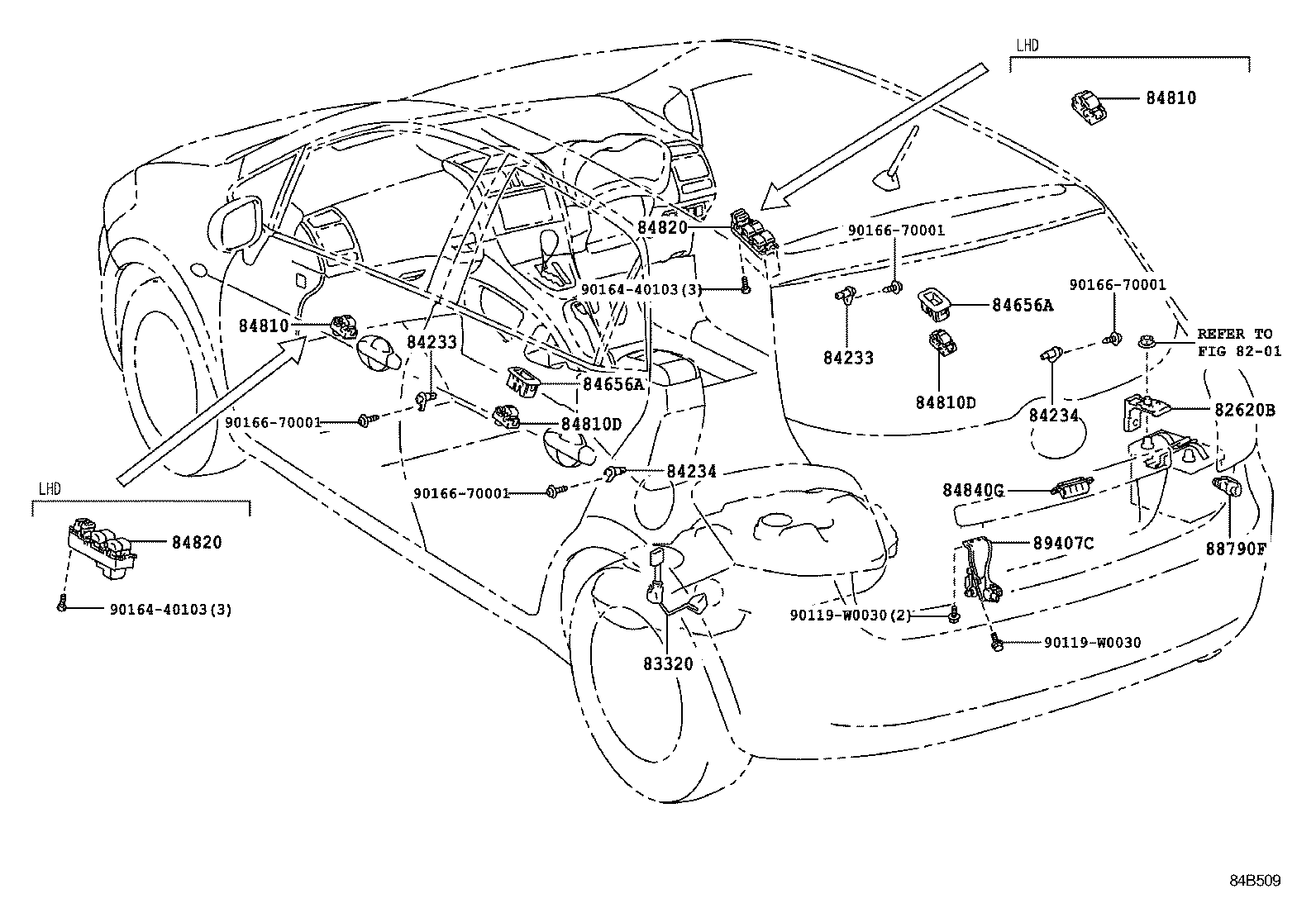

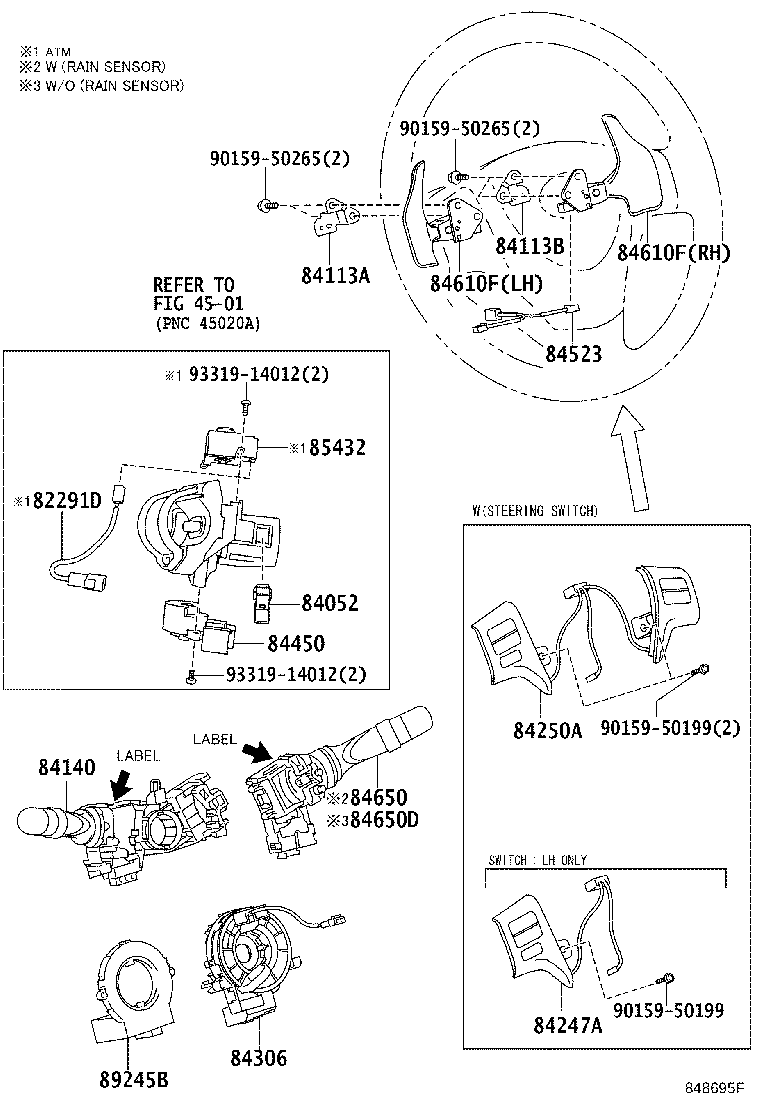

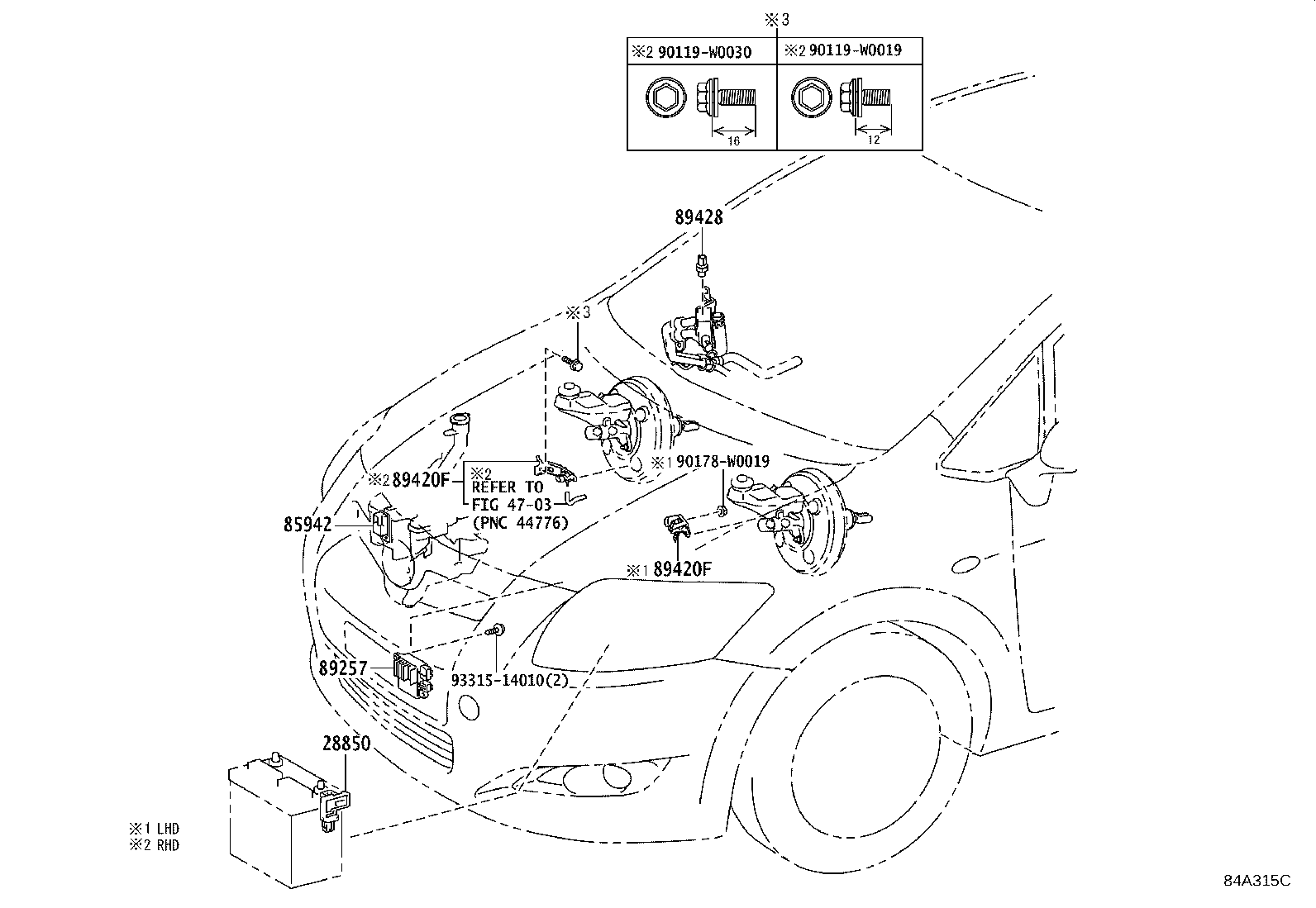

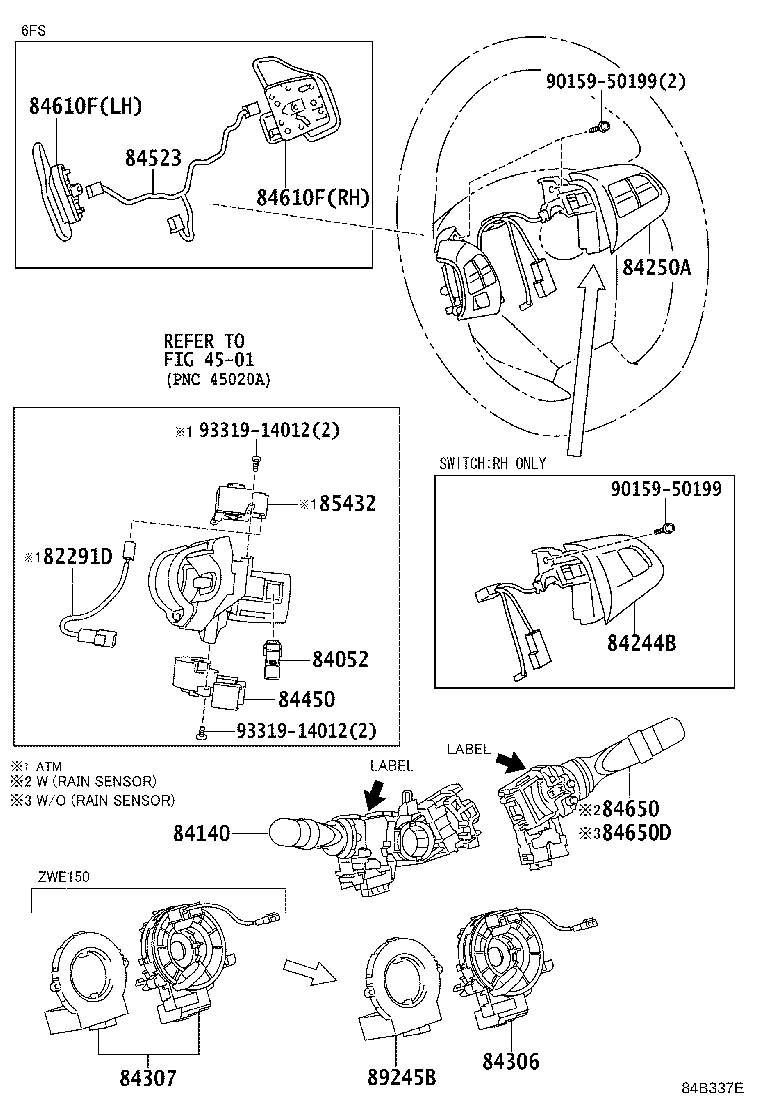

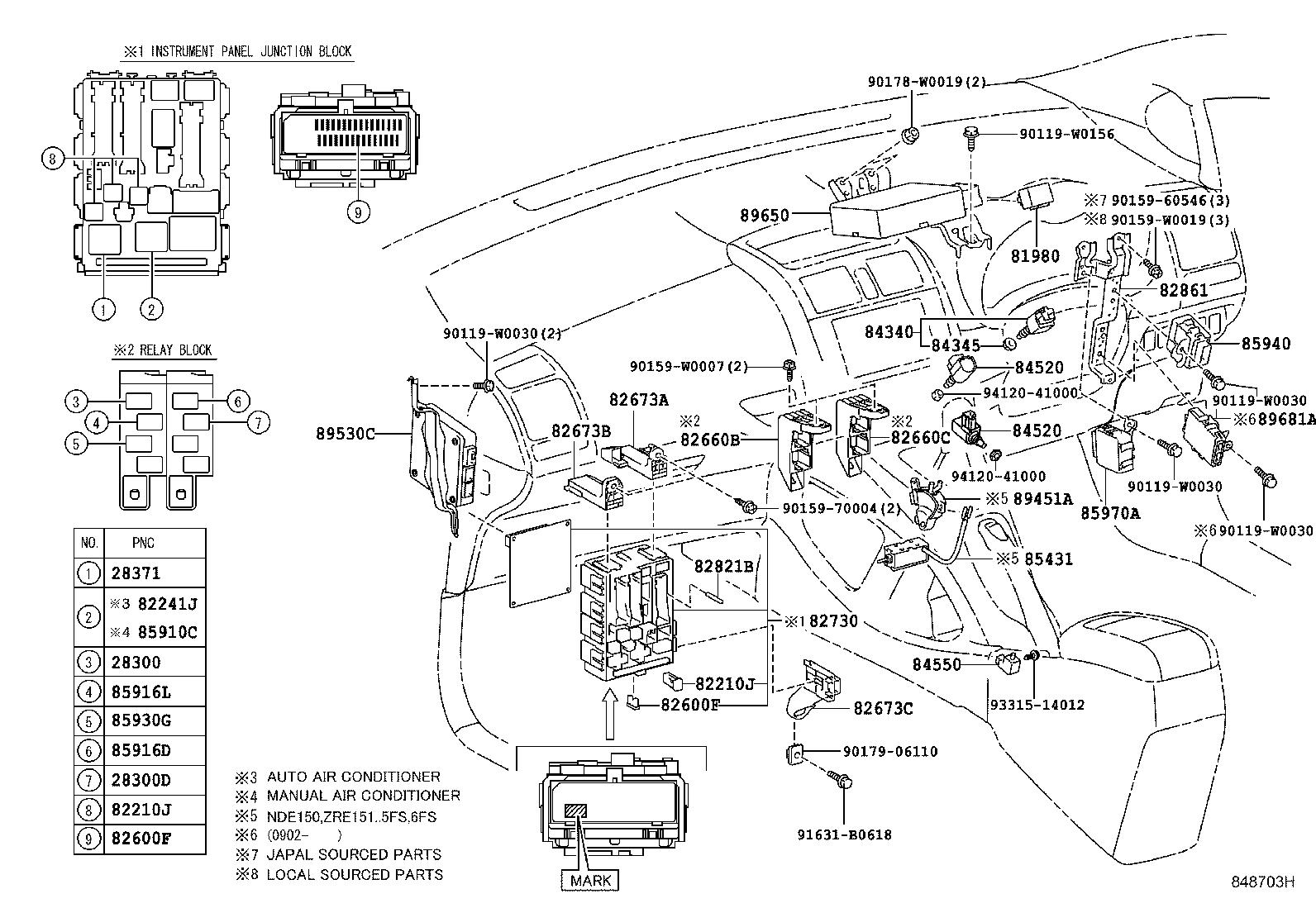

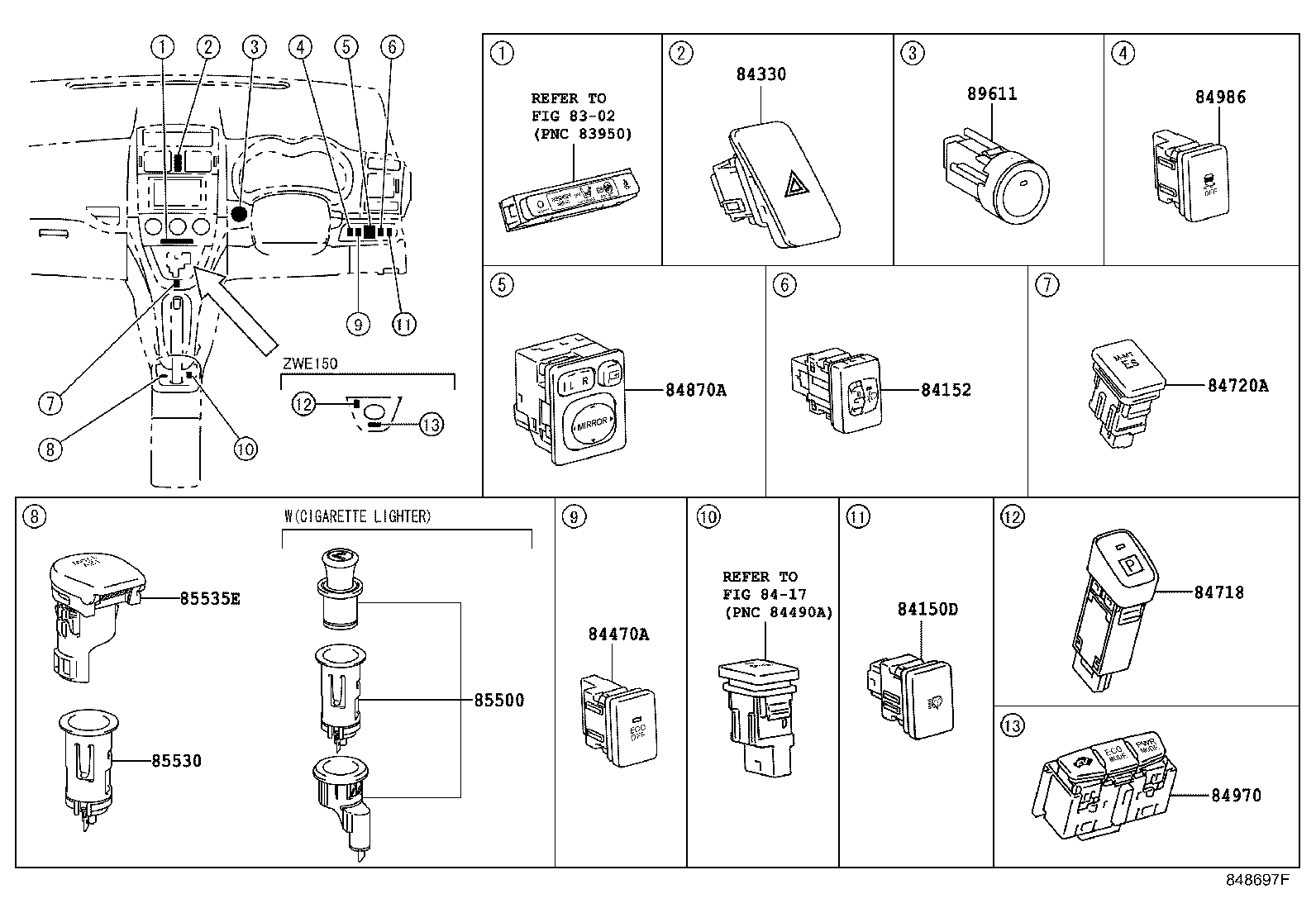

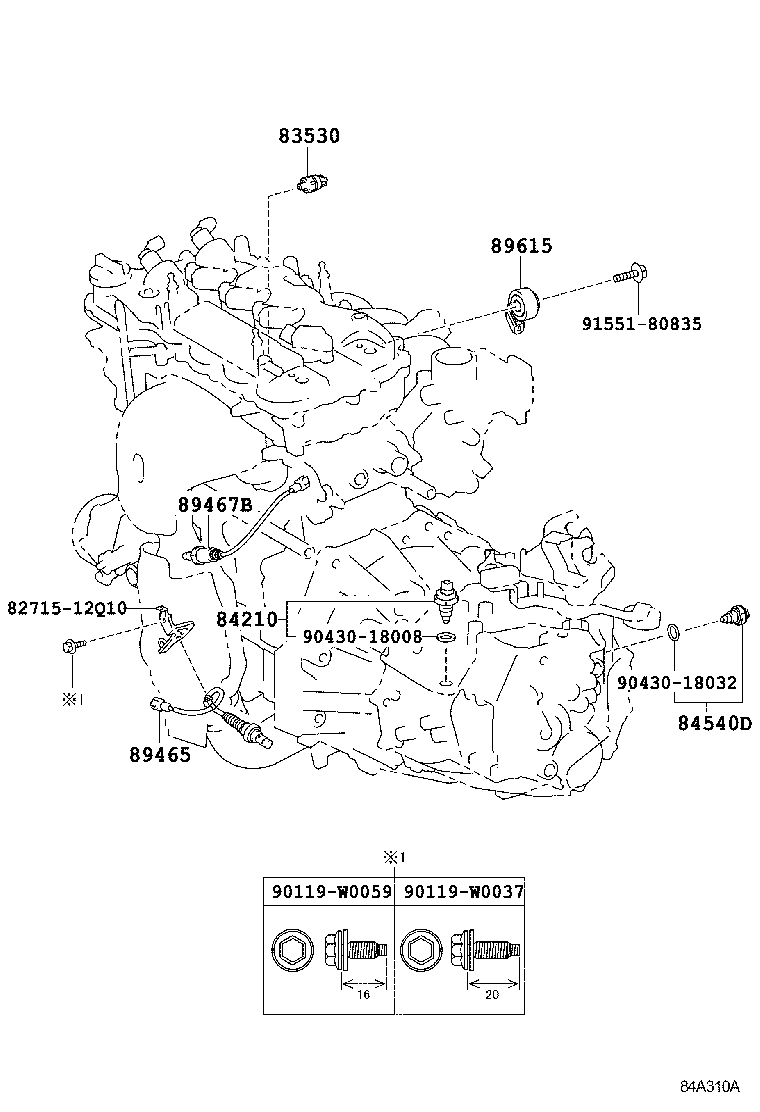

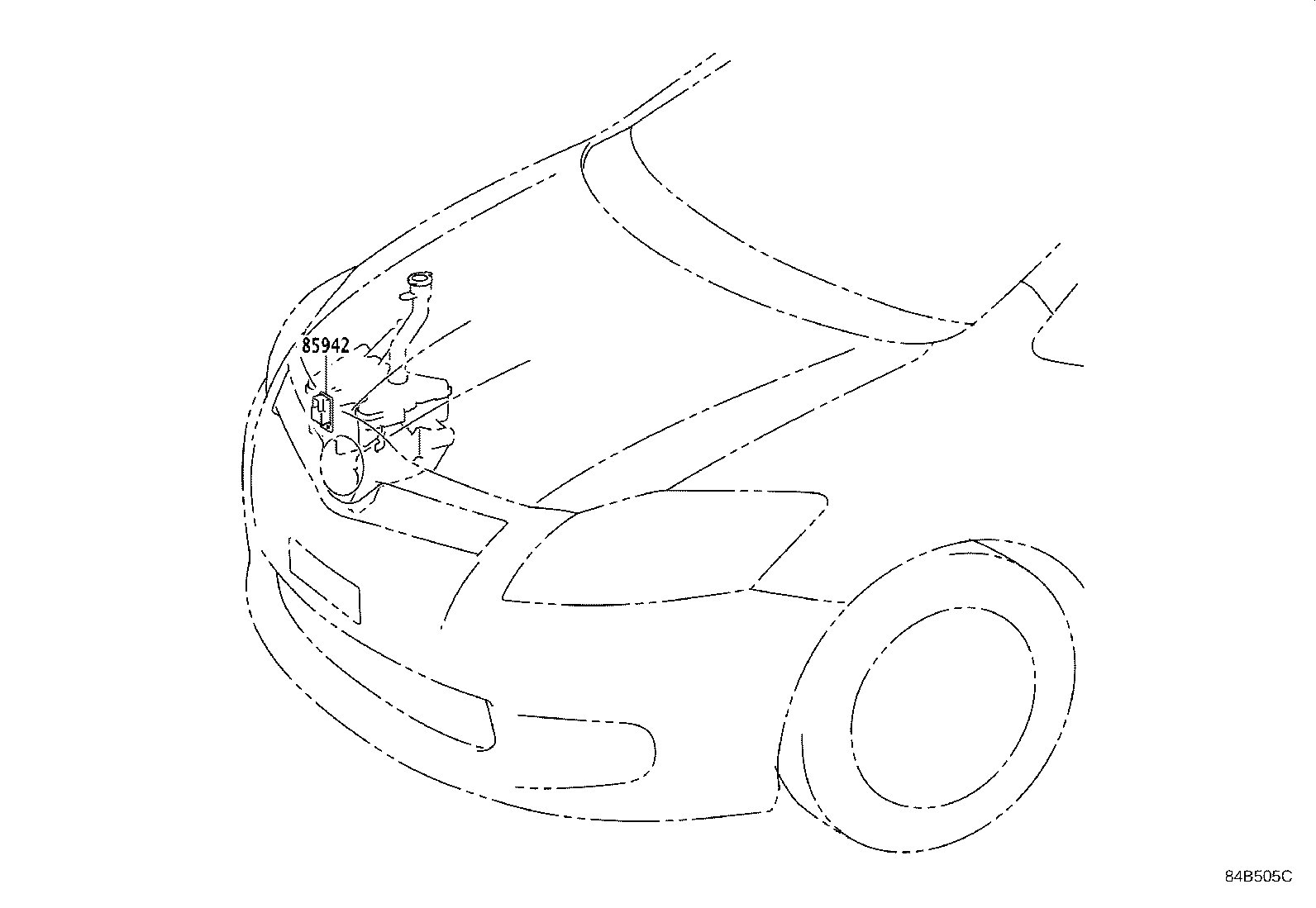

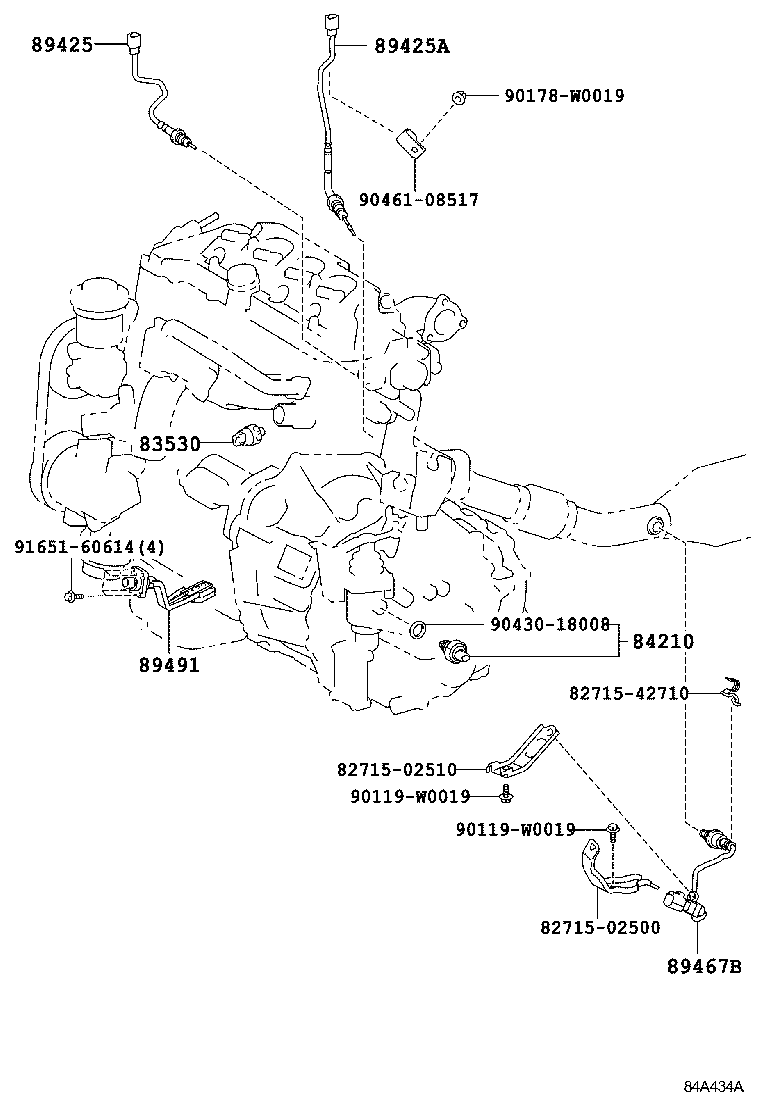

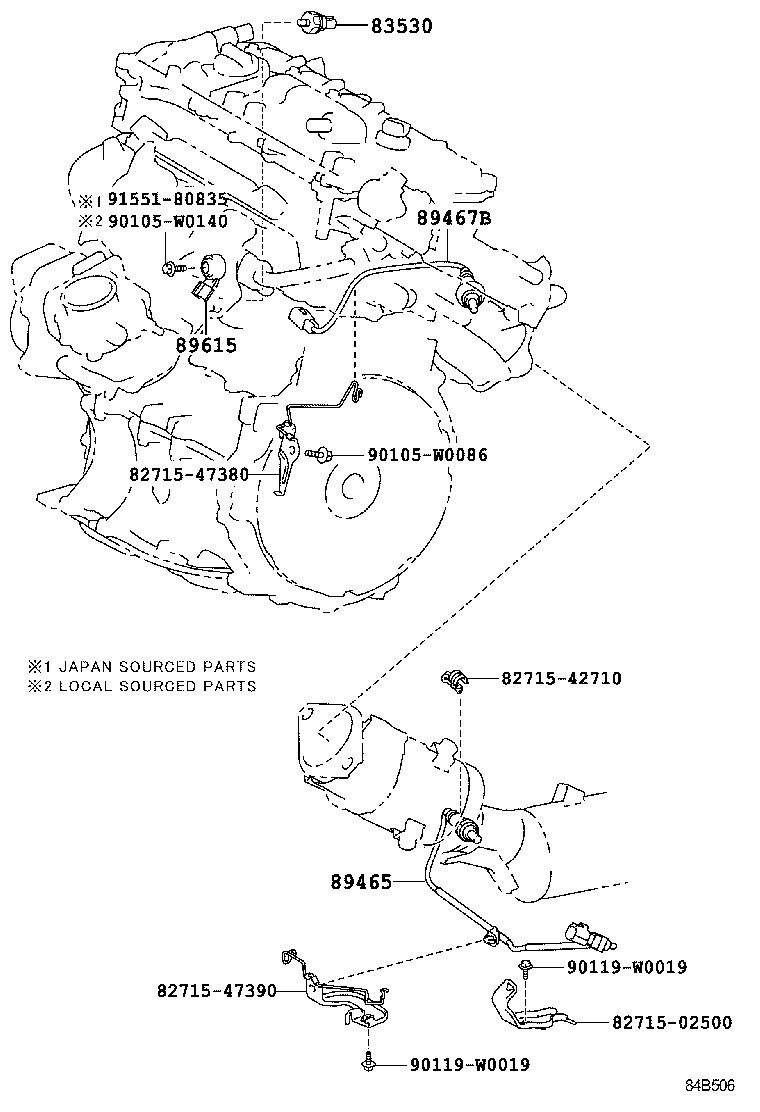

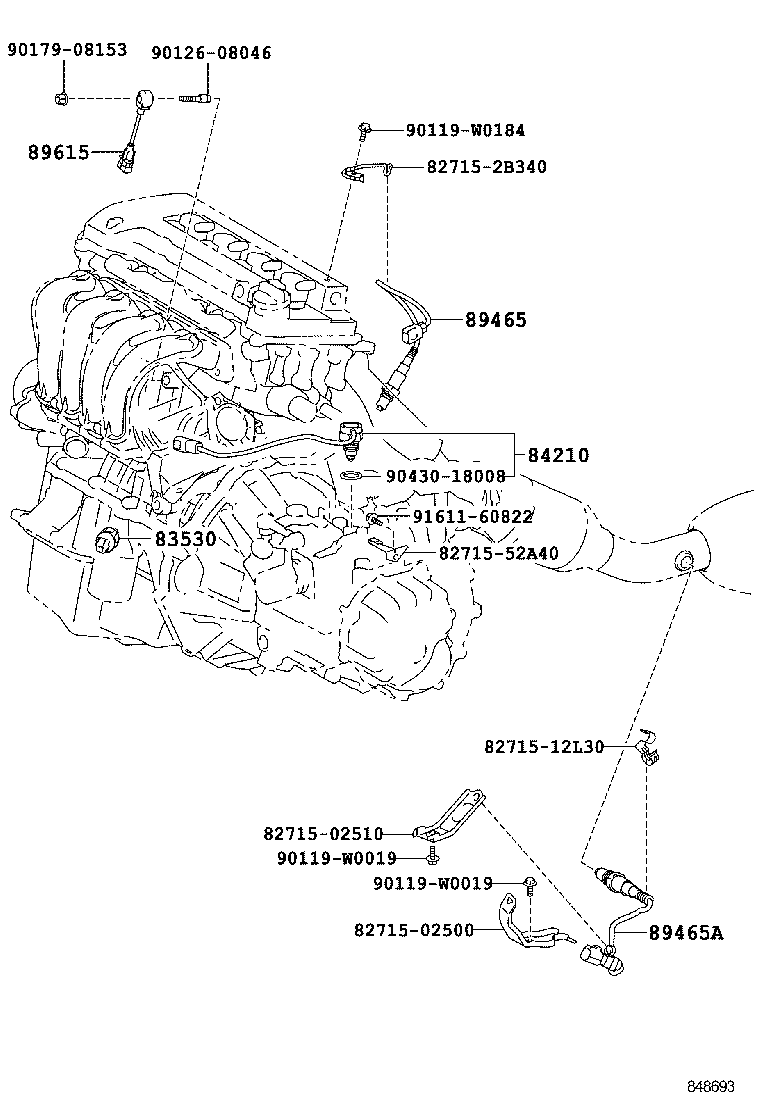

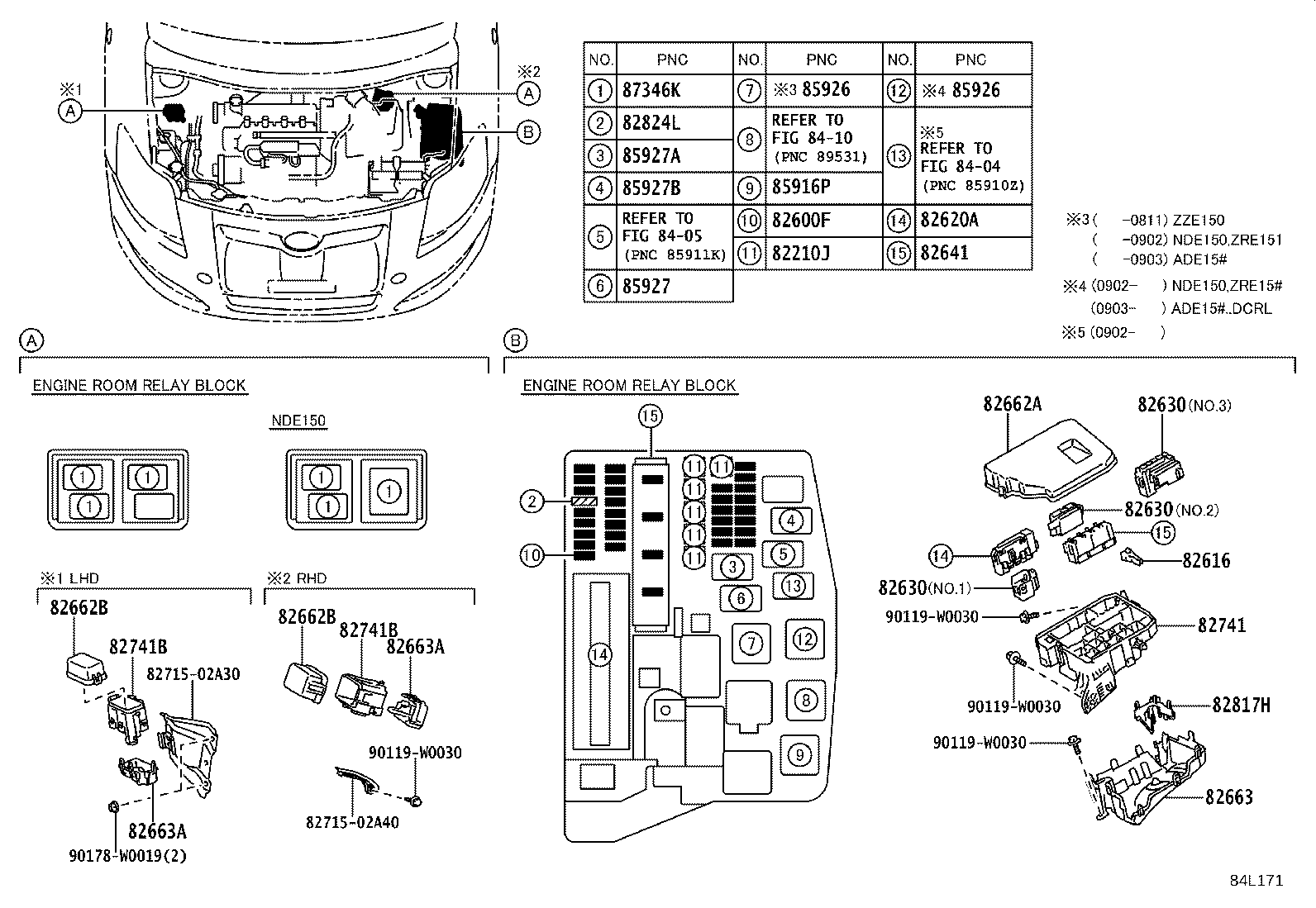

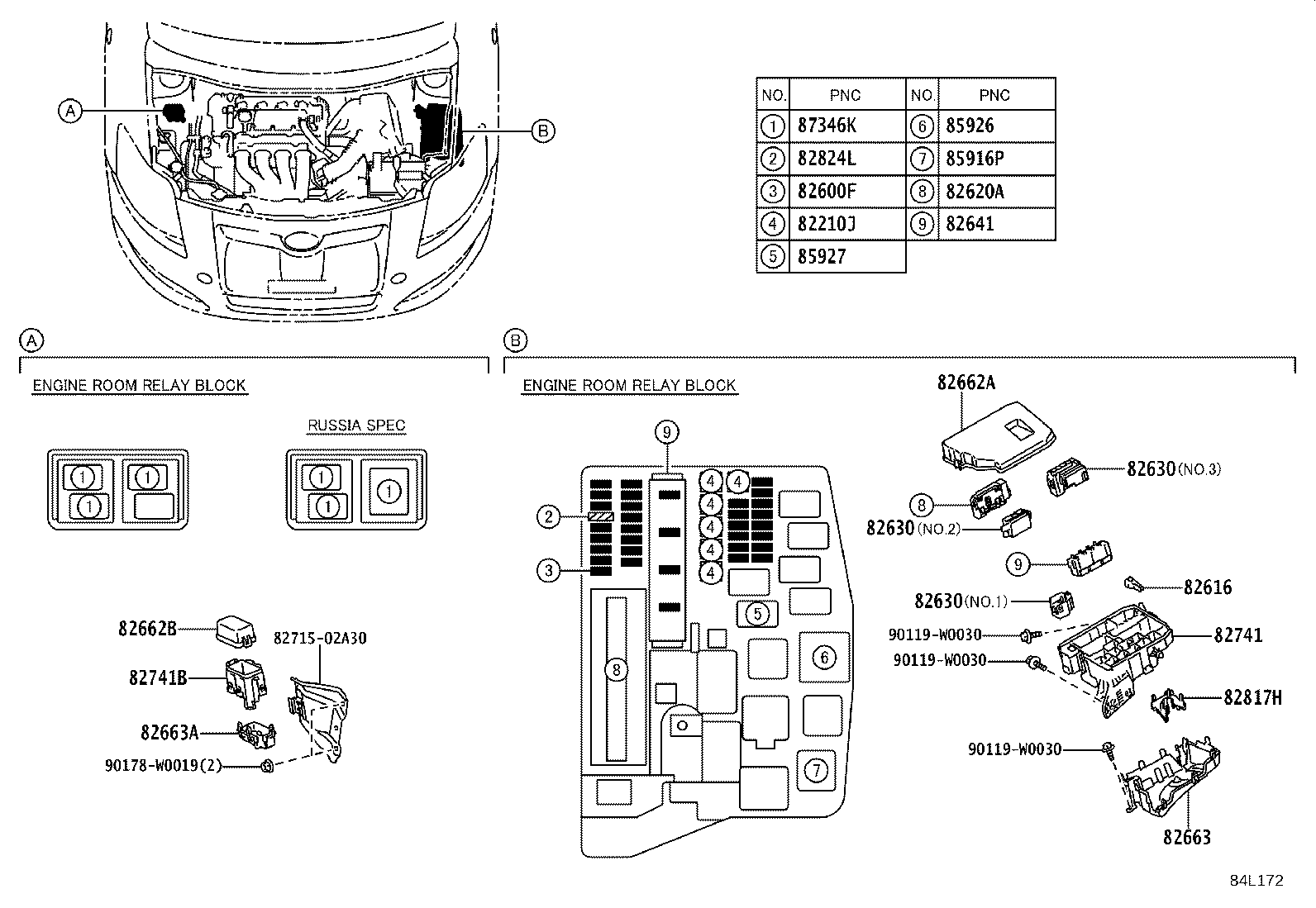

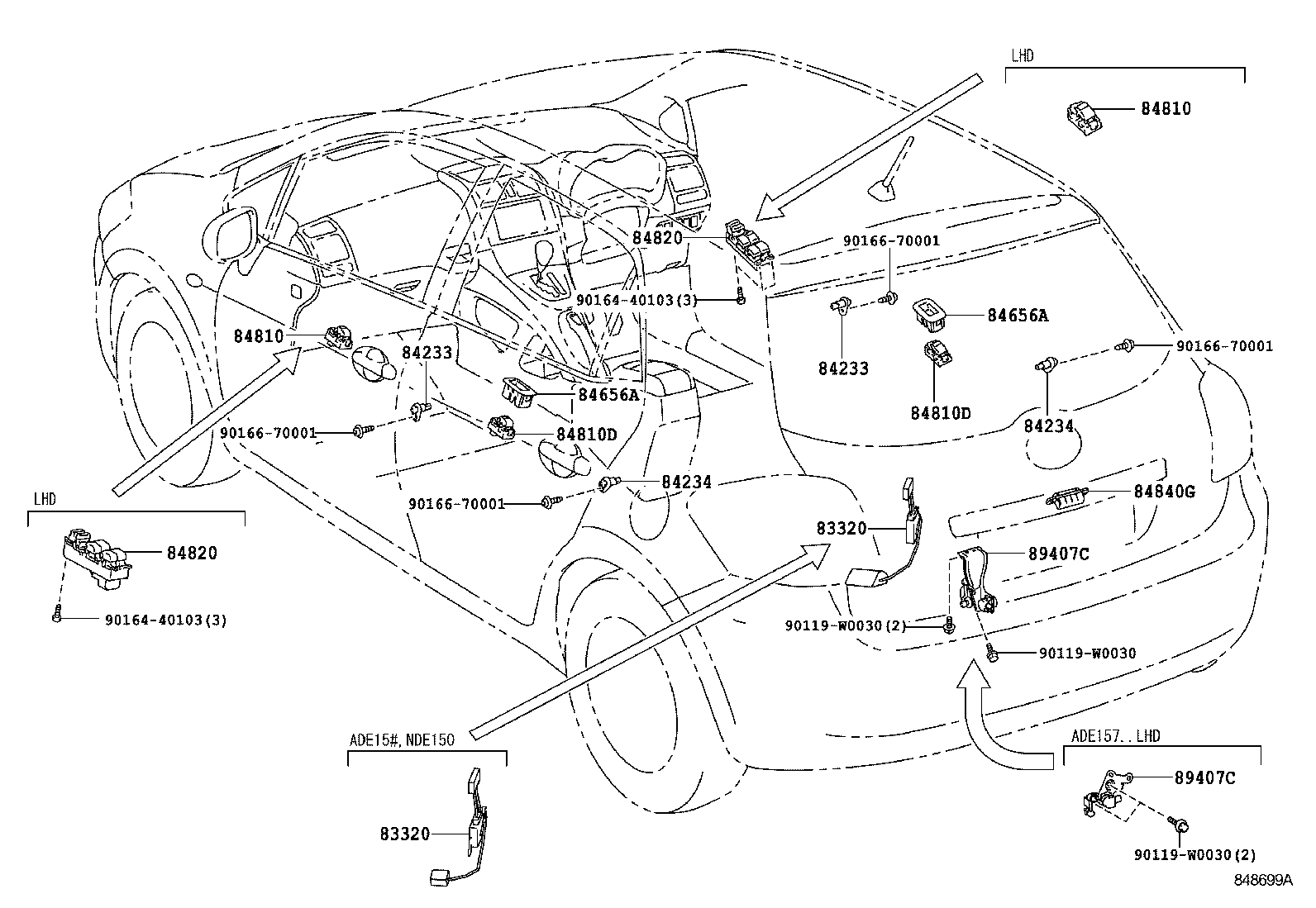

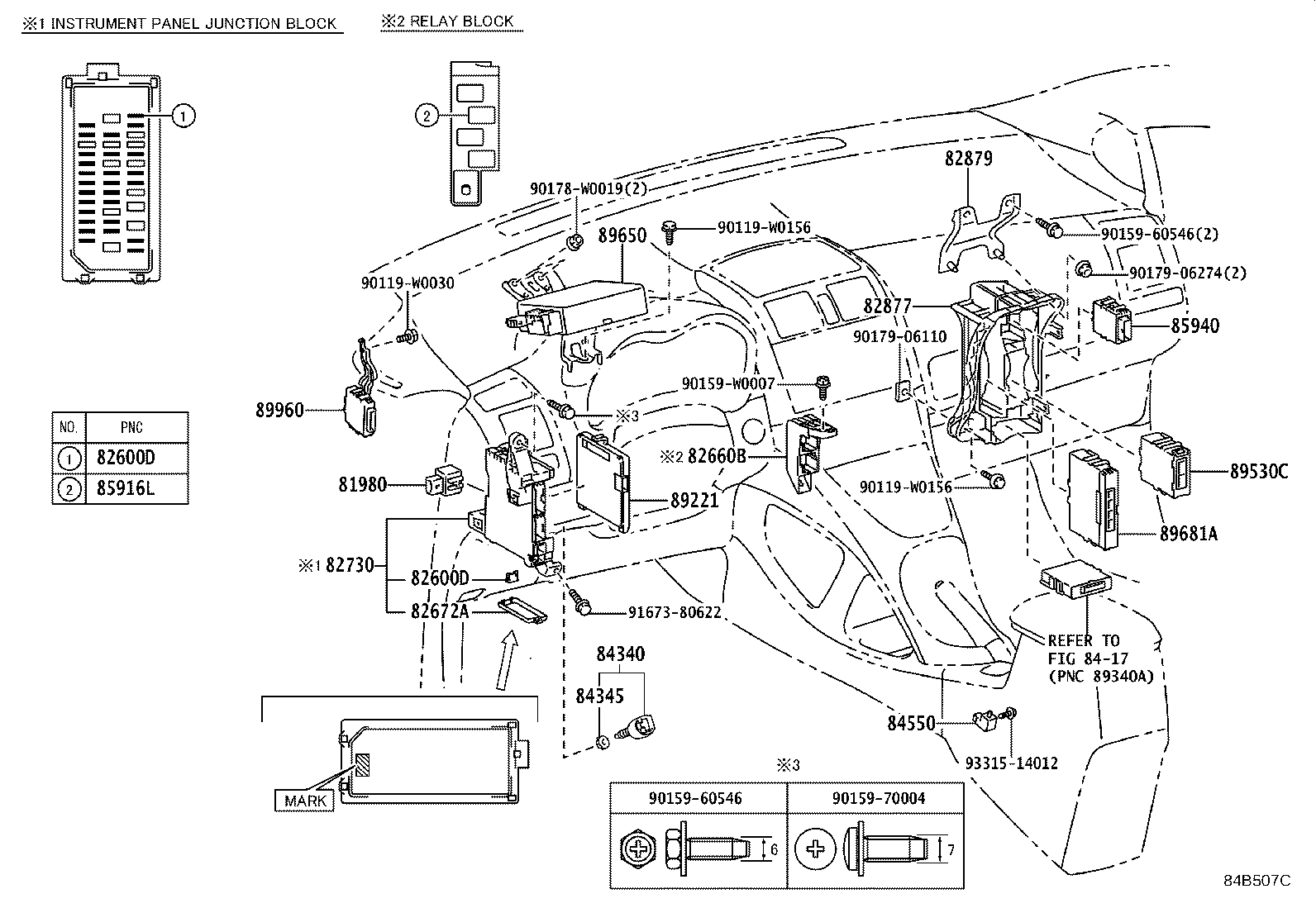

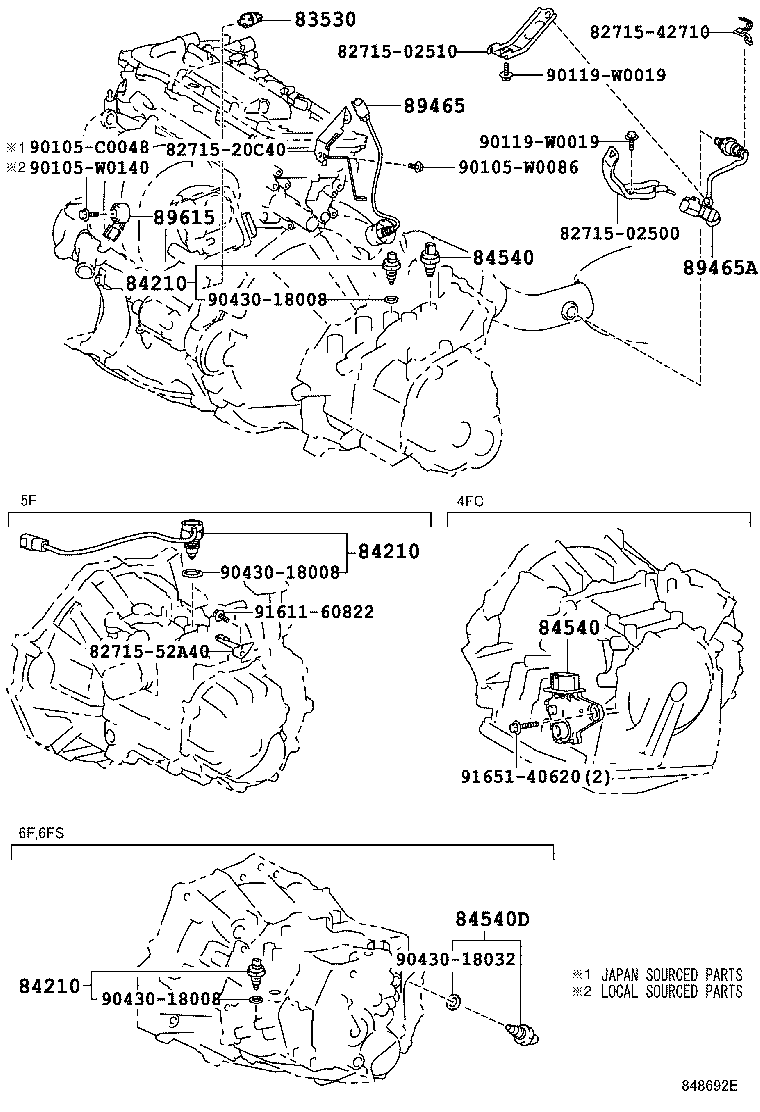

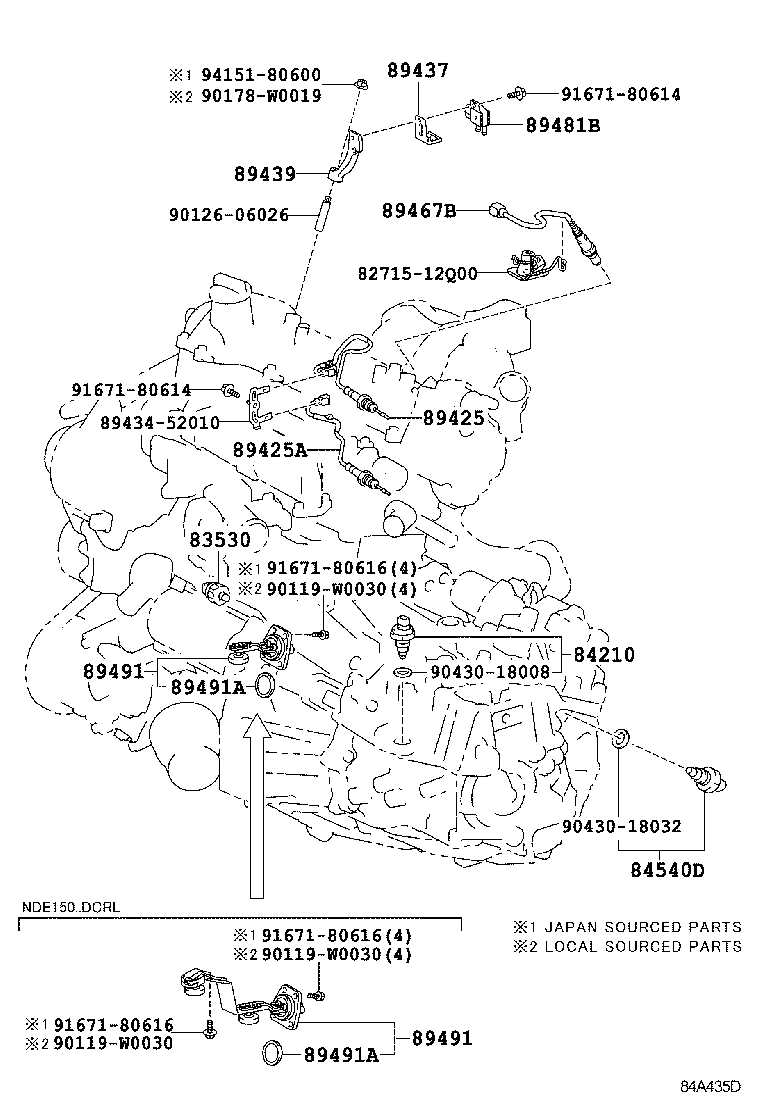

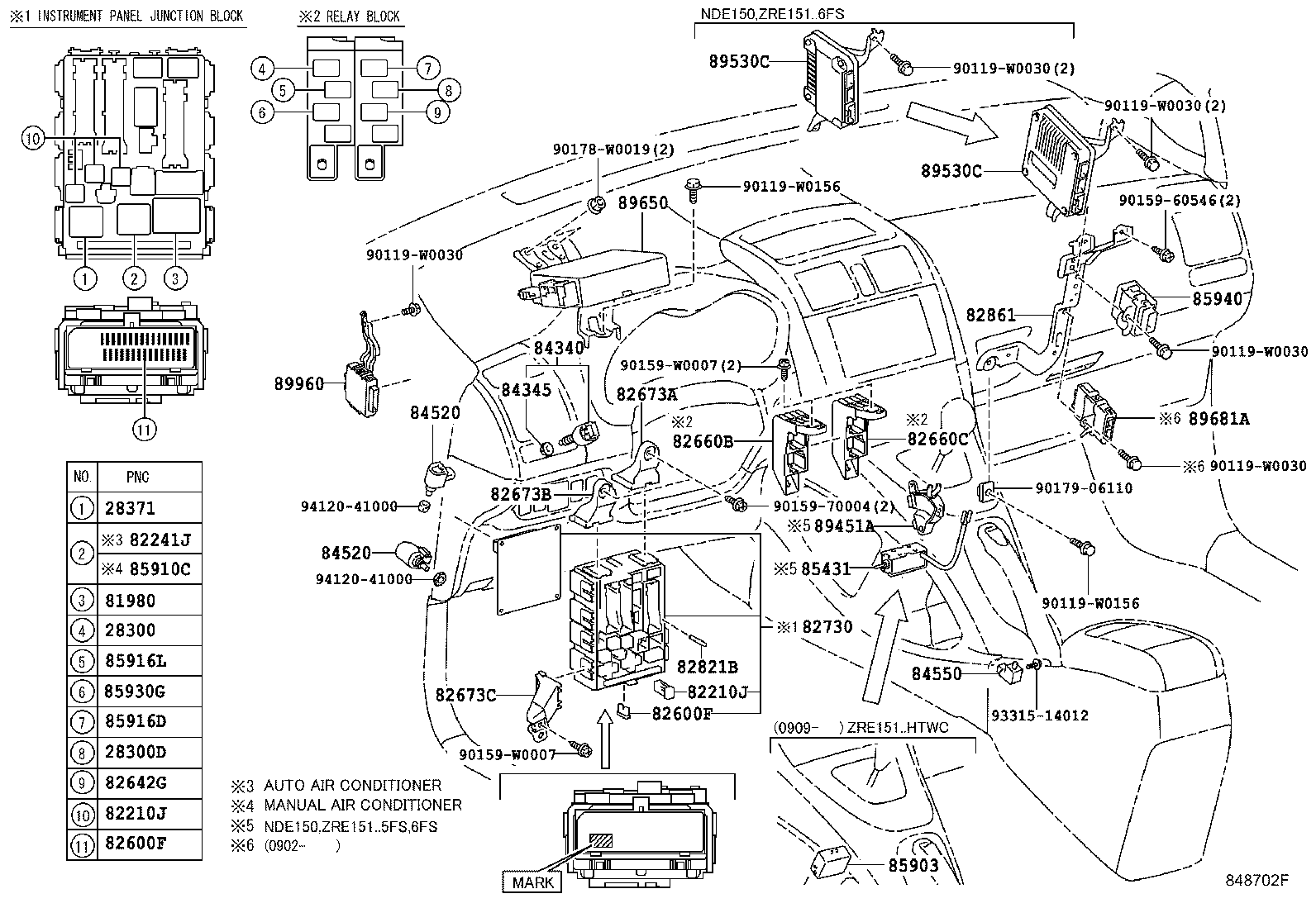

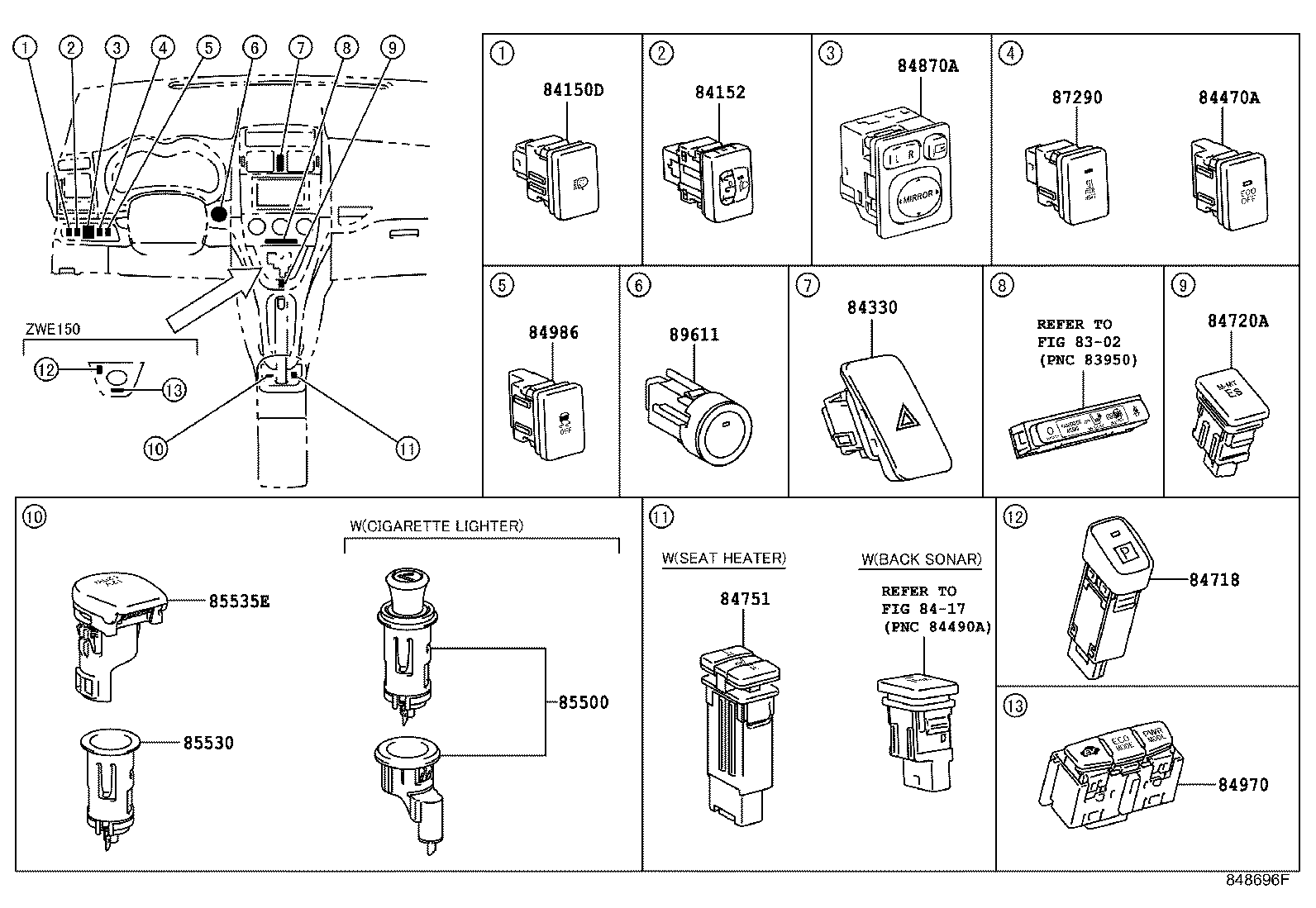

Figure 848690B 848690B 2007-02 → 2009-03 Figure 84A434A 84A434A 2009-03 → — Figure 848691 848691 2007-02 → 2009-02 Figure 84A435D 84A435D 2009-02 → — Figure 848692E 848692E 2007-02 → — Figure 848693 848693 2007-02 → 2008-11 Figure 84A310A 84A310A 2008-11 → — Figure 84B506 84B506 2010-06 → — Figure 848694H 848694H 2007-02 → — Figure 84A315C 84A315C 2008-11 → — Figure 84B505C 84B505C 2010-06 → — Figure 84L171 84L171 2007-02 → — Figure 84L172 84L172 2008-11 → — Figure 84L173 84L173 2010-06 → — Figure 848702F 848702F 2007-02 → — Figure 848703H 848703H 2007-02 → — Figure 84B507C 84B507C 2010-06 → — Figure 84B508A 84B508A 2010-06 → — Figure 848696F 848696F 2007-02 → — Figure 848697F 848697F 2007-02 → — Figure 848695F 848695F 2007-02 → 2009-12 Figure 848695F 848695F 2007-02 → 2009-12 Figure 848695F 848695F 2007-02 → 2010-01 Figure 848695F 848695F 2007-02 → 2010-01 Figure 848695F 848695F 2007-02 → 2010-01 Figure 84B337E 84B337E 2009-12 → — Figure 84B337E 84B337E 2010-01 → — Figure 848699A 848699A 2007-02 → — Figure 84B509 84B509 2010-06 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28300D Relay, Starter Cut
28371 Relay, Ignition, NO.1
28610 Relay Assy, Intake Heater OR Glow Plug
28850 Sensor Assy, Battery Current
81980 Flasher Assy, Turn Signal
82210J Fusible Link
82241J Pin, Short
82291D Wire, TO Solenoid
82600D Instrument Panel Fuse
82600F Fuse, Fuse Block
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82630 Holder Assy, Fuse
82641 Relay, Integration NO.1
82641C Relay, Integration NO.2
82642B Relay, Day Time Running Light, NO.1
82642G Relay, Panel
82660 Block Assy, Relay, Engine Room
82660B Block Assy, Relay
82660C Block Assy, Relay
82661A Cover, Relay Block, NO.2
82661B Cover, Relay Block, NO.3
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82672A Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82673C Bracket, Junction Block
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82741B Block, Engine Room Relay
82817H Protector, Wiring Harness
82821B Cover, Connector
82824L Pin, Short
82861 Bracket, Computer Integration, NO.1
82877 Box, Computer Integration, RH
82878 Box, Computer Integration, LH
82879 Adapter, Computer Integration Box
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84113A Bracket, Switch, NO.1
84113B Bracket, Switch, NO.2
84140 Switch Assy, Headlamp Dimmer
84150D Switch Assy, Headlamp Cleaner
84152 Switch, Headlamp Leveling
84210 Switch Assy, Back-up Lamp
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84244B Switch, Steering Pad, RH
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84470A Switch Assy, Ecorun Cancel
84520 Switch Assy, Clutch Start
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84540D Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84656A Bezel, Switch
84718 Switch, Transmission Shift Main
84720A Switch Assy, Pattern Select, NO.1
84751 Switch, Seat Heater
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84970 Switch Assy, Combination
84986 Switch, Vehicle Stability Control
85431 Solenoid, Shift Lock
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85530 Socket Assy, Power Outlet, NO.1
85535E Cover, Power Outlet Socket, NO.2
85903 Computer Sub-assy, Shift Lock Control
85910C Relay Assy (FOR HEATER BLOWER MOTOR)
85915E Relay
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916P Relay, Headlamp
85924 Relay, Ignition Control
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85930G Relay, Acc
85940 Relay Assy, Windshield Wiper
85942 Relay, Headlamp Cleaner Control
85970A Relay Assy, Double Lock Door Control
87290 Switch Assy, Heater
87346K Relay, Ptc Heater
88790F Thermistor Assy
89221 Computer, Multiplex Network Body
89245B Sensor, Steering
89257 Computer, Cooling Fan
89407C Sensor Sub-assy, Height Control, Rear
89420F Sensor Assy, Vacuum
89425 Sensor, Exhaust Gas Temperature
89425A Sensor, Exhaust Gas Temperature, NO.2
89428 Switch, Temperature Detect, NO.2
89437 Cover, Sensor
89439 Bracket, Sensor
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89480A Sensor Assy, Differential Pressure
89481B Sensor, Differential Pressure
89491 Sensor, Engine Oil Level
89491A Gasket, Engine Oil Level Sensor
89530C Computer Assy, Transmission Control
89530H Relay, Transaxle Parking Look Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89681A Computer, Power Management Control
89960 Computer Assy, Headlamp Leveling
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
