Toyota Auris/Hybrid (UKP)

2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

10 part groups · 3 illustrations

Illustrations

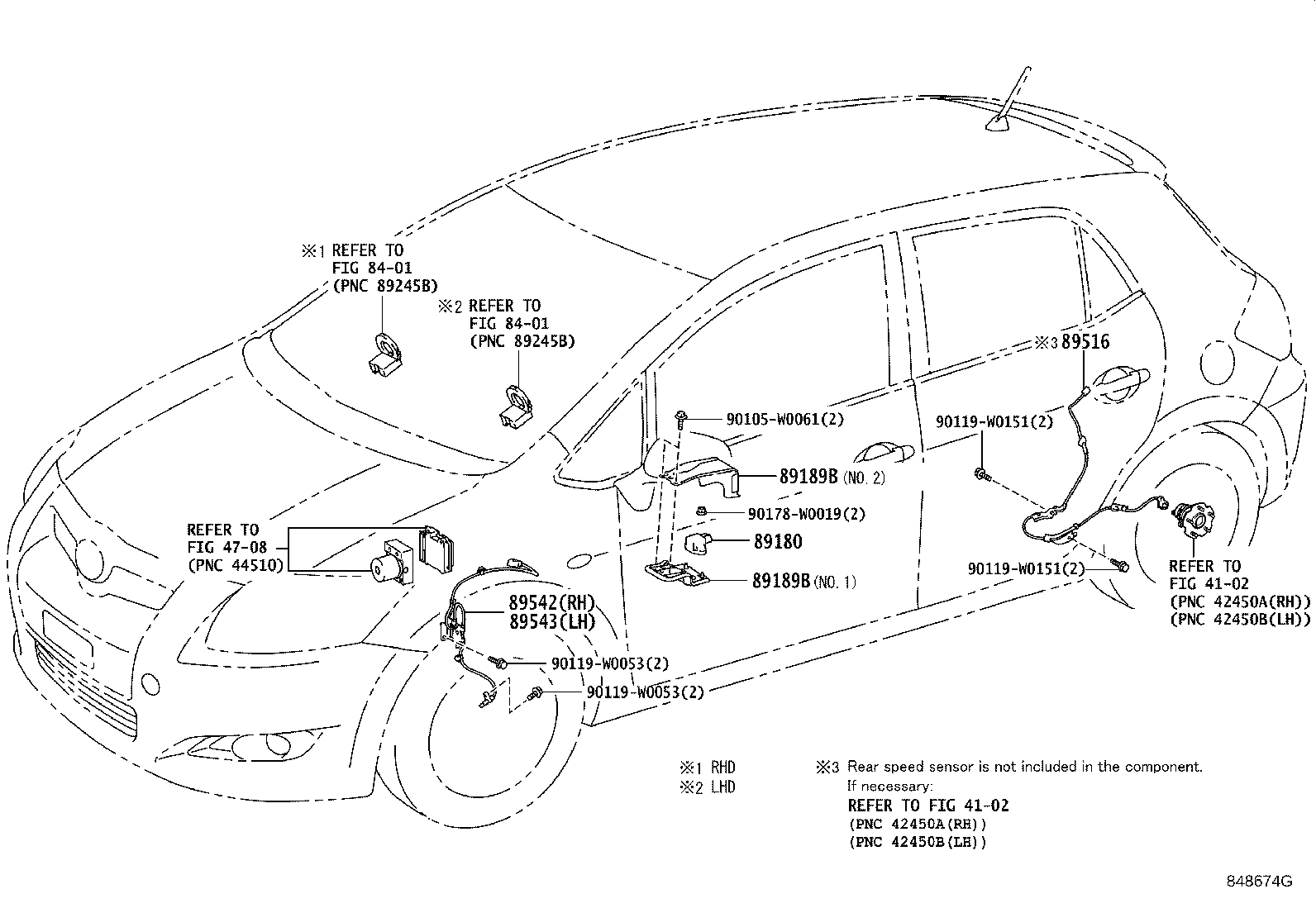

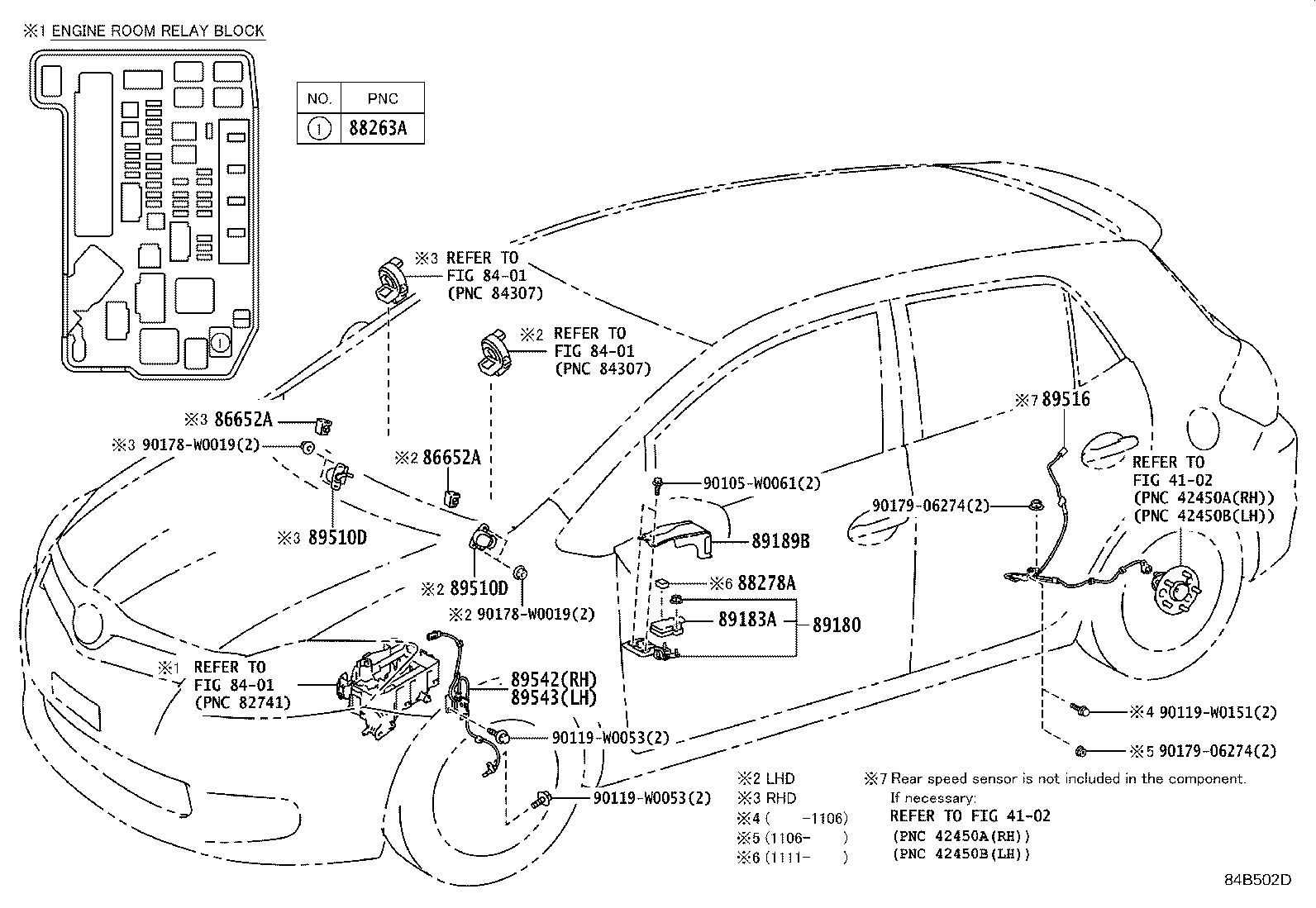

Figure 848673I 848673I 2007-02 → — Figure 848674G 848674G 2007-02 → — Figure 84B502D 84B502D 2010-06 → —

Part groups

PNCDescription
86652A Buzzer Assy, Skid Control
88263A Relay, Skid Control
88278A Cushion, Skid Control Computer
89180 Sensor Assy, Yawrate
89183A Sensor, Yawrate
89189B Bracket, Yawrate Sensor
89510D Sensor Assy, Brake Pedal Stroke
89516 Wire, Skid Control Sensor
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
