Toyota Auris/Hybrid (UKP)

2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe

Supported model Data version 2014-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

7 part groups · 12 illustrations

Illustrations

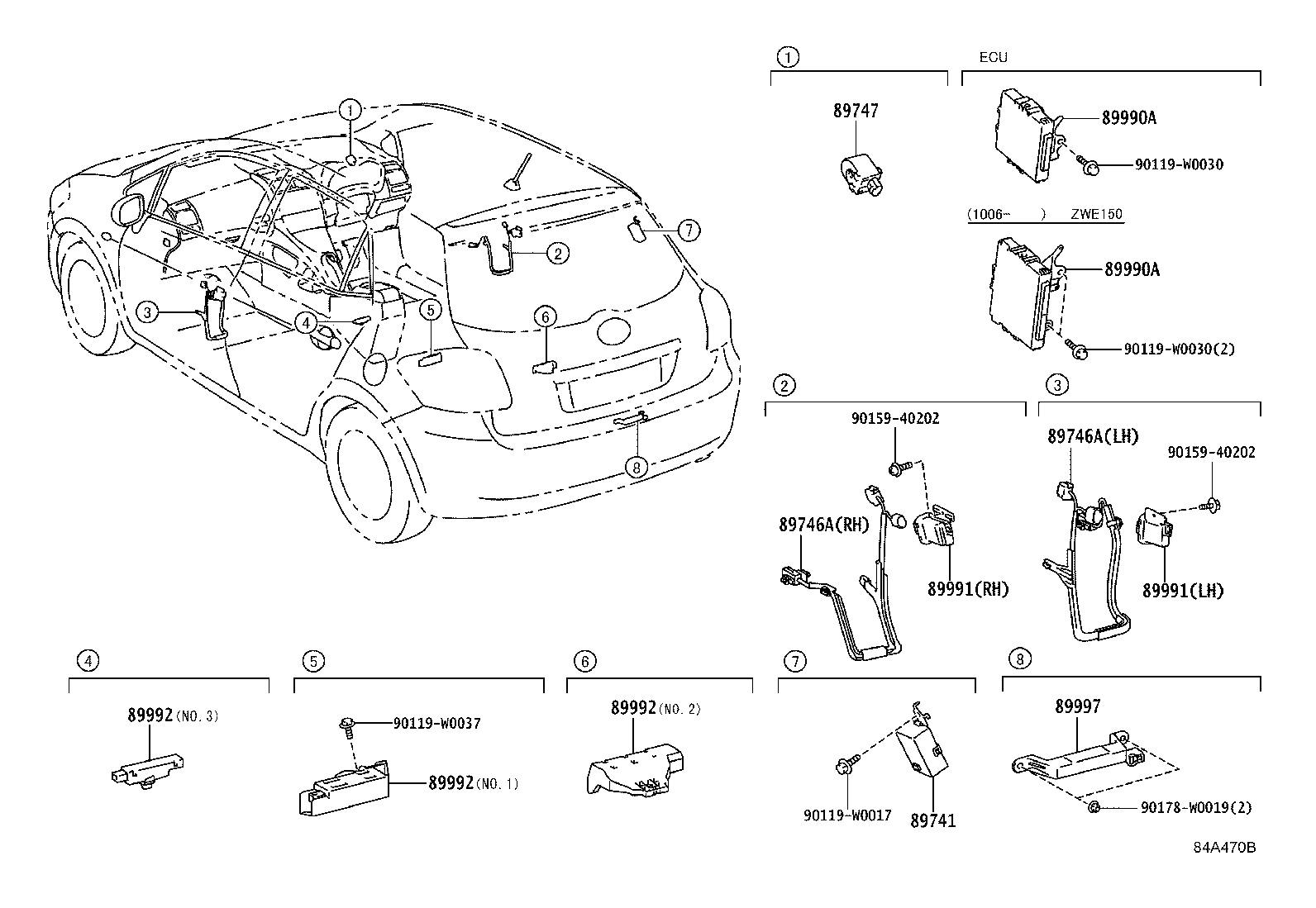

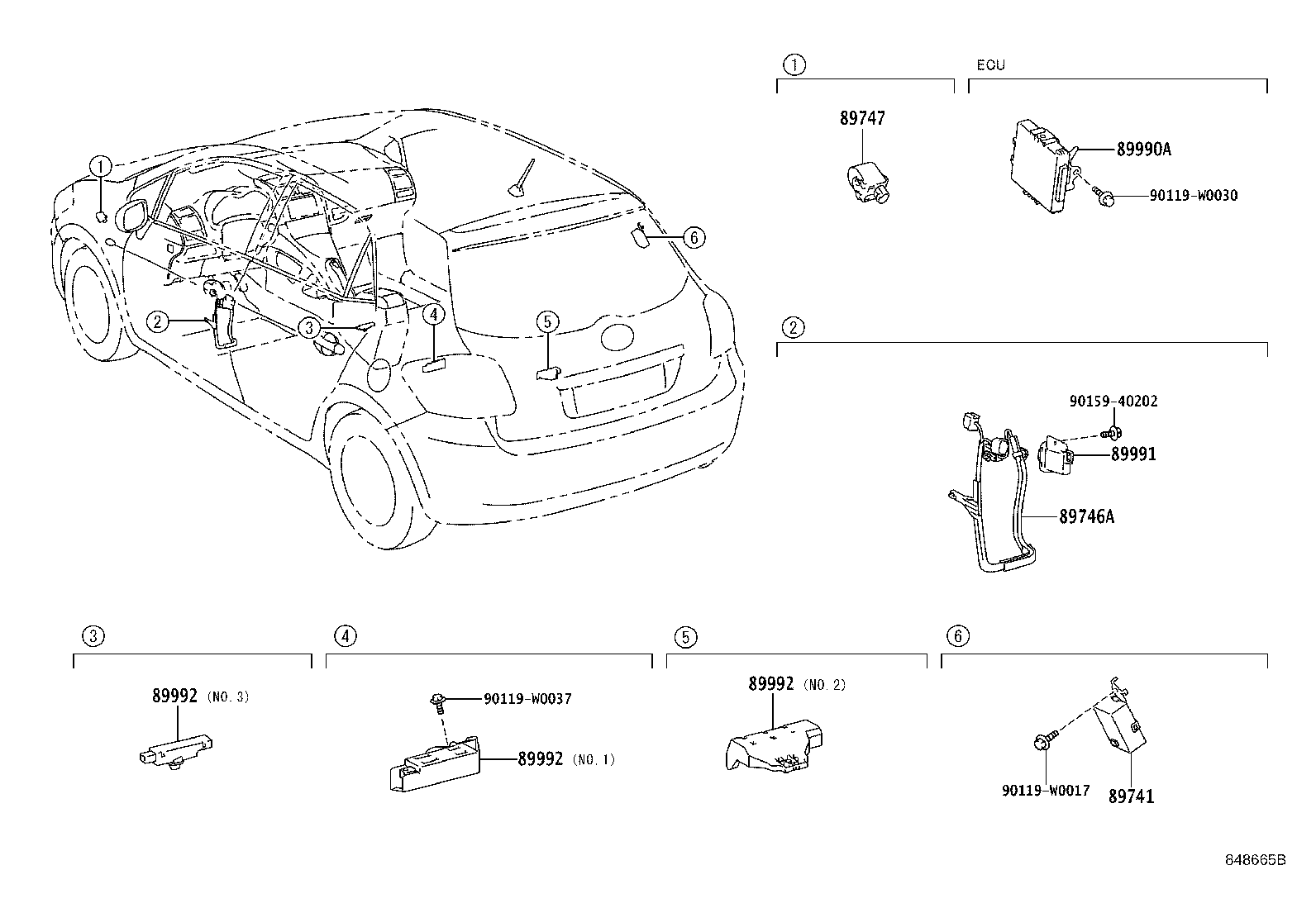

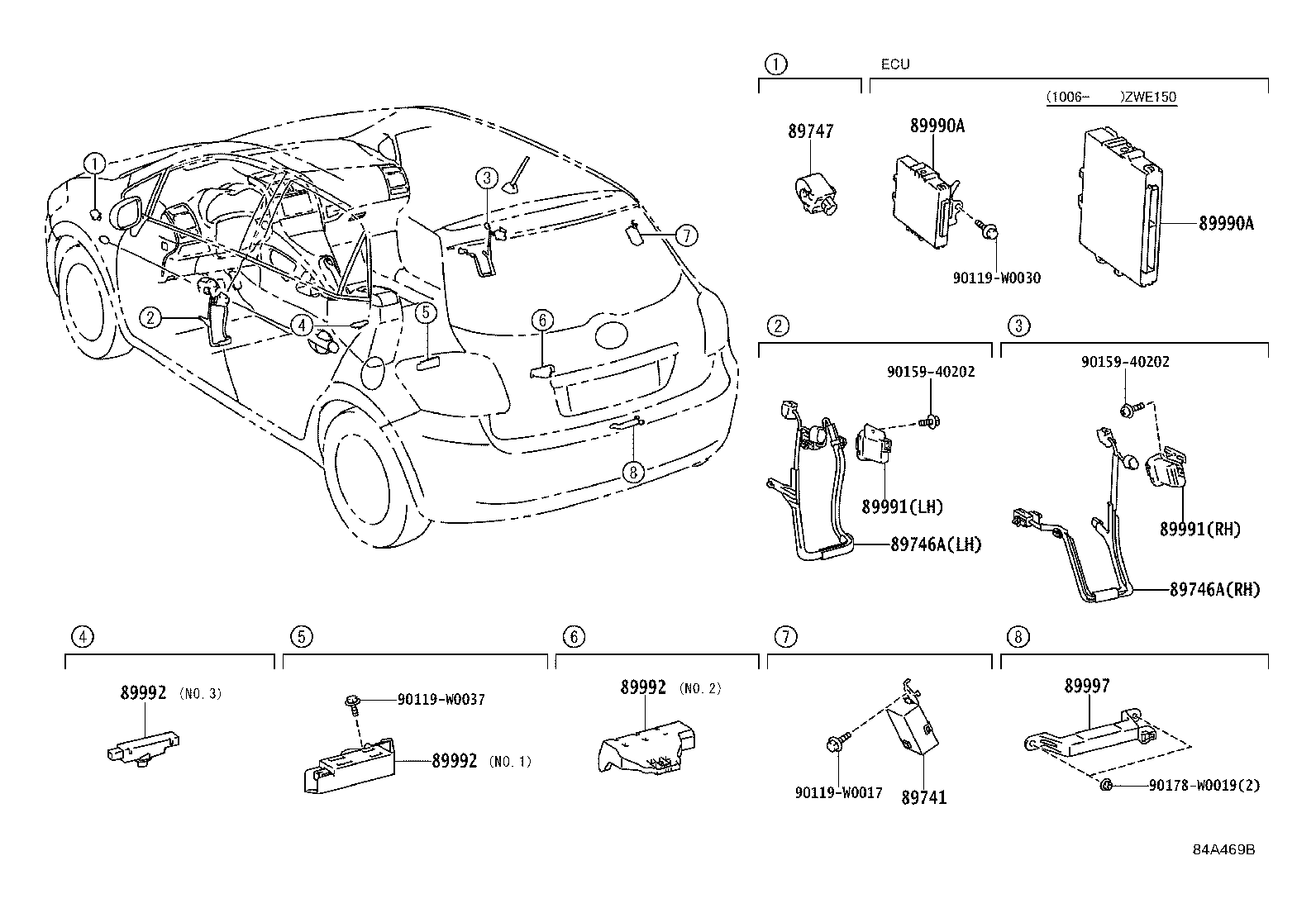

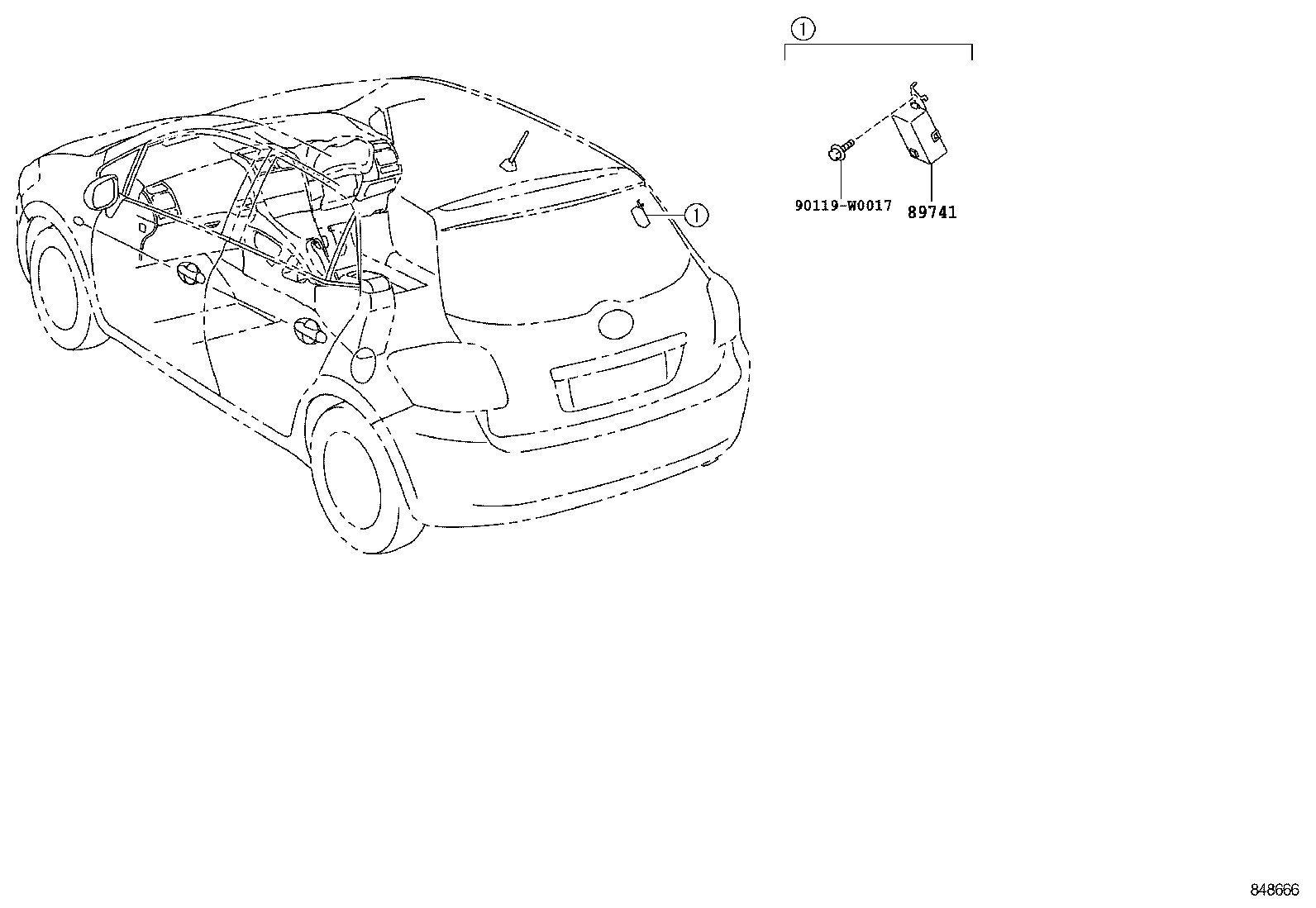

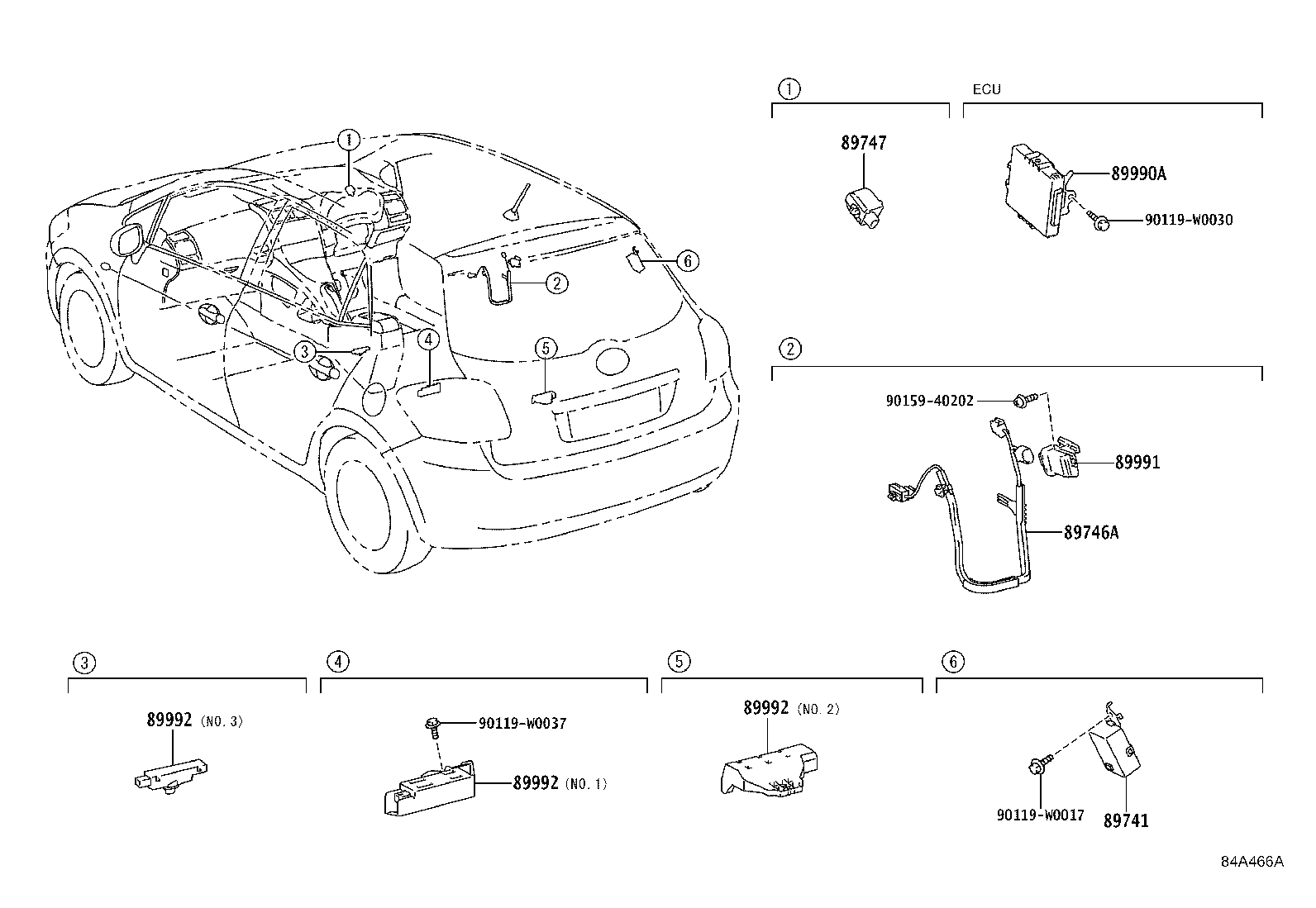

Figure 848664 848664 2007-02 → — Figure 848666 848666 2007-02 → — Figure 848665B 848665B 2007-02 → 2009-02 Figure 848665B 848665B 2007-02 → 2009-03 Figure 84A466A 84A466A 2007-02 → 2009-02 Figure 84A466A 84A466A 2007-02 → 2009-03 Figure 84A469B 84A469B 2009-02 → — Figure 84A469B 84A469B 2009-03 → — Figure 84A469B 84A469B 2010-06 → — Figure 84A470B 84A470B 2009-02 → — Figure 84A470B 84A470B 2009-03 → — Figure 84A470B 84A470B 2010-06 → —

Part groups

PNCDescription
89741 Receiver, Door Control
89746A Harness, Electrical Key Wire
89747 Buzzer, Wireless Door Lock
89990A Computer Assy, Smart Key
89991 Oscillator, Door Electrical Key
89992 Oscillator, Indoor Electrical Key
89997 Antenna, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
