Toyota Auris/Hybrid (UKP)
2007-02 → 2013-05 · chassis ADE15#,NDE150,NRE150,ZRE15#,ZZE150,ZWE150 · catalogue 166510 · Europe
Supported model
Data version 2014-01

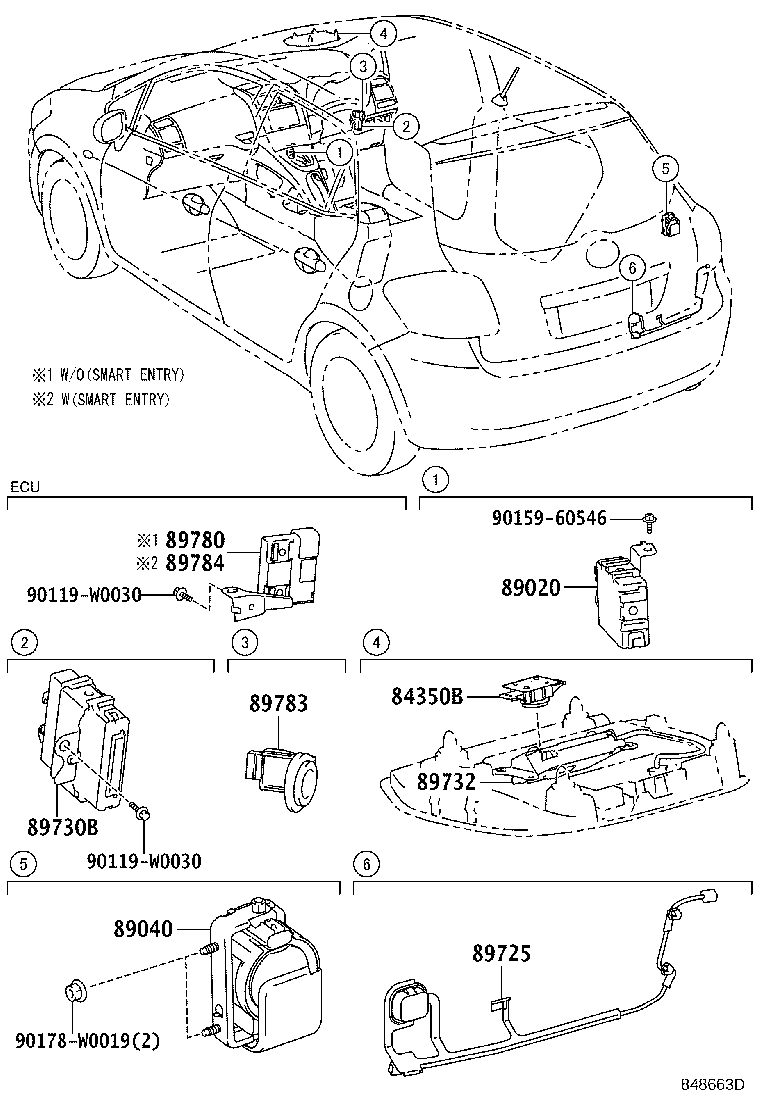

Anti-theft Device
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84350B | Switch Assy, Theft Warning Sensor |
| 89020 | Computer Assy, Glass Breakage Sensor |
| 89040 | Siren Assy, Theft Warning |
| 89725 | Microphone, Glass Breakage Sensor |
| 89730B | Computer Assy, Theft Warning |
| 89732 | Sensor, Theft Warning Radar |
| 89780 | Computer Assy, Transponder Key |
| 89783 | Amplifier, Transponder Key |
| 89784 | Computer, Immobilizer Code |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
